Seat Temperature Element

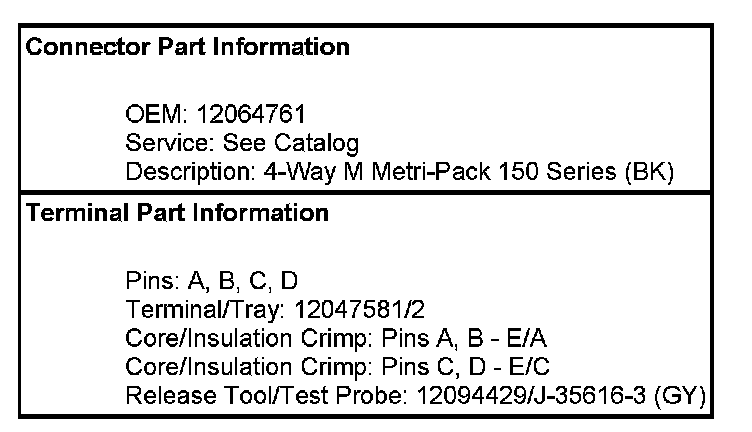

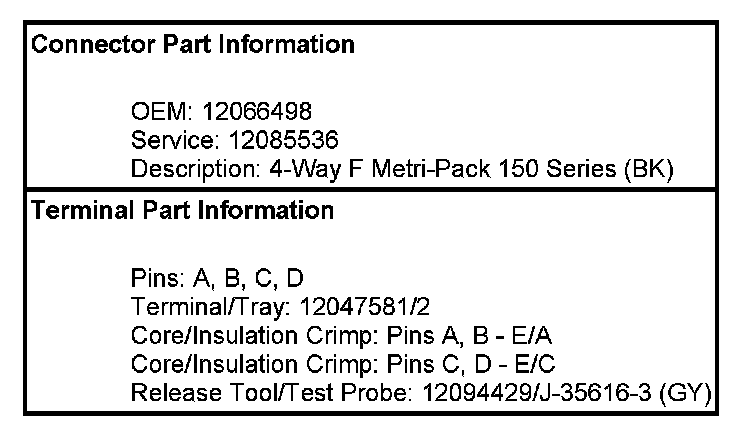

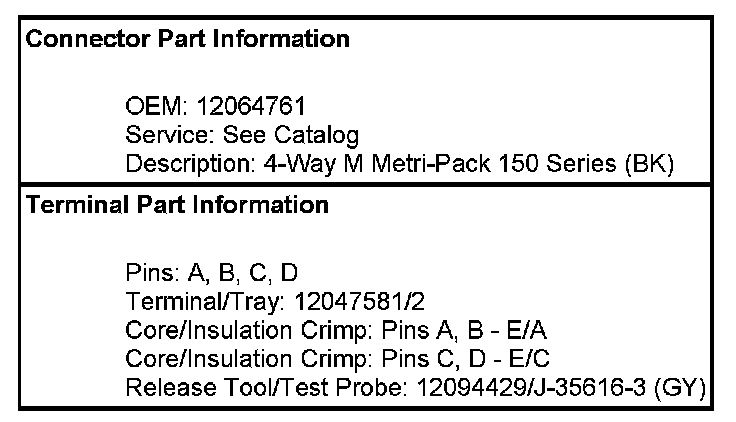

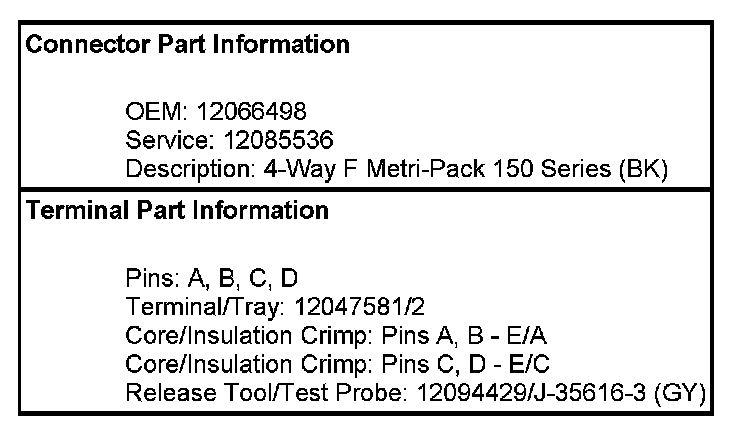

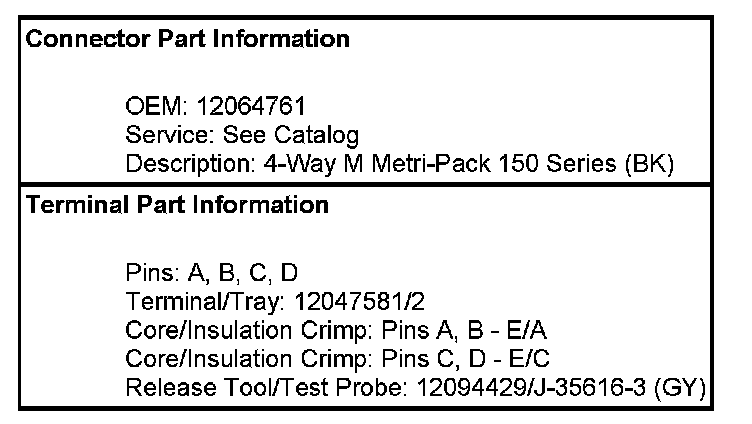

Heated/Cooled Seat Connector End Views

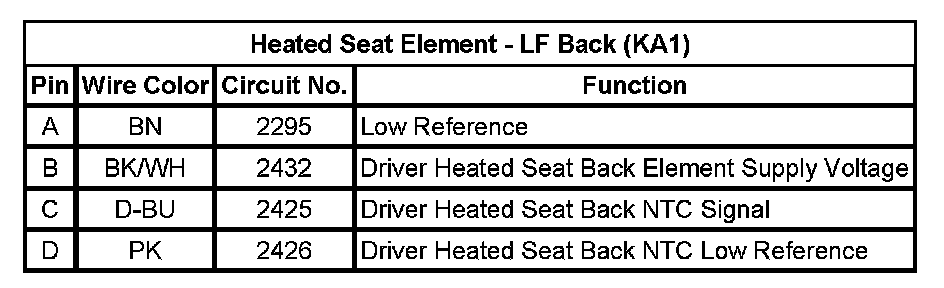

Heated Seat Element - LF Back (KA1)

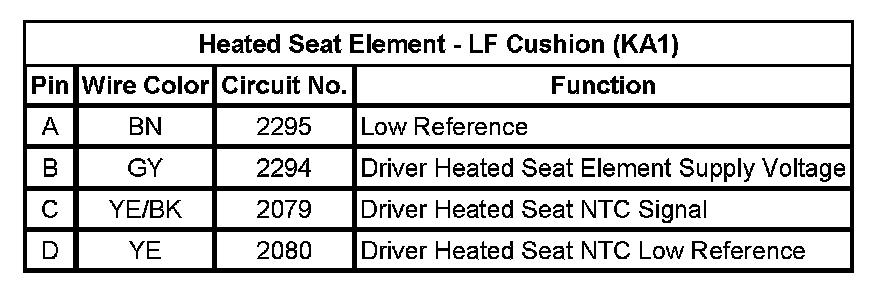

Heated Seat Element - LF Cushion (KA1)

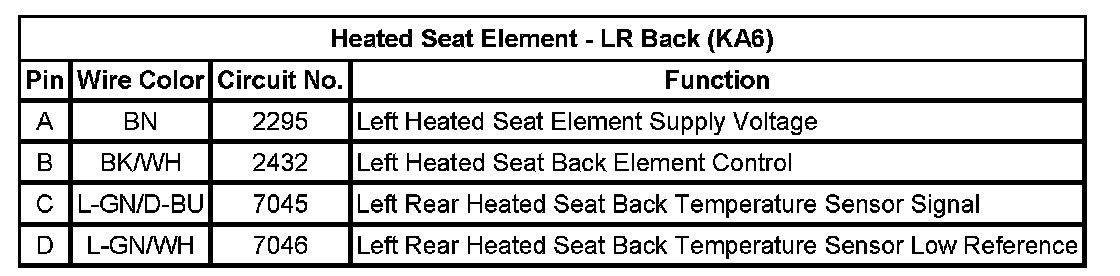

Heated Seat Element - LR Back (KA6)

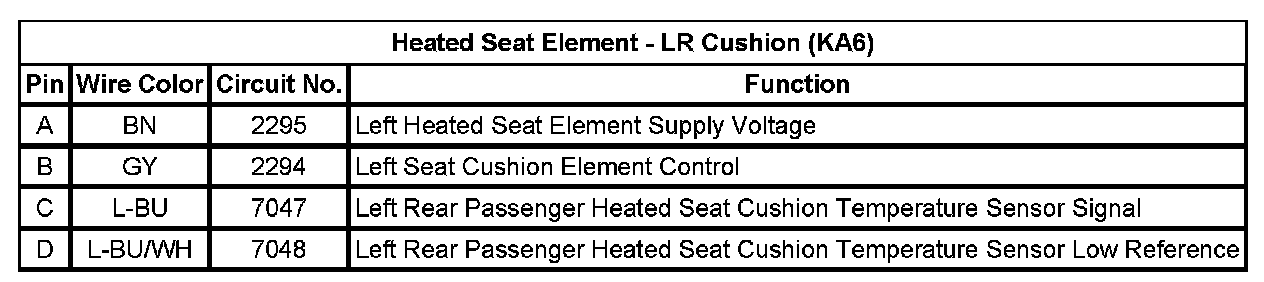

Heated Seat Element - LR Cushion (KA6)

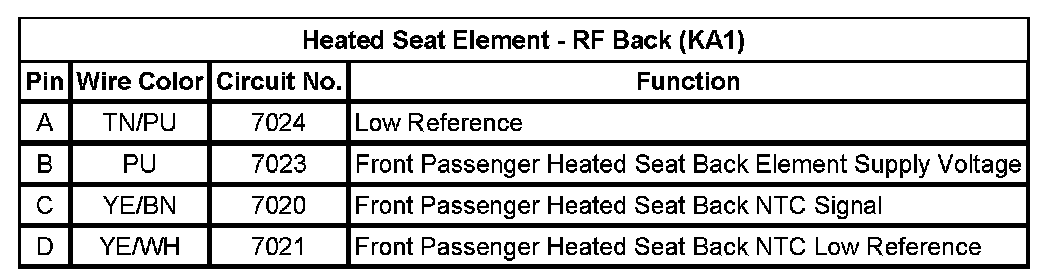

Heated Seat Element - RF Back (KA1)

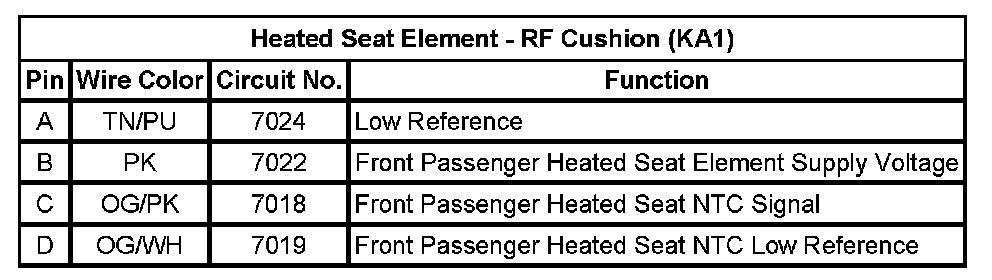

Heated Seat Element - RF Cushion (KA1)

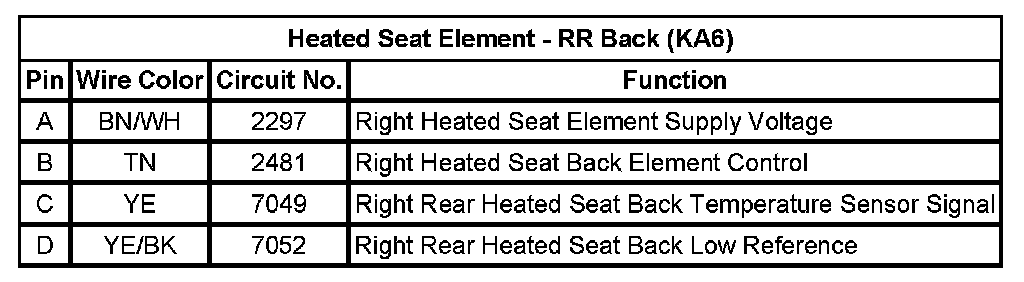

Heated Seat Element - RR Back (KA6)

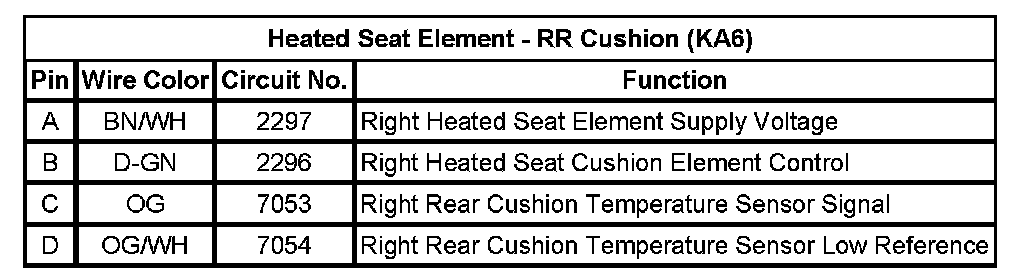

Heated Seat Element - RR Cushion (KA6)
