Seat Temperature Switch

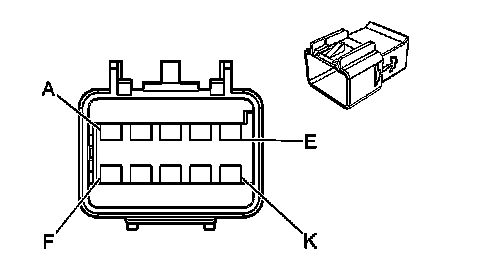

Heated/Cooled Seat Connector End Views

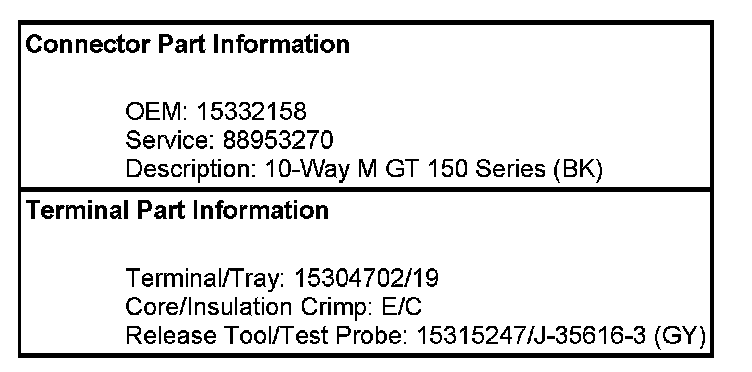

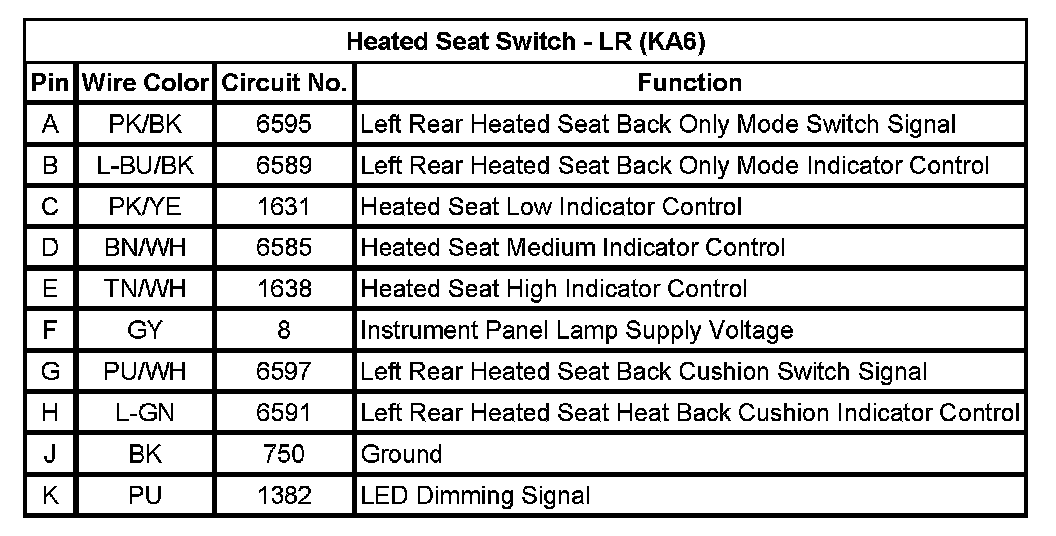

Heated Seat Switch - LR (KA6)

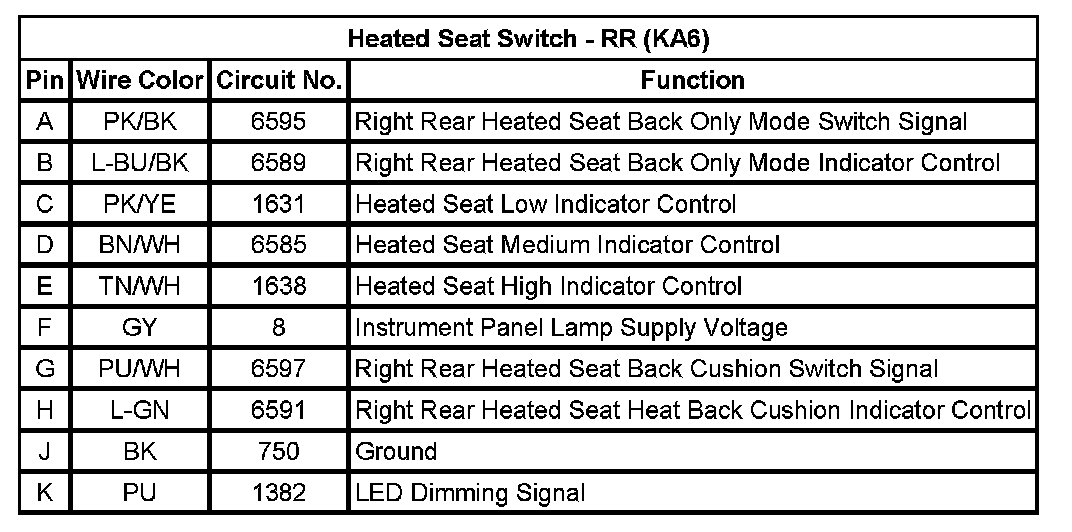

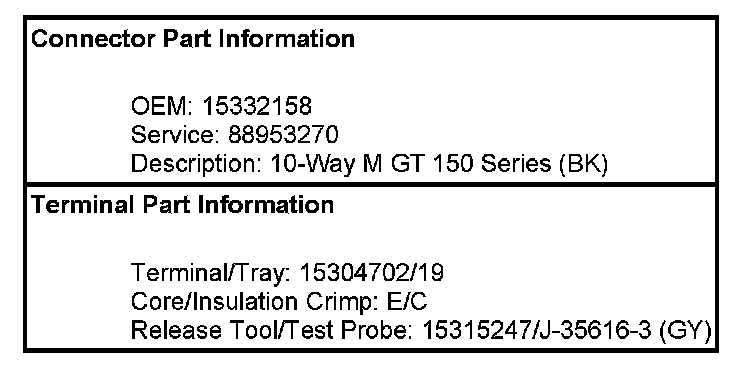

Heated Seat Switch - RR (KA6)
