Automatic Level Control



Automatic Level Control Module (FE1)

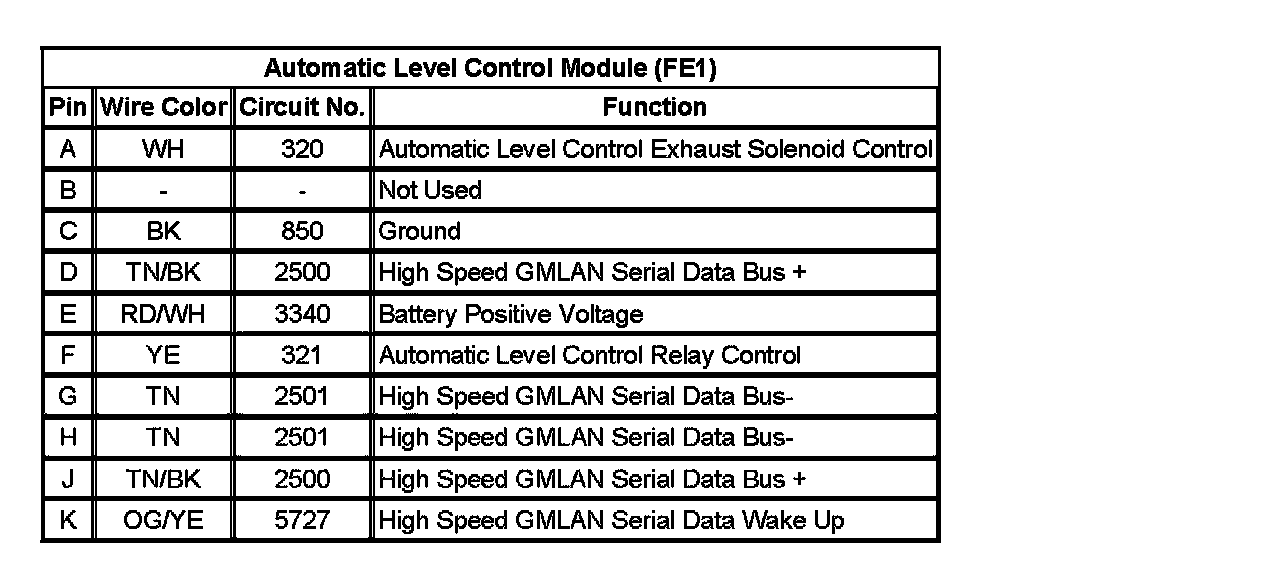

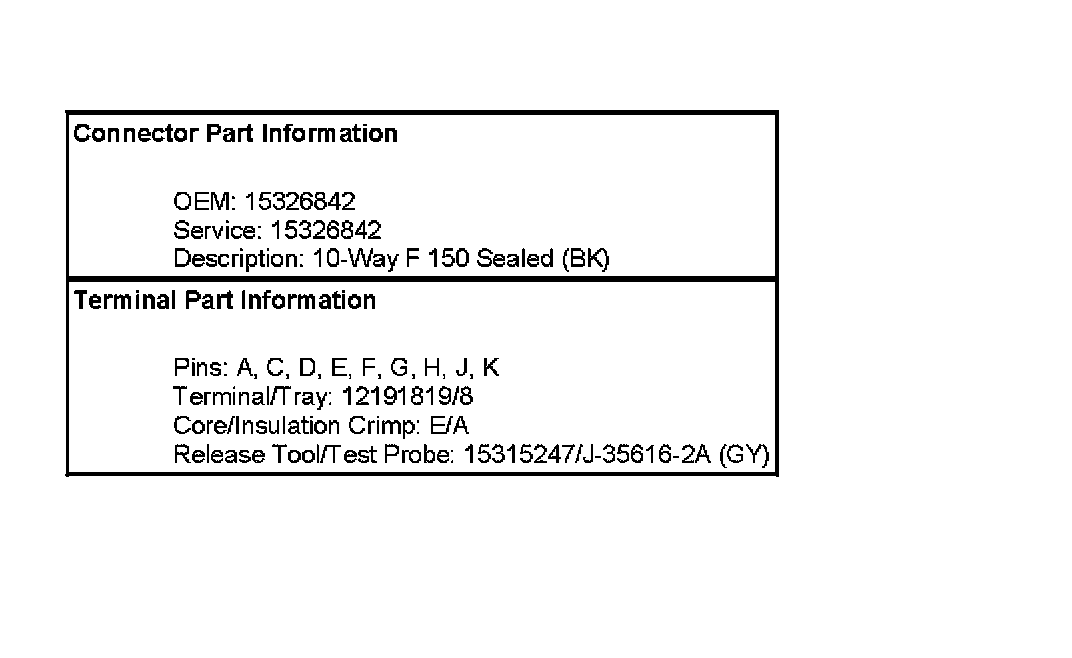

Automatic Level Control Module (FE1):
