Vanity Lamp



Lighting Systems Connector End Views

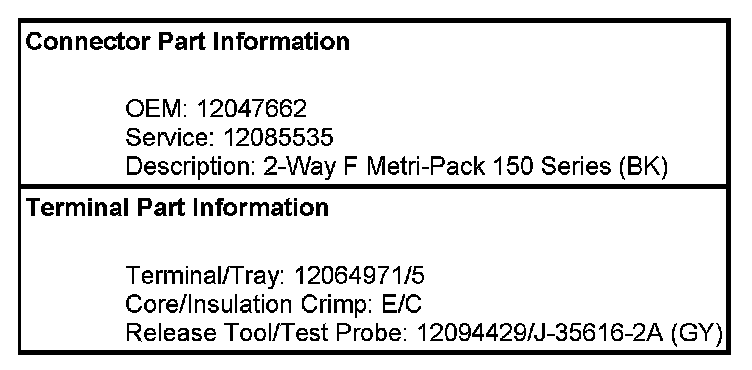

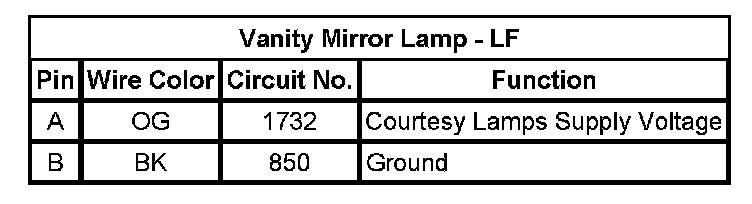

Vanity Mirror Lamp - LF

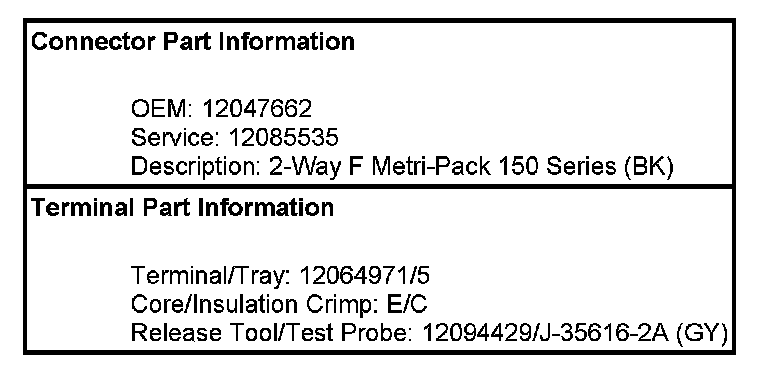

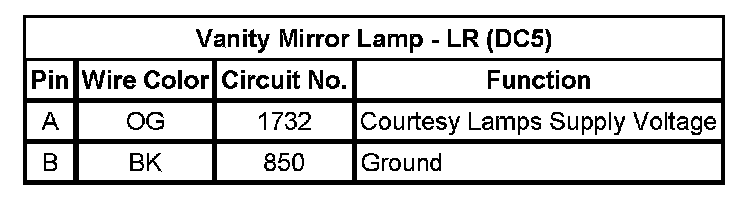

Vanity Mirror Lamp - LR (DC5)

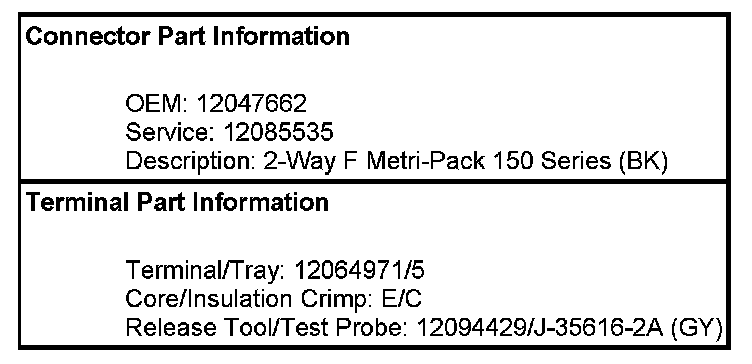

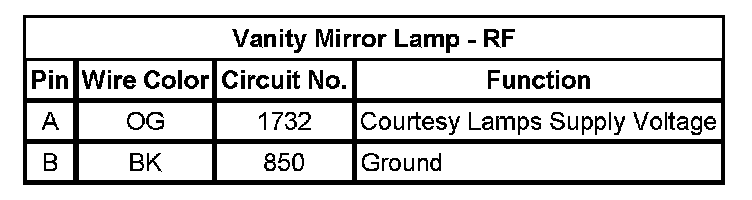

Vanity Mirror Lamp - RF

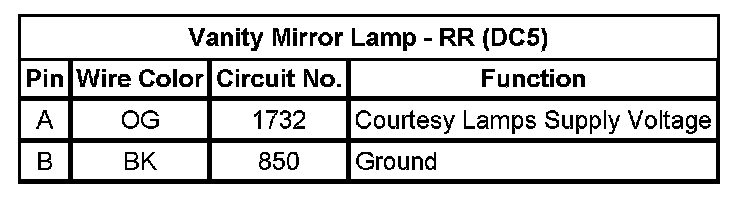

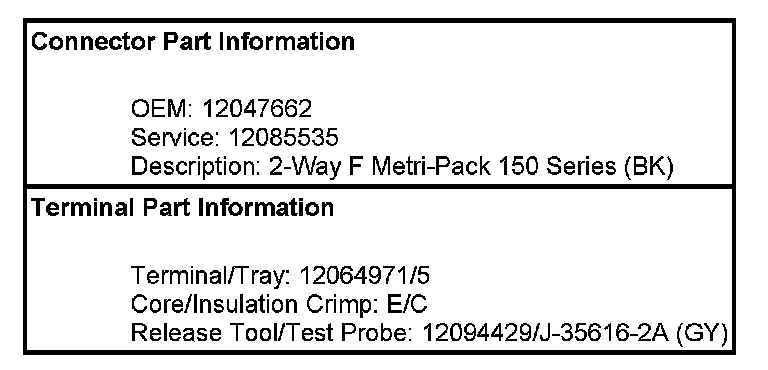

Vanity Mirror Lamp - RR (DC5)
