Door Module
Door Control Module Schematics

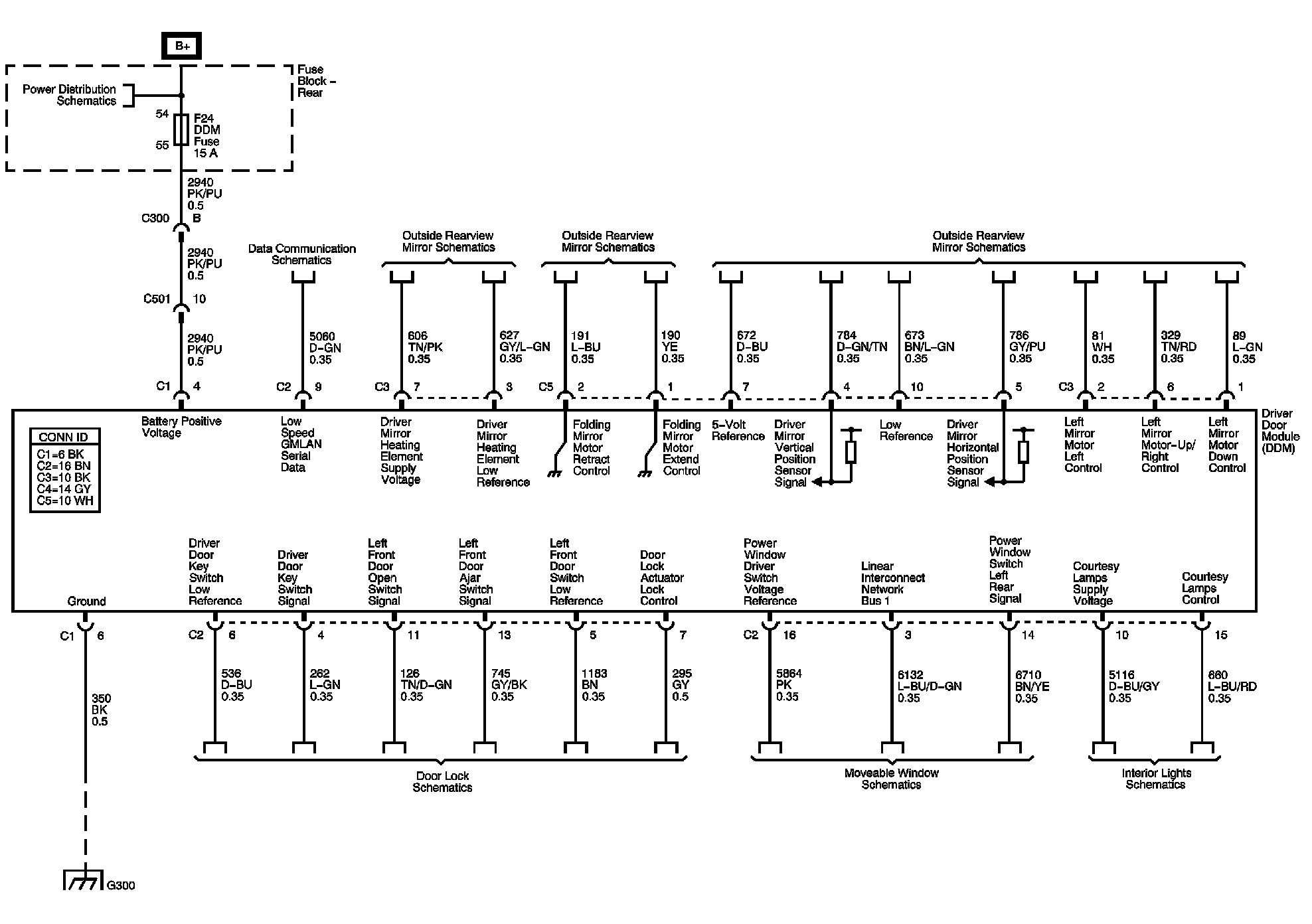

Driver Door Module (DDM)

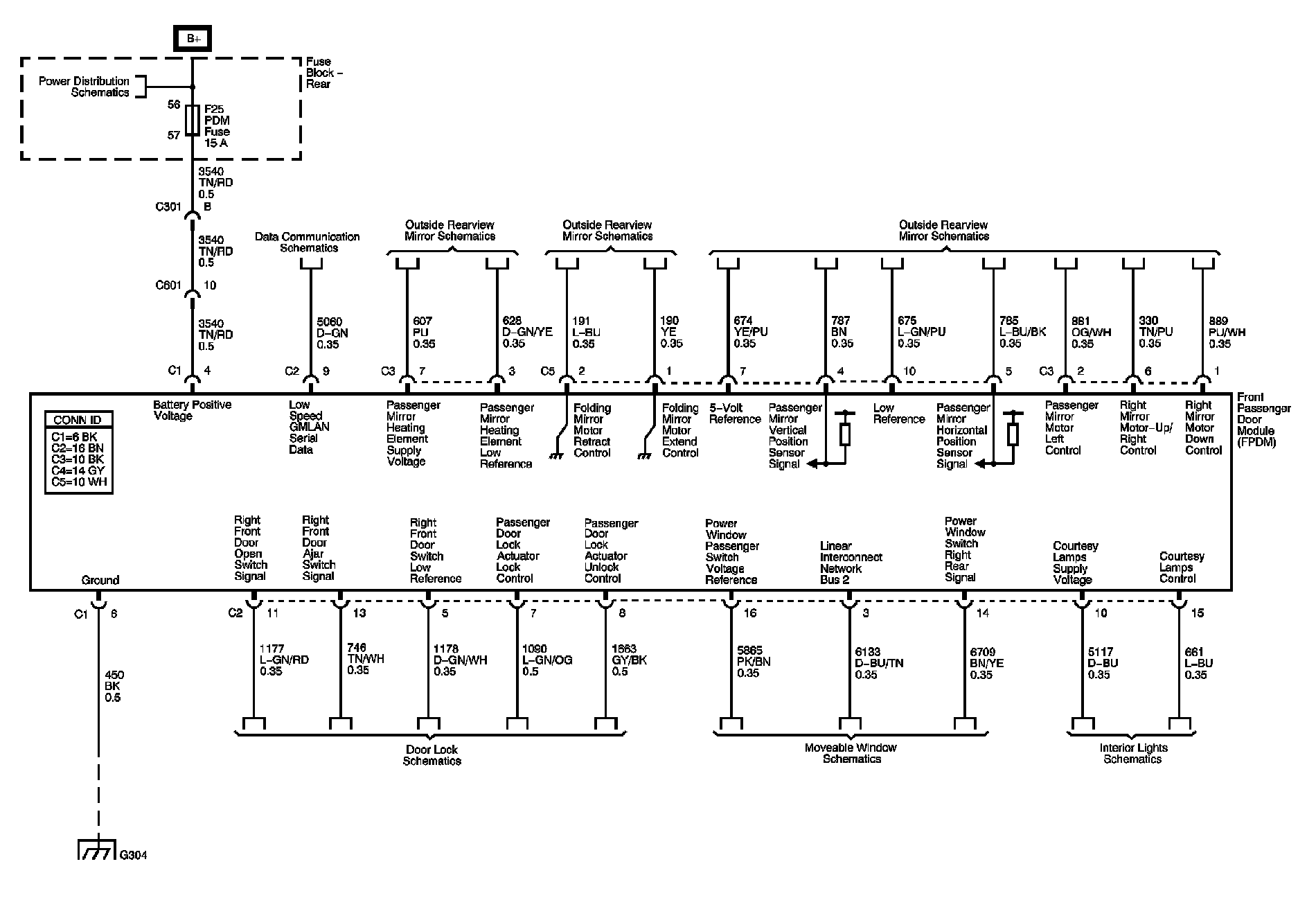

Passenger Door Module (PDM)
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
