Information Bus

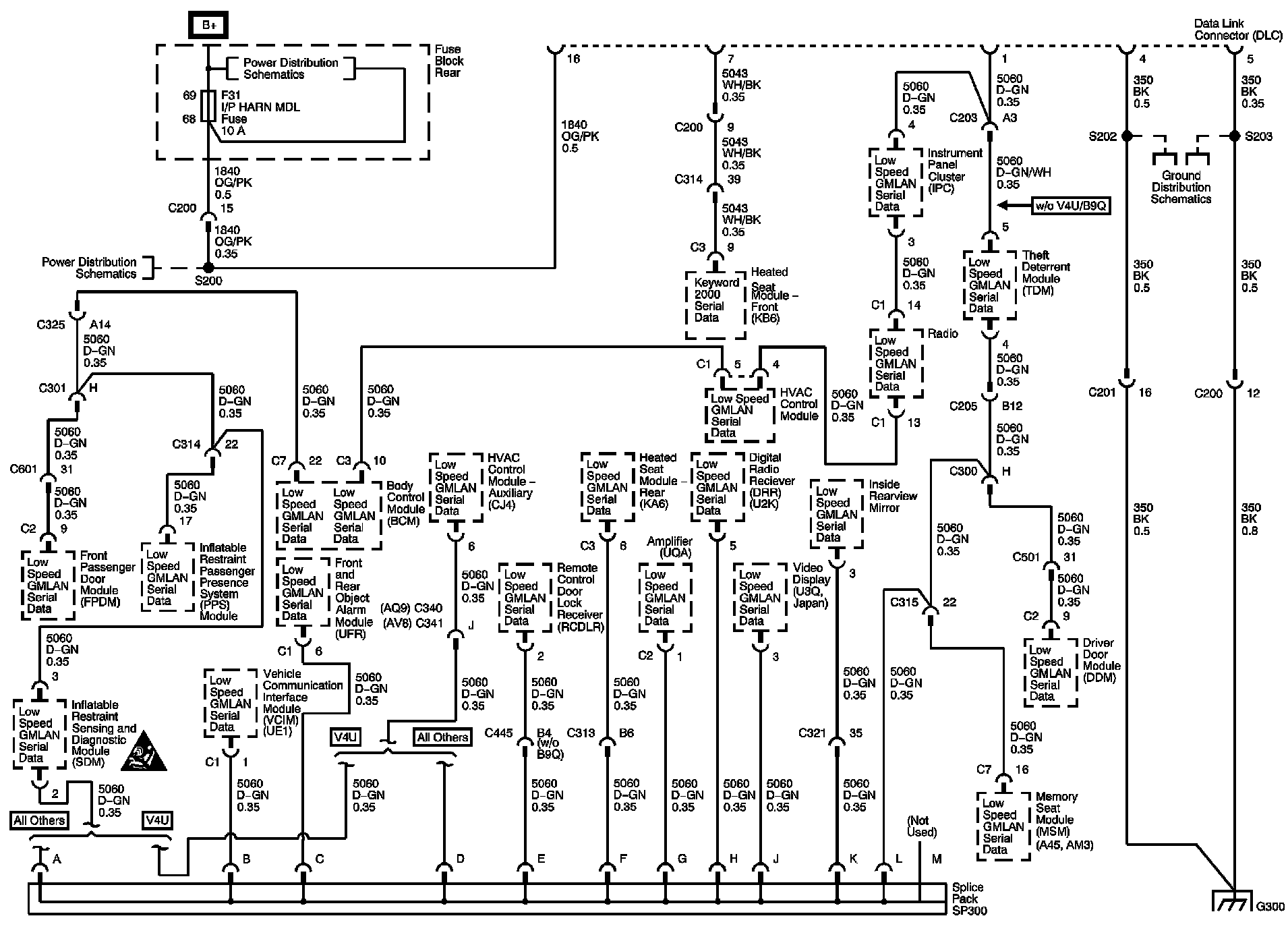

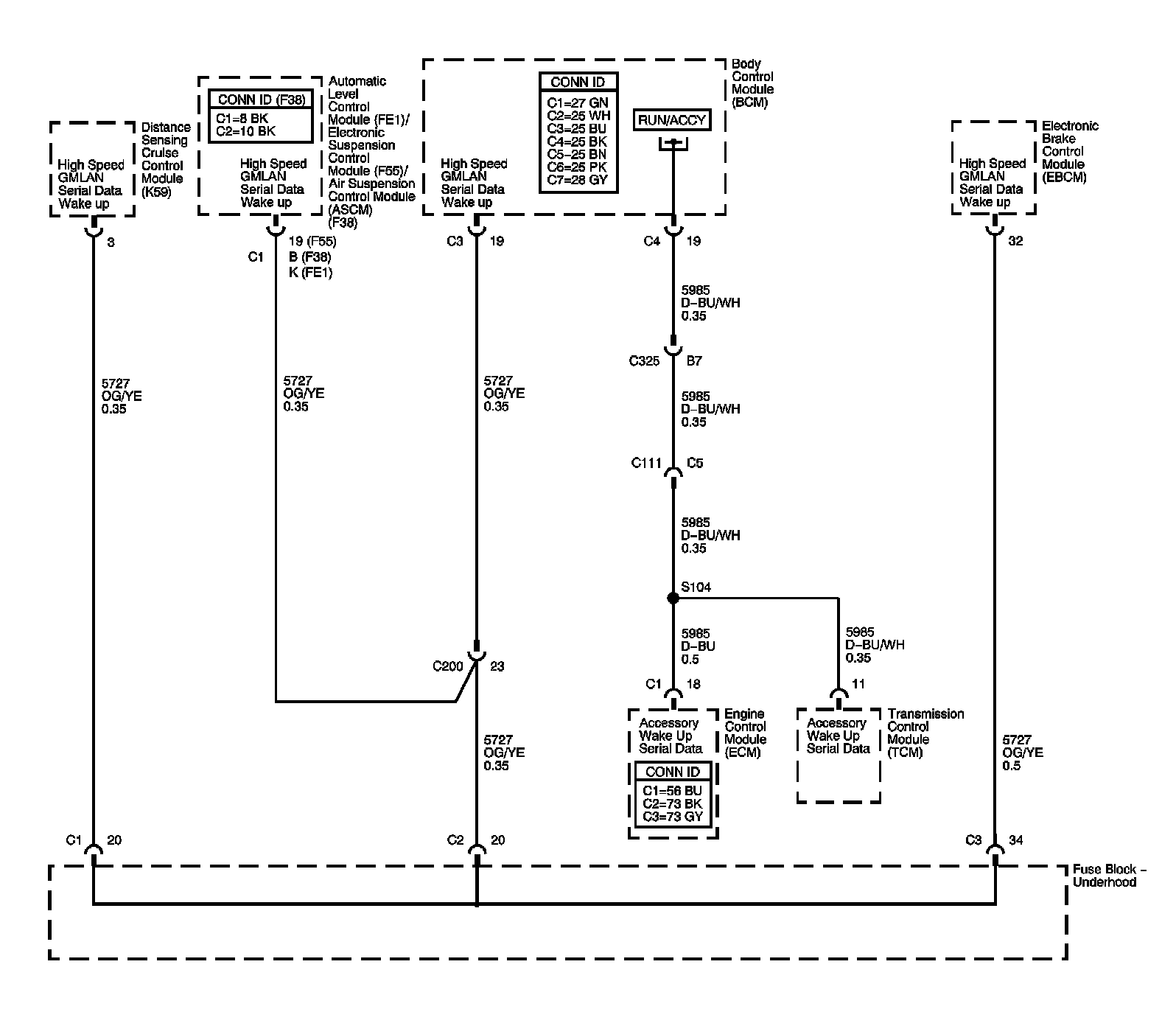

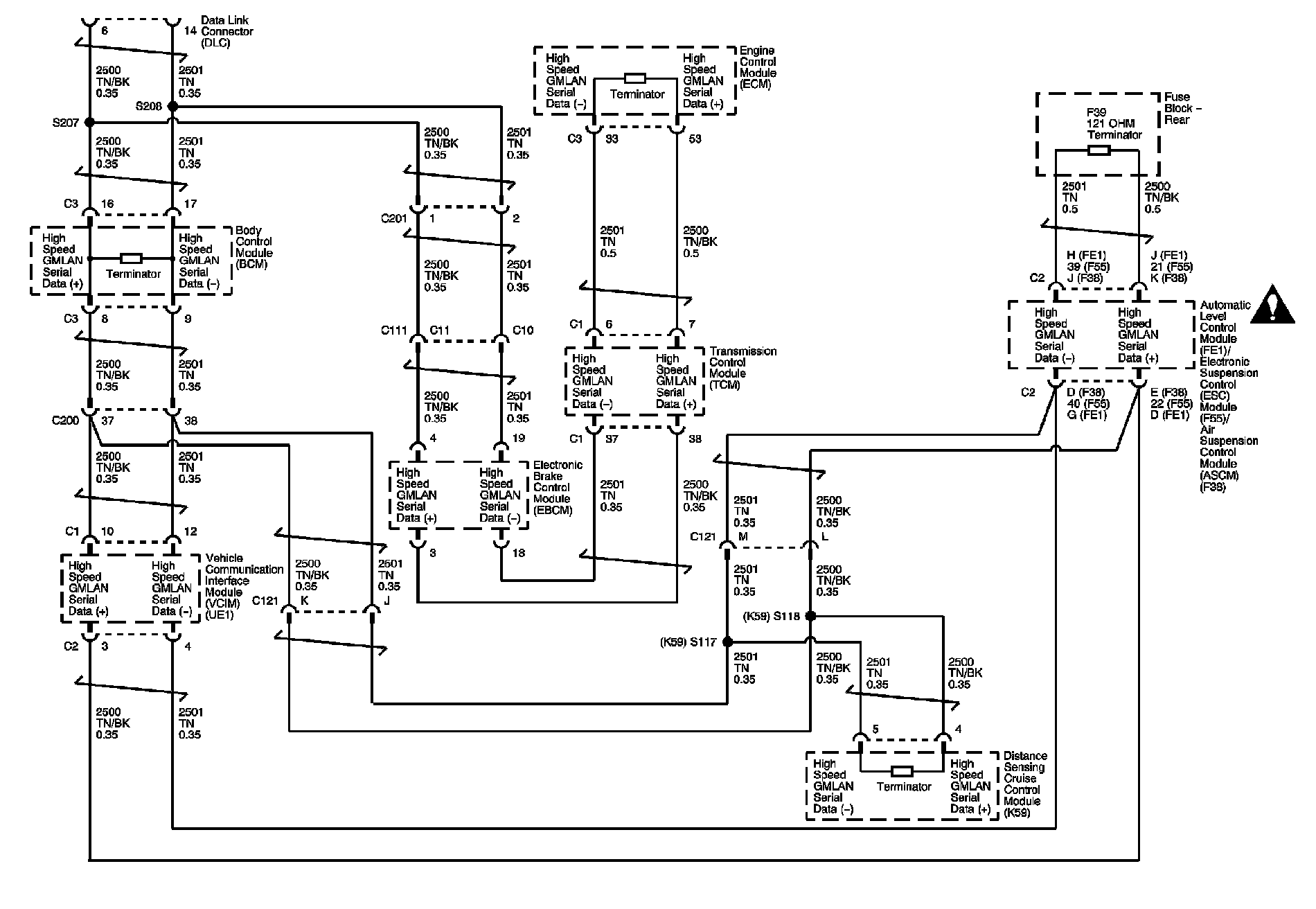

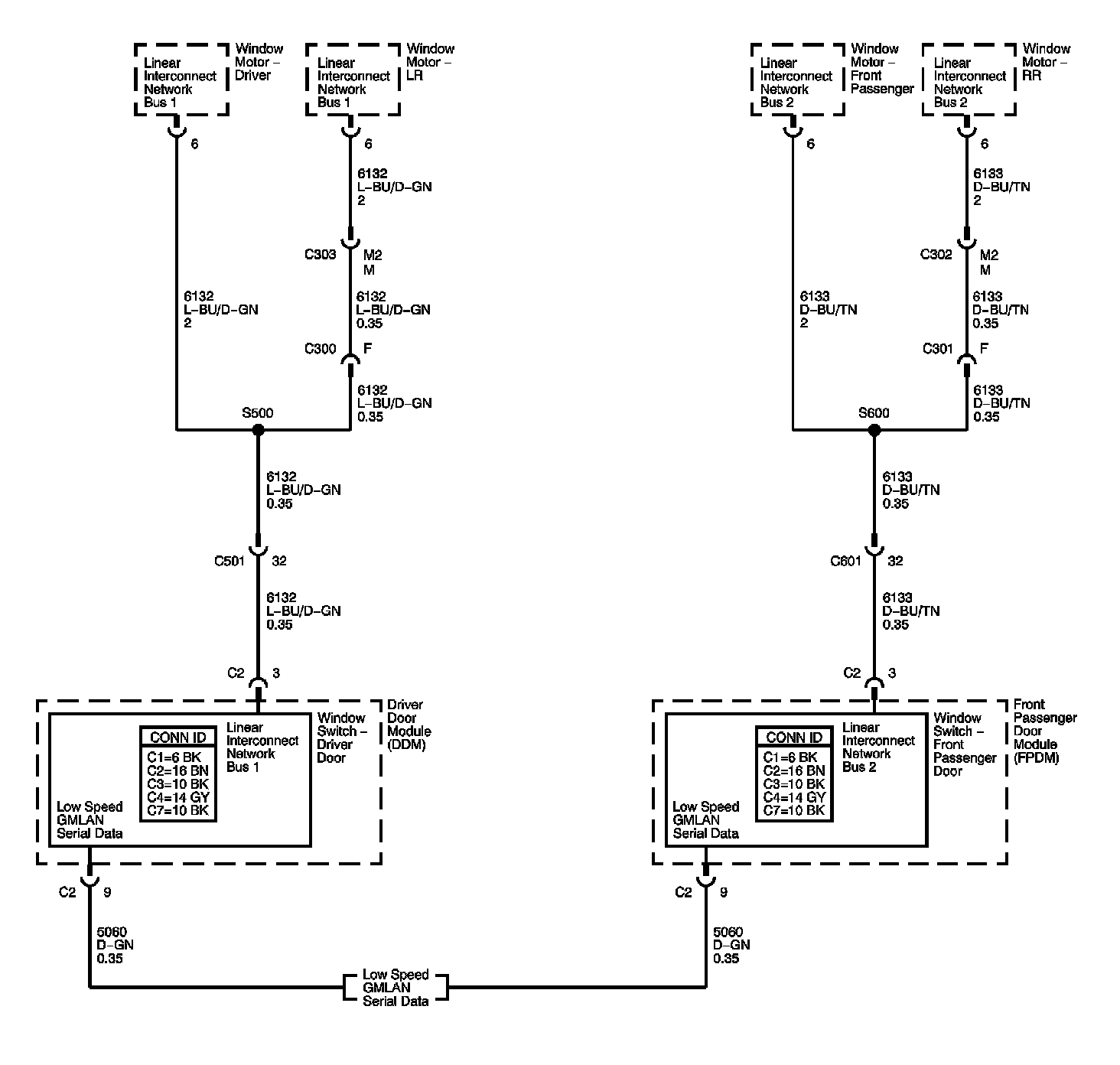

Data Communication SchematicsDLC Power Ground and Low Speed GMLANDLC High Speed Serial DataDLC High Speed Serial Data Wake UpLocal Interconnect Network (LIN)Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
