Water Pump Replacement



Water Pump Replacement

Removal Procedure




1. Remove the water pump housing.

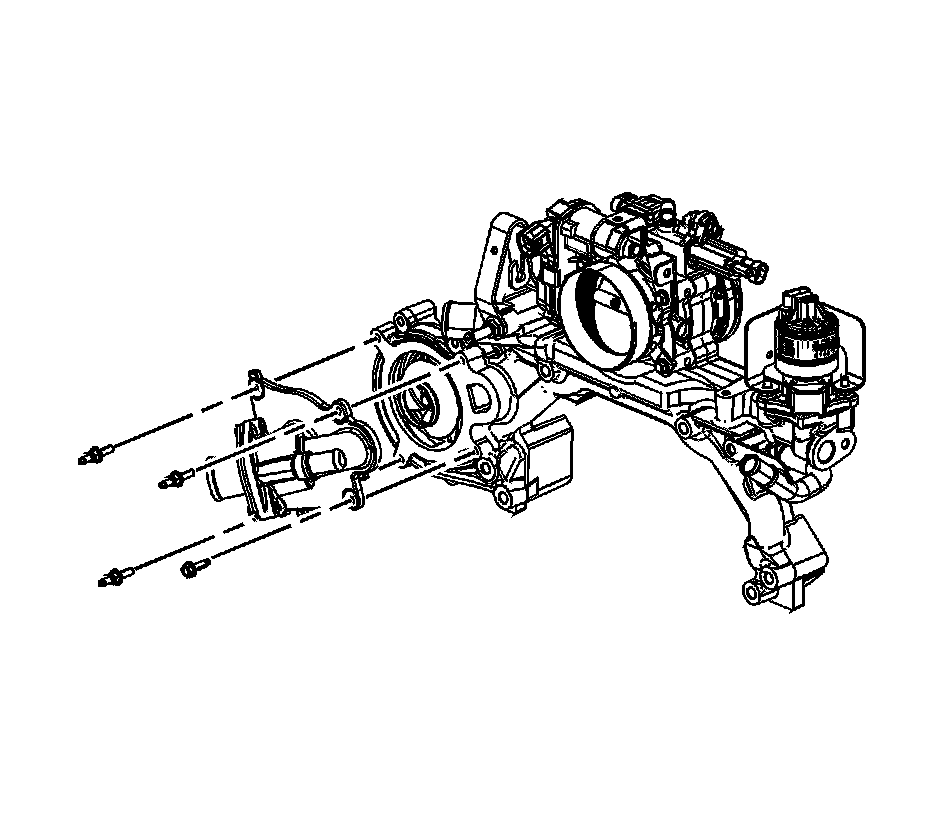

2. Remove the water pump cover bolt/studs.
3. Remove the water pump cover.

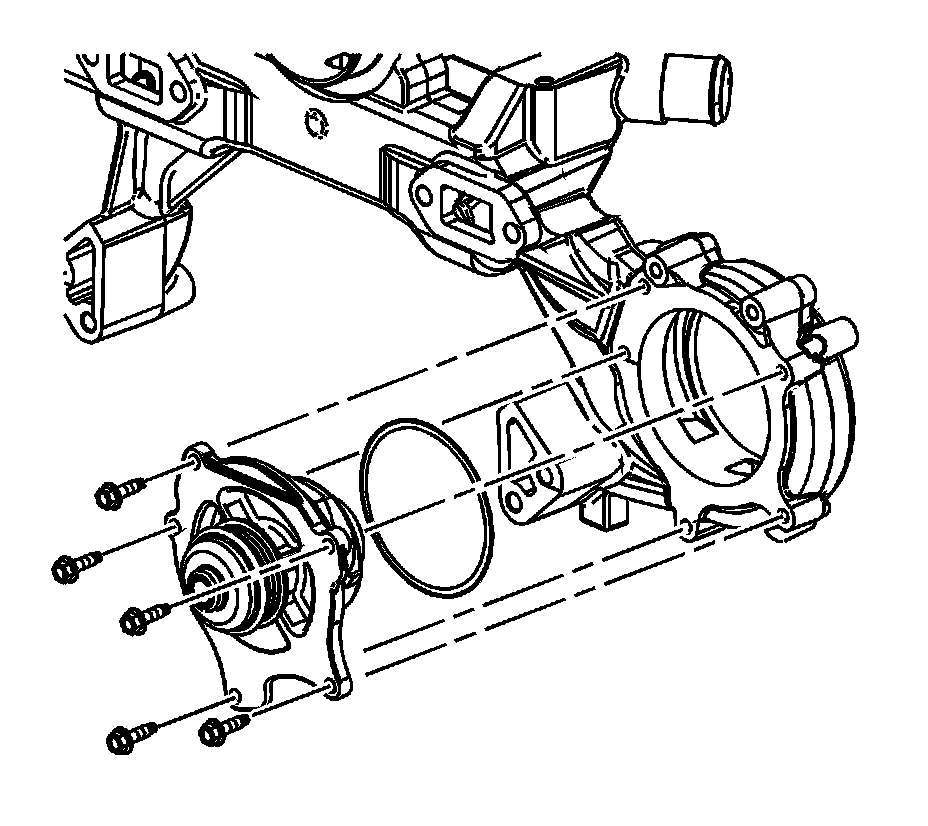

4. Remove the water pump bolts.
5. Remove the water pump.

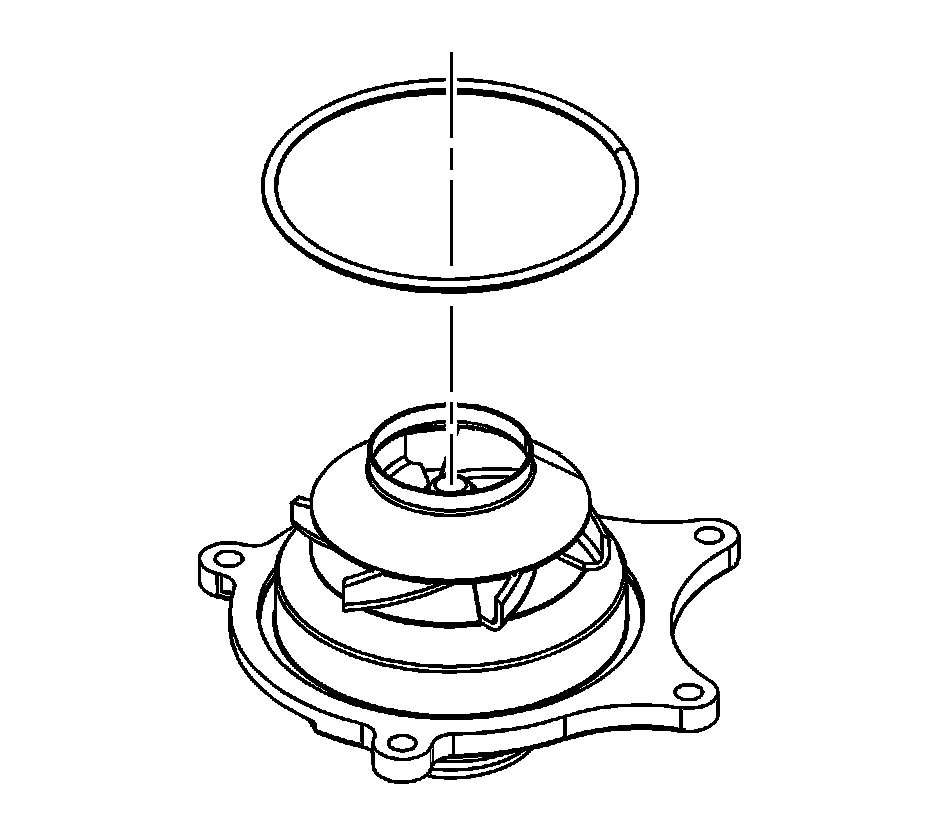

6. Remove and discard the water pump O-ring seal.

Installation Procedure




1. Install a NEW water pump O-ring seal.




2. Install the water pump.

Notice: Refer to Fastener Notice.

3. Install the water pump bolts.

Tighten the bolts to 10 N.m (89 lb in).




4. Install the water pump cover.

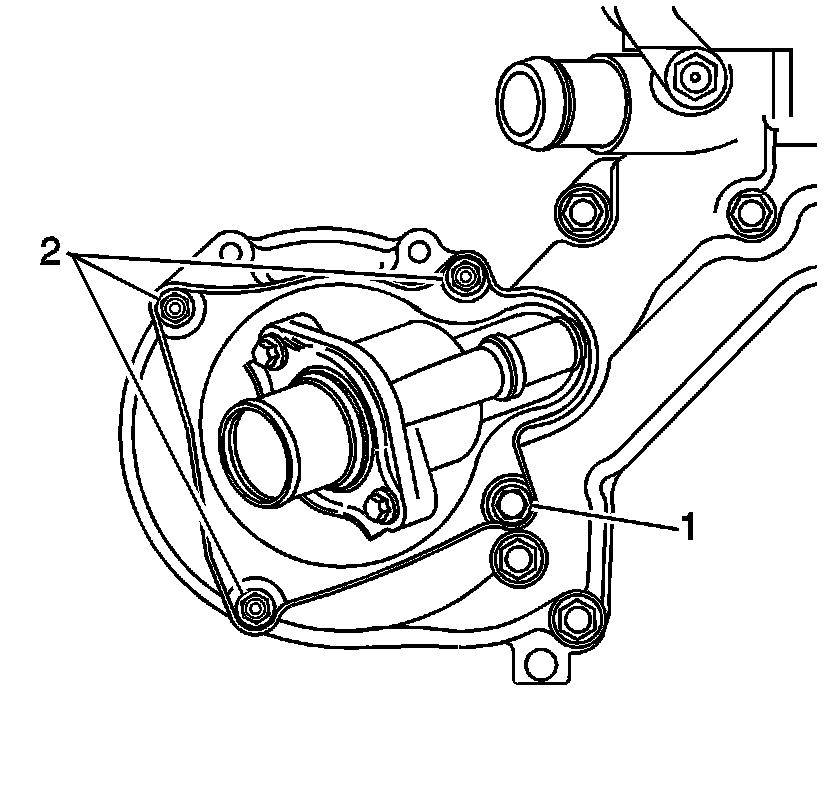

Important: Ensure that the bolt is installed in the lower inboard position (1) and the studs are installed in the remaining positions (2).

5. Install the water pump cover bolt/studs.

Tighten the bolt/studs to 10 N.m (89 lb in).

6. Install the water pump housing.
