Console Views



Harness Routing Views

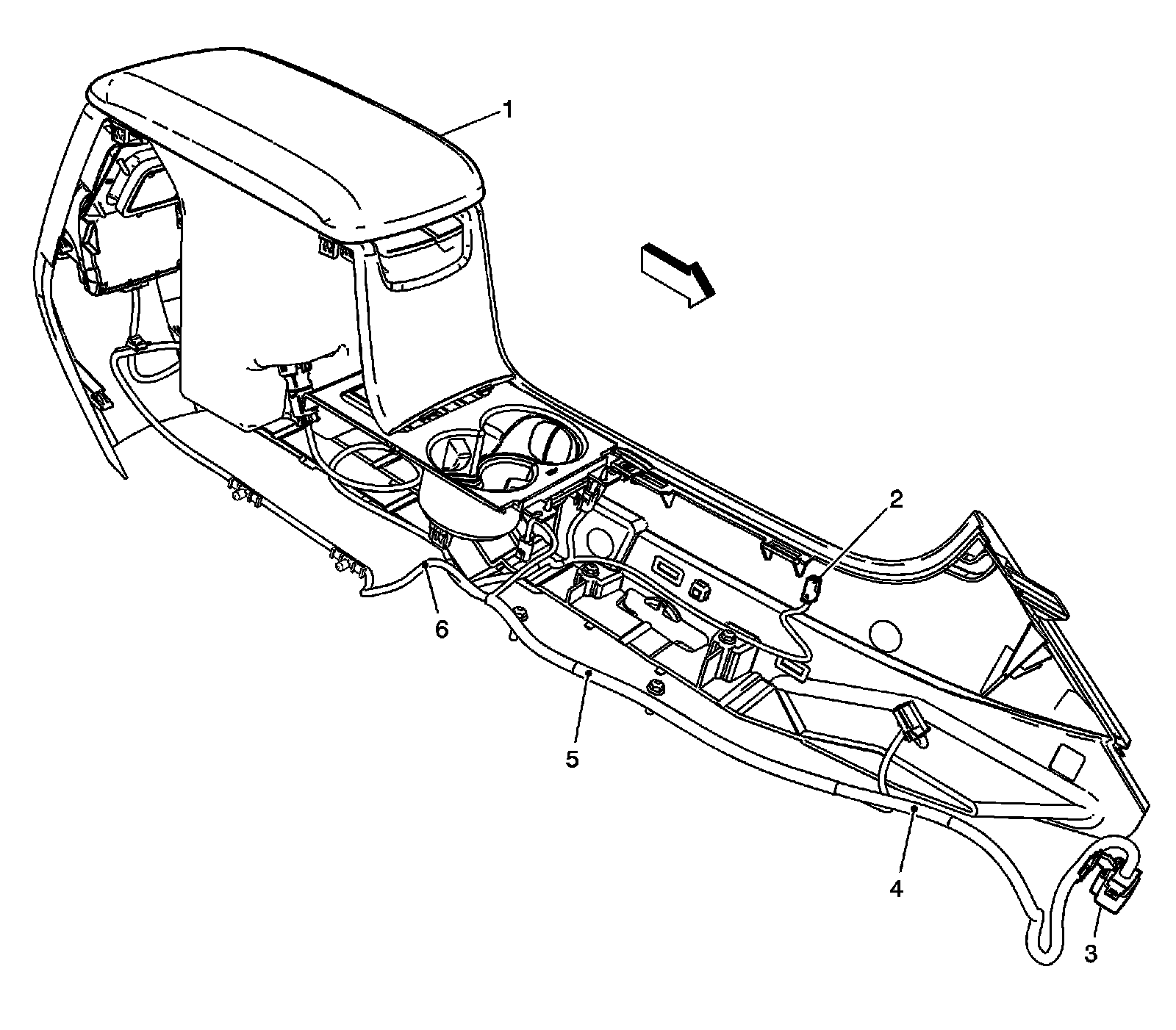

Console Harness




1 - Arm Rest
2 - Traction Control Switch Connector
3 - C340
4 - S369
5 - S315
6 - S307
