Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

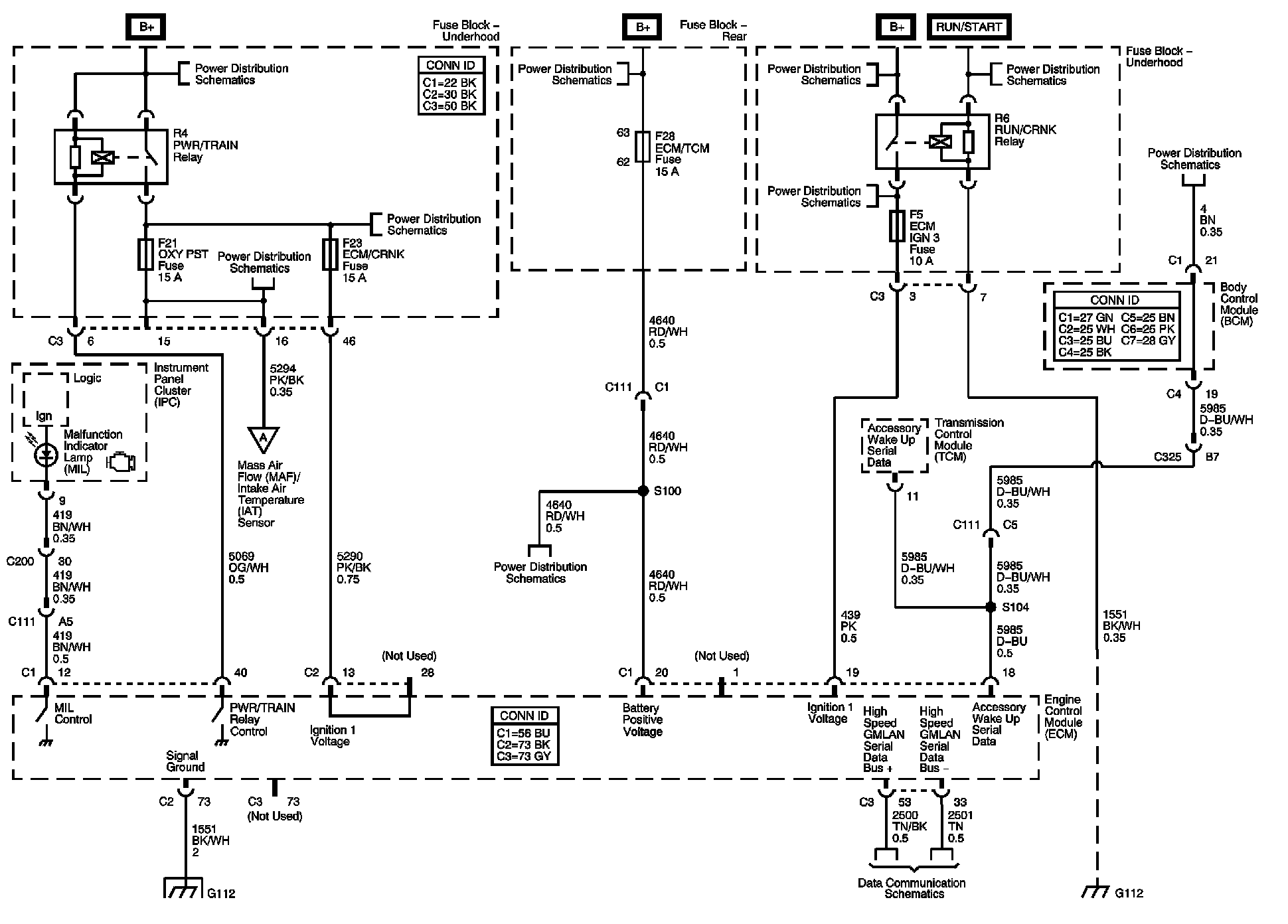

Power, Ground, MIL and DLC

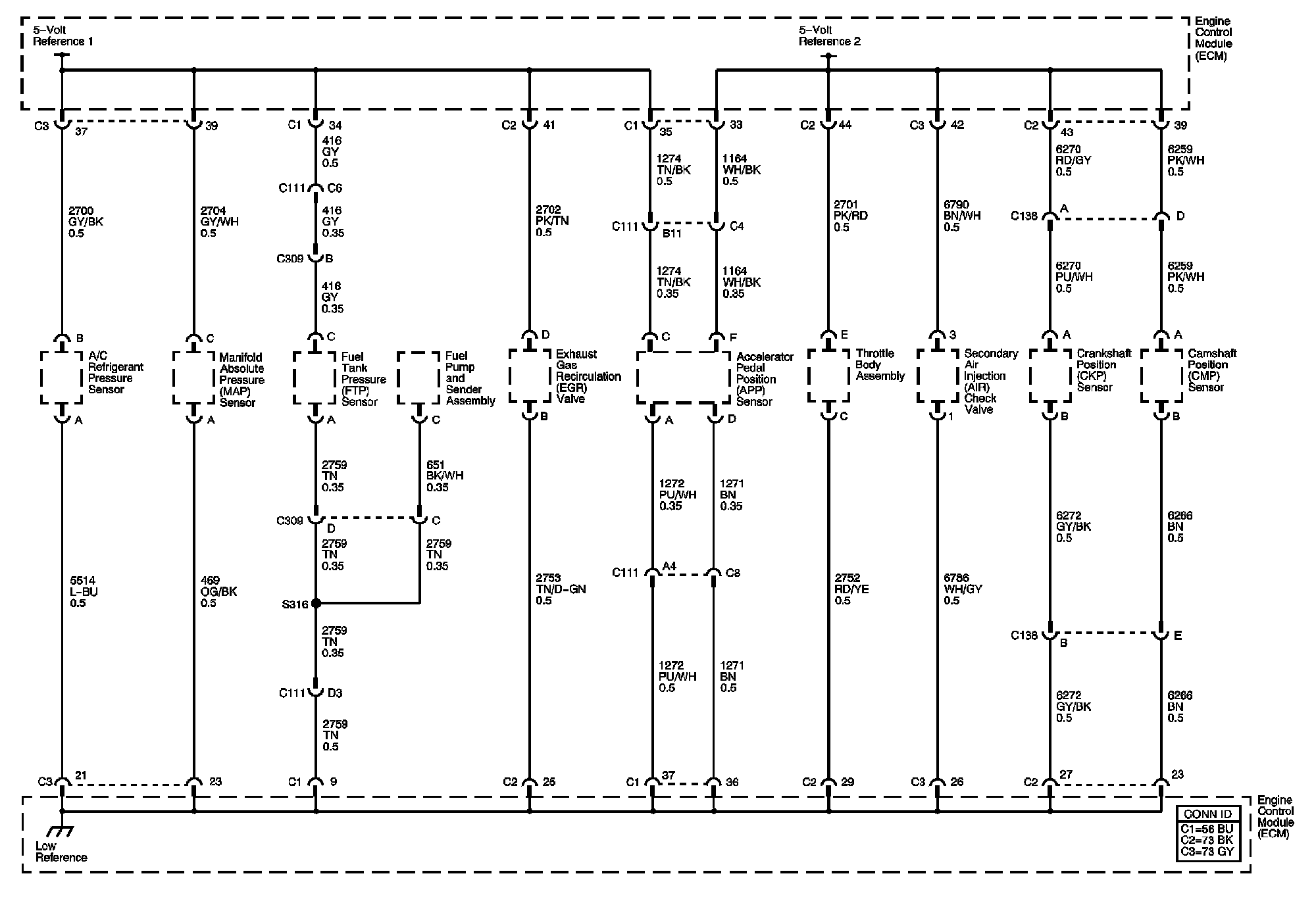

Engine Data Sensors, 5-Volt Reference Bussing

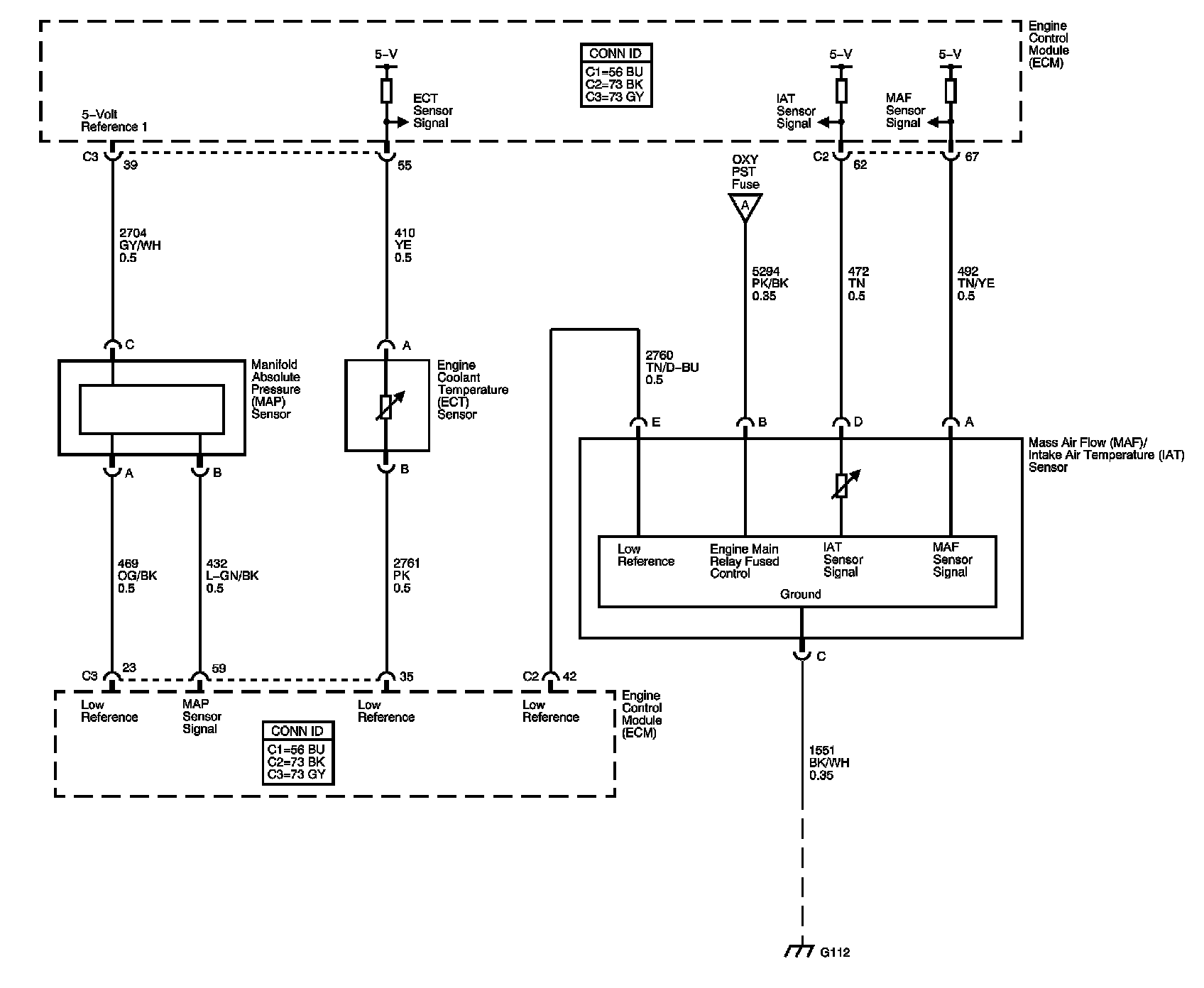

Engine Data Sensors - Pressure, Temp and MAF/IAT

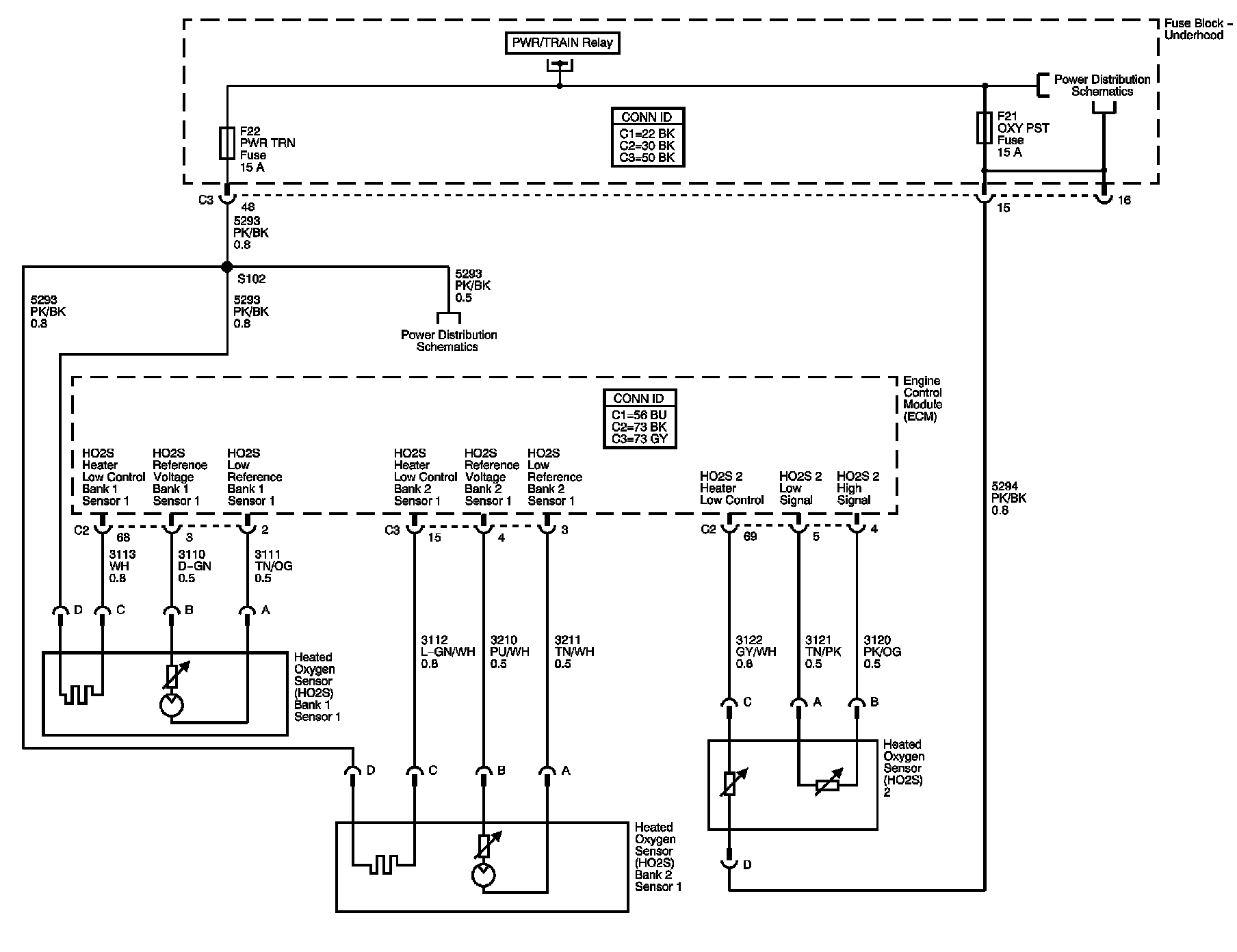

Engine Data Sensors, HO2S

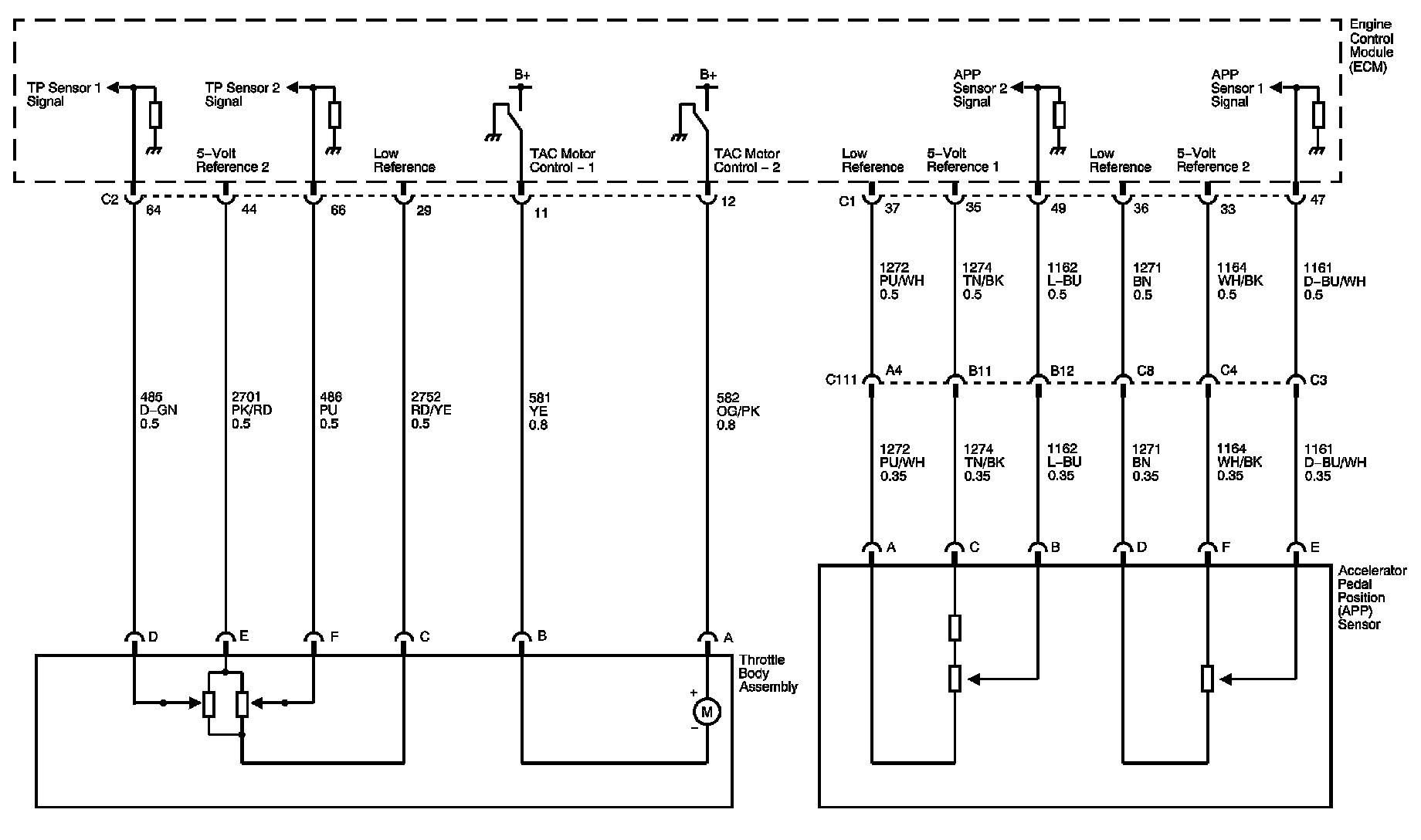

Engine Data Sensors, APP and Throttle Body Assembly

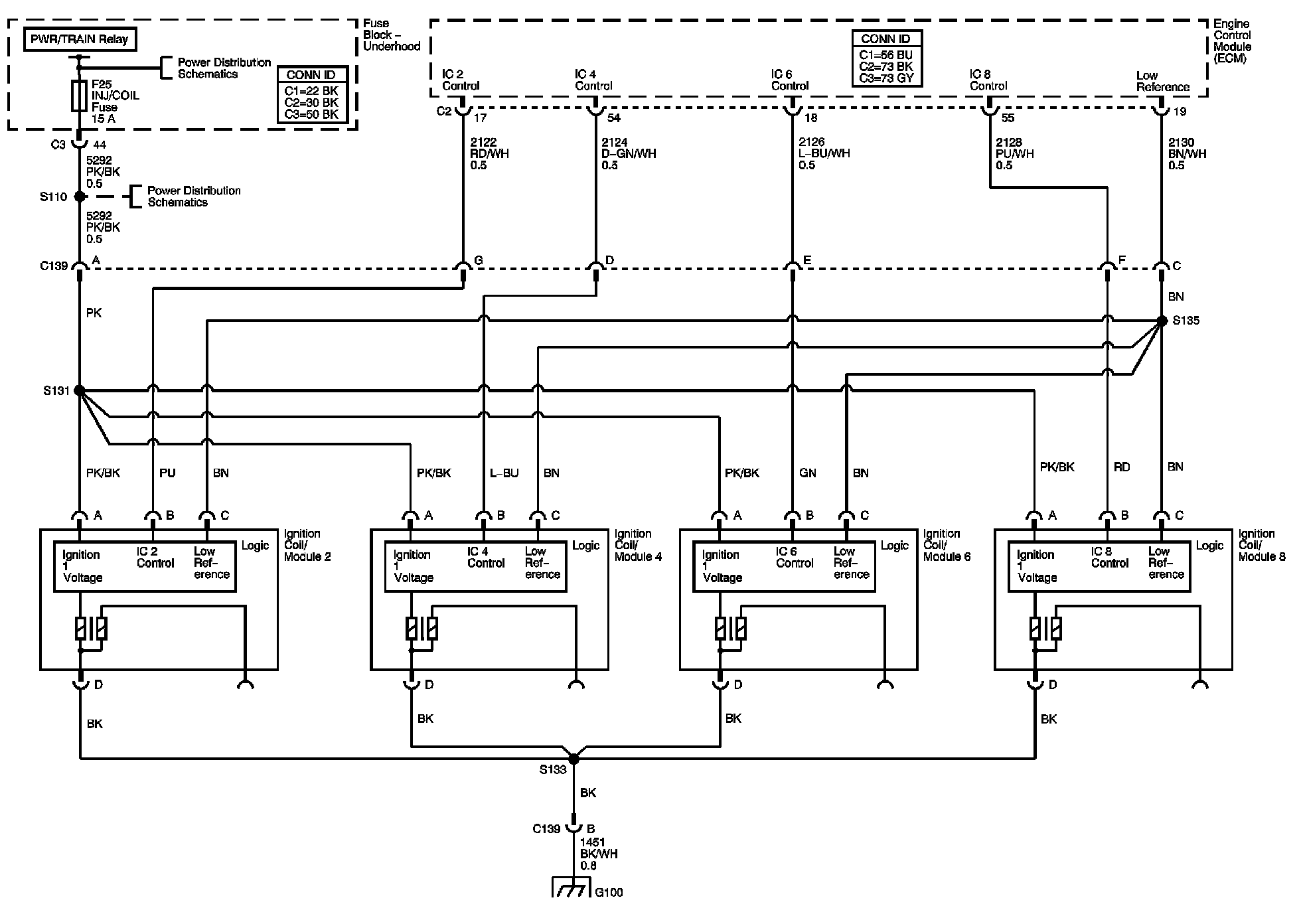

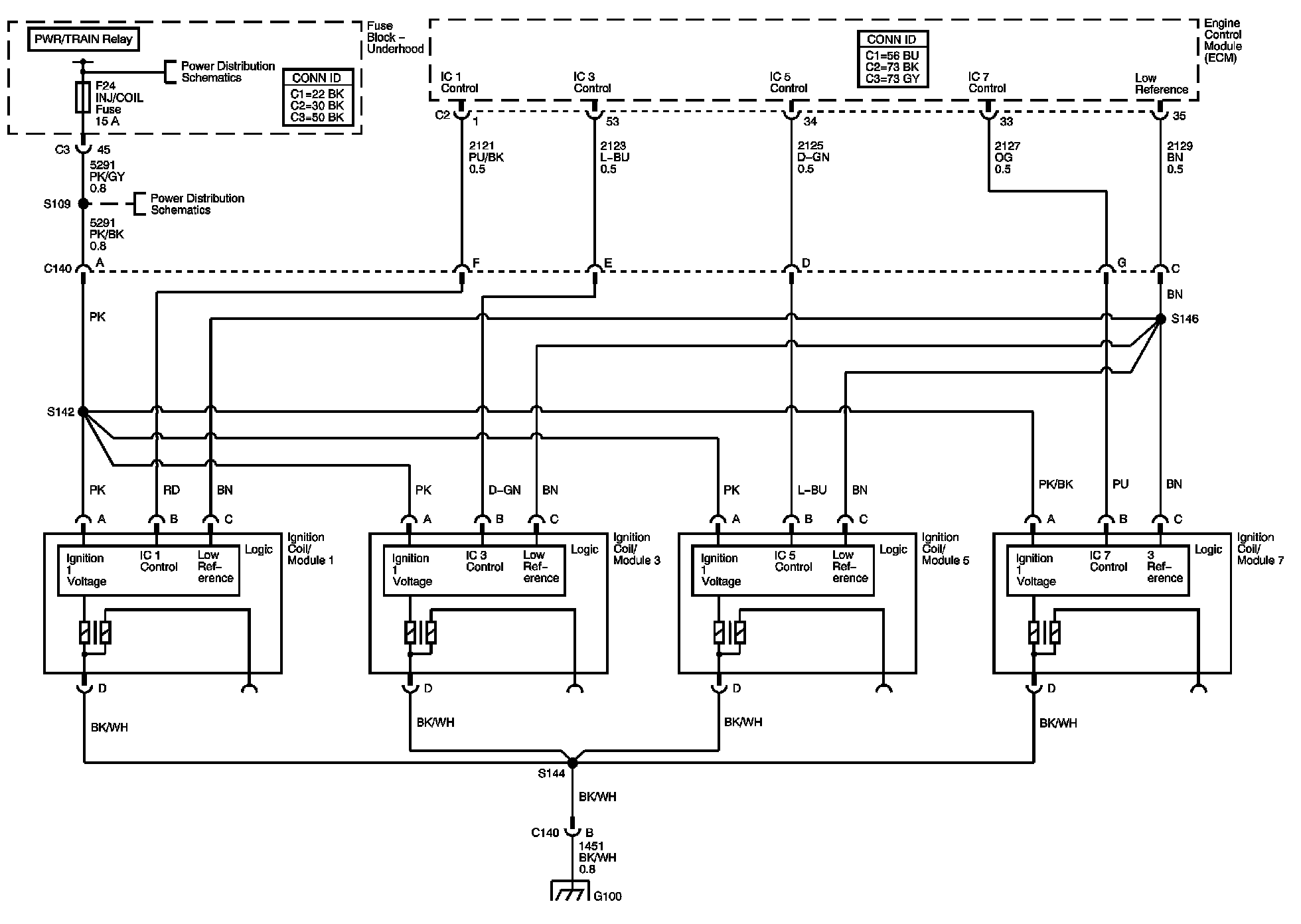

Ignition Controls

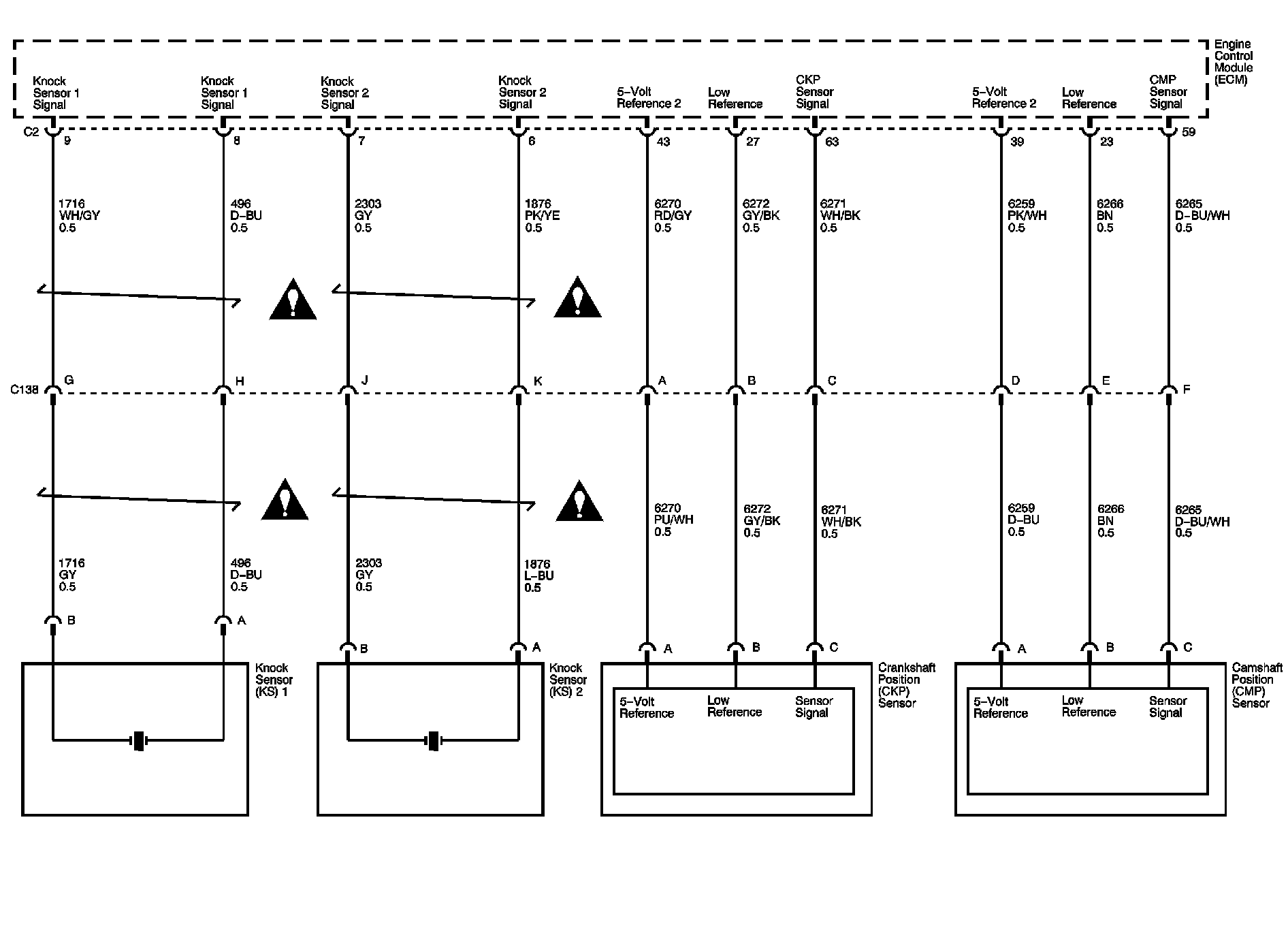

CKP, CMP, Knock Sensors

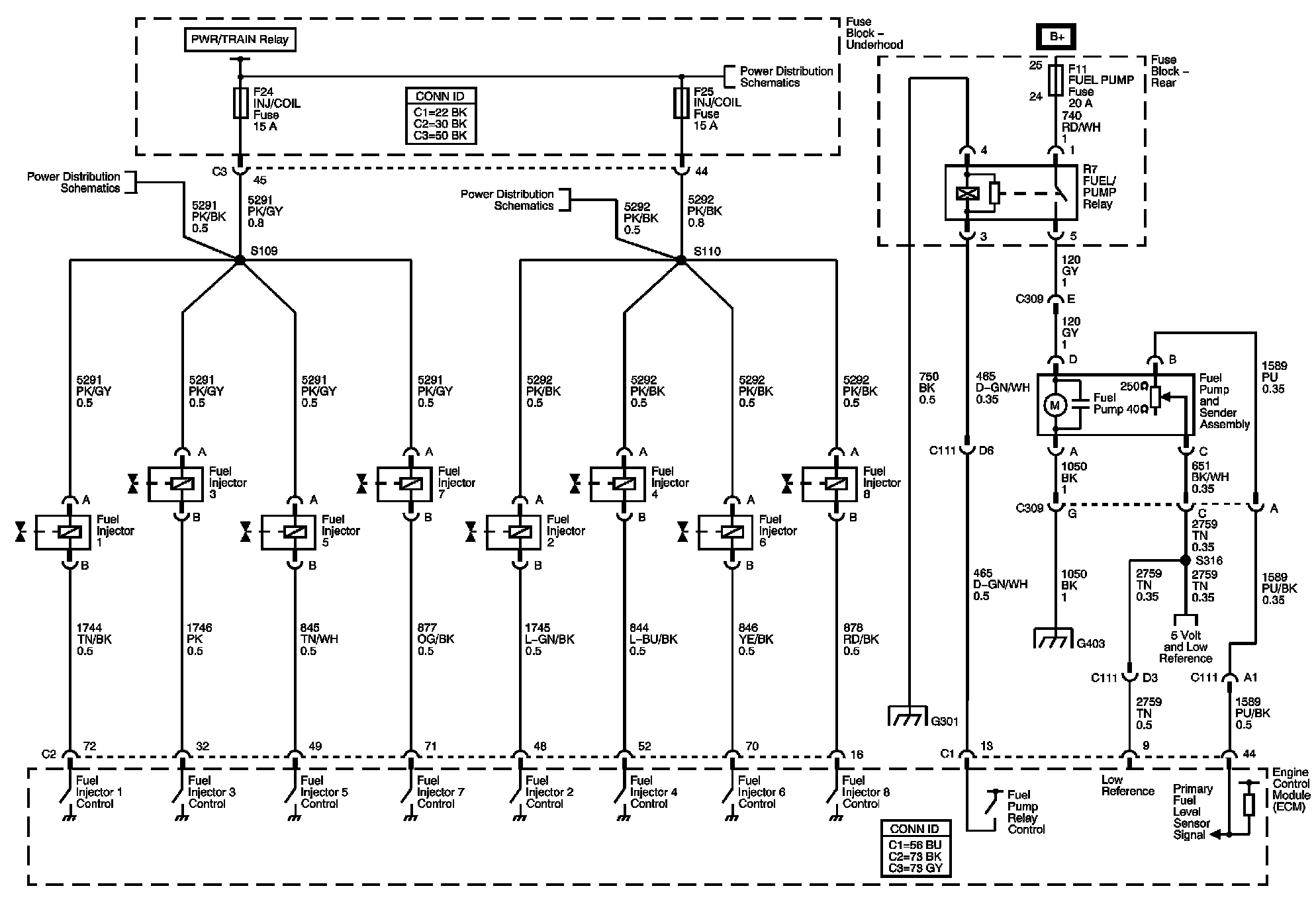

Fuel Controls

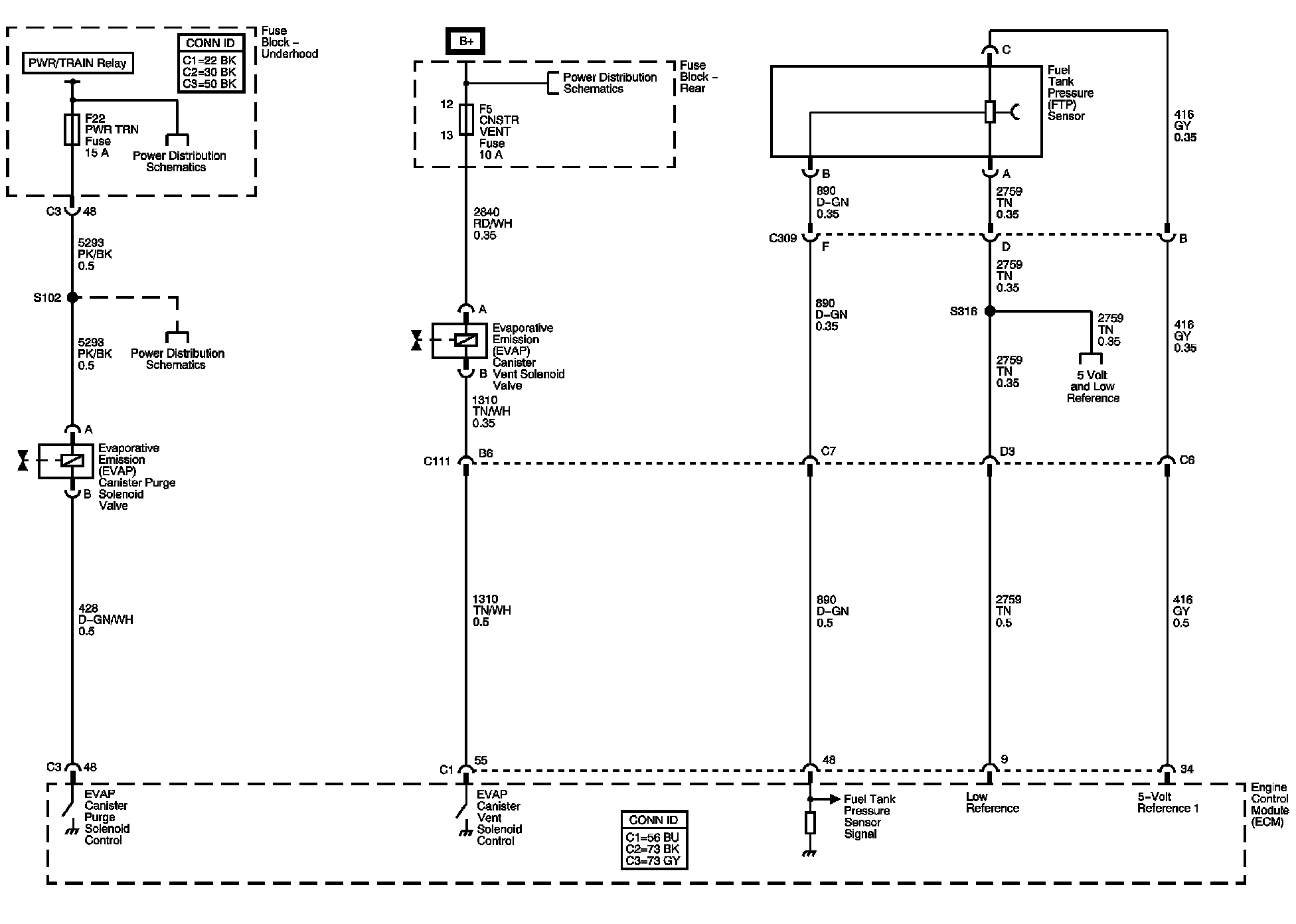

EVAP Controls

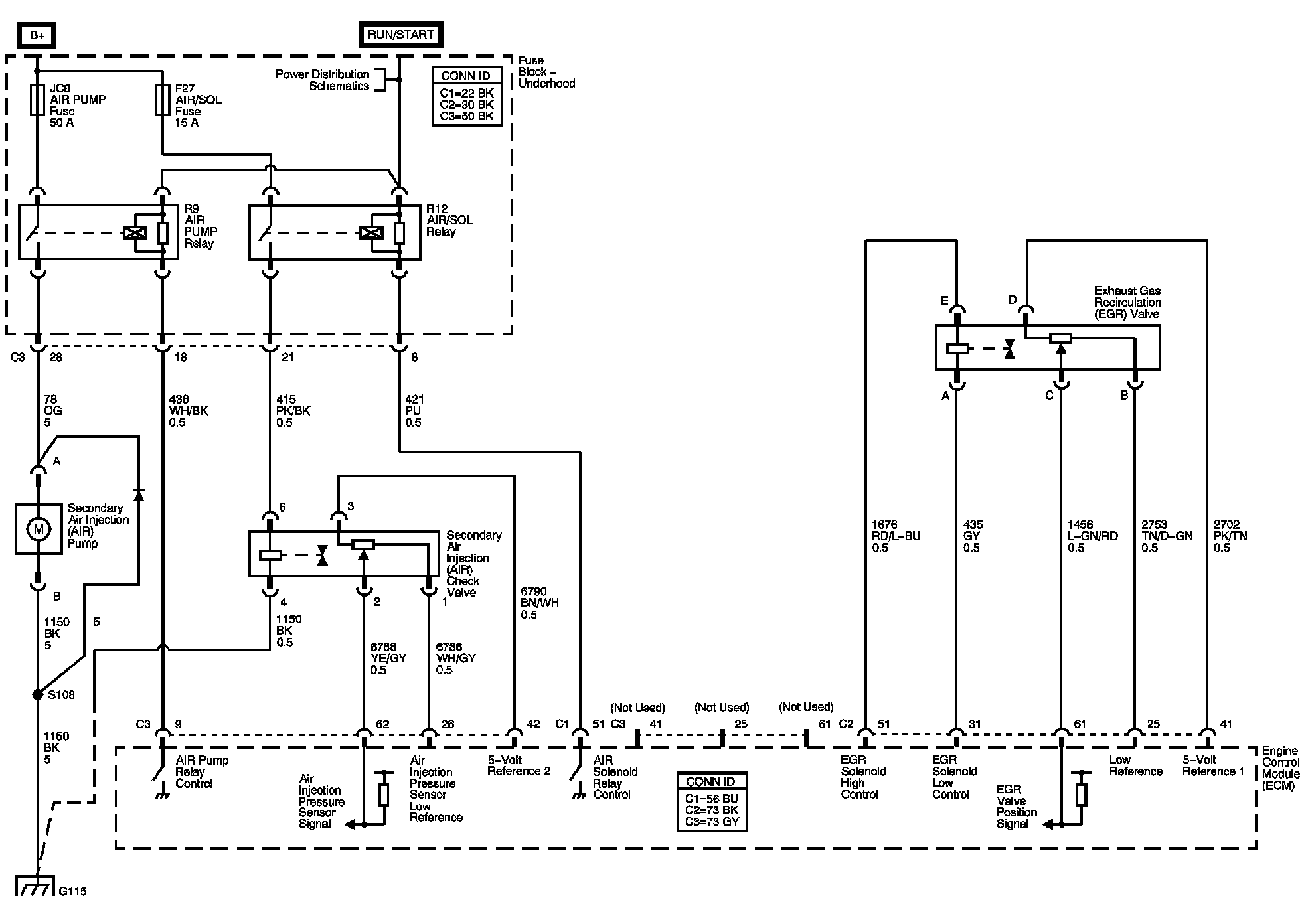

AIR, EGR

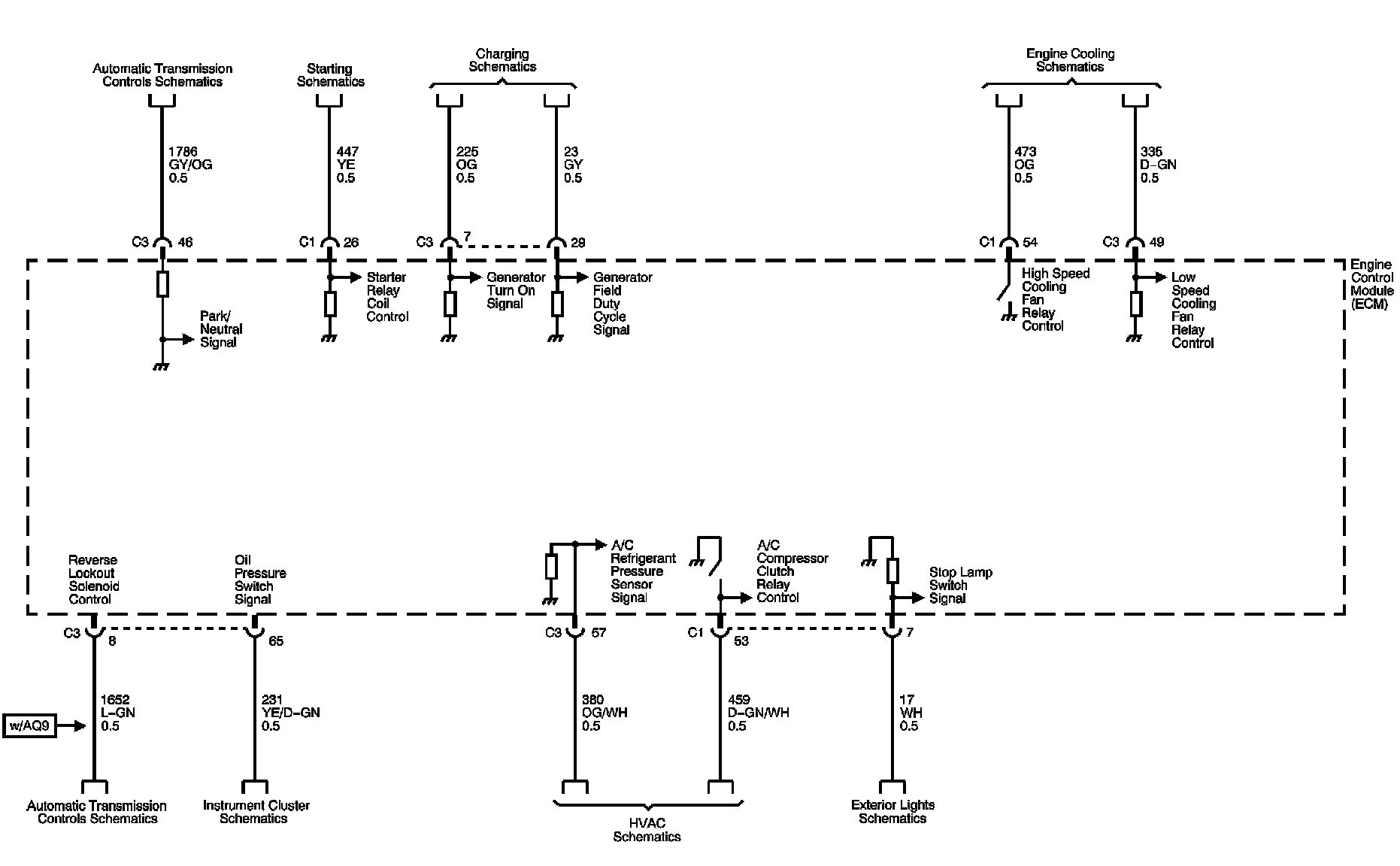

Controlled/Monitored Subsystem References







Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
