Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Remove the throttle body air inlet duct.

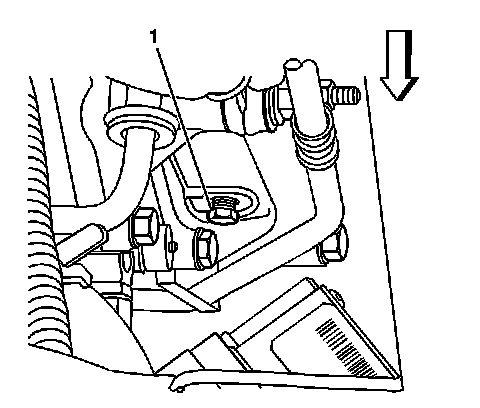

2. Remove the oil pressure test plug (1).

Installation Procedure





Notice: Refer to Fastener Notice.

1. Install the oil pressure test plug (1).

Tighten the oil pressure test plug to 12 N.m (106 lb in).

2. Install the throttle body air inlet duct.
