Front Brake Shield Replacement (2500 Series)
Front Brake Shield Replacement (2500 Series)Caution: Refer to Brake Dust Caution.

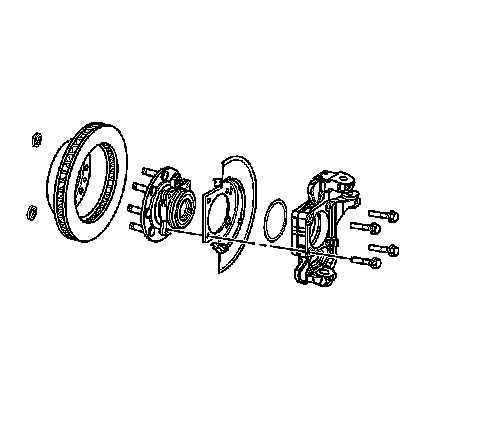

Removal Procedure 1.
Remove the hub and bearing assembly.
2.
Remove the splash shield.
Installation Procedure 1.
Install the splash shield.
2.
Install the hub and bearing assembly. Refer to Wheel Hub, Bearing, and Seal Replacement.
