Fuel Level Sensor Replacement (2500 - 98.4L (26 Gal) Tank - Front)



LEVEL SENSOR REPLACEMENT (2500 - 98.4L (26 GAL) TANK - FRONT)

REMOVAL PROCEDURE




1. Remove the fuel tank module.

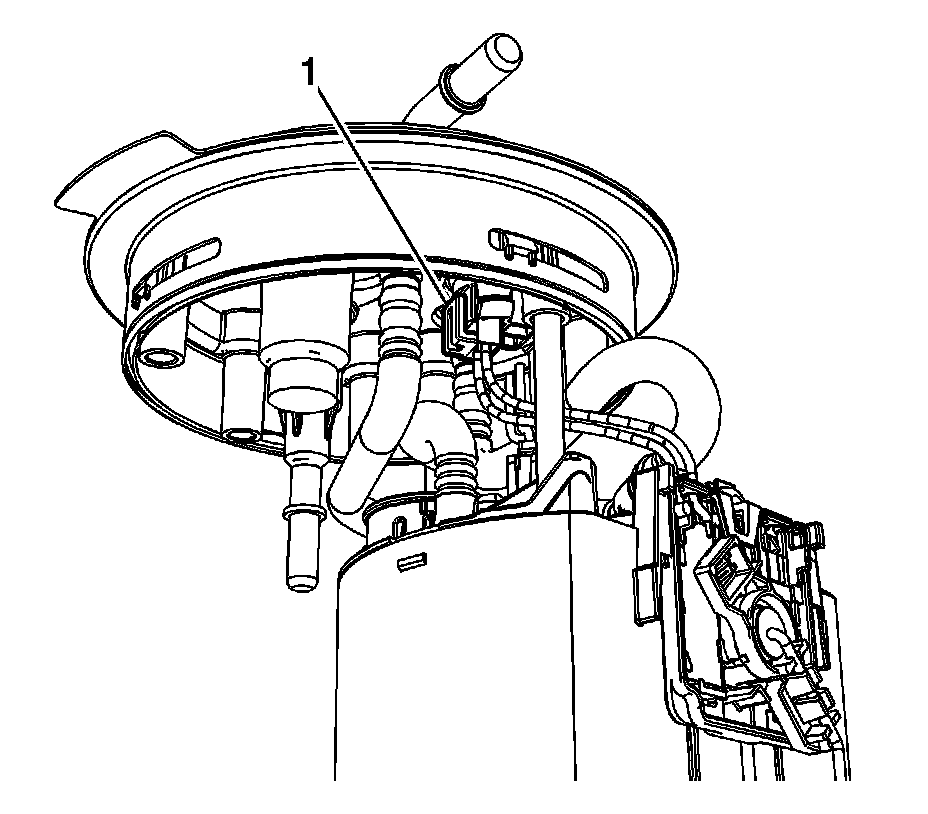

2. Disconnect the fuel level sensor electrical connector (1) from under the module cover.

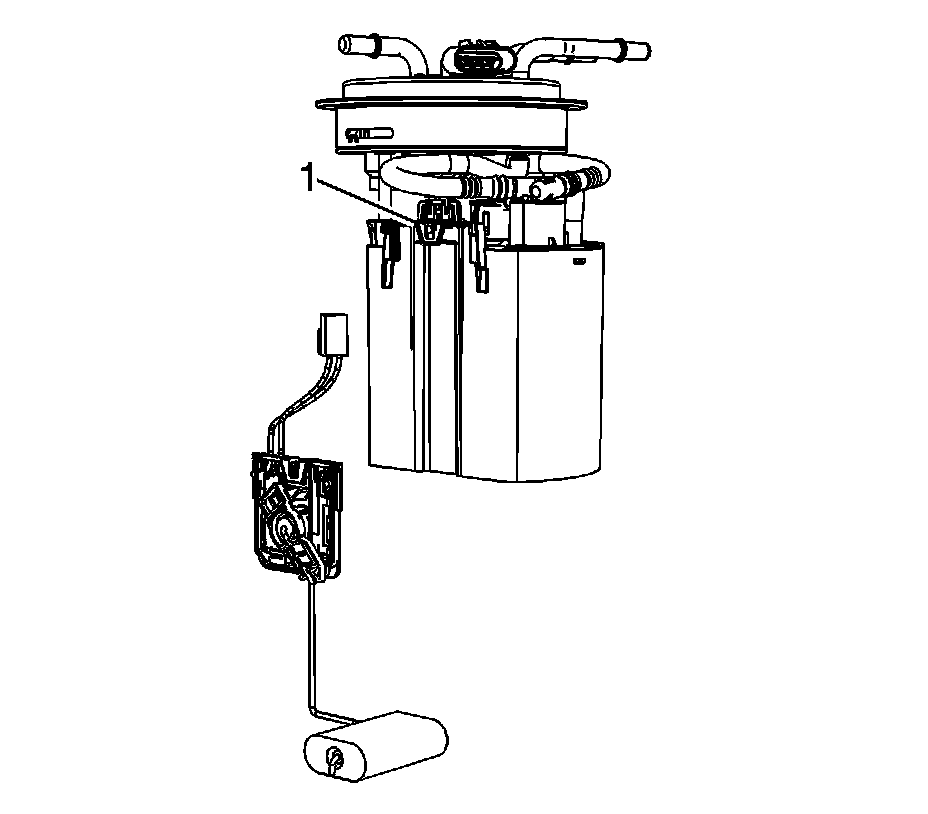

3. Release the fuel level sensor retaining clip (1).
4. Slide the fuel level sensor down off of the bucket.

INSTALLATION PROCEDURE




1. Slide the fuel level sensor up onto the bucket until the sensor engages the retaining tab (1)..




2. Connect the fuel level sensor electrical connector (1) under the module cover.
3. Install the fuel tank module.
