Air Bag Systems: Locations




Inflatable Restraint Front End Sensors






Air Bags

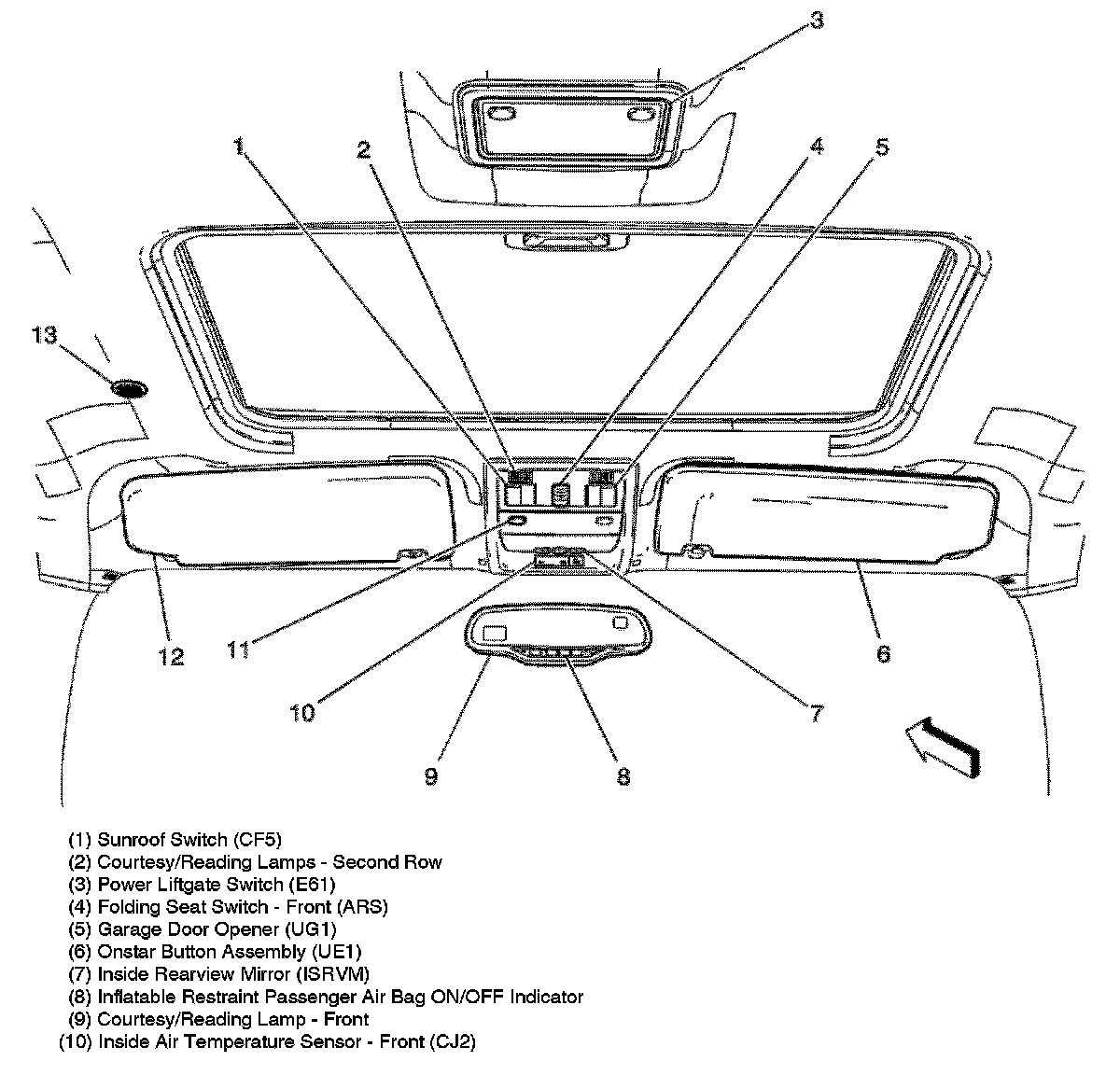

Top Front of the Passenger Compartment






Steering Column Components

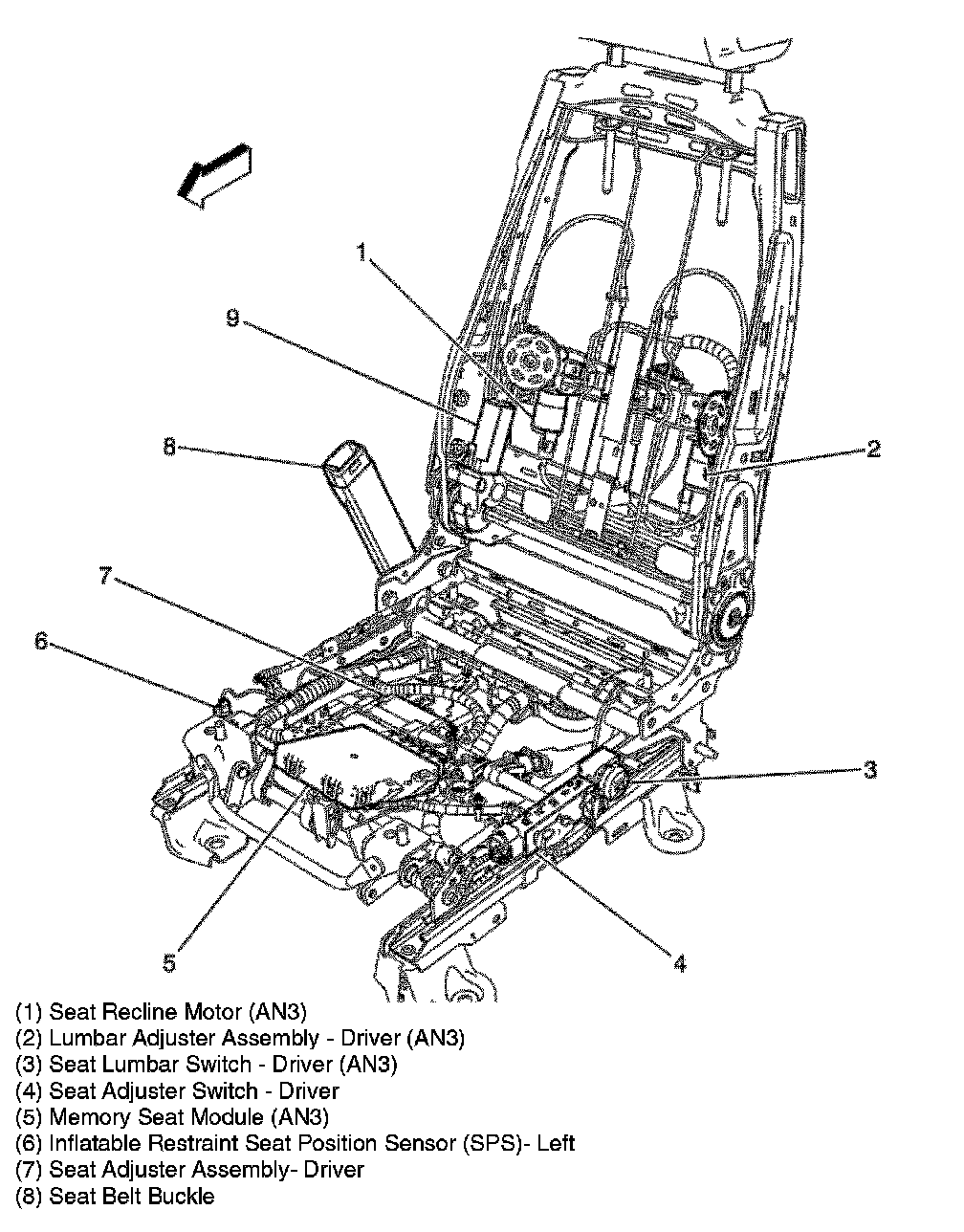

Driver Seat

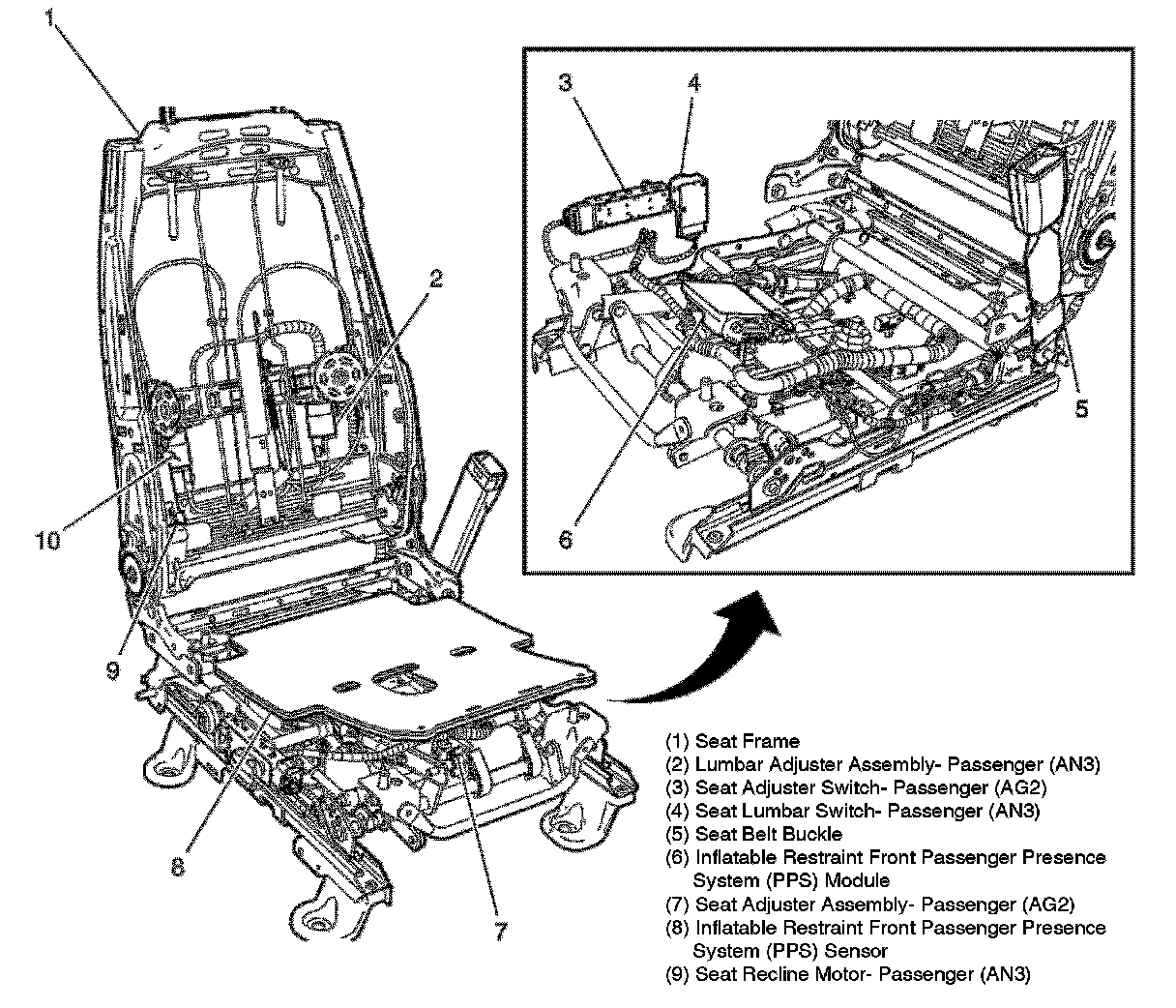

Passenger Seat

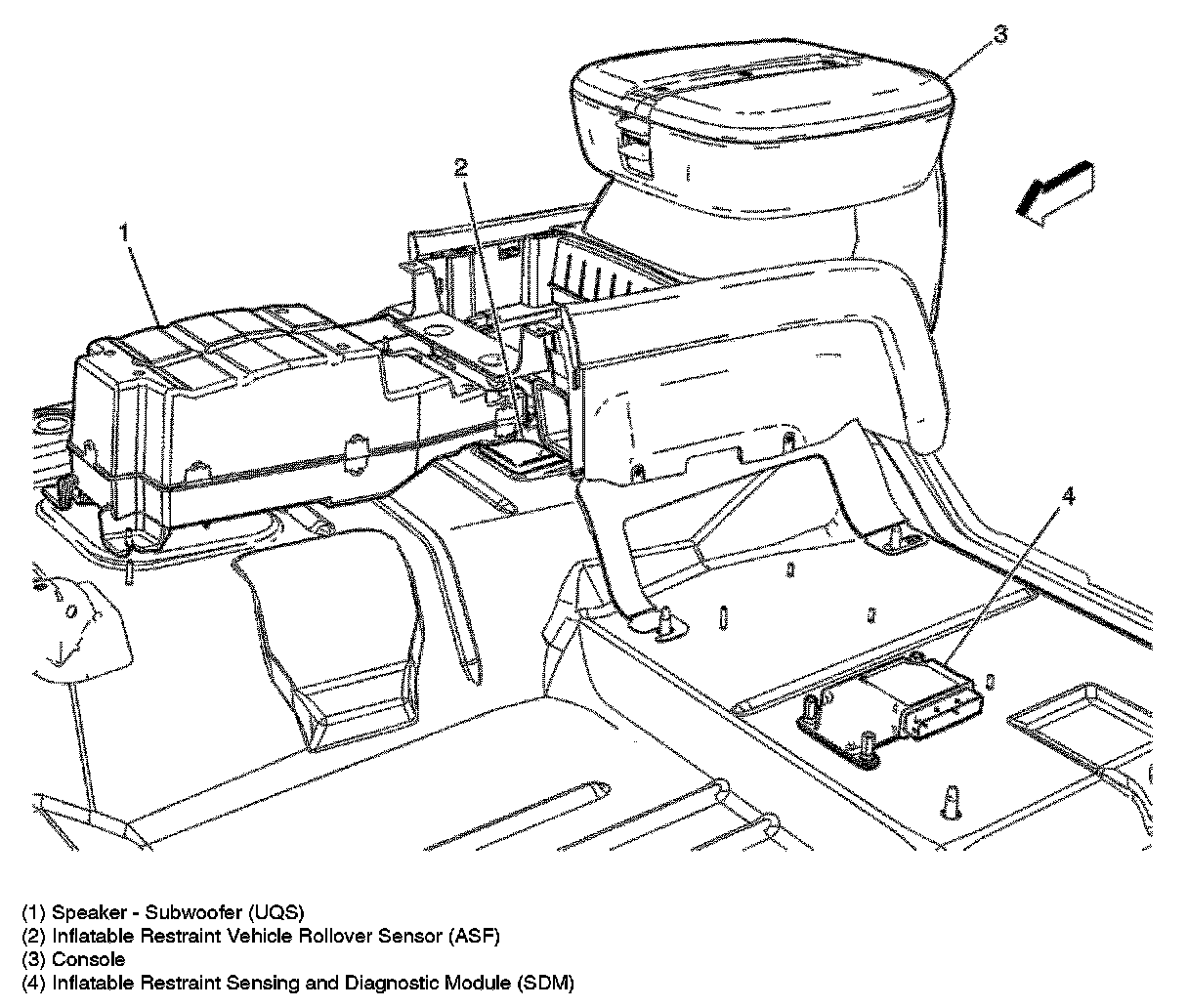

Near the Console Assembly






Driver Door






Passenger Door






LR Door







RR Door
