Transfer Case Shield Replacement



Transfer Case Shield Replacement

Removal Procedure




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.

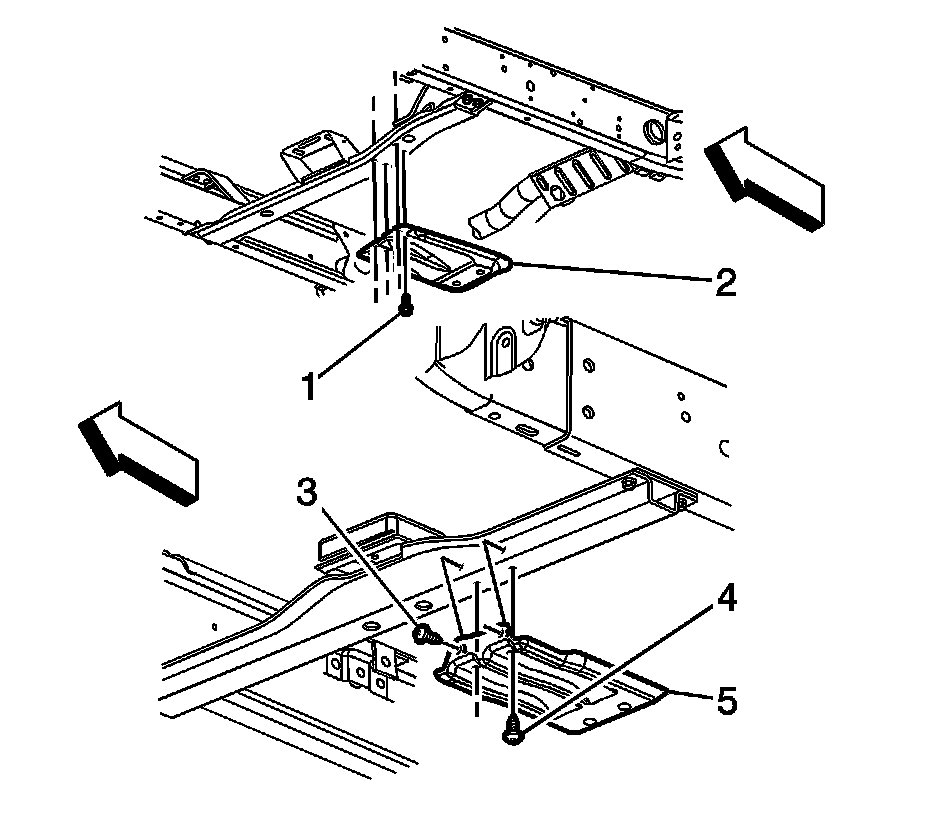

2. Remove the transfer case shield bolts (1, 3, and 4).
3. Remove the transfer case shield (2 or 5).

Installation Procedure




1. Position the transfer case shield (1, 3, and 4).

Notice: Refer to Fastener Notice.

2. Install the transfer case shield bolts (2 or 5).

Tighten the bolts to 20 N.m (15 lb ft).

3. Lower the vehicle.
