Instrument Cluster Trim Panel Replacement

Instrument Cluster Trim Panel Replacement

Removal Procedure

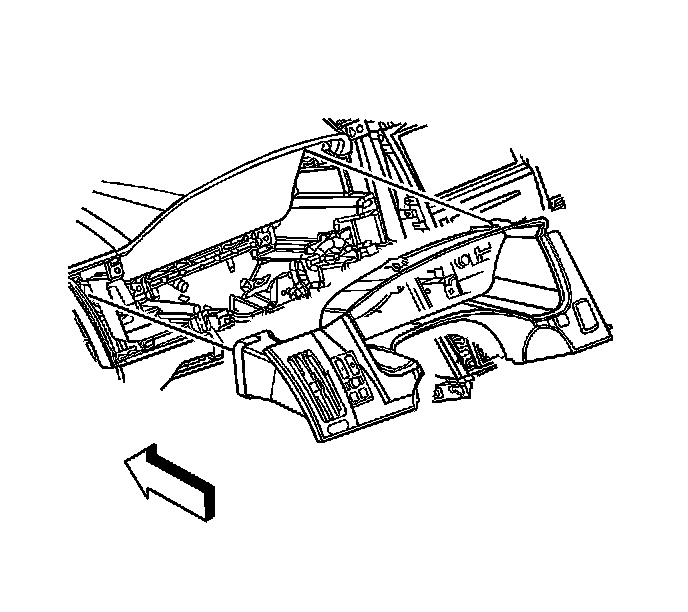

1. Remove the instrument panel center trim.

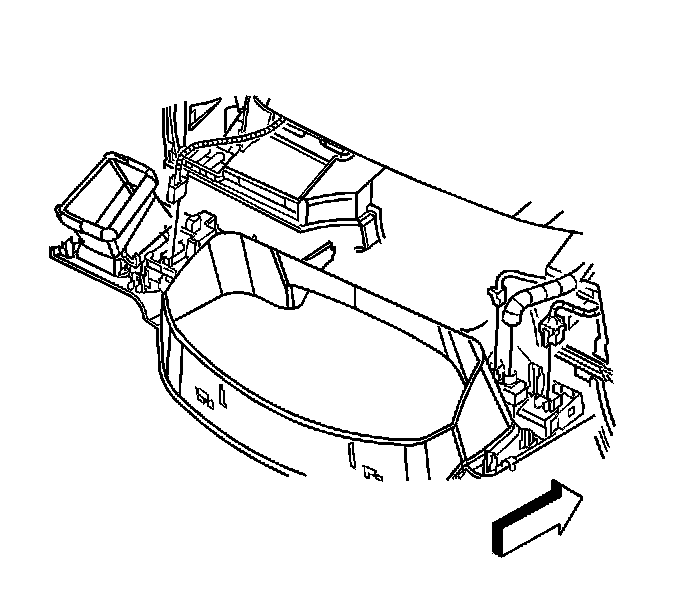

2. Pull outward on the cluster trim in order to release the clips securing the trim to the instrument panel.




3. Disconnect the electrical connectors.
4. Disconnect the aspirator tube.

Installation Procedure




1. Connect the electrical connectors.
2. Connect the aspirator tube.




3. Locate the cluster trim to the instrument panel.
4. Push the trim securing it to the instrument panel.
5. Install the instrument panel insulator.
