Camshaft Replacement - Left Side



Camshaft Replacement - Left Side

Removal Procedure

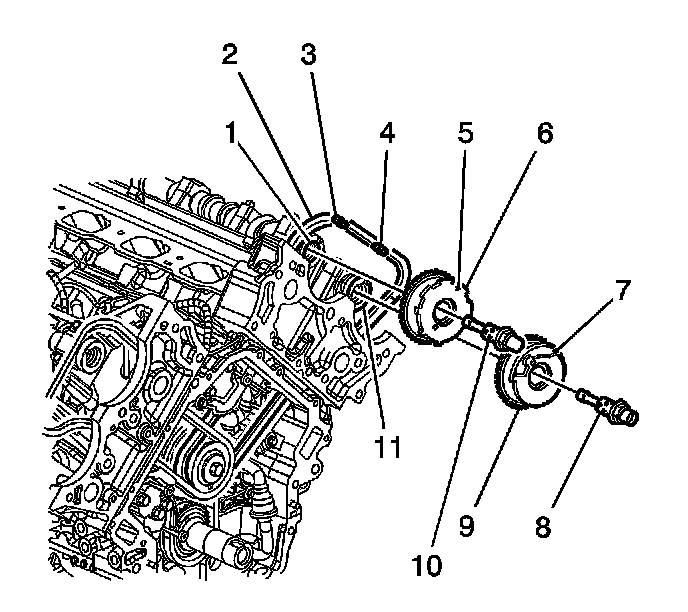

1. Remove the left intake camshaft actuator (6).
2. Remove the left exhaust camshaft actuator (9).

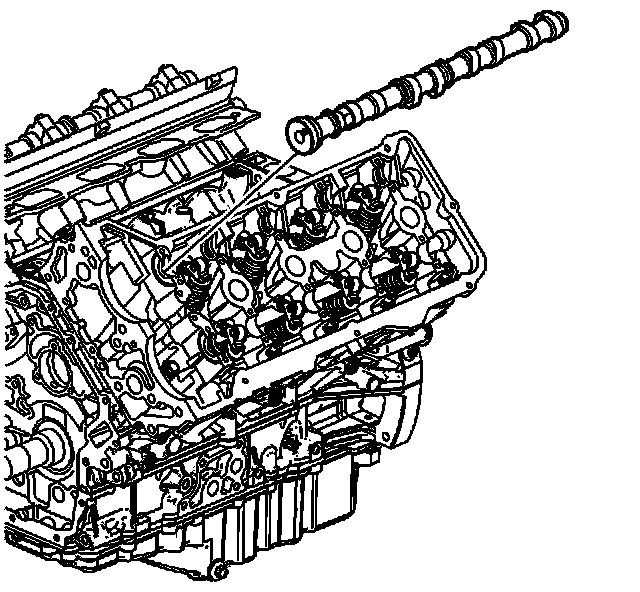

3. Remove the left intake camshaft.

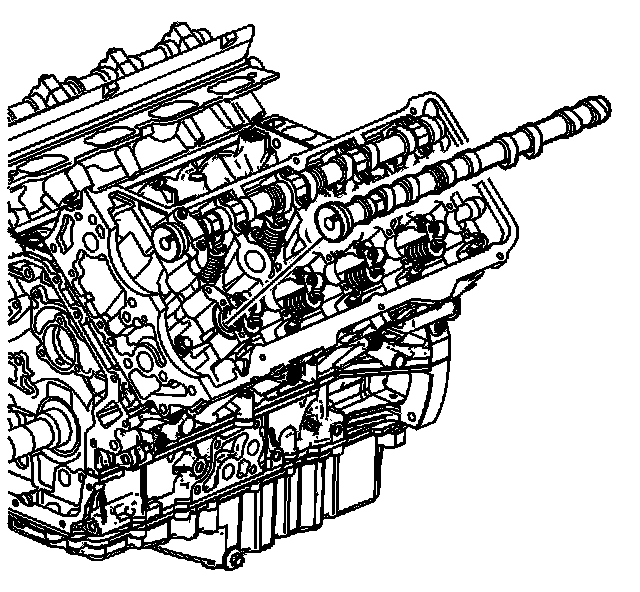

4. Remove the left exhaust camshaft.
5. Clean and inspect the camshafts.

Installation Procedure




1. Install the left exhaust camshaft.




2. Install the left intake camshaft.




3. Install the left exhaust camshaft actuator (9).
4. Install the left intake camshaft actuator (6).
