Steering Column Tilt/Telescoping Inoperative
Steering Column Tilt/Telescoping Inoperative
Test Description

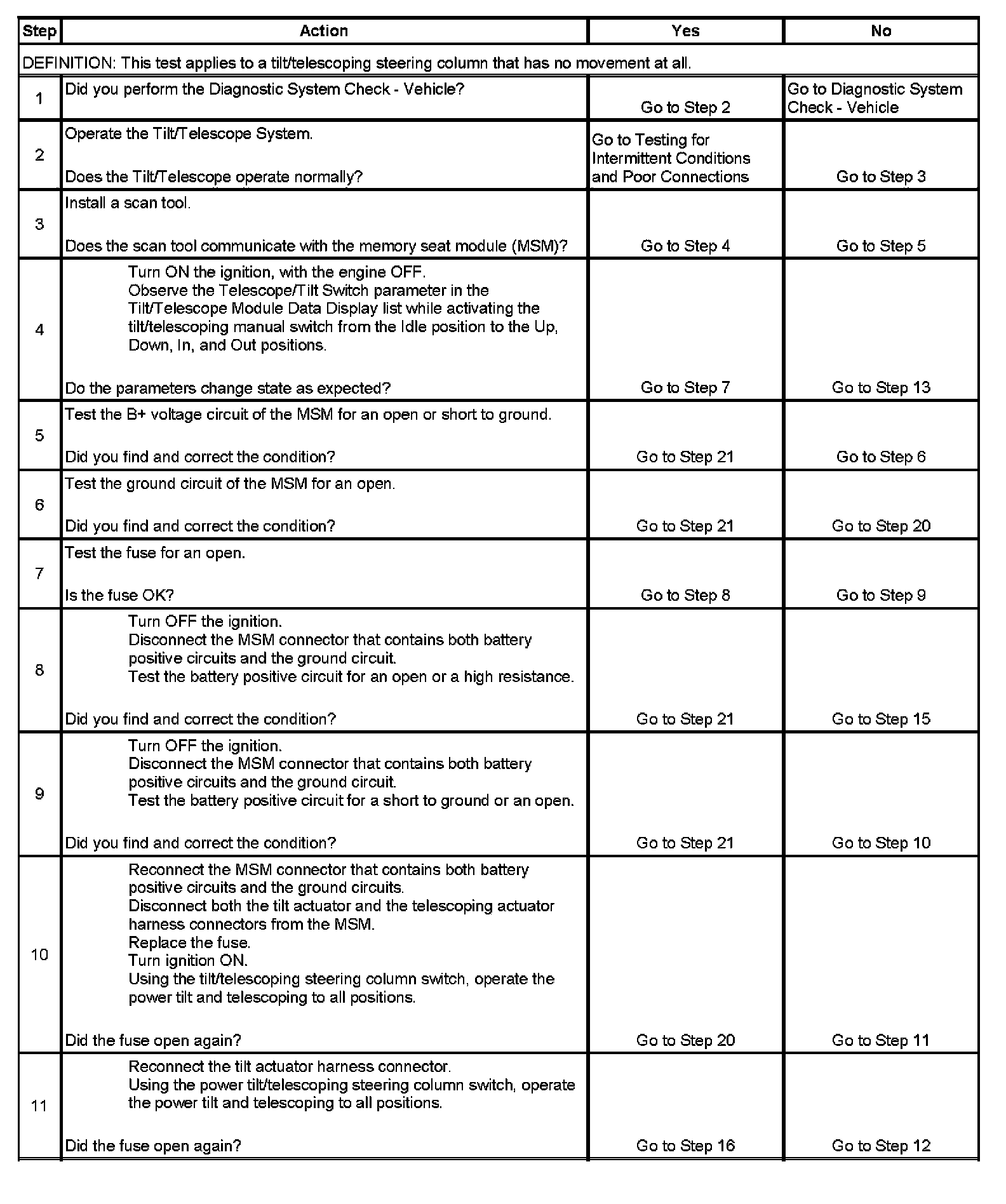

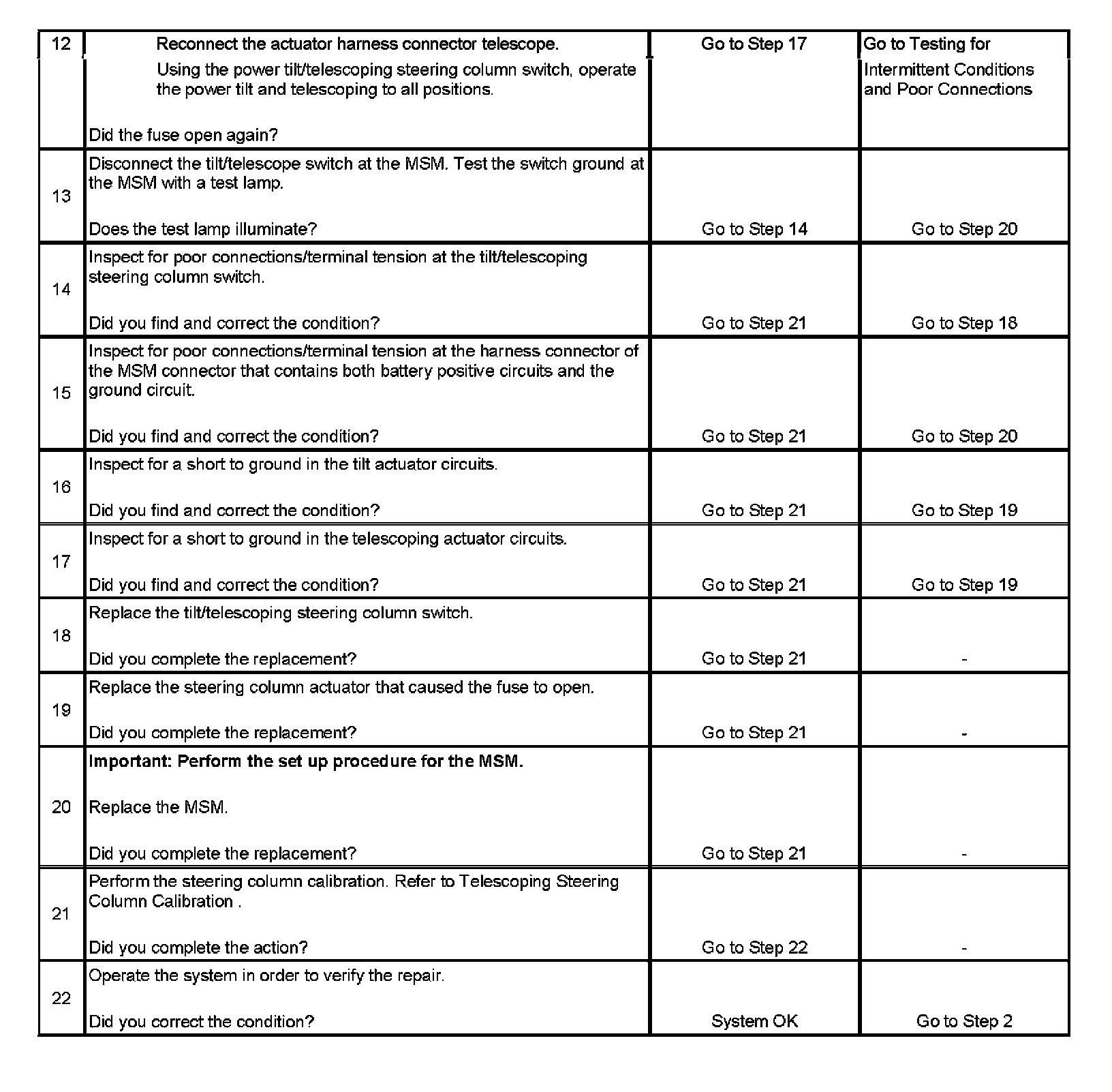

The numbers below refer to the step numbers on the diagnostic table.
5. This step refers to the circuit with the MEM T&T 10A fuse.
7. This step refers to the circuit with the PWR T&T 30A fuse.
8. If either the tilt actuator or the telescope actuator displays Motor Current on the scan tool Data Display, as less than 0 amps and/or more than 10 amps in this step, go to the applicable chart for that actuator being inoperative.
9. This step refers to the circuit with the PWR T&T 30A fuse.
