Direct Clutch Hub Assemble

Direct Clutch Hub Assemble





1. Inspect the housing for the following:

* Worn or damaged splines
* Worn or damaged bushings
* Wear, cracks and scoring on the shaft

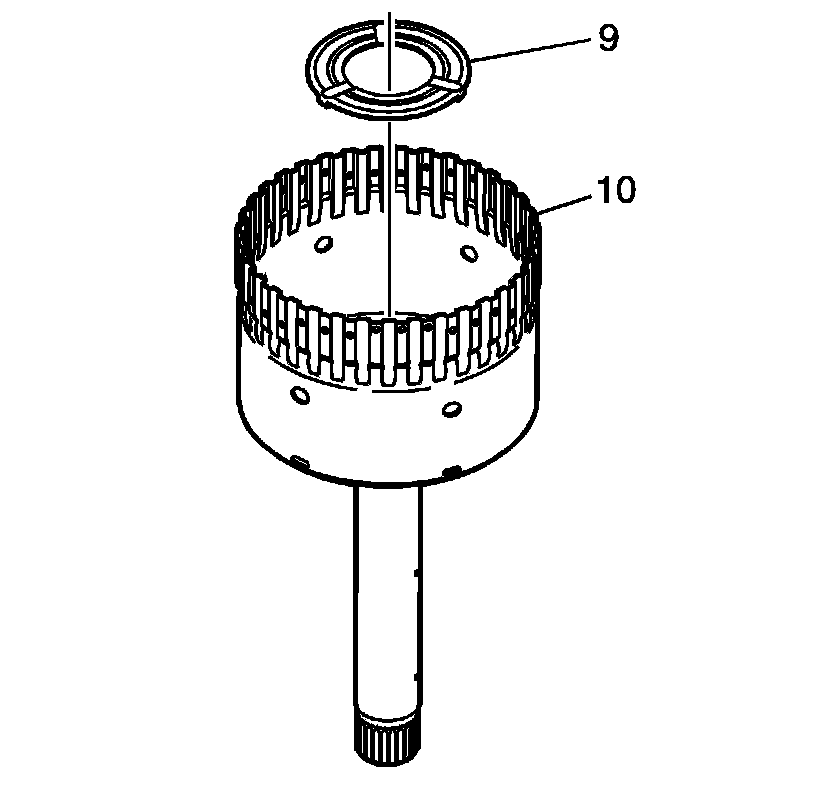

2. Install the direct clutch housing hub thrust washer (9) into the housing (10).

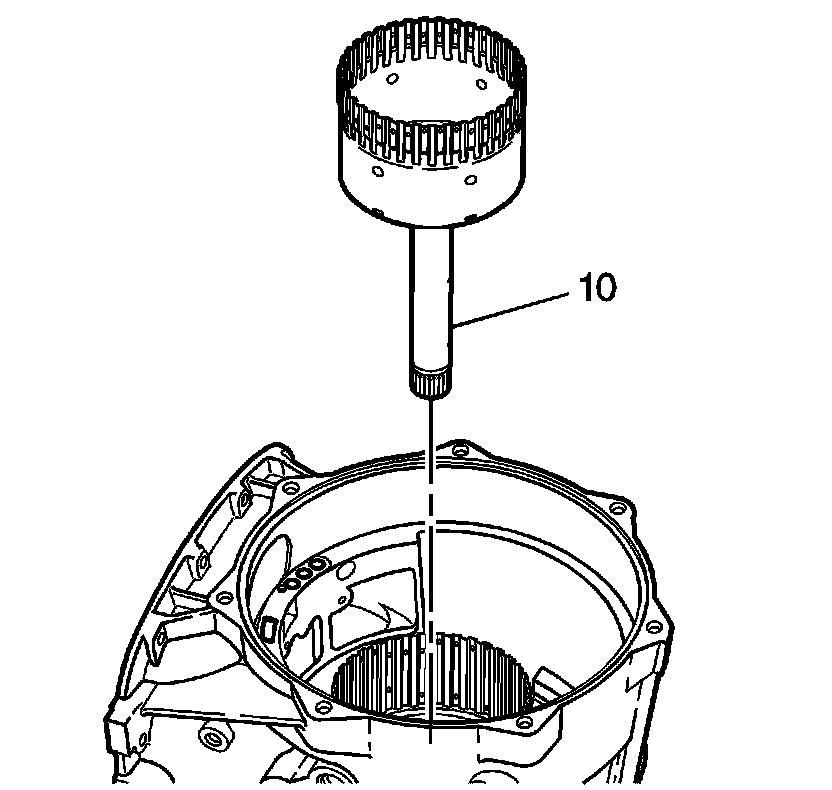

3. Install the direct clutch housing (10) into the case (24).
