Input Sun Gear Shaft Disassemble

Input Sun Gear Shaft Disassemble

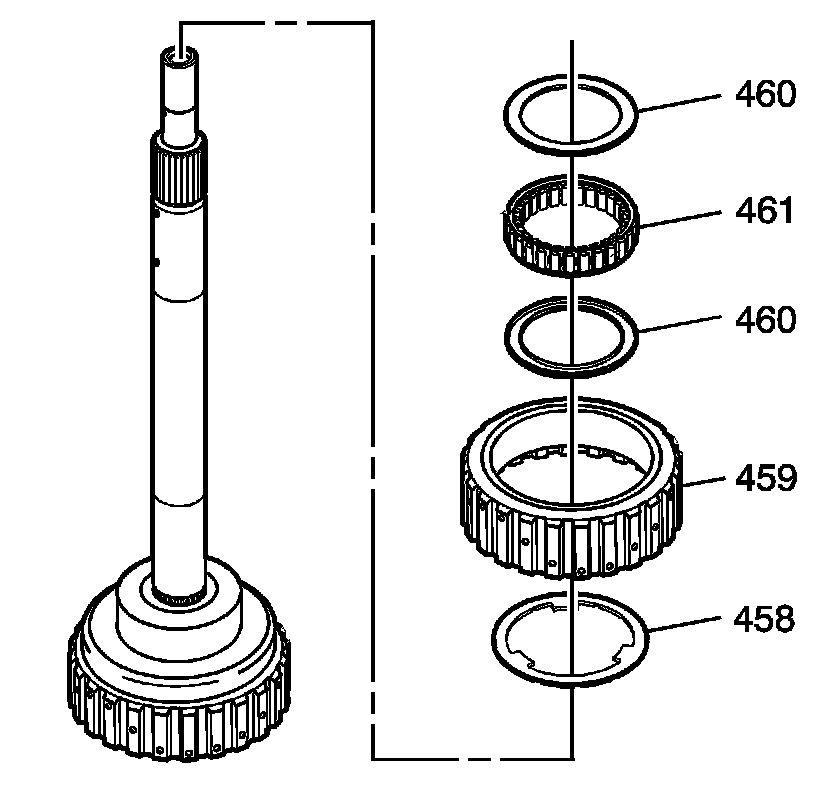

1. Remove the forward clutch sprag outer race (459).
2. Remove the forward clutch outer race washer (458).
3. Remove the forward clutch sprag assembly retaining rings (460).
4. Remove the forward clutch sprag (461).





5. Remove the forward clutch roller inner race thrust ring (455).
6. Remove the inner bearing (456).
