Headlamp Washers Inoperative

Headlamp Washers Inoperative

Test Description

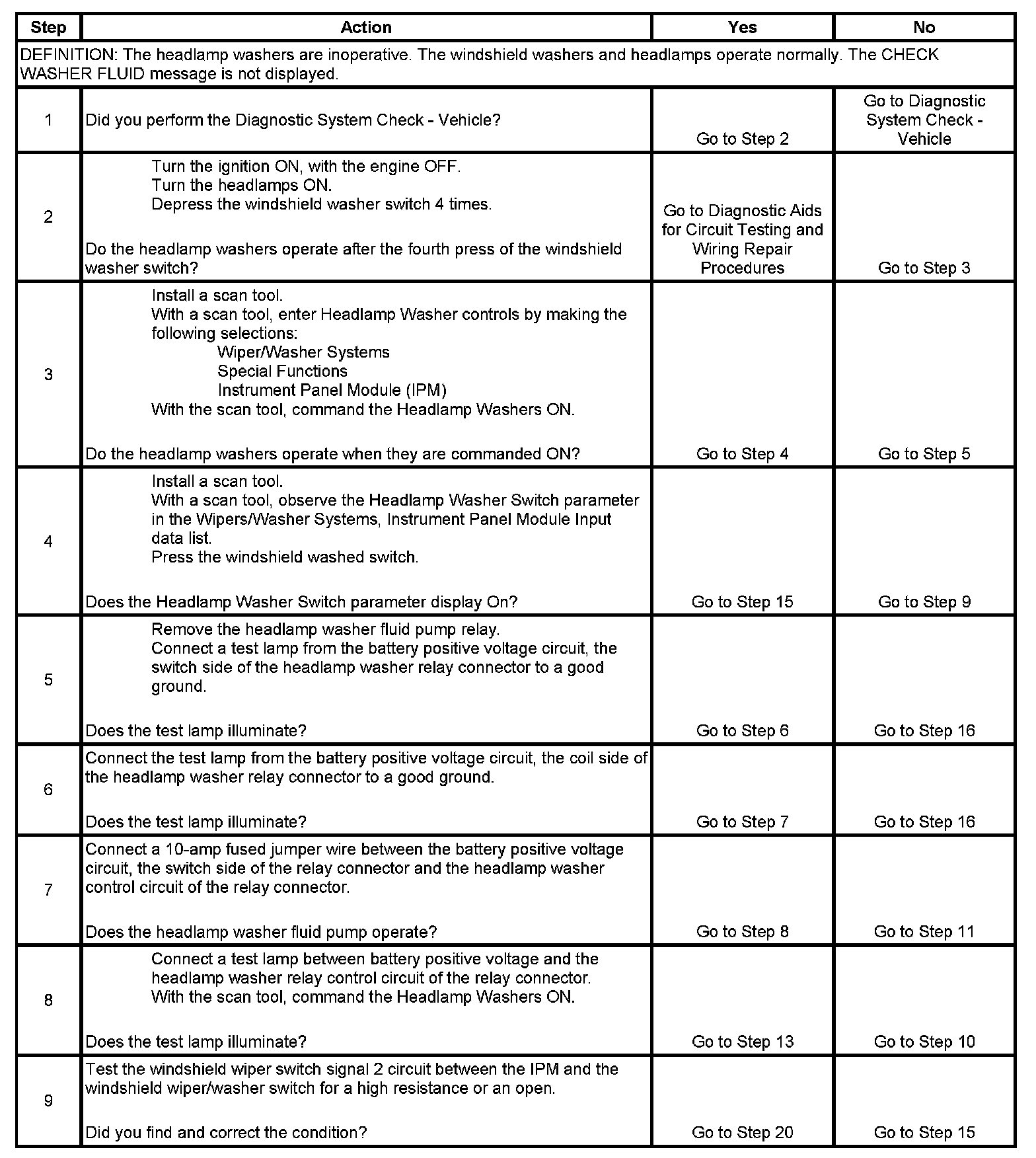

Step 1 - Step 9:

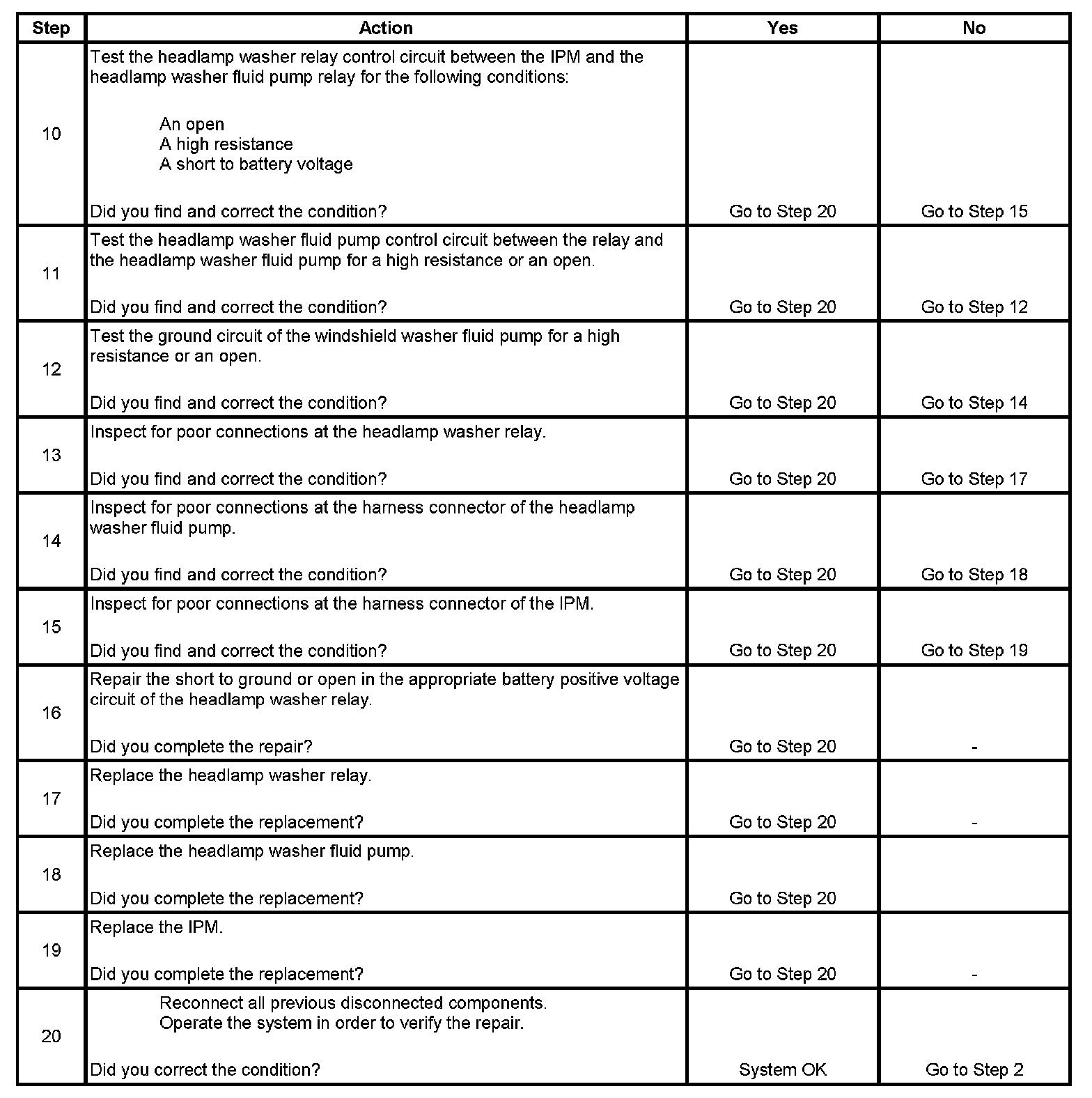

Step 10 - Step 20:

The number below refers to the step number on the diagnostic table.
7. This step tests the integrity of the control circuit of the headlamp washer motor. If the fuse in the jumper wire opens when you perform this test, a short to ground may have occurred.
