Tire Pressure Module: Locations

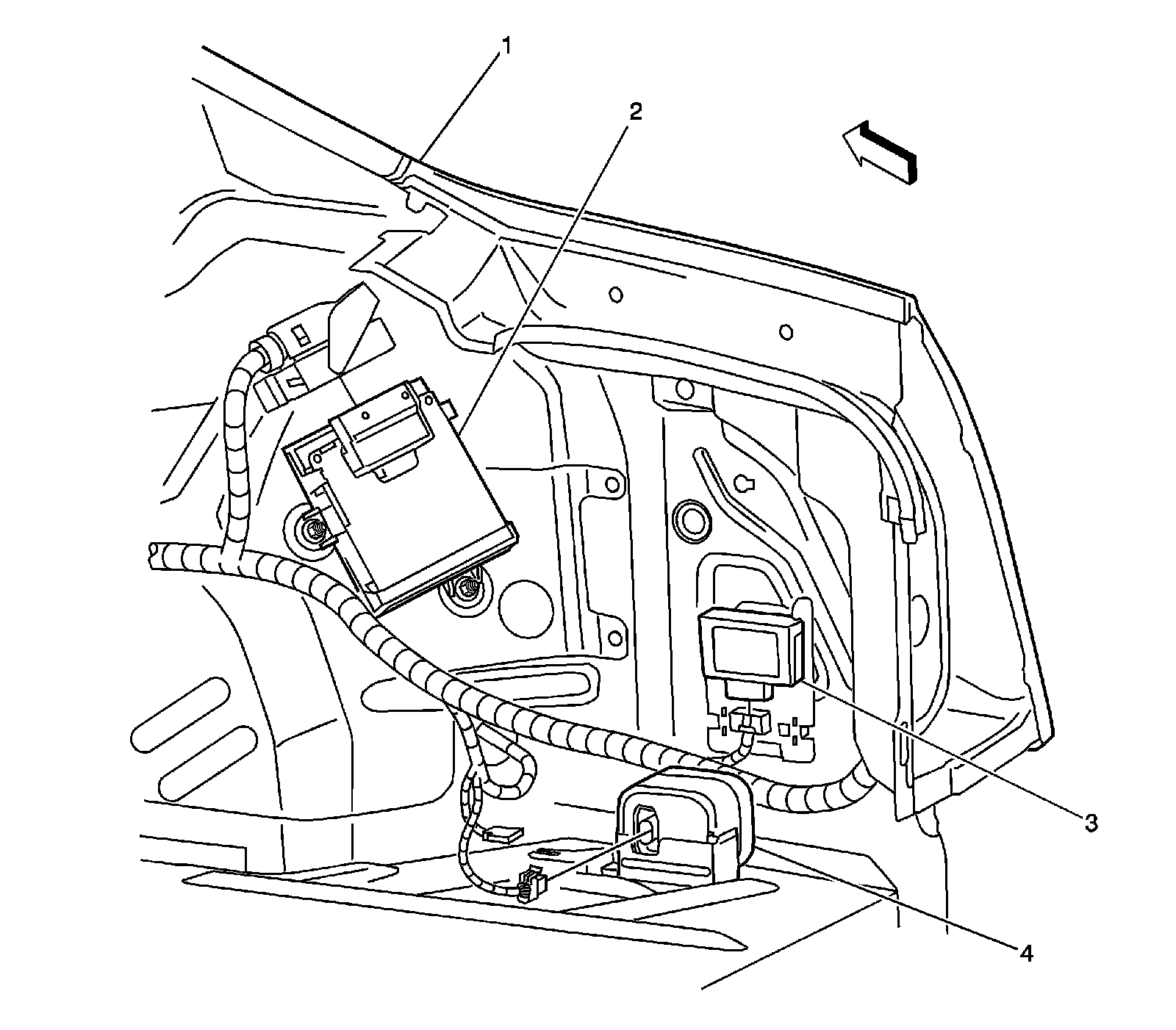

Tire Pressure Monitoring System Component ViewsRight Side of the Luggage Compartment:
1 - Right Side C Pillar
2 - Electronic Suspension Control (ESC) Module (F55)
3 - Tire Pressure Module (UH3-Japan Only) - Right Side Shown, Left Similar
4 - Theft Deterrent Alarm Siren (UA2 /Inclination Sensor (Export w/UA2)
