Home >> Cadillac >> 2007 >> XLR V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp >> Headlamp Control Module

Headlamp Control Module

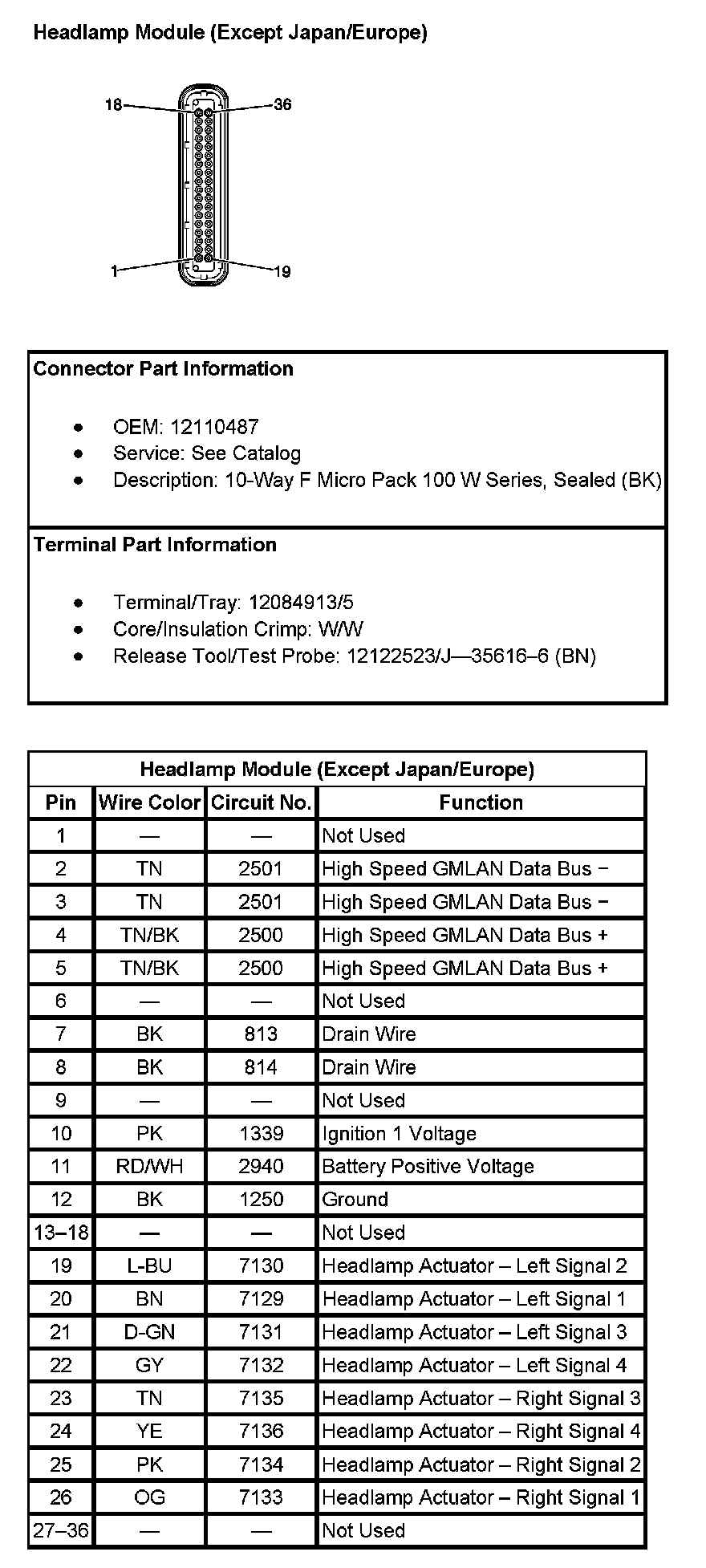

Headlamp Module (Except Japan/Europe):
