Instrument Cluster / Carrier



Displays and Gages Connector End Views

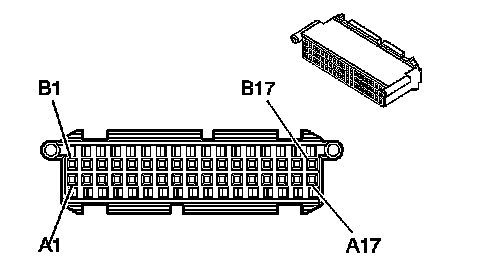

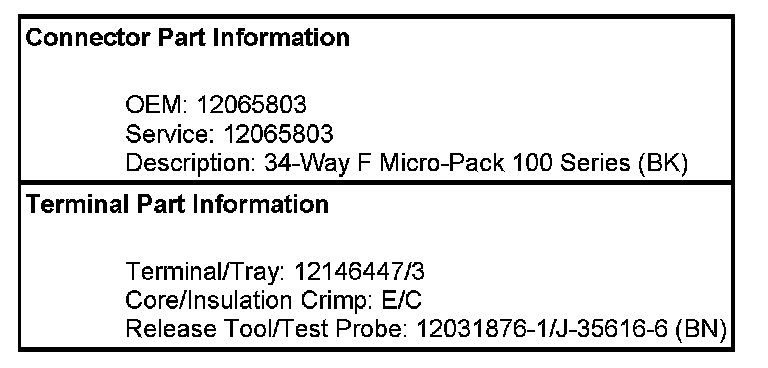

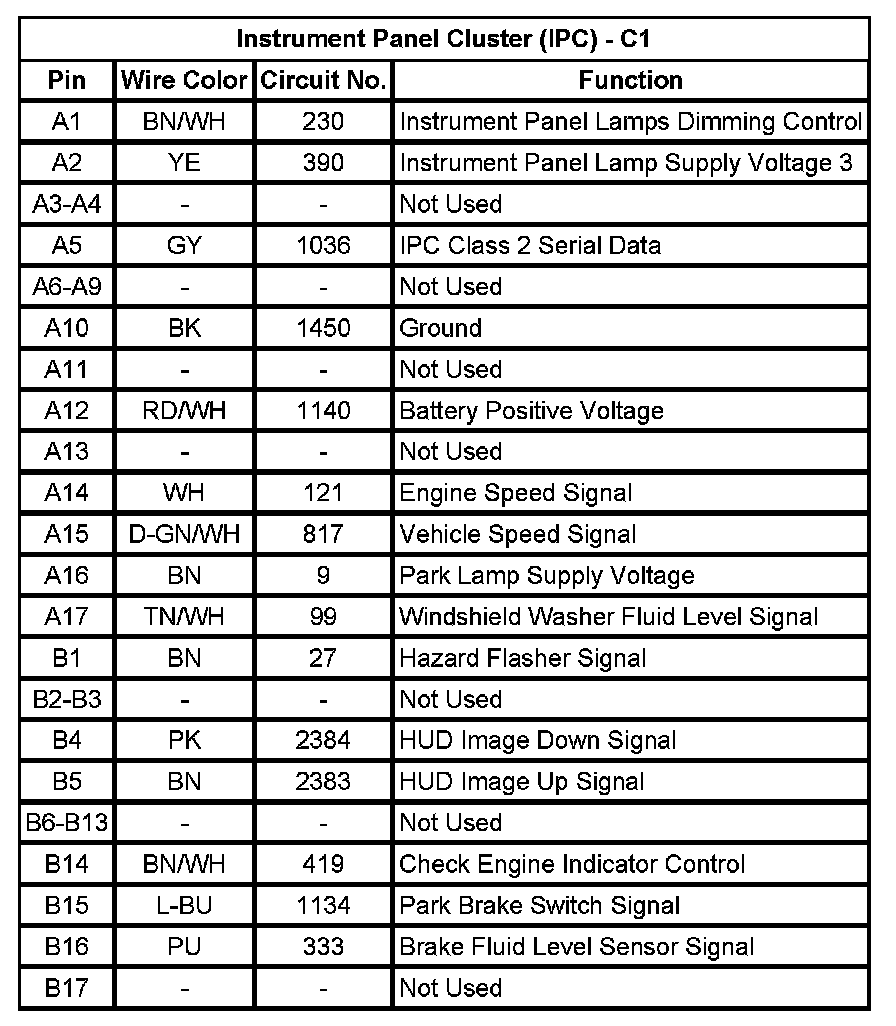

Instrument Panel Cluster (IPC) - C1

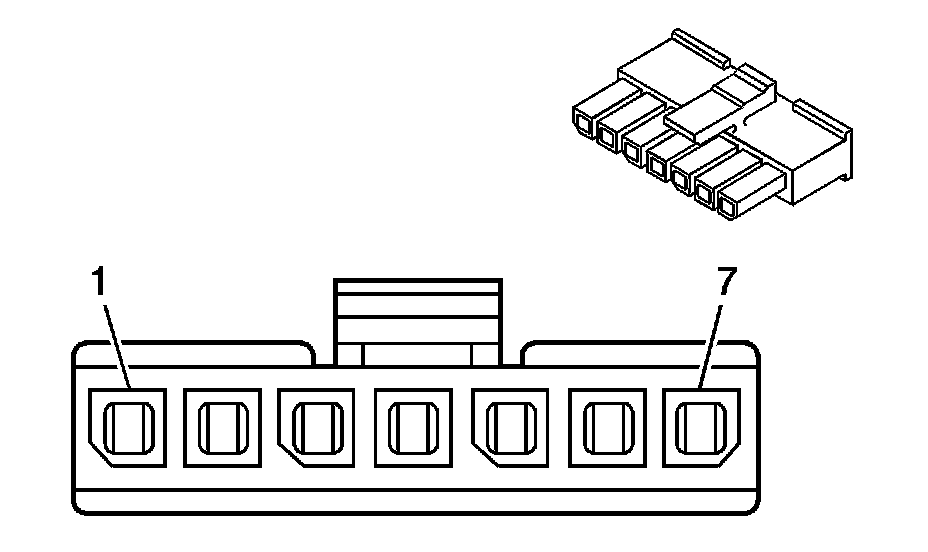

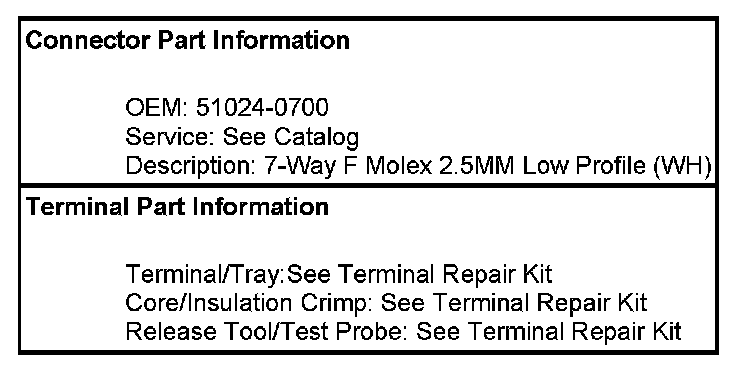

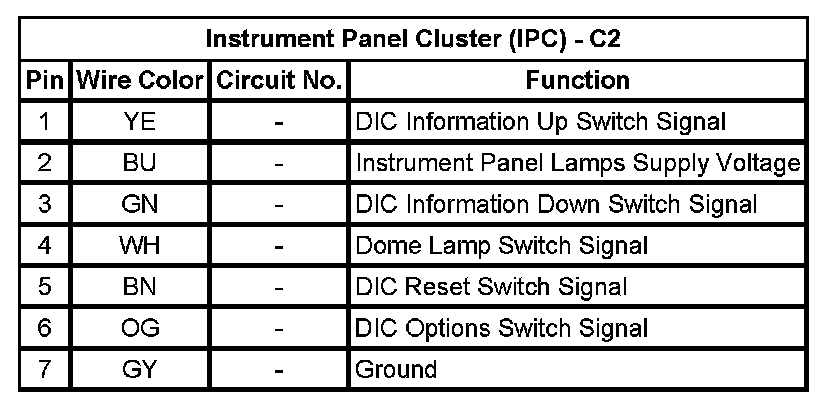

Instrument Panel Cluster (IPC) - C2

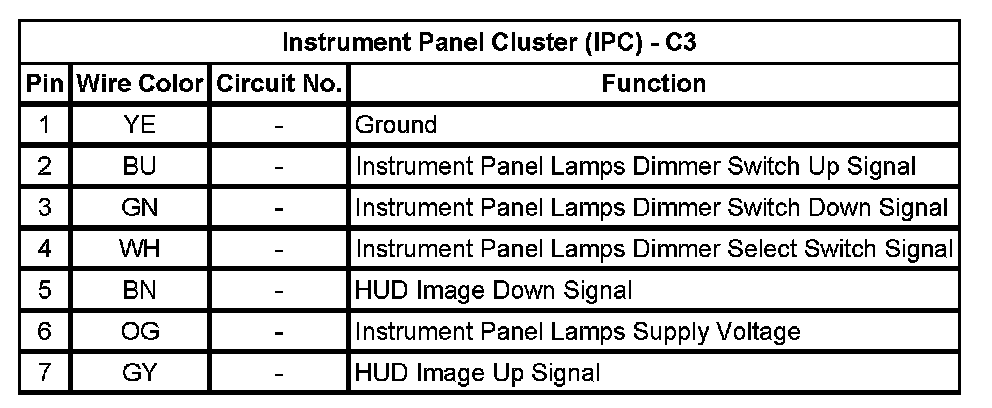

Instrument Panel Cluster (IPC) - C3
