Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

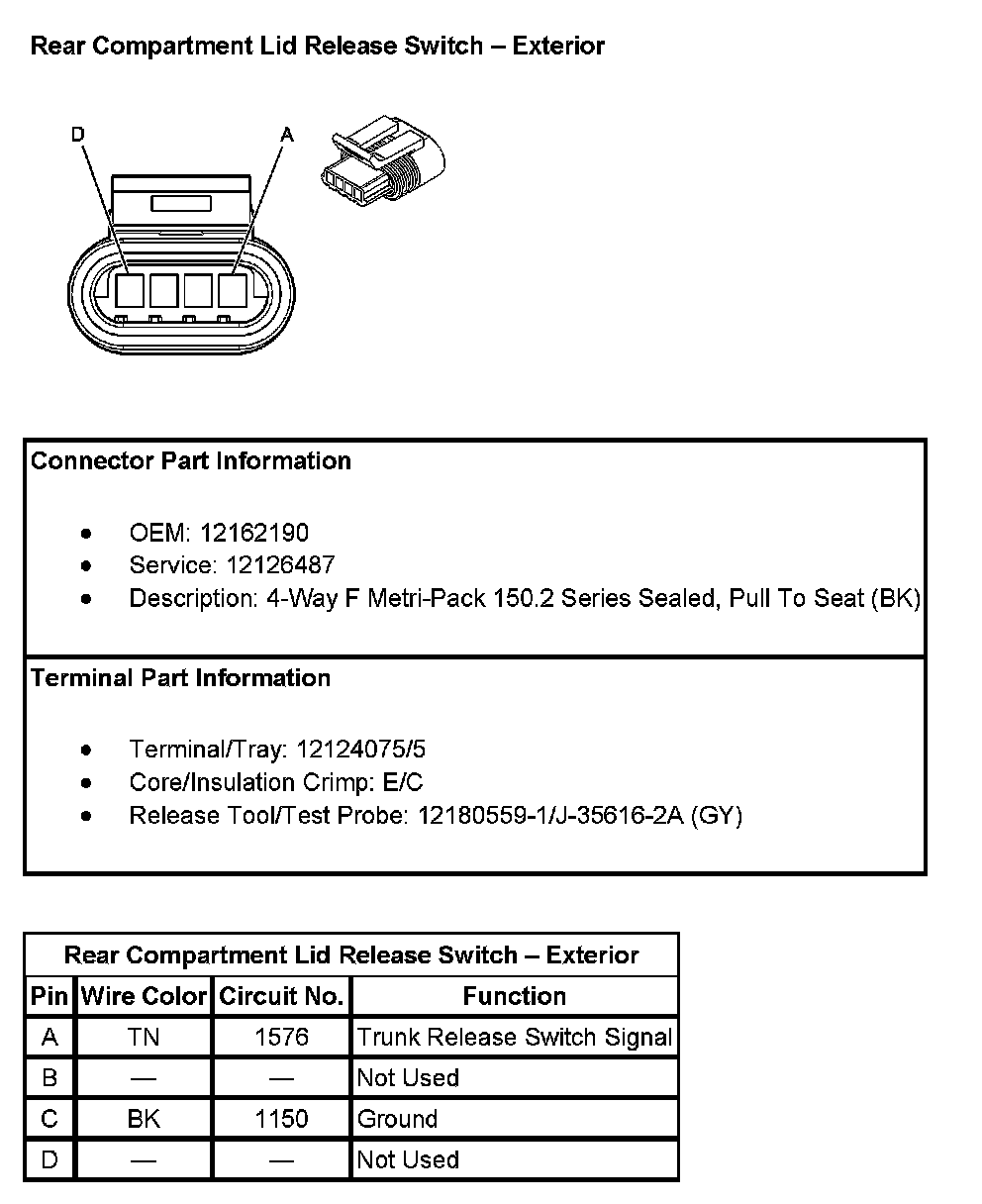

Rear Compartment Lid Release Switch - Exterior:

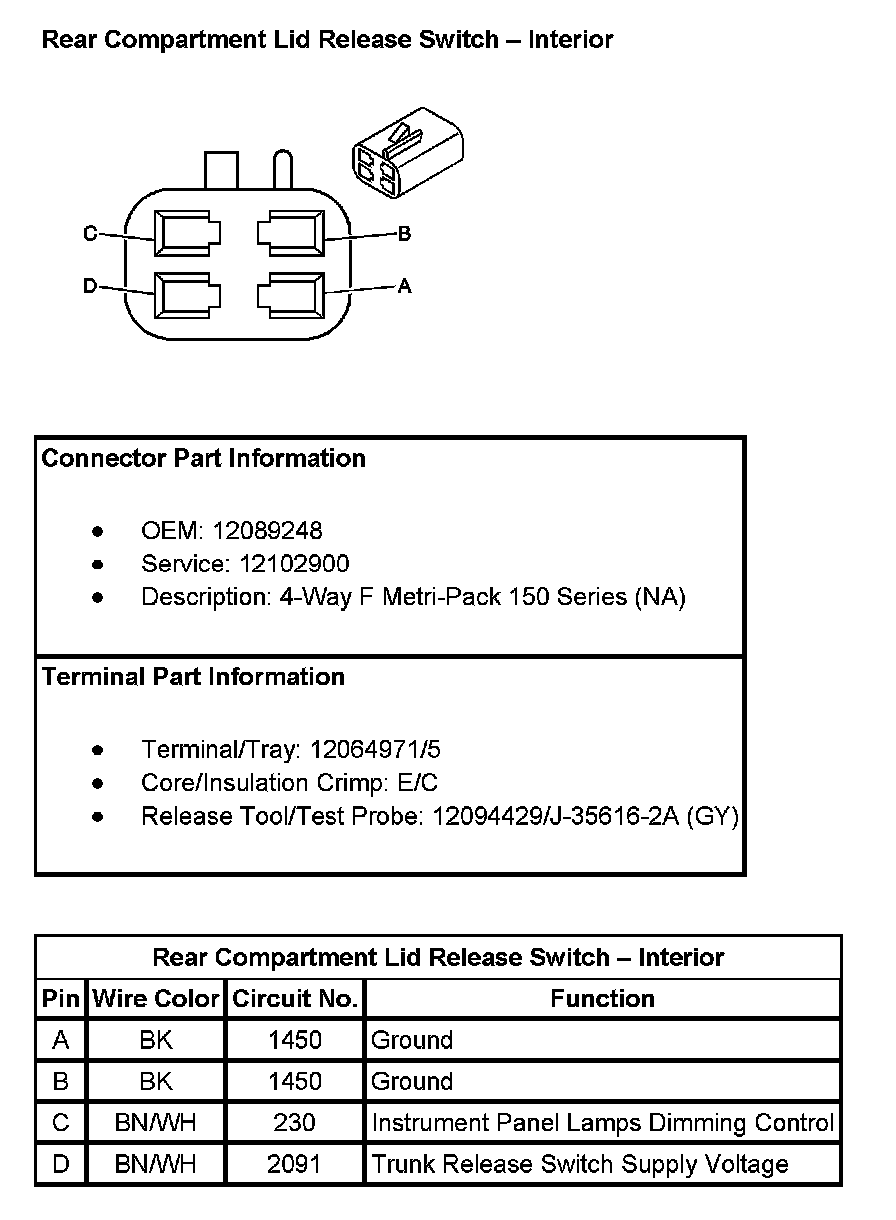

Rear Compartment Lid Release Switch - Interior:

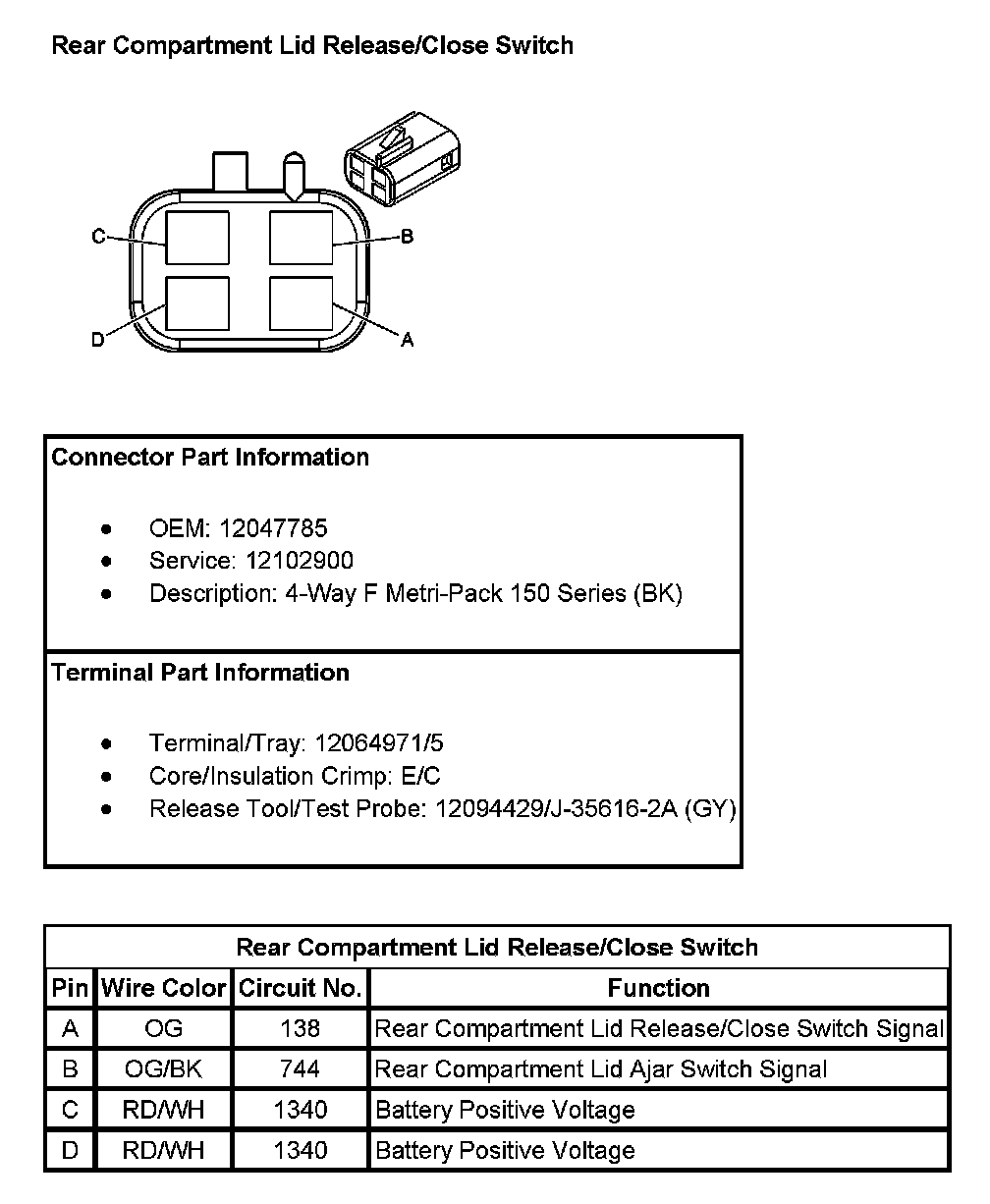

Rear Compartment Lid Release/Close Switch:
