Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2007
>>
XLR V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Starting and Charging
>>
Branching Point
>>
SP300 - SP399
>>
SP301
SP301

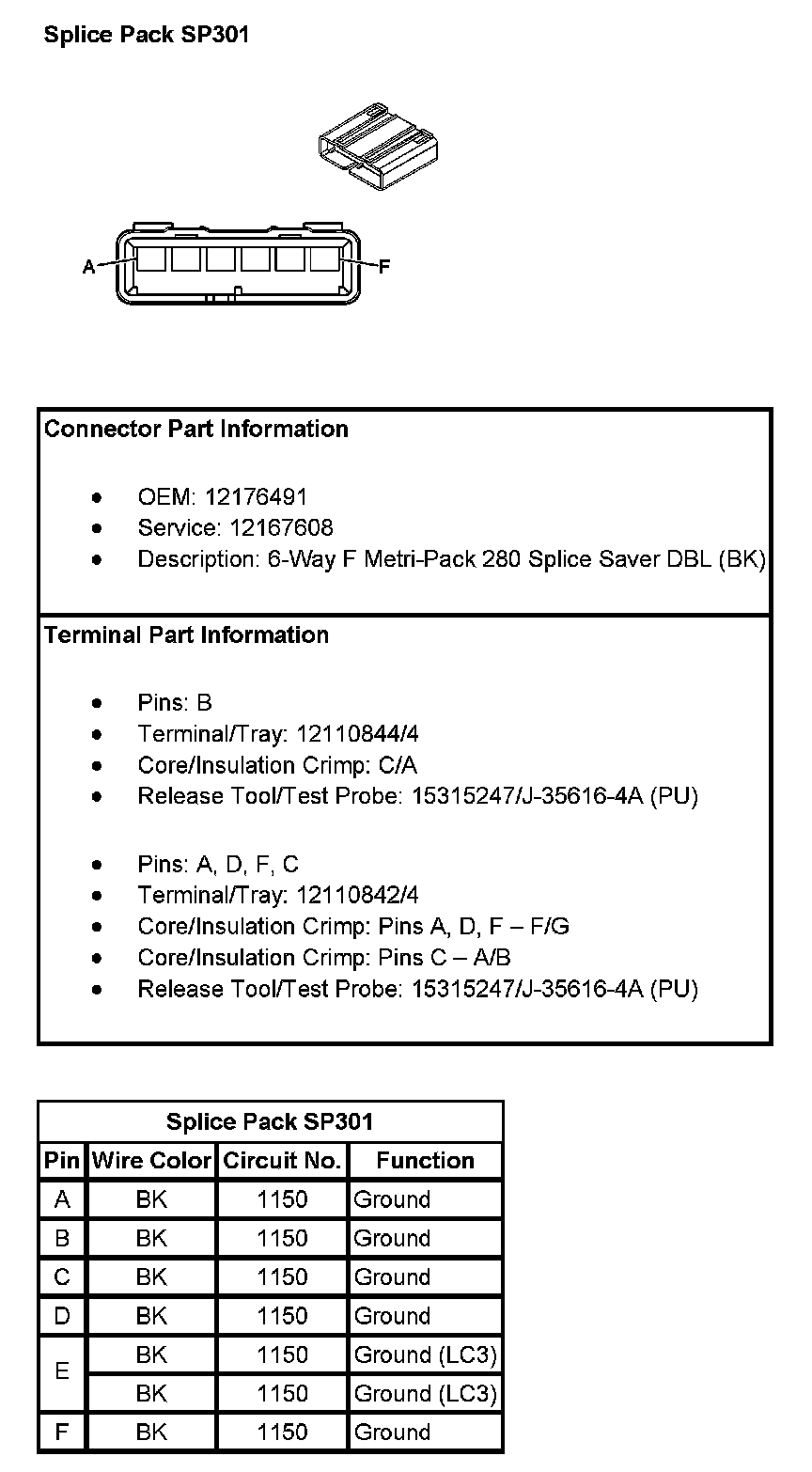

Splice Pack SP301:
