Shift Interlock, A/T
Shift Lock Control Schematics

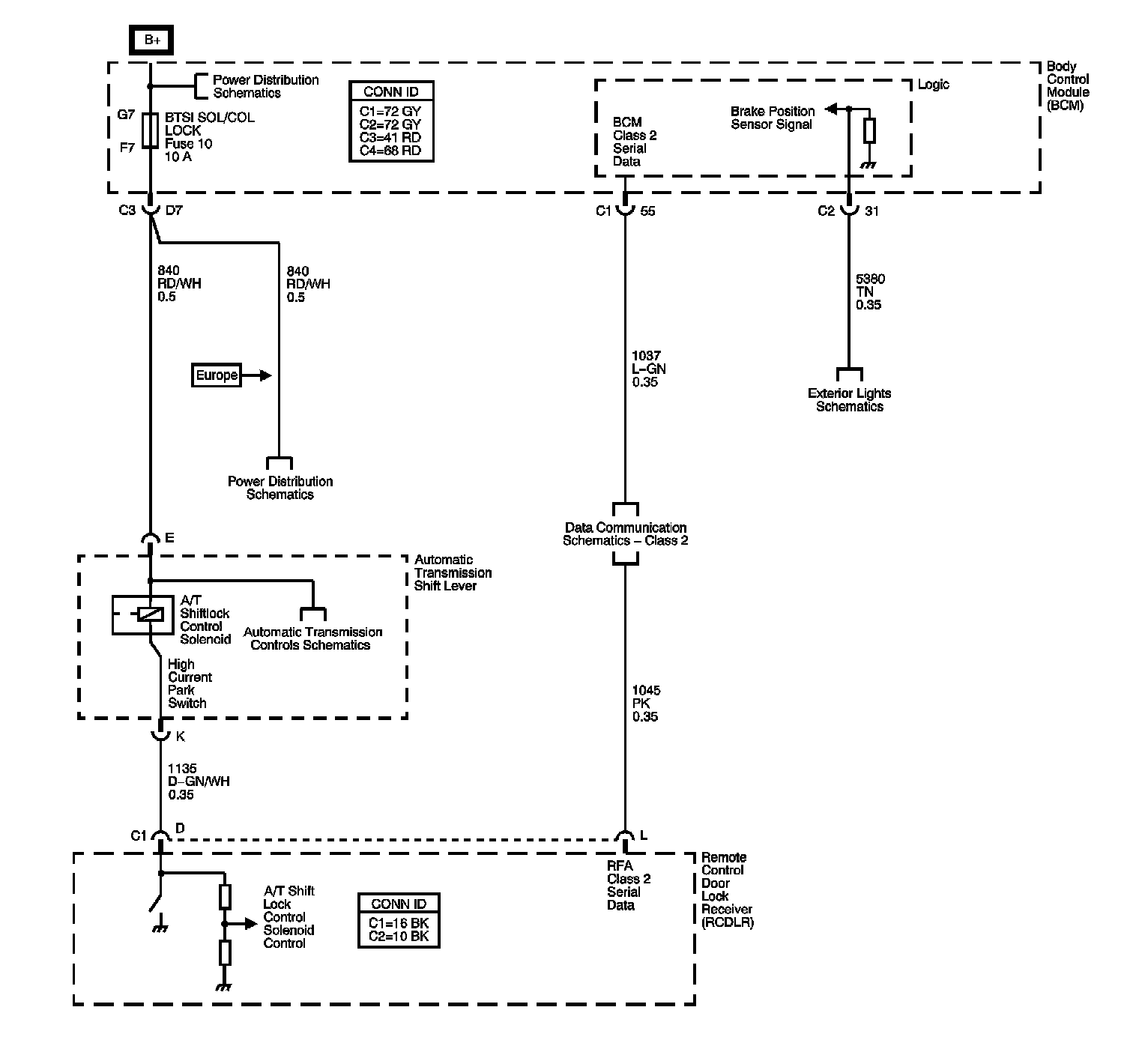

Shift Lock Control Schematics:
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Shift Lock Control Schematics
Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
