Air Temperature Sensor Replacement - Upper Left Side

Air Temperature Sensor Replacement - Upper Left Side

Removal Procedure




1. Remove the I/P cluster.

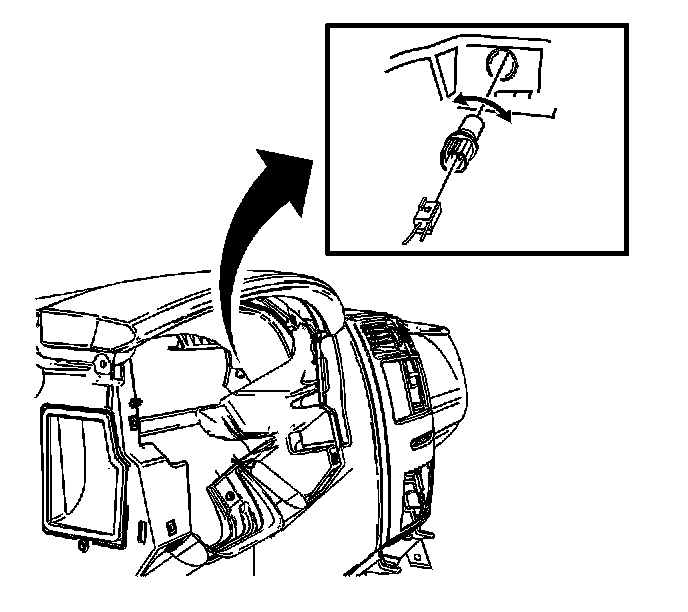

2. Disconnect the upper left DTM sensor electrical connector.
3. Remove the upper left DTM sensor from the air distribution duct.

Installation Procedure




1. Install the upper left DTM sensor to the air distribution duct.
2. Connect the upper left DTM sensor electrical connector.
3. Install the I/P cluster.
