Instrument Panel Trim Pad Replacement

Instrument Panel Trim Pad Replacement

Removal Procedure

1. Disable the SIR system. Refer to SIR Disabling and Enabling.
2. Remove the console trim plate.
3. Remove the instrument panel (I/P) accessory trim plate.
4. Remove the driver side knee bolster.
5. Remove the driver information center (DIC).
6. Remove the dimmer/head-up display switch.
7. Remove the windshield side garnish moldings.




8. Remove the I/P side trim panels.

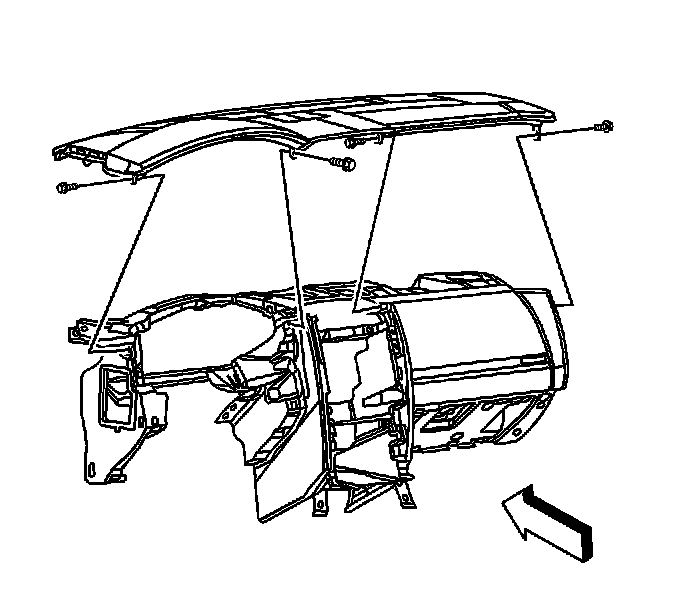

9. Remove the 4 retaining screws from the I/P trim pad. These screws are located at each end of the I/P, in the center of the I/P, and behind the DIC switch.

Important: The trim pad is still attached to the sunload/twilight sensor. Do NOT remove the pad completely at this time.

10. Pull up carefully on the I/P trim pad to disengage the retaining clips.
11. Disconnect the sunload/twilight sensor from the trim pad.
12. Remove the trim pad from the vehicle.

Installation Procedure




1. Align the I/P trim pad to the vehicle.
2. Connect the sunload/twilight sensor to the trim pad.
3. Align the trim pad retaining clips to the I/P panel carrier and push down to engage all of the clips.

Notice: Refer to Fastener Notice.

4. Install the trim pad retaining screws.

Tighten the screws to 10 N.m (89 lb in).

5. Install the I/P side trim panels.
6. Install the windshield side garnish moldings.
7. Install the dimmer/head-up display switch.
8. Install the driver information center (DIC).
9. Install the driver side knee bolster.
10. Install the I/P accessory trim plate.
11. Install the console trim plate.
12. Enable the SIR system. Refer to SIR Disabling and Enabling.
