Clutch Backing Plate Retaining Ring Specifications (6L80)



Clutch Backing Plate Retaining Ring Specifications (6L80)

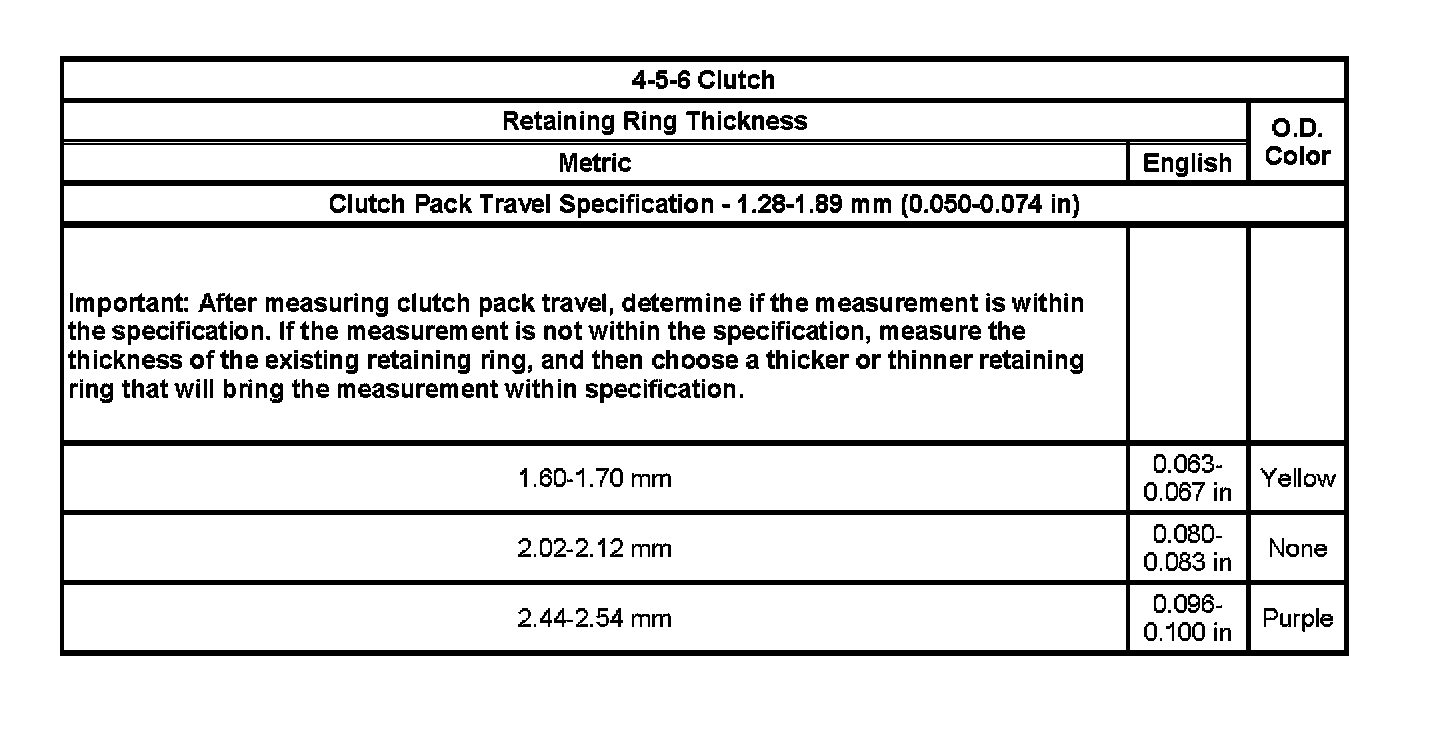

Clutch Backing Plate Retaining Ring Specifications (6L80) (part 1):

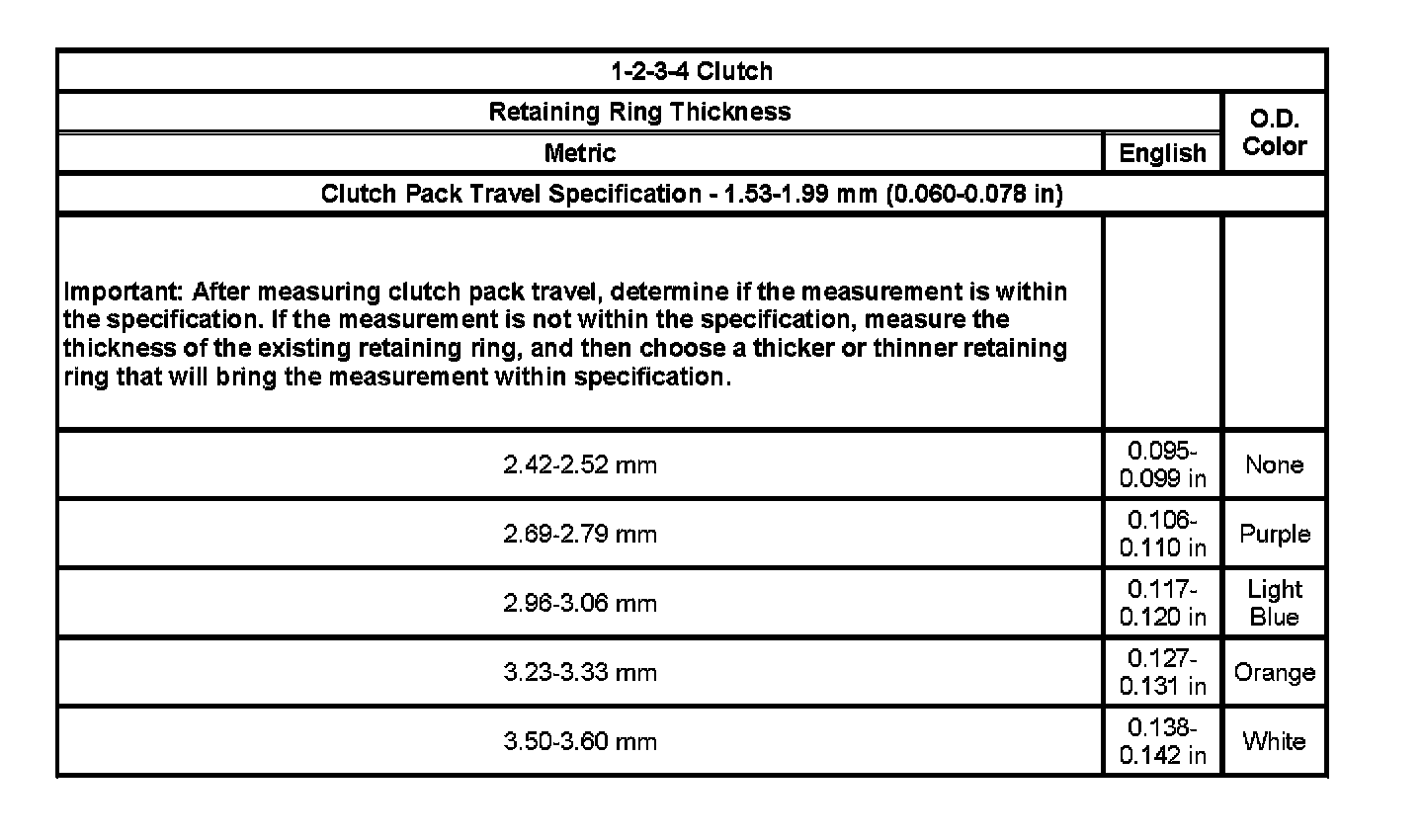

Clutch Backing Plate Retaining Ring Specifications (6L80) (part 2):

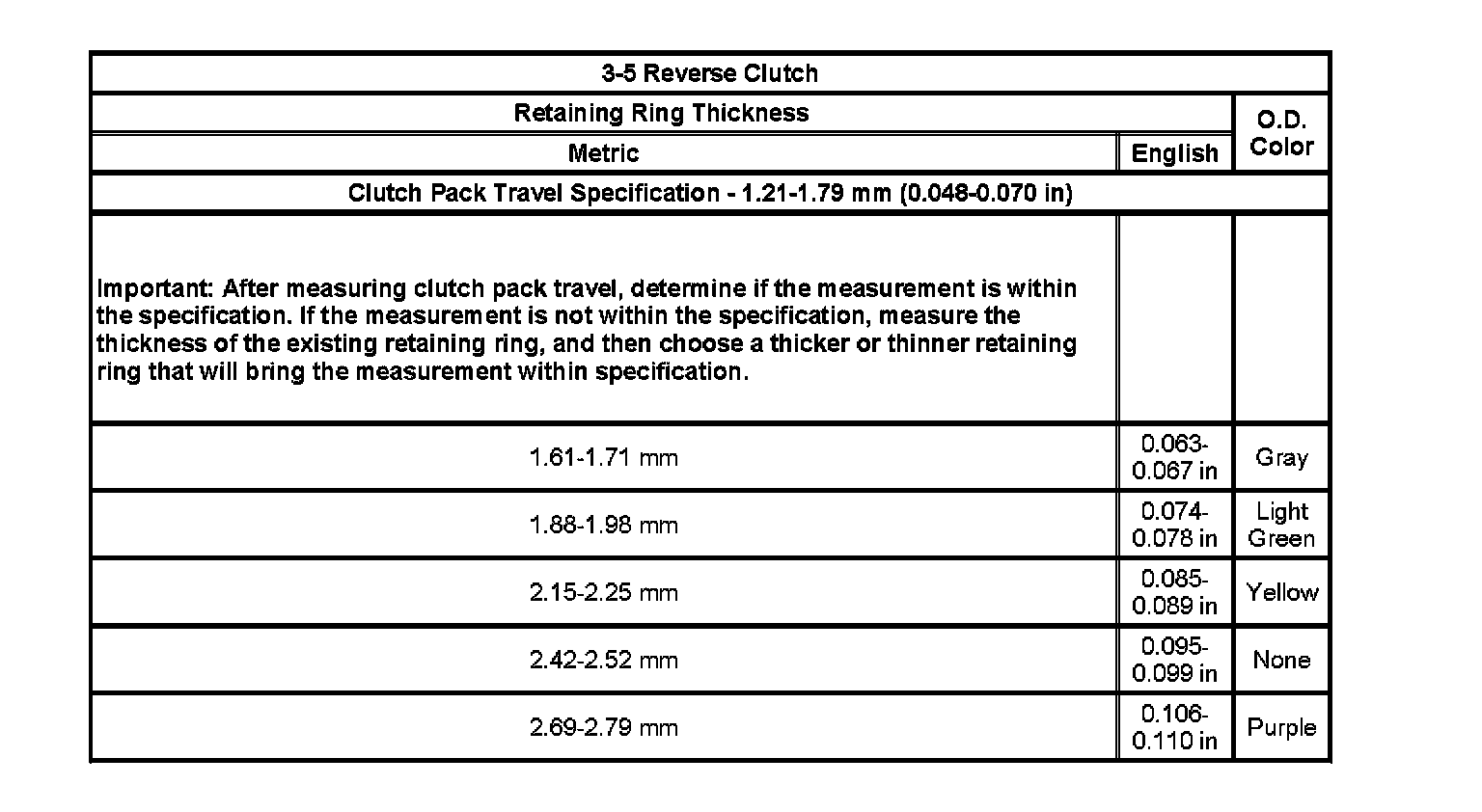

Clutch Backing Plate Retaining Ring Specifications (6L80) (part 3):
