Diagrams
>>
Splices
>>
Master Splice List
Master Splice List

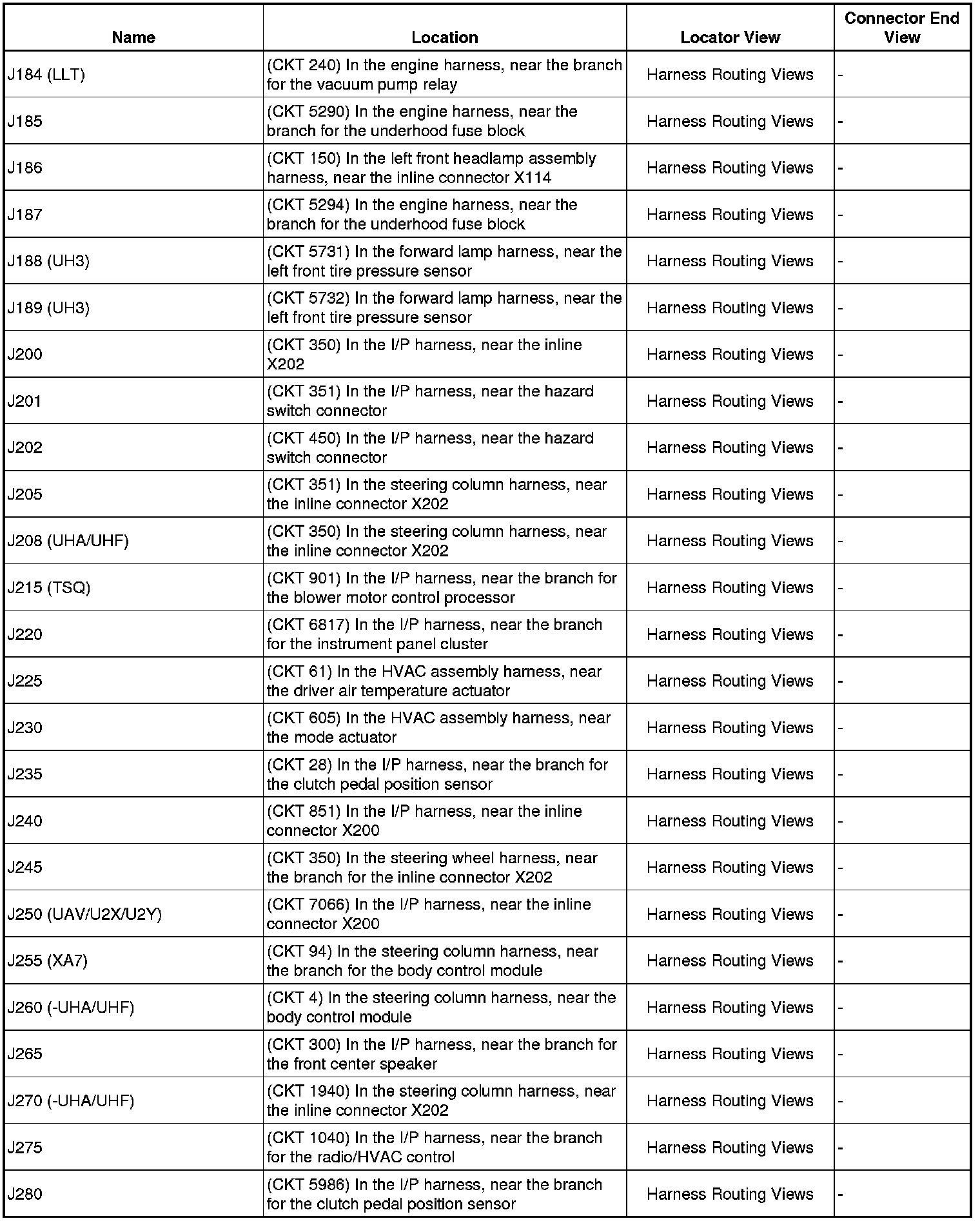

J142 - J183:
J184 - J280:
J285 - J383:

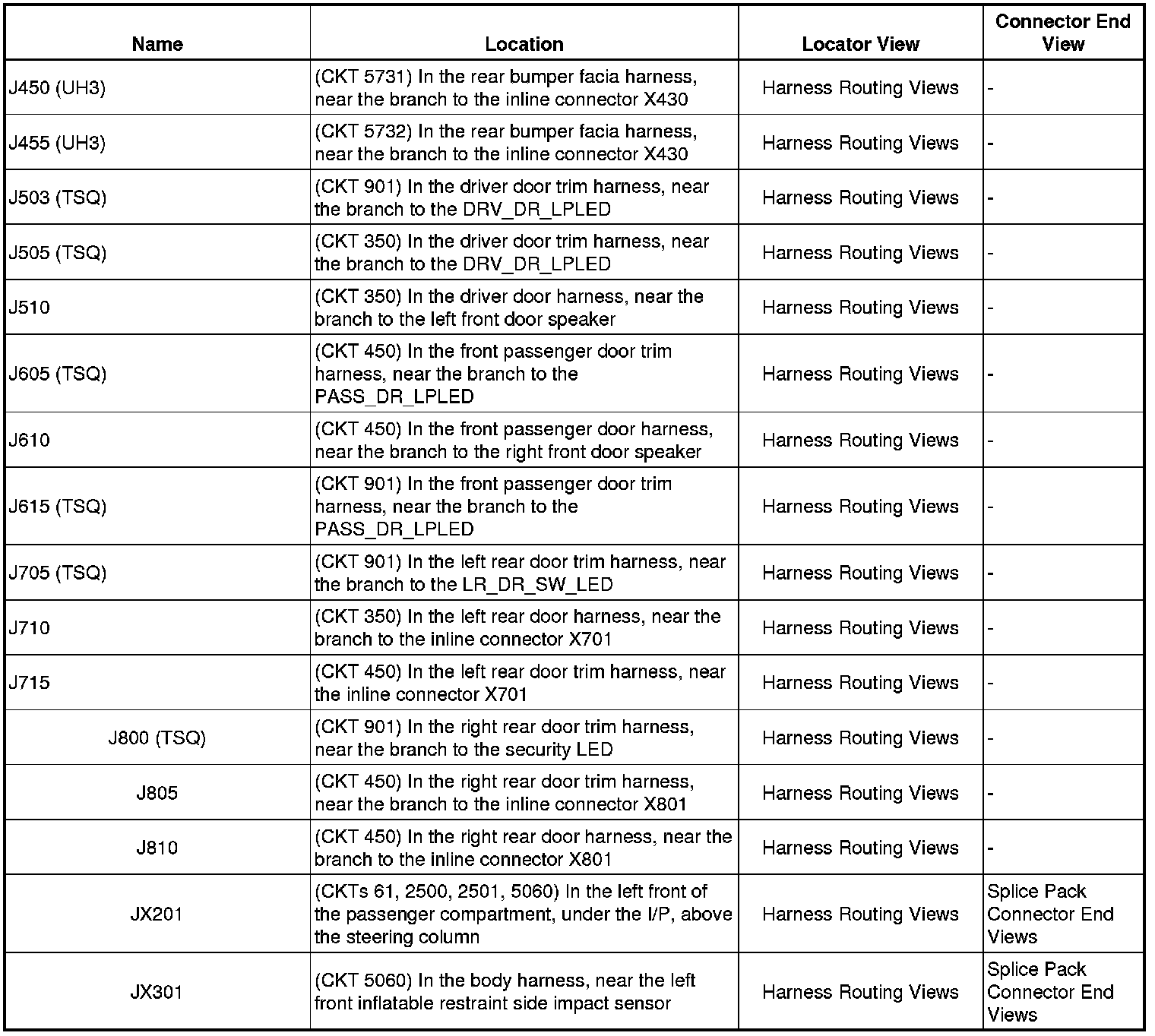

J450 - JX301:
