Seat Rear Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)

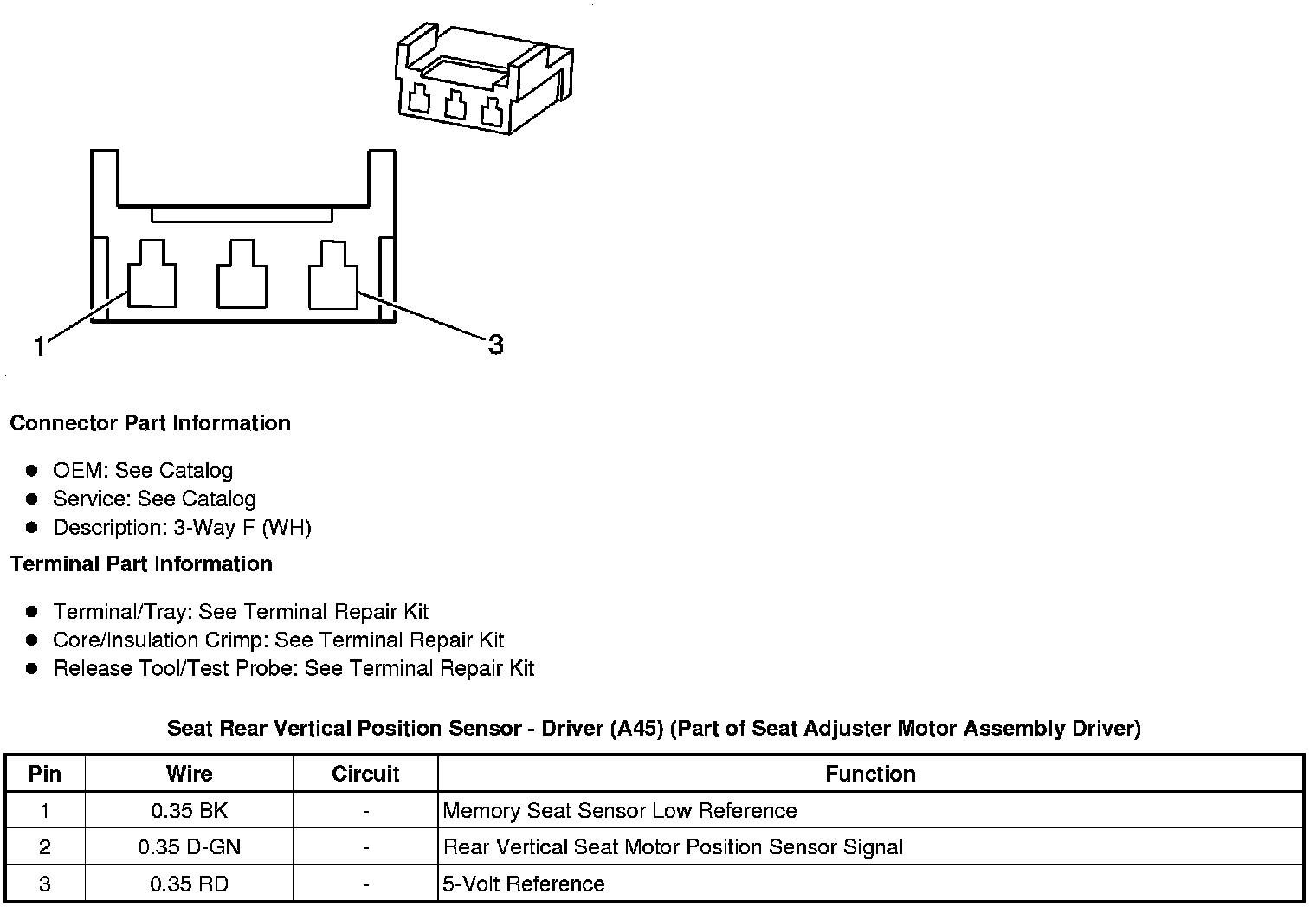

Component Connector End Views

Seat Rear Vertical Position Sensor - Driver (A45) (Part of Seat Adjuster Motor Assembly Driver)
