Pedal Positioning System
Pedal Positioning System
Component Connector End Views

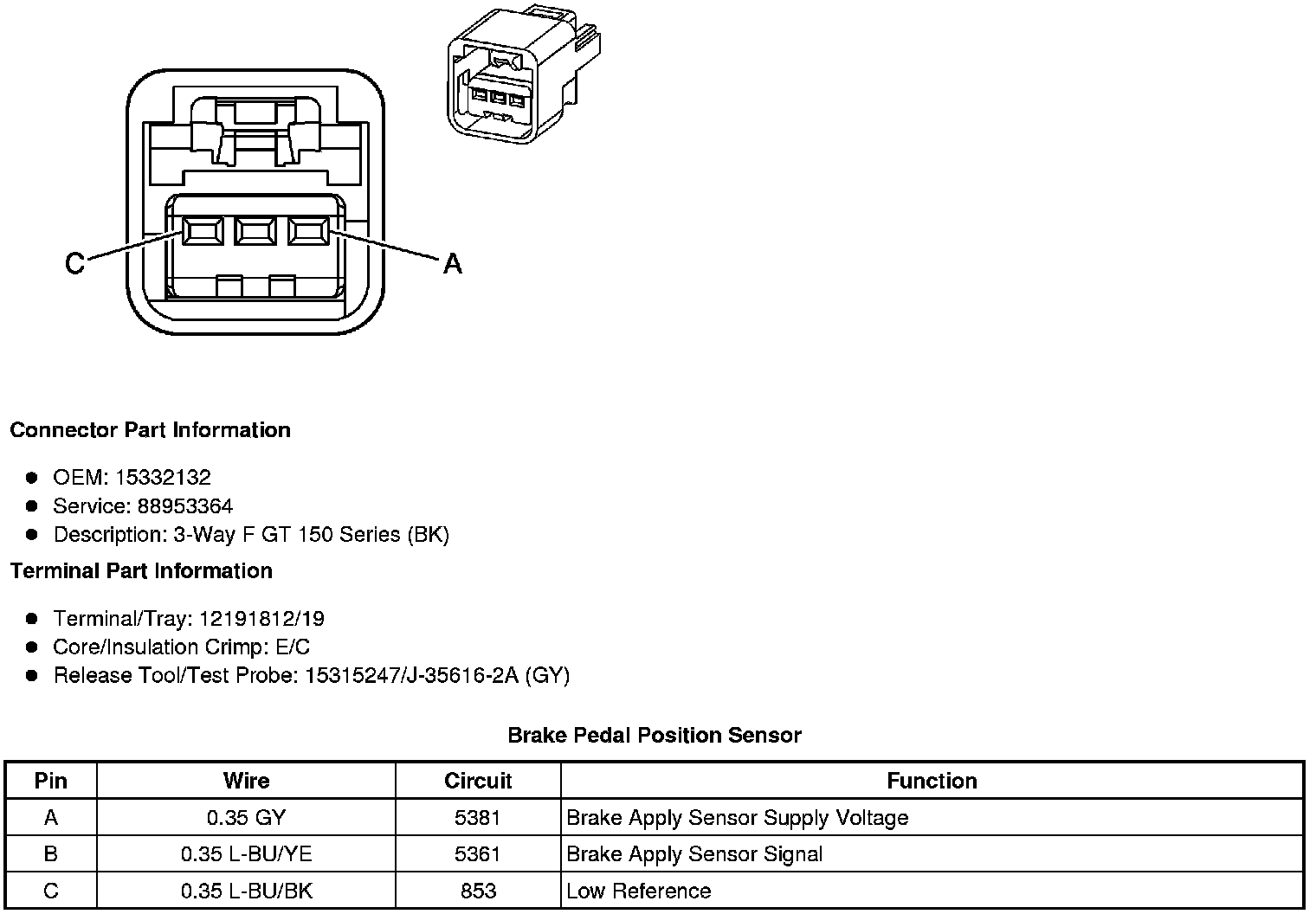

Brake Pedal Position Sensor
