Power Seat Motor



Component Connector End Views

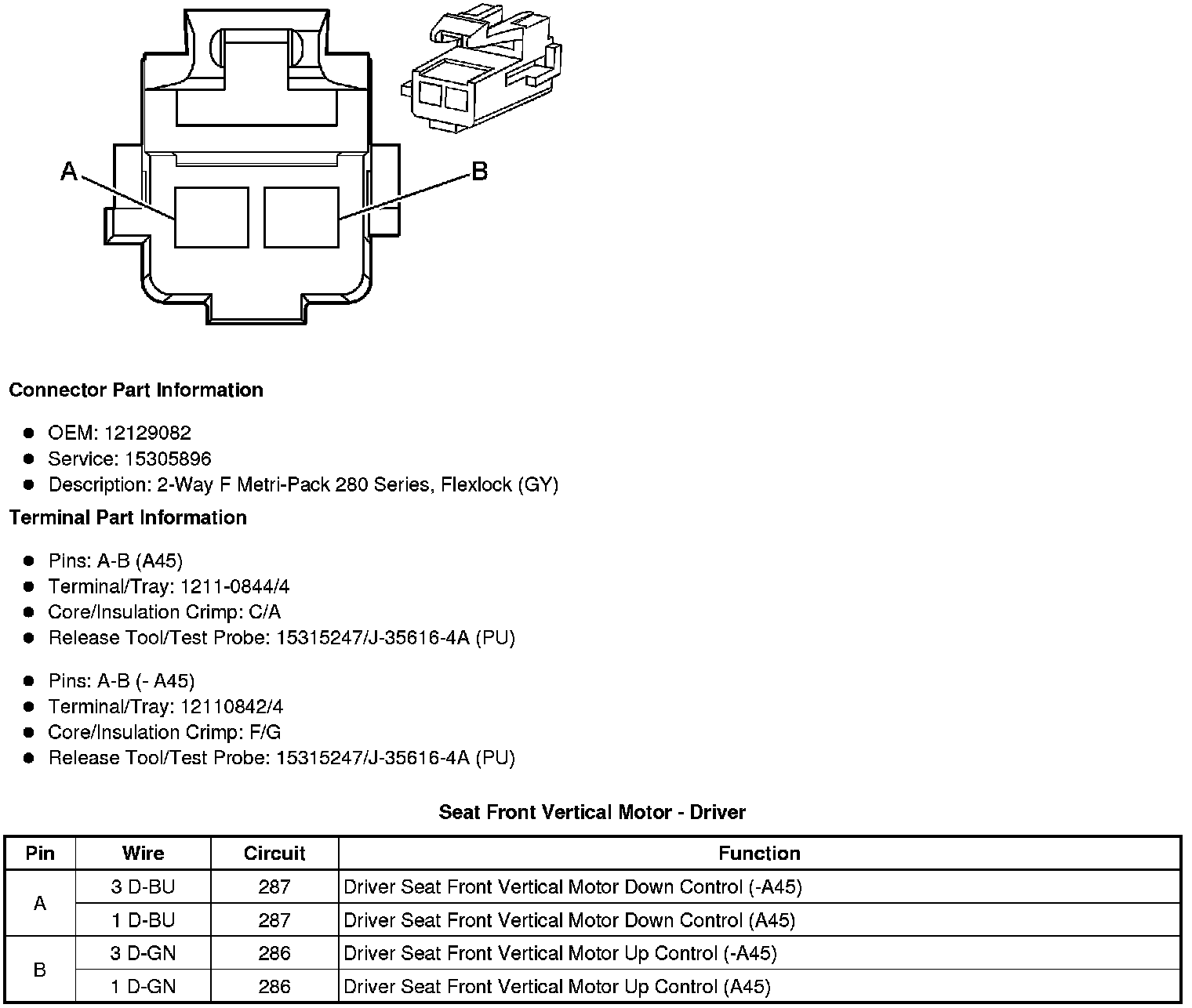

Seat Front Vertical Motor - Driver

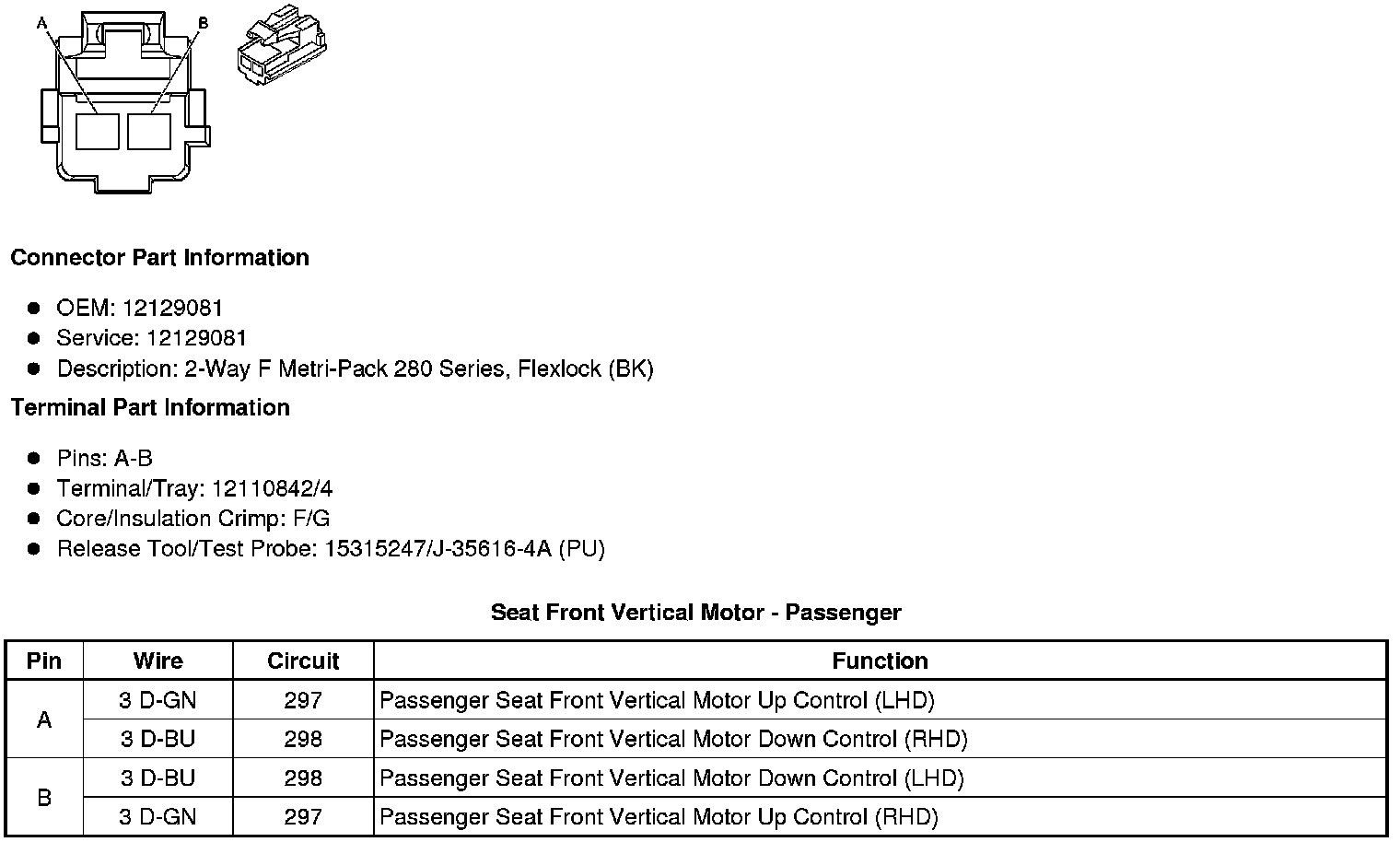

Seat Front Vertical Motor - Passenger






Seat Front Vertical Position Sensor - Driver (A45)

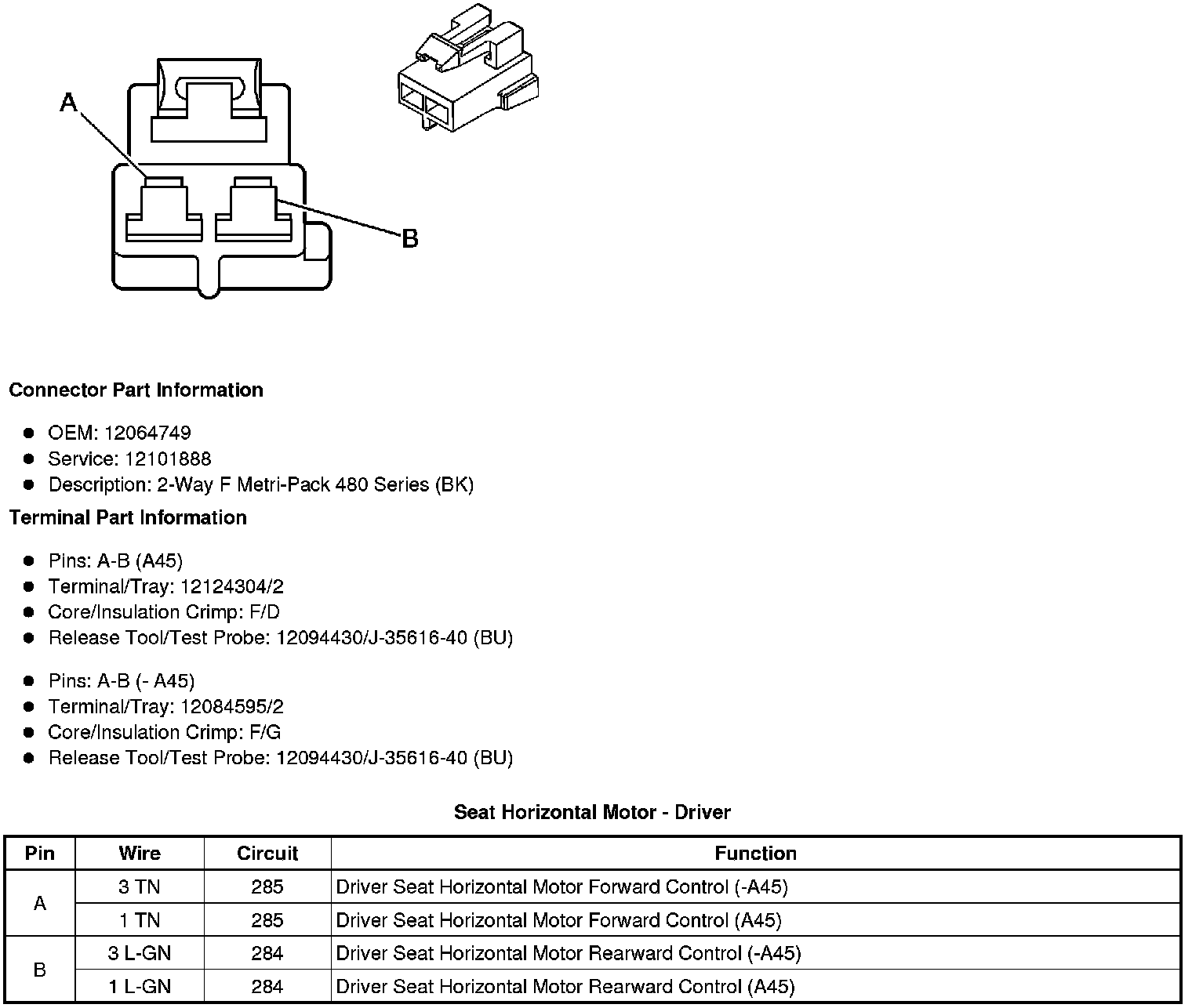

Seat Horizontal Motor - Driver

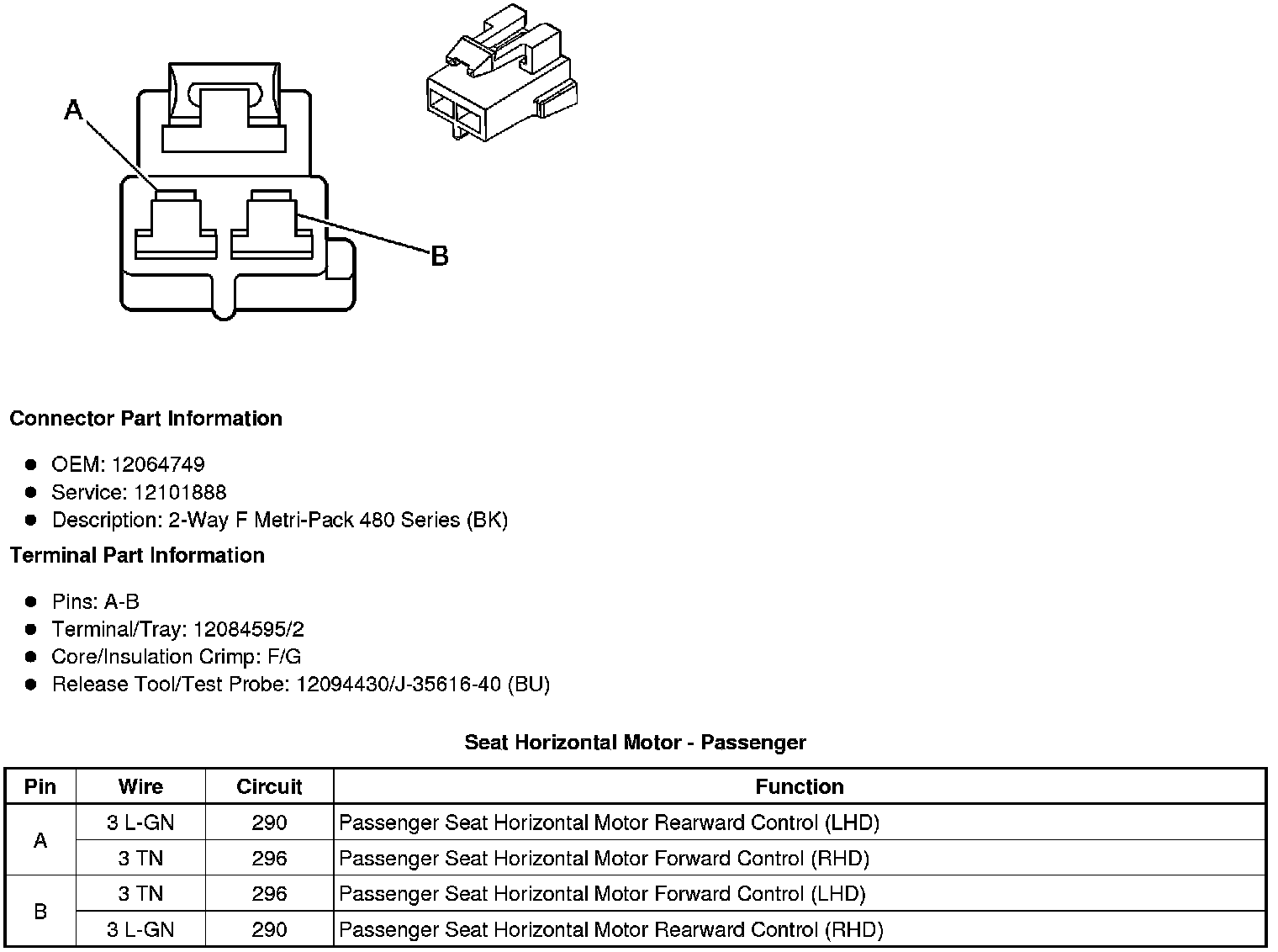

Seat Horizontal Motor - Passenger






Seat Horizontal Position Sensor - Driver (A45)

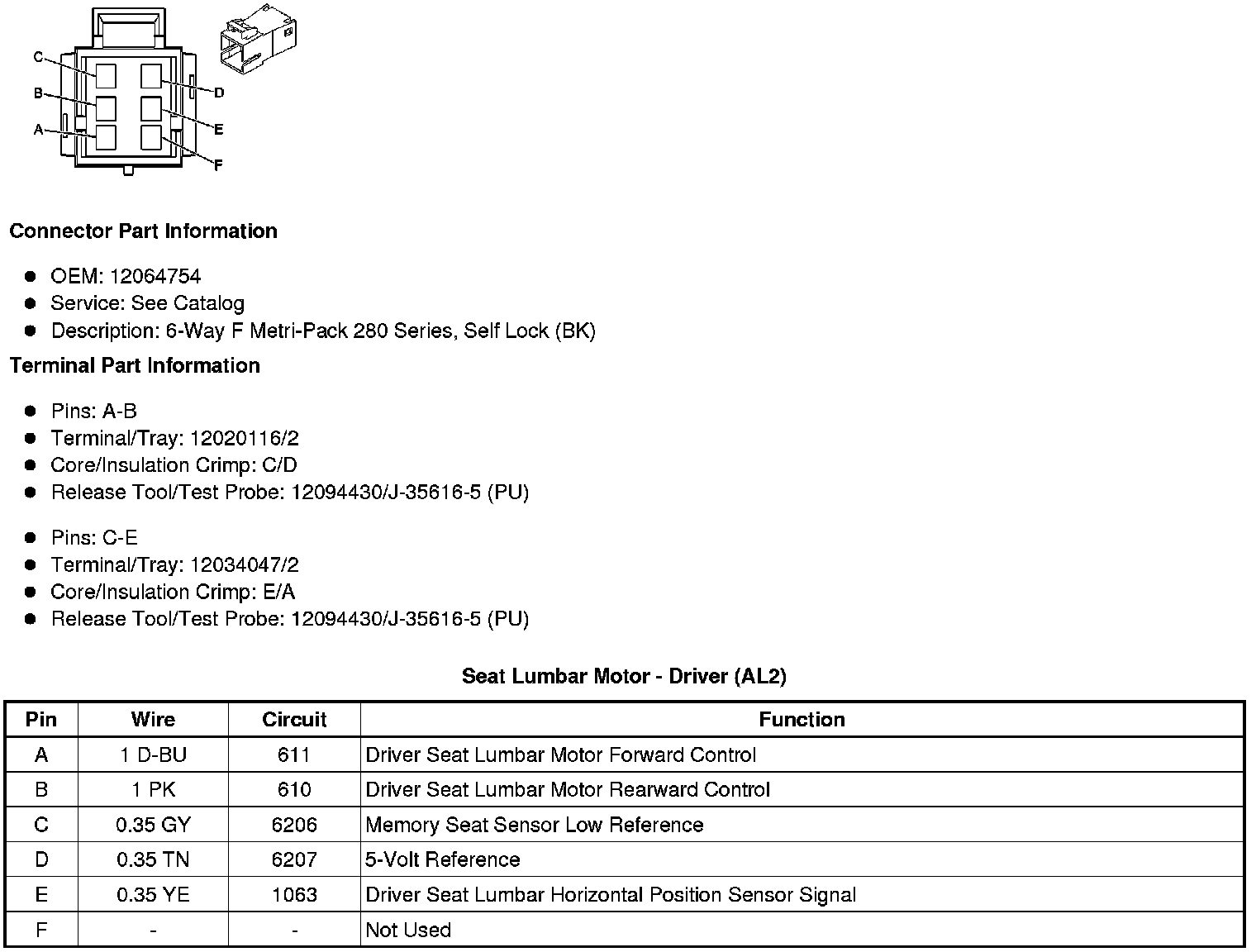

Seat Lumbar Motor - Driver (AL2)

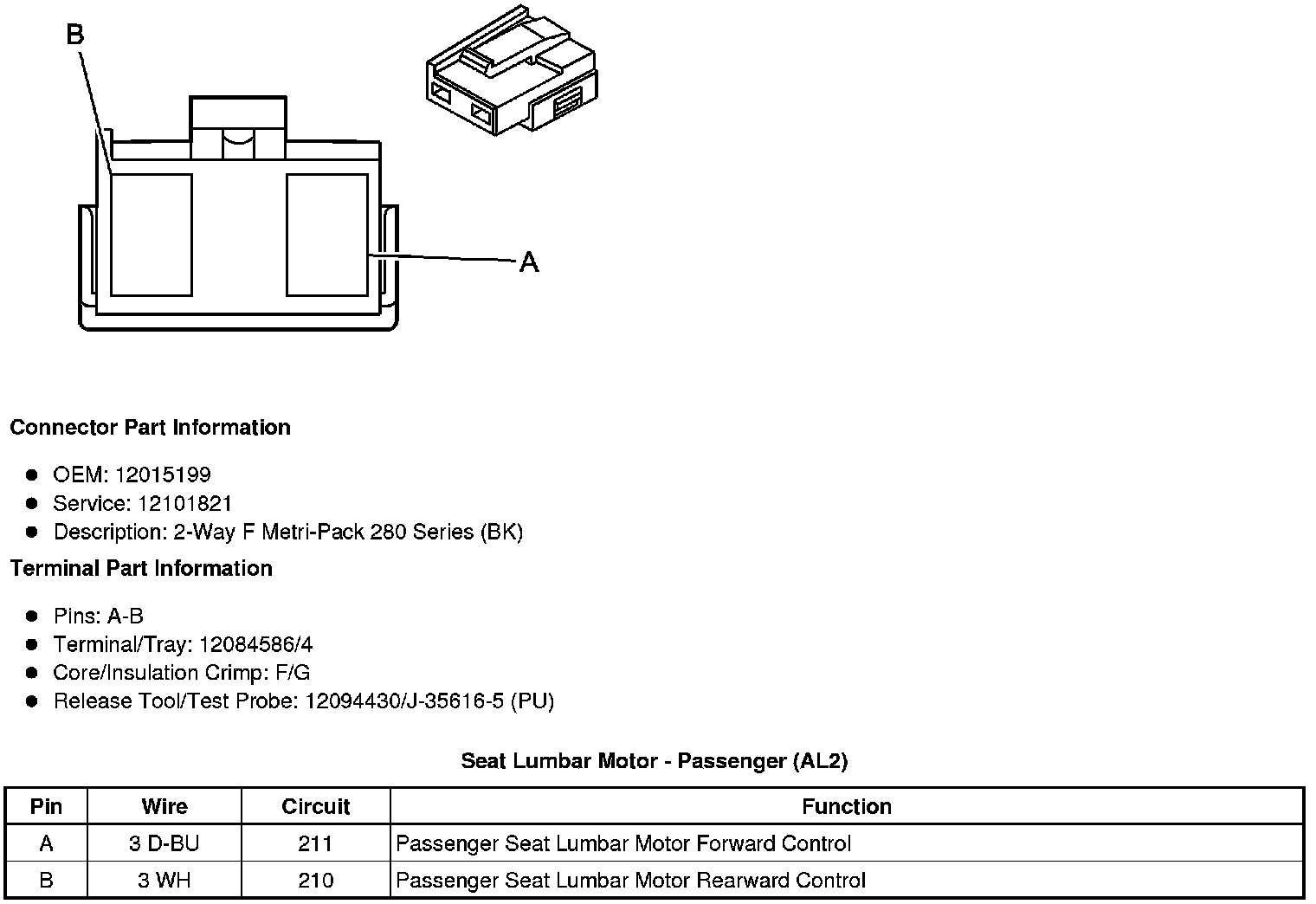

Seat Lumbar Motor - Passenger (AL2)






Seat Lumbar Switch - Driver (AL2)






Seat Lumbar Switch - Passenger (AL2)

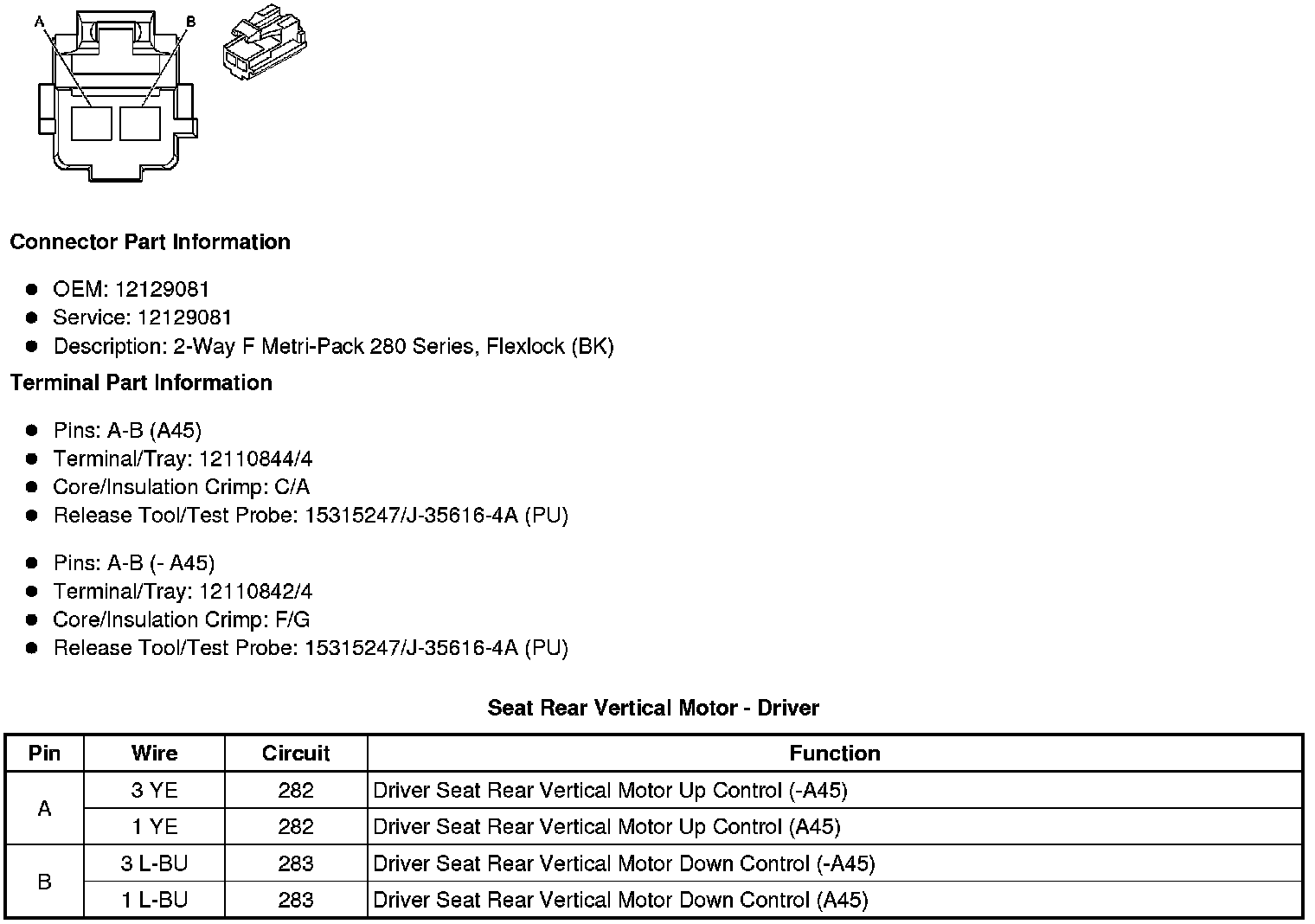

Seat Rear Vertical Motor - Driver

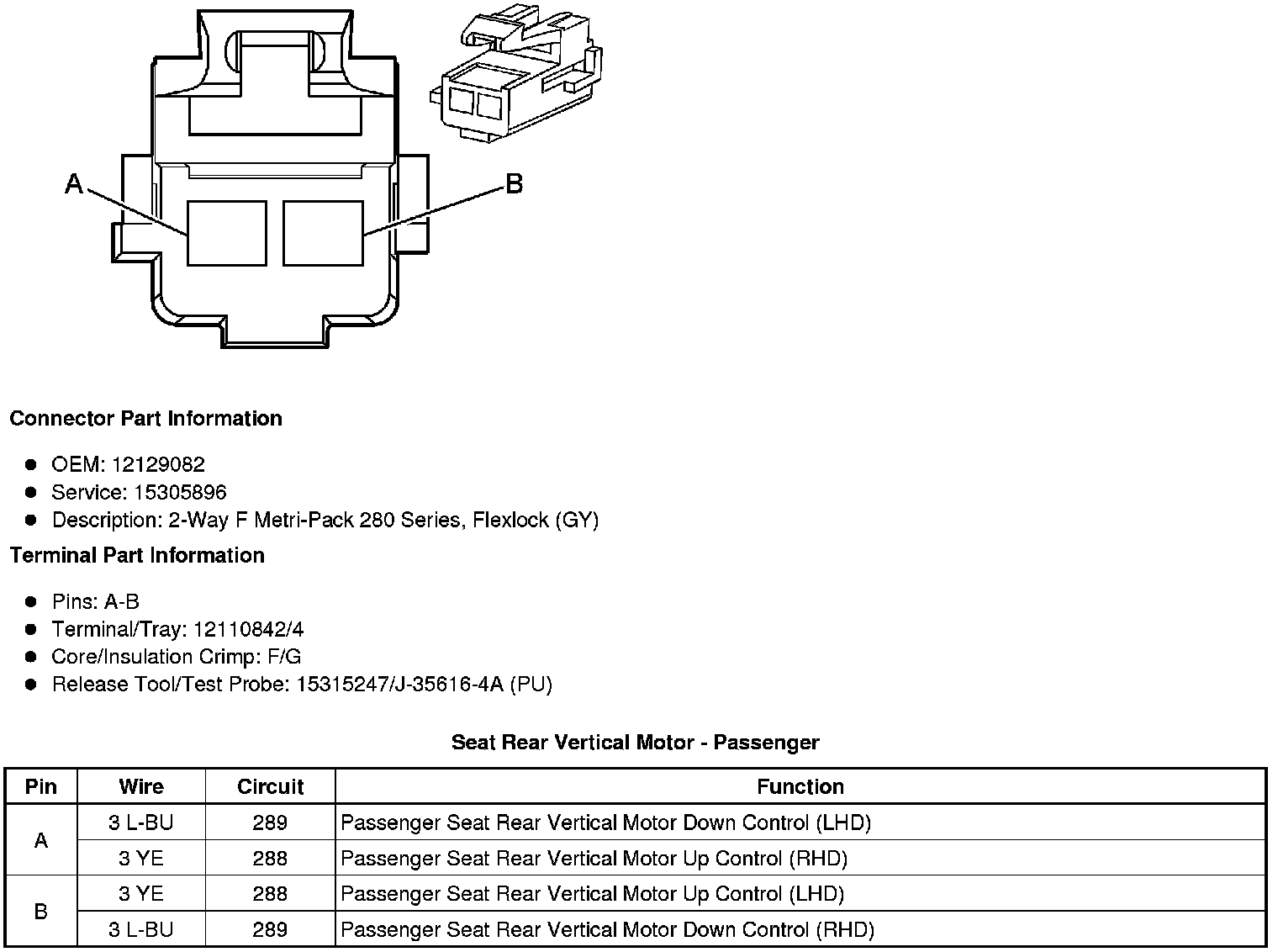

Seat Rear Vertical Motor - Passenger






Seat Rear Vertical Position Sensor - Driver (A45)






Seat Recline Motor - Driver

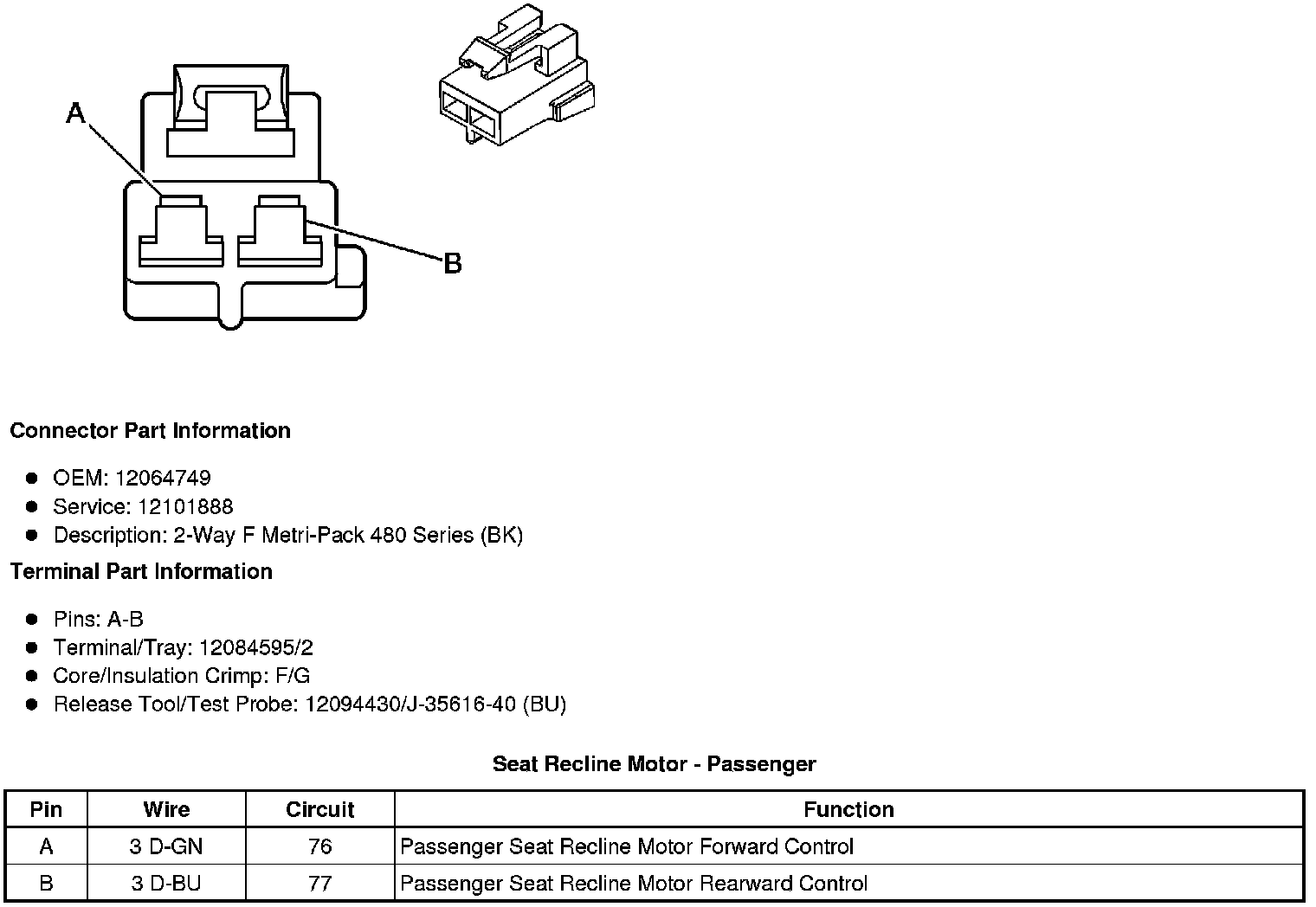

Seat Recline Motor - Passenger






Seat Recline Position Sensor - Driver (A45)
