Oil Level Sensor: Service and Repair



Engine Oil Level Sensor and/or Switch Replacement

Removal Procedure





1. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement (Service and Repair) .
2. Disconnect the electrical connector from engine oil level switch.

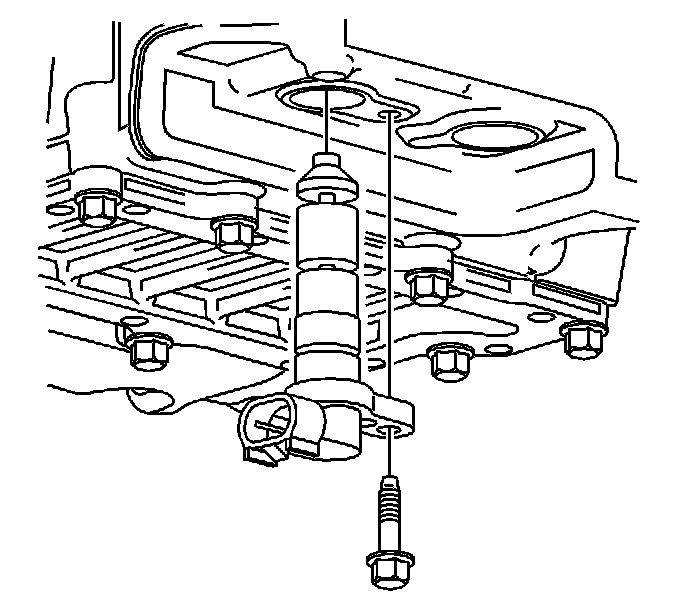

3. Remove the engine oil level switch from the oil pan.



Installation Procedure





1. Install the engine oil level switch to the oil pan.

Notice: Refer to Fastener Notice (Fastener Notice) .

2. Install the engine oil level switch bolt.

Tighten the engine oil level switch bolt to 10 N.m (89 lb in).

3. Connect the electrical connector to engine oil level switch.
4. Fill the engine oil. Refer to Engine Oil and Oil Filter Replacement (Service and Repair) .
5. Inspect for oil leaks after engine start up.
