RHD
Harness Routing Views (RHD)Rear of Engine Compartment (LH2 - Gas, 8 Cylinder, 4.6L, SFI, V8, DOHC, HO)1 - X104
2 - Fuse Block - Underhood X3
3 - G100
4 - G107
5 - X175
6 - X107
7 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
8 - X102

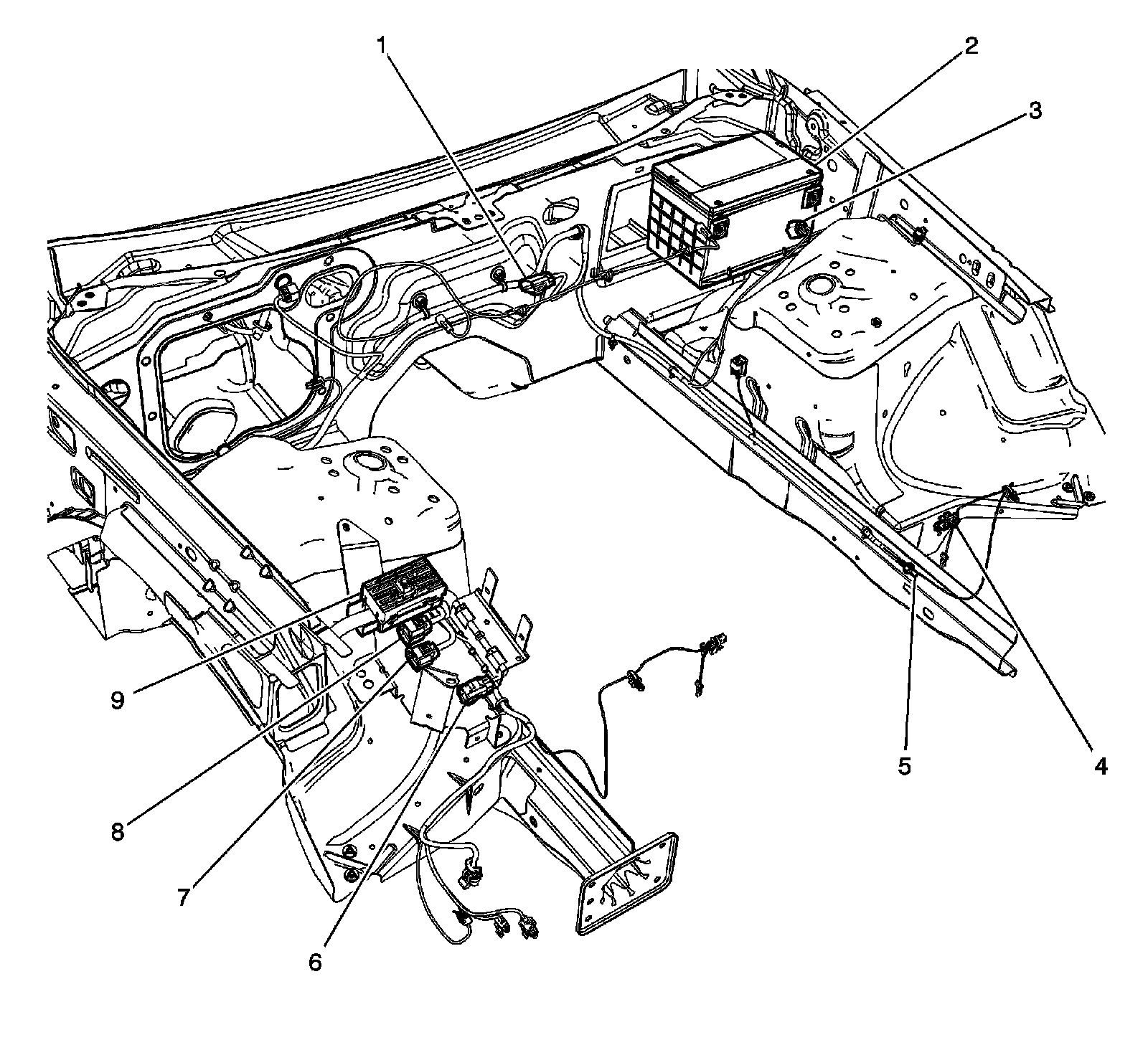

I/P Harness Routing - Front Engine Compartment1 - X102
2 - Battery
3 - Battery Current Sensor
4 - X103
5 - G101
6 - X116
7 - X118
8 - X117
9 - Fuse Block - Underhood X2
