Electrical Diagrams



Engine Controls Schematics

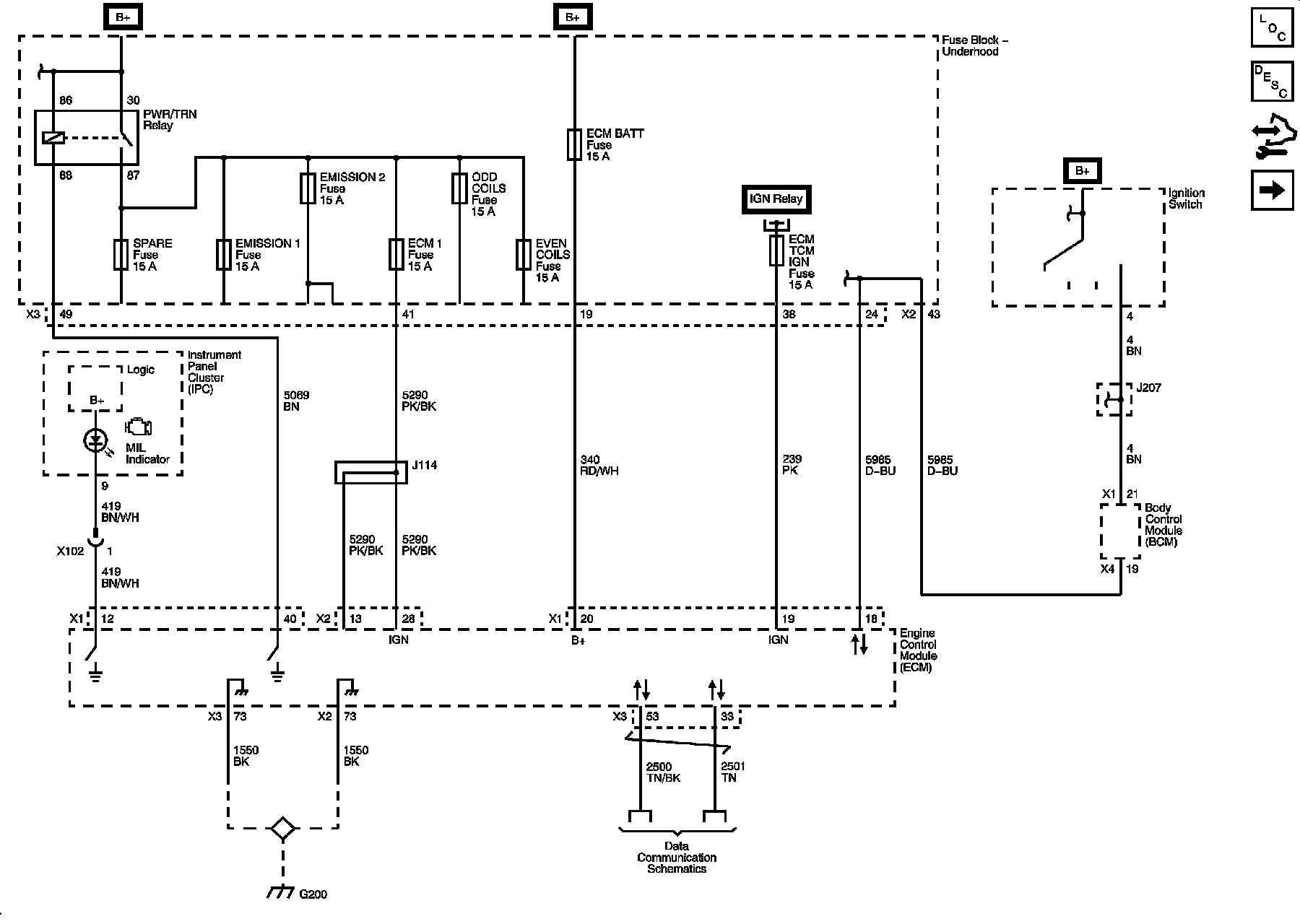

Power, Ground, Serial Data and MIL

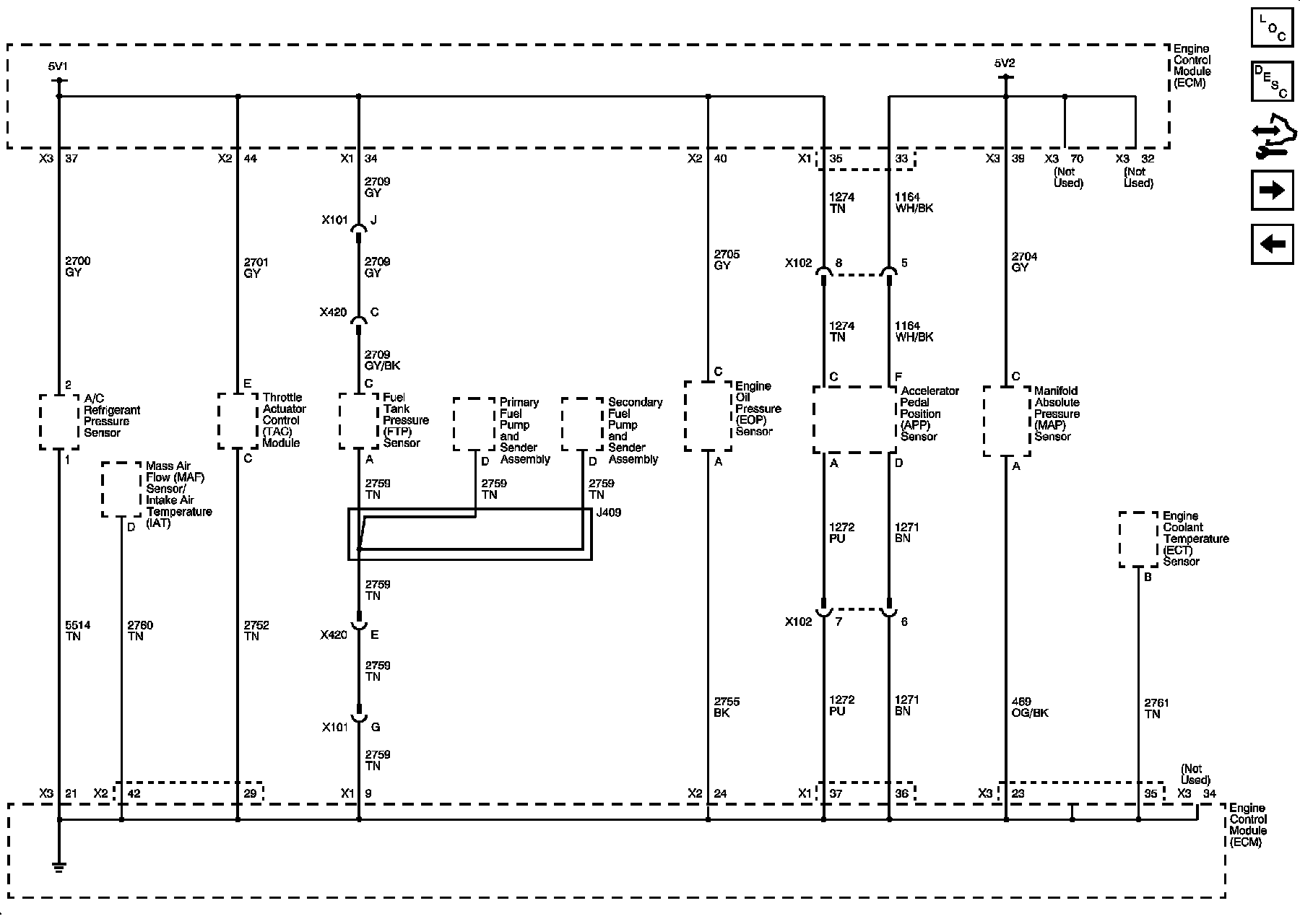

Engine Data Sensors - 5-Volt and Low References

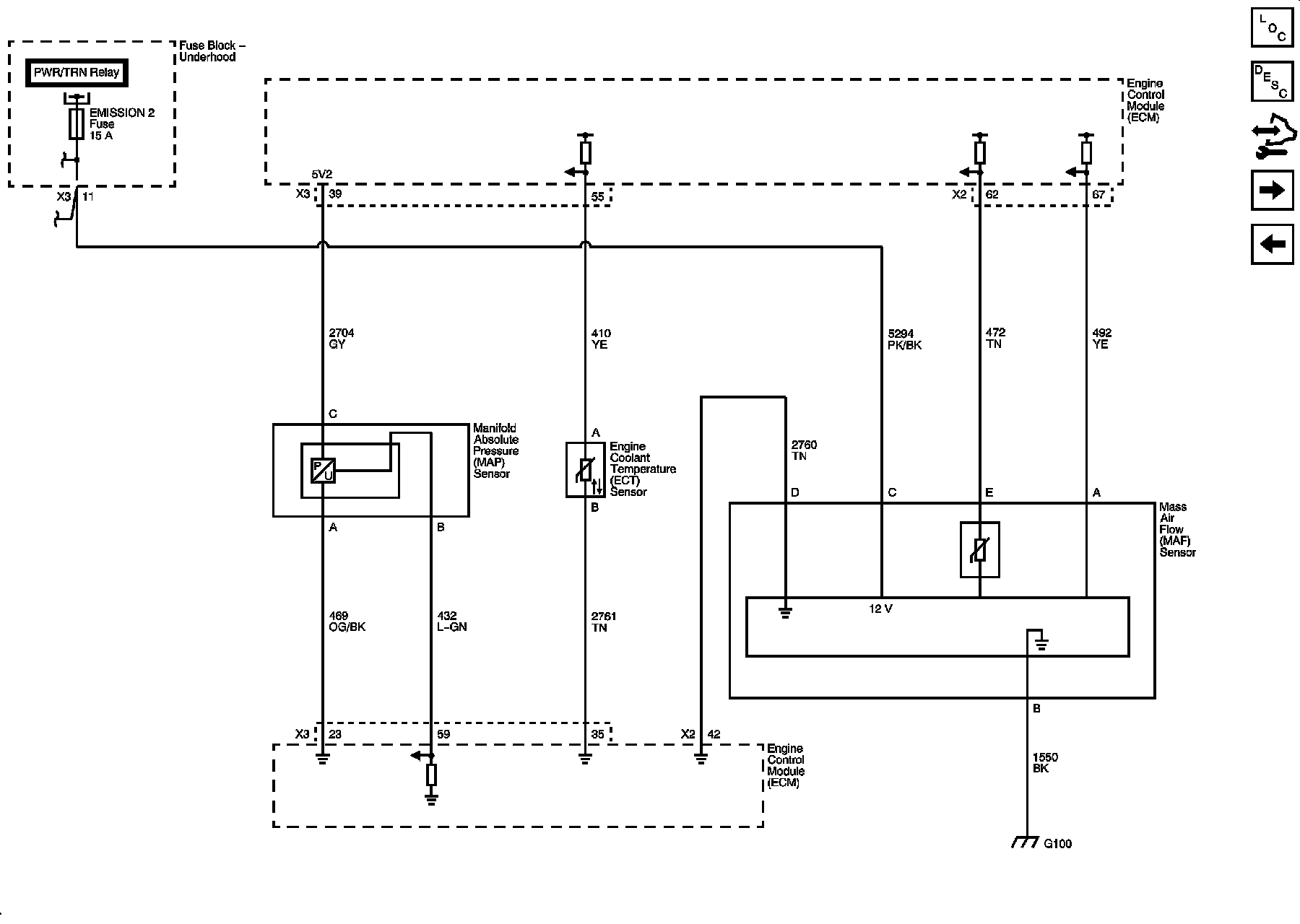

Engine Data Sensors - MAF, MAP and ECT Sensor

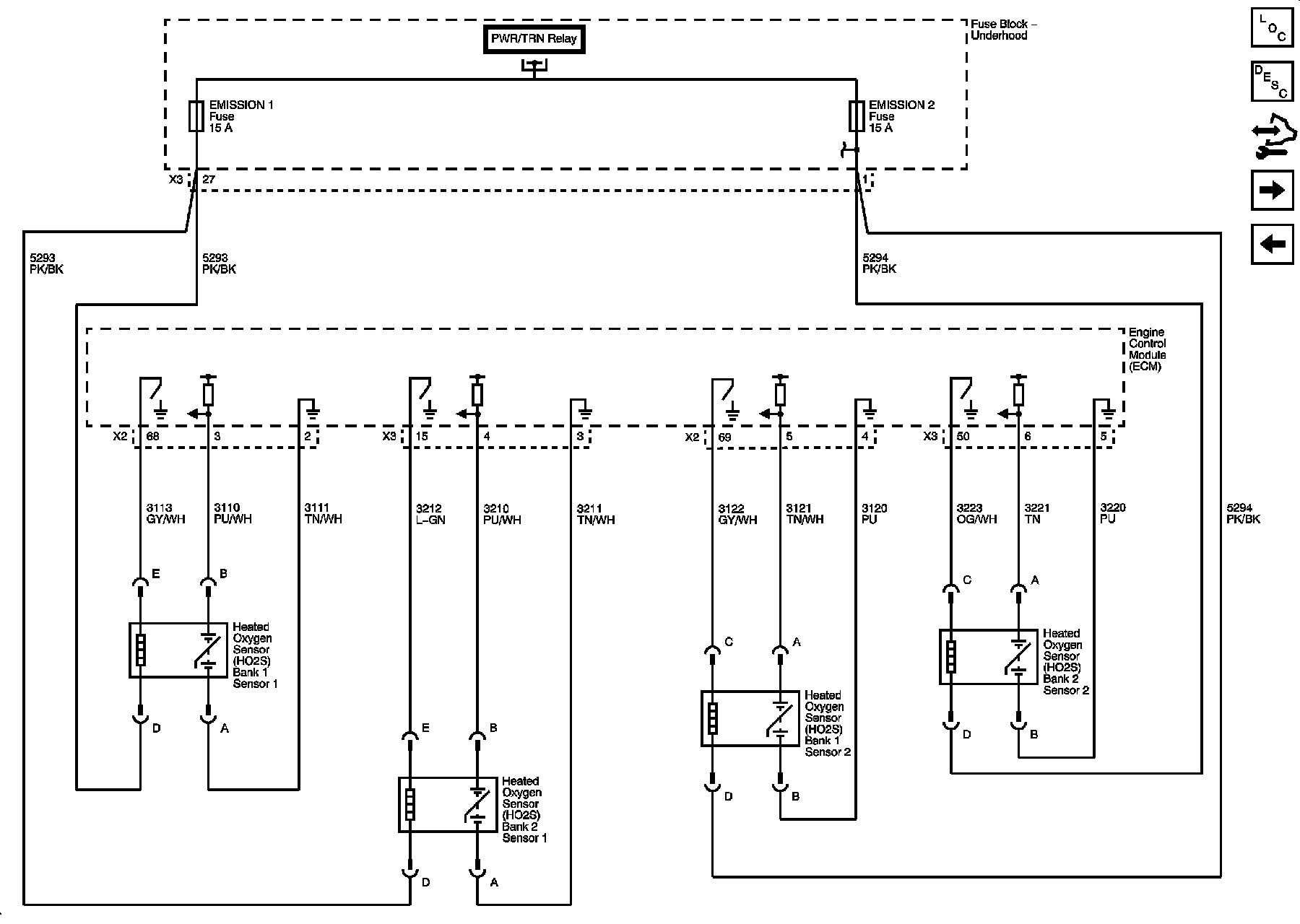

Engine Data Sensors - Oxygen Sensors

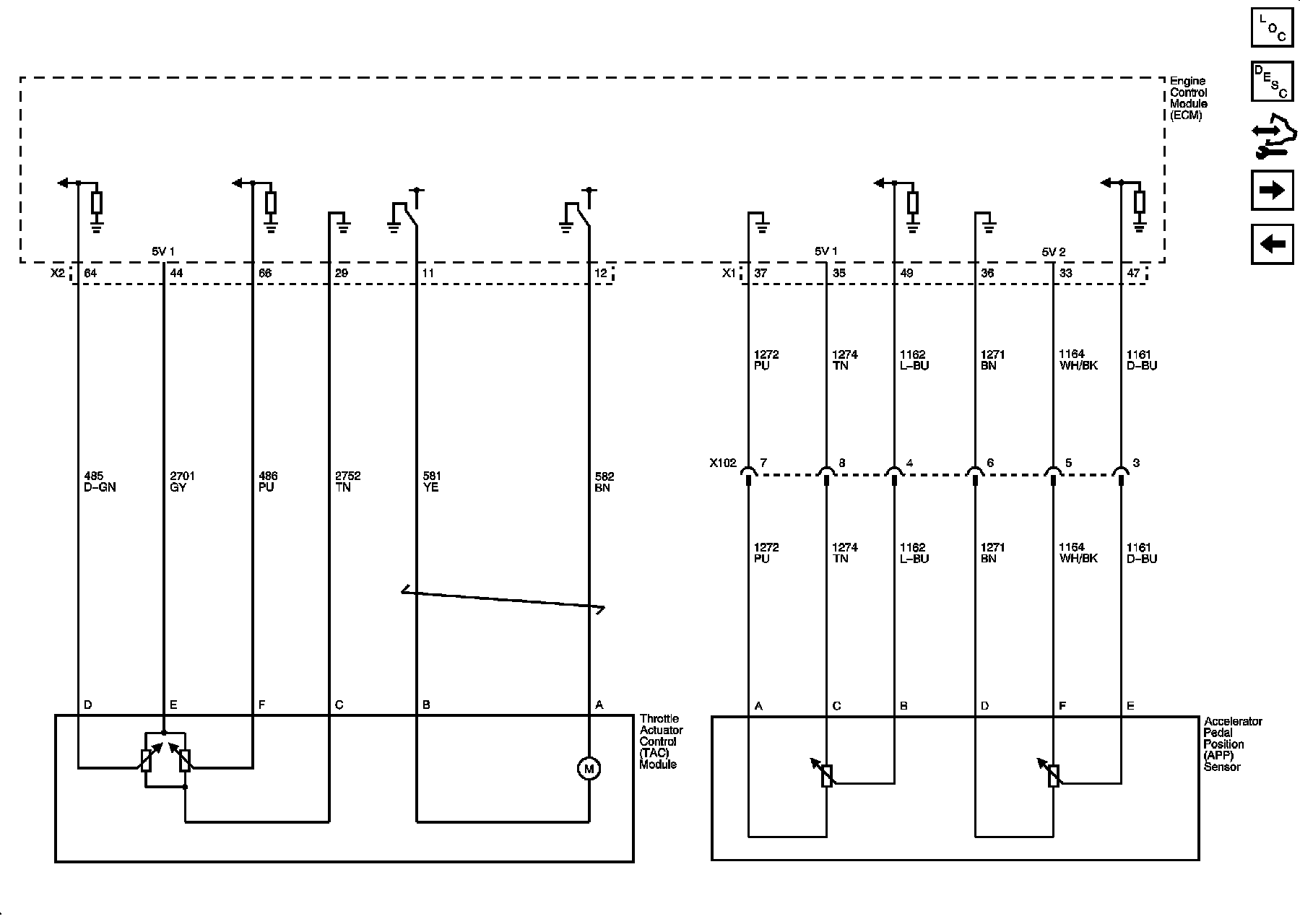

Engine Data Sensors - Electronic Throttle Controls

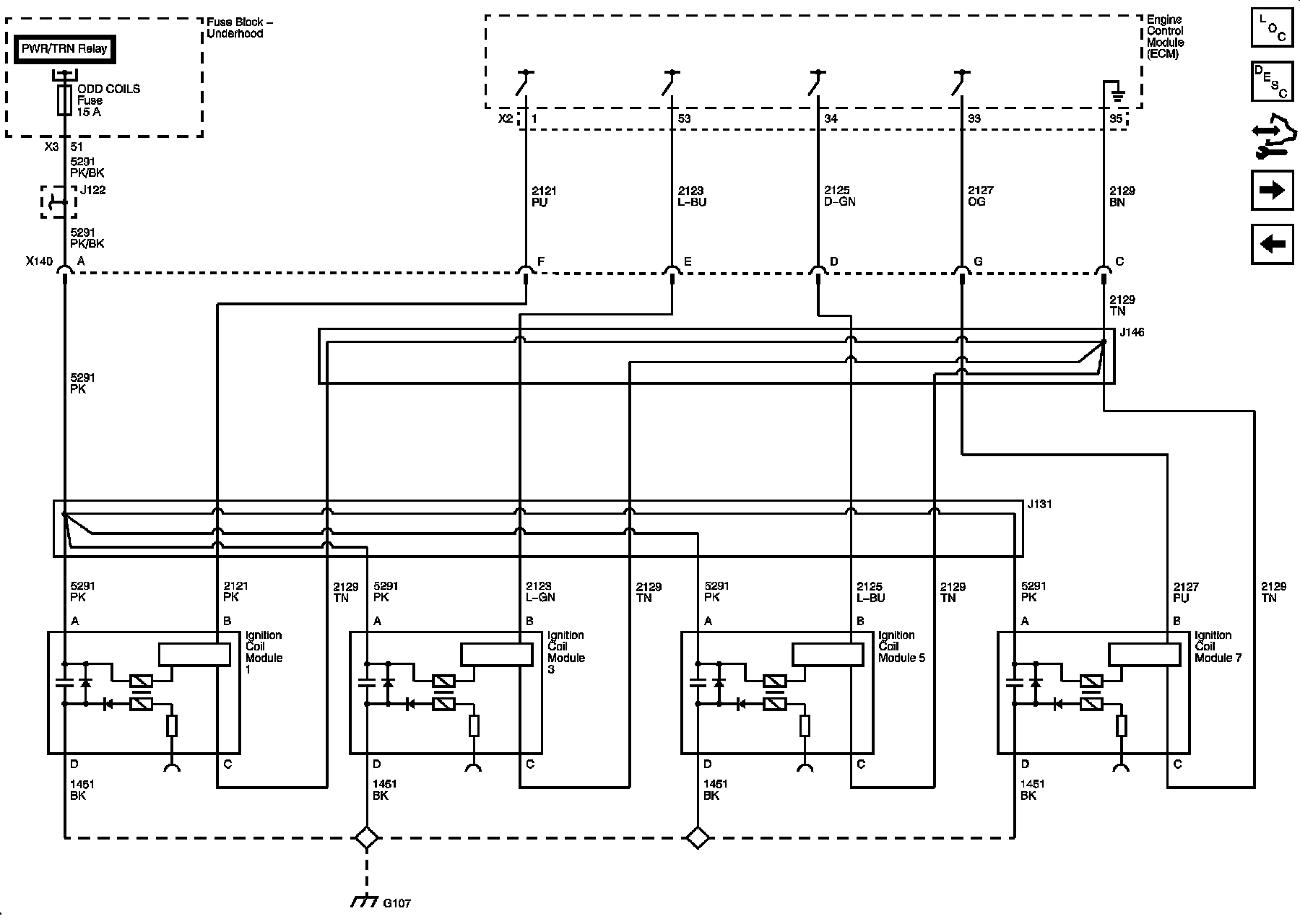

Ignition Controls - Bank 1 Ignition Coils

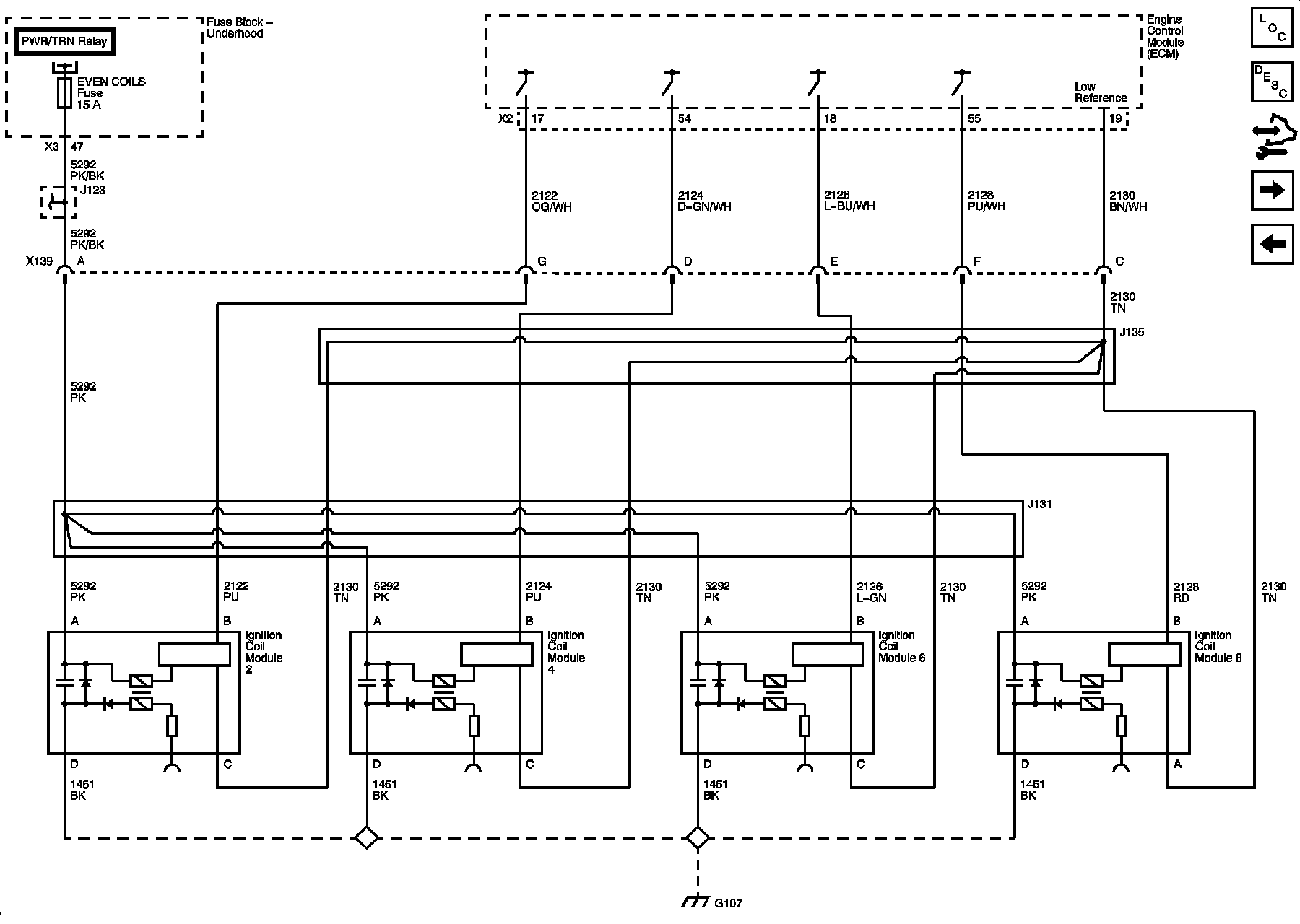

Ignition Controls - Bank 2 Ignition Coils

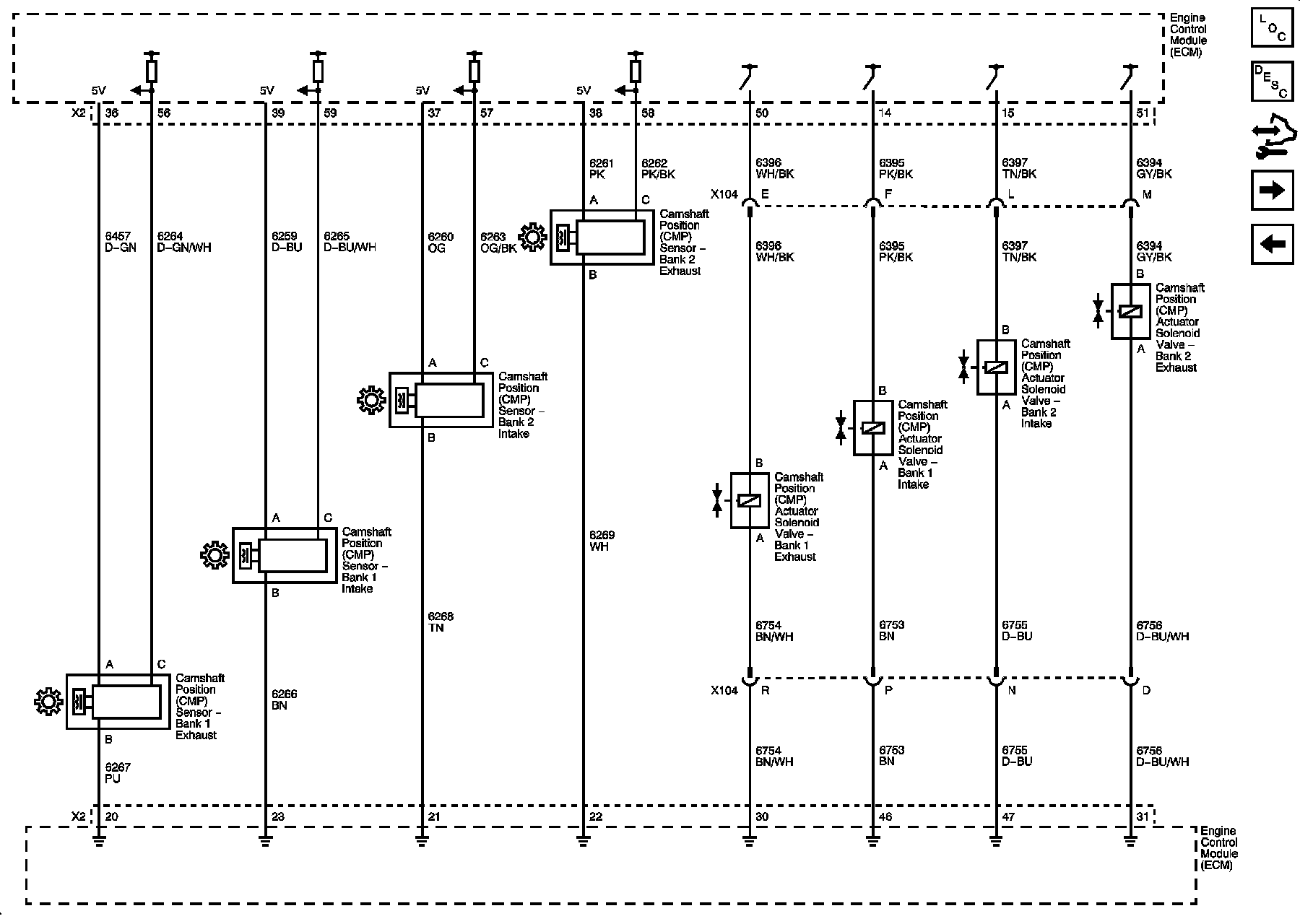

Ignition Controls - CMP Sensors and Solenoids

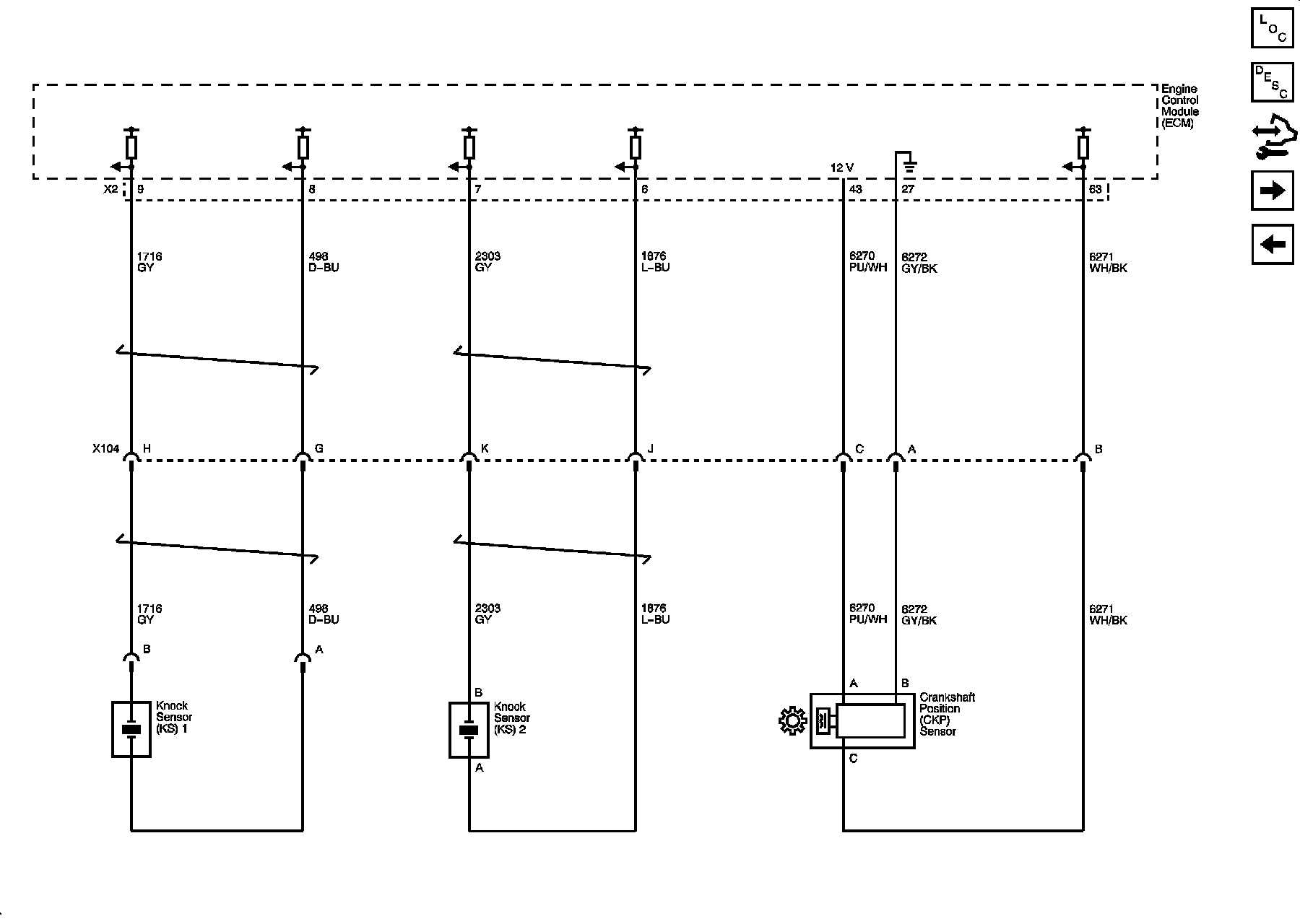

Ignition Controls - CKP and Knock Sensors






Fuel Controls - Fuel Pump and Injectors

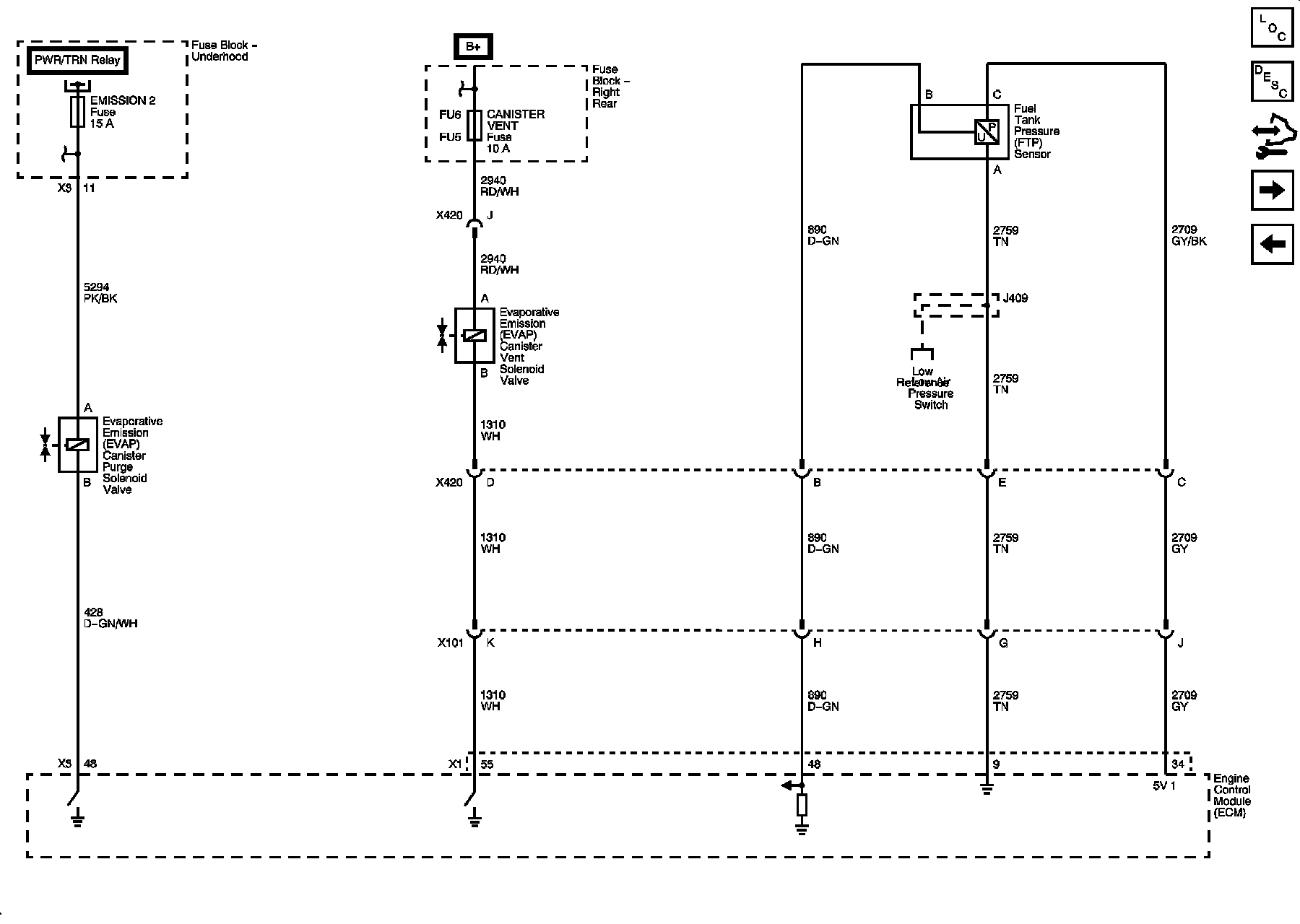

Fuel Controls - EVAP Controls

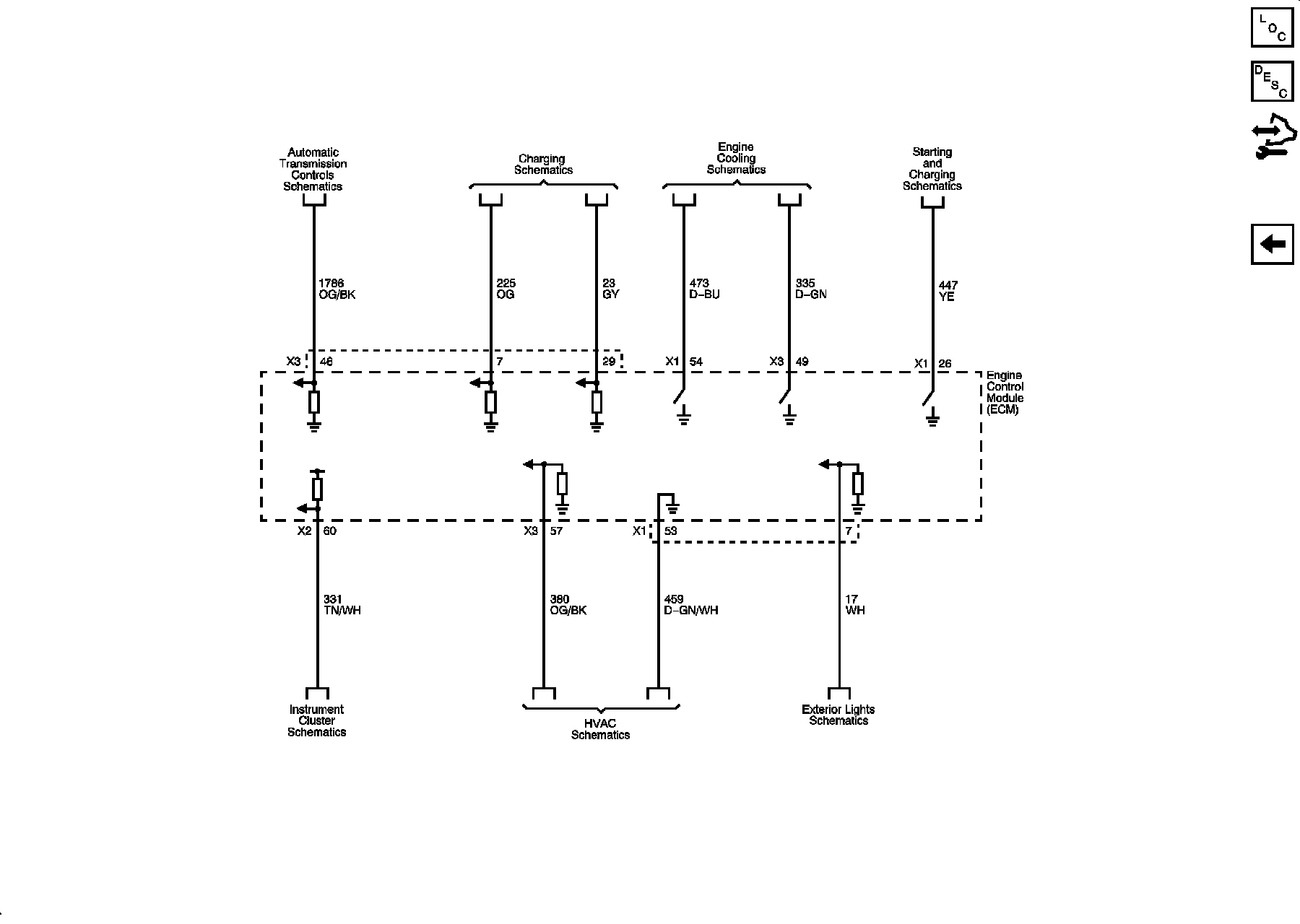

Controlled/Monitored Subsystem References
