Speaker Malfunction
Speaker Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview)provides an overview of each diagnostic category.

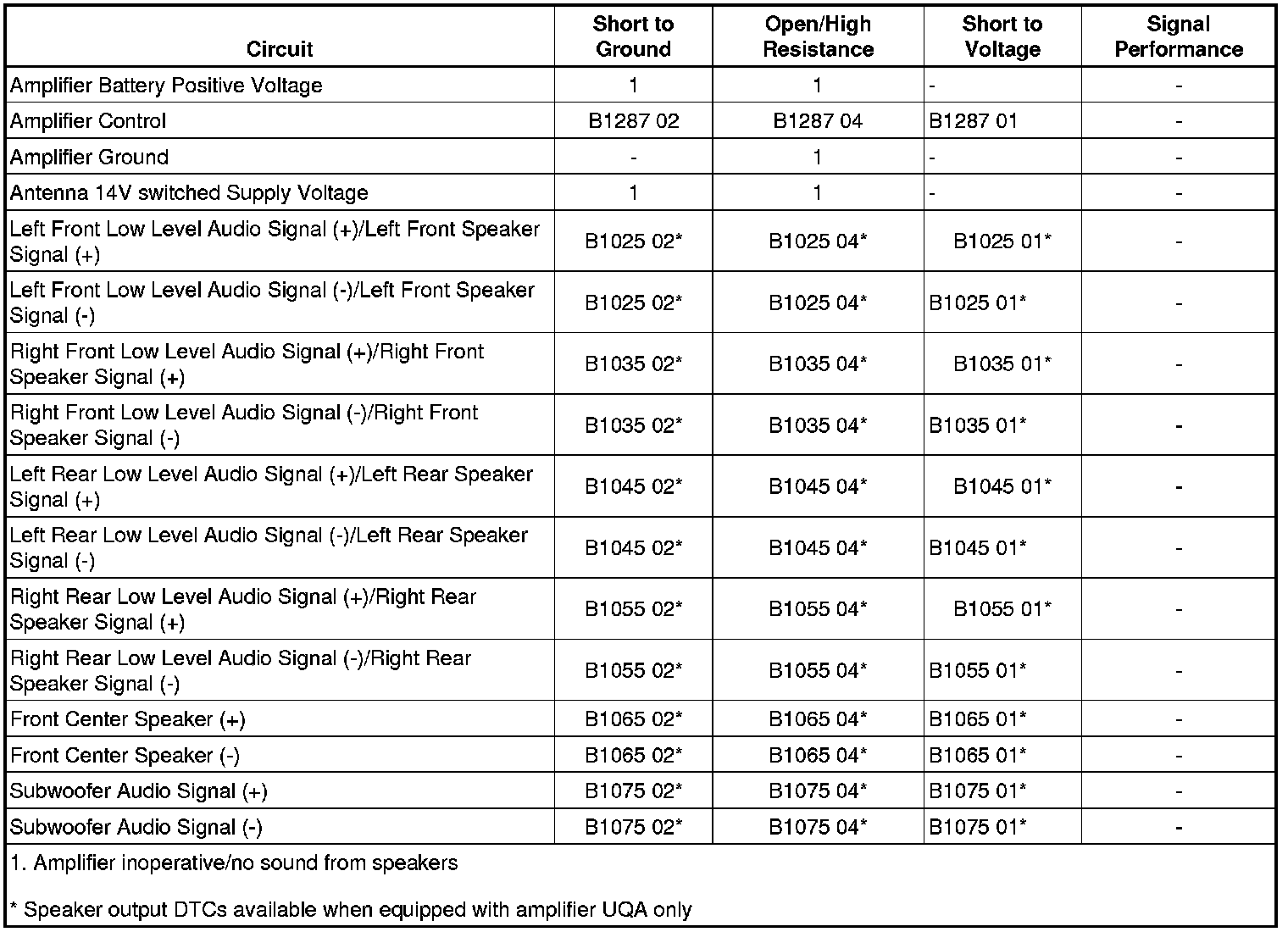

Diagnostic Fault Information
Circuit/System Description
Each of the audio output channel circuits (+) and (-), at the radio and at the amplifier have a DC bias voltage that is one half of the battery voltage. When using a DMM, each of the audio output channel circuits will measure approximately 6.5V DC. The audio being played on the system is produced by a varying AC voltage that is centered around the DC bias voltage on the same circuit. The AC voltage is what causes the speaker cone to move and produce sound. This voltage will vary depending on what type of audio is being listened to, talk or music, and type of music, as well as the volume setting of the system. Low volume and talk settings will measure around 1V AC and less, where constant music may measure 3V AC and slightly higher.
Amplifier UQA
The radio provides left and right audio signals to the amplifier. The amplifier is supplied battery voltage from a dedicated fuse in the rear fuse block. The amplifier communicates with the vehicle via serial data, which controls the power state of the amplifier and allows the amplifier to set DTCs. Balance/fade and muting functions are all performed by the amplifier based on serial data messages.
Amplifier UQ3
The radio provides four channels of audio signals to the amplifier- left front, left rear, right front and right rear. The amplifier is supplied battery voltage from a dedicated fuse in the rear fuse block. The amplifier power state is controlled by a remote enable signal via the antenna 14V switched supply circuit, which also provides power to the antenna module. Amplifier muting functions are controlled by a dedicated pulse width modulated signal from the radio via the amp control circuit. The amplifier provides eight audio output channels to the speakers. This amplifier does not communicate on the serial data bus and cannot set DTCs.
Diagnostic Aids
* Improper speaker mounting or loose trim may cause an audible buzz or distortion. Inspect the appropriate speaker and the surrounding interior trim for proper and secure mounting. If the speaker or surrounding interior trim is found to be loose or improperly secured, correctly secure the item.
* When equipped with an amplifier, it is possible for some individual circuit faults to affect more than one speakers operation. Perform diagnostic tests in the sequence listed to avoid misdiagnosis.
Reference Information
Schematic Reference
Radio/Navigation System Schematics (Radio/Navigation System Schematics)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
Radio/Audio System Description and Operation (Radio/Audio System Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning)for scan tool information
Circuit/System Verification
Radio ON, verify clear audio is heard from each audio speaker.
If audio is inoperative from all speakers, refer to Amplifier Circuit Malfunction.
If audio is inoperative from one or more, but not all, speakers or the audio emitted from the speakers is not clear, refer to Speaker Circuit Malfunction
Circuit/System Testing
Amplifier Circuit Malfunction with UQ3
1. Ignition OFF, disconnect the X1 harness connector at the amplifier.
2. Test for less than 10 ohms of resistance between the ground circuit terminal 2 and ground.
• If greater than the specified range, test the ground circuit for an open/high resistance.
3. Ignition ON, verify a test lamp illuminates between the B+ circuit terminal 1 and ground.
• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance. If the circuit tests normal and the circuit fuse is open, replace the amplifier.
4. Disconnect the X3 harness connector at the amplifier.
5. Radio ON, test for 0.5-1.0 volts between the signal circuit terminal 5 and ground.
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the radio.
• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the radio.
6. Verify a test lamp illuminates between the signal circuit terminal 6 and ground.
• If the test lamp does not illuminate, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the radio.
7. If all circuits test normal, replace the amplifier.
Speaker Circuit Malfunction with UQ3
1. Ignition OFF, disconnect the X3 harness connector at the amplifier.
2. Radio ON, test for 5.0-7.5 volts between the appropriate signal circuit terminal listed below and ground.
* Left front low level audio signal (+) -terminal 1
* Left front low level audio signal (-) -terminal 2
* Right front low level audio signal (+) -terminal 10
* Right front low level audio signal (-) -terminal 9
* Left rear low level audio signal (+) -terminal 4
* Left rear low level audio signal (-) -terminal 3
* Right rear low level audio signal (+) -terminal 11
* Right rear low level audio signal (-) -terminal 12
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the radio.
• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the radio.
3. Ignition OFF, disconnect the X1 and X2 harness connectors at the amplifier.
4. Ignition ON, test for less than 1 volt between each of the signal circuit terminals listed below and ground.
* Front center speaker output (+) -terminal 3 X1
* Front center speaker output (-)-terminal 4 X1
* Subwoofer speaker output (+) -terminal 8 X1
* Subwoofer speaker output (-)-terminal 7 X1
* Left front tweeter speaker output (+)- terminal 1 X2
* Left front tweeter speaker output (-)-terminal 2 X2
* Right front tweeter speaker output (+)- terminal 3 X2
* Right front tweeter speaker output (-) -terminal 4 X2
* Left front speaker output (+)- terminal 15 X2
* Left front speaker output (-)-terminal 16 X2
* Right front speaker output (+)- terminal 13 X2
* Right front speaker output (-) -terminal 14 X2
* Left rear speaker output (+) -terminal 6 X2
* Left rear speaker output (-) -terminal 5 X2
* Right rear speaker output (+)- terminal 8 X2
* Right rear speaker output (-)- terminal 7 X2
• If greater than the specified range, test both signal circuits of the affected speaker for a short to voltage.
5. Ignition OFF, test for infinite resistance between each of the signal circuit terminals listed below and ground.
* Front center speaker output (+) -terminal 3 X1
* Front center speaker output (-)-terminal 4 X1
* Subwoofer speaker output (+) -terminal 8 X1
* Subwoofer speaker output (-)-terminal 7 X1
* Left front tweeter speaker output (+)- terminal 1 X2
* Left front tweeter speaker output (-)-terminal 2 X2
* Right front tweeter speaker output (+)- terminal 3 X2
* Right front tweeter speaker output (-) -terminal 4 X2
* Left front speaker output (+)- terminal 15 X2
* Left front speaker output (-)-terminal 16 X2
* Right front speaker output (+)- terminal 13 X2
* Right front speaker output (-) -terminal 14 X2
* Left rear speaker output (+) -terminal 6 X2
* Left rear speaker output (-) -terminal 5 X2
* Right rear speaker output (+)- terminal 8 X2
* Right rear speaker output (-)- terminal 7 X2
• If less than the specified range, test both signal circuits of the affected speaker for a short to ground.
6. Reconnect all harness connectors at the amplifier. Disconnect the harness connector at the appropriate speaker.
7. Radio ON, test for 5.0-7.5 volts between each of the appropriate signal circuit terminals listed below and ground.
* Front tweeter speakers - terminals A and B
* Center IP speaker- terminals A and B
* Door speakers - terminals A and B
* Subwoofer speaker - terminals A and B
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the audio amplifier.
• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the audio amplifier.
8. If all circuits test normal, replace the inoperative speaker.
Speaker Circuit Malfunction with UQA
1. Ignition OFF, disconnect the X3 harness connector at the audio amplifier.
2. Radio ON, test for 5.0-7.5 volts between the appropriate signal circuit terminal listed below and ground.
* Left low level audio signal (+) -terminal 11
* Left low level audio signal (-) -terminal 12
* Right low level audio signal (+) -terminal 3
* Right low level audio signal (-) -terminal 4
• If greater than the specified range, test the appropriate signal circuit for a short to voltage. If the circuit tests normal, replace the radio.
• If less than the specified range, test the appropriate signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the radio.
3. Ignition OFF, disconnect the X1 and X2 harness connectors at the amplifier.
4. Ignition ON, test for less than 1 volt between each of the signal circuit terminals listed below and ground.
* Subwoofer speaker output (+)- terminal 1 X1
* Subwoofer speaker output (-) -terminal 2 X1
* Left front speaker output (+)- terminal 4 X2
* Left front speaker output (-)-terminal 5 X2
* Right front speaker output (+)- terminal 7 X2
* Right front speaker output (-) -terminal 6 X2
* Left rear speaker output (+) -terminal 15 X2
* Left rear speaker output (-) -terminal 14 X2
* Right rear speaker output (+)- terminal 16 X2
* Right rear speaker output (-)- terminal 8 X2
* Front center speaker output (+) -terminal 13 X2
* Front center speaker output (-)-terminal 12 X2
• If greater than the specified range, test both signal circuits of the affected speaker for a short to voltage.
5. Ignition OFF, test for infinite resistance between each of the signal circuit terminals listed below and ground.
* Subwoofer speaker output (+)- terminal 1 X1
* Subwoofer speaker output (-) -terminal 2 X1
* Left front speaker output (+)- terminal 4 X2
* Left front speaker output (-)-terminal 5 X2
* Right front speaker output (+)- terminal 7 X2
* Right front speaker output (-) -terminal 6 X2
* Left rear speaker output (+) -terminal 15 X2
* Left rear speaker output (-) -terminal 14 X2
* Right rear speaker output (+)- terminal 16 X2
* Right rear speaker output (-)- terminal 8 X2
* Front center speaker output (+) -terminal 13 X2
* Front center speaker output (-)-terminal 12 X2
• If less than the specified range, test both signal circuits of the affected speaker for a short to ground.
6. Reconnect all harness connectors at the amplifier. Disconnect the harness connector at the appropriate speaker.
7. Radio ON, test for 5.0-7.5 volts between each of the appropriate signal circuit terminals listed below and ground.
* Front tweeter speakers - terminals A and B
* Center IP speaker- terminals A and B
* Door speakers - terminals A and B
* Subwoofer speaker - terminals A and B
• If greater than the specified range, test the signal circuit for a short to voltage. If the circuit tests normal, replace the audio amplifier.
• If less than the specified range, test the signal circuit for a short to ground or an open/high resistance. If the circuit tests normal, replace the audio amplifier.
8. If all circuits test normal, replace the inoperative speaker.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Speaker Replacement Reference (Speaker Replacement Reference)
* Control Module References (Programming and Relearning)for audio amplifier or radio replacement
