Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2009
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antenna Control Module
Antenna Control Module
Component Connector End Views

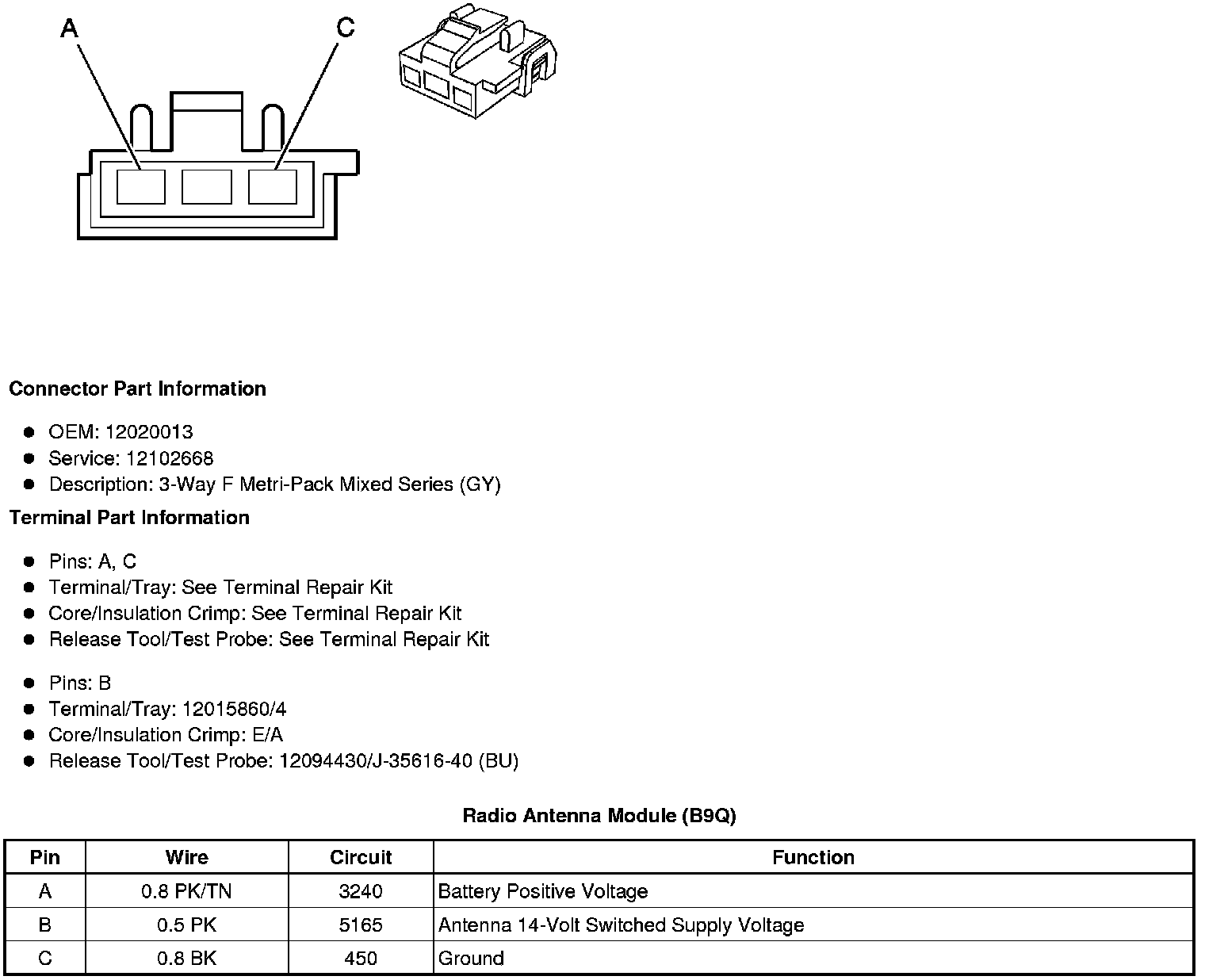

Radio Antenna Module (B9Q)

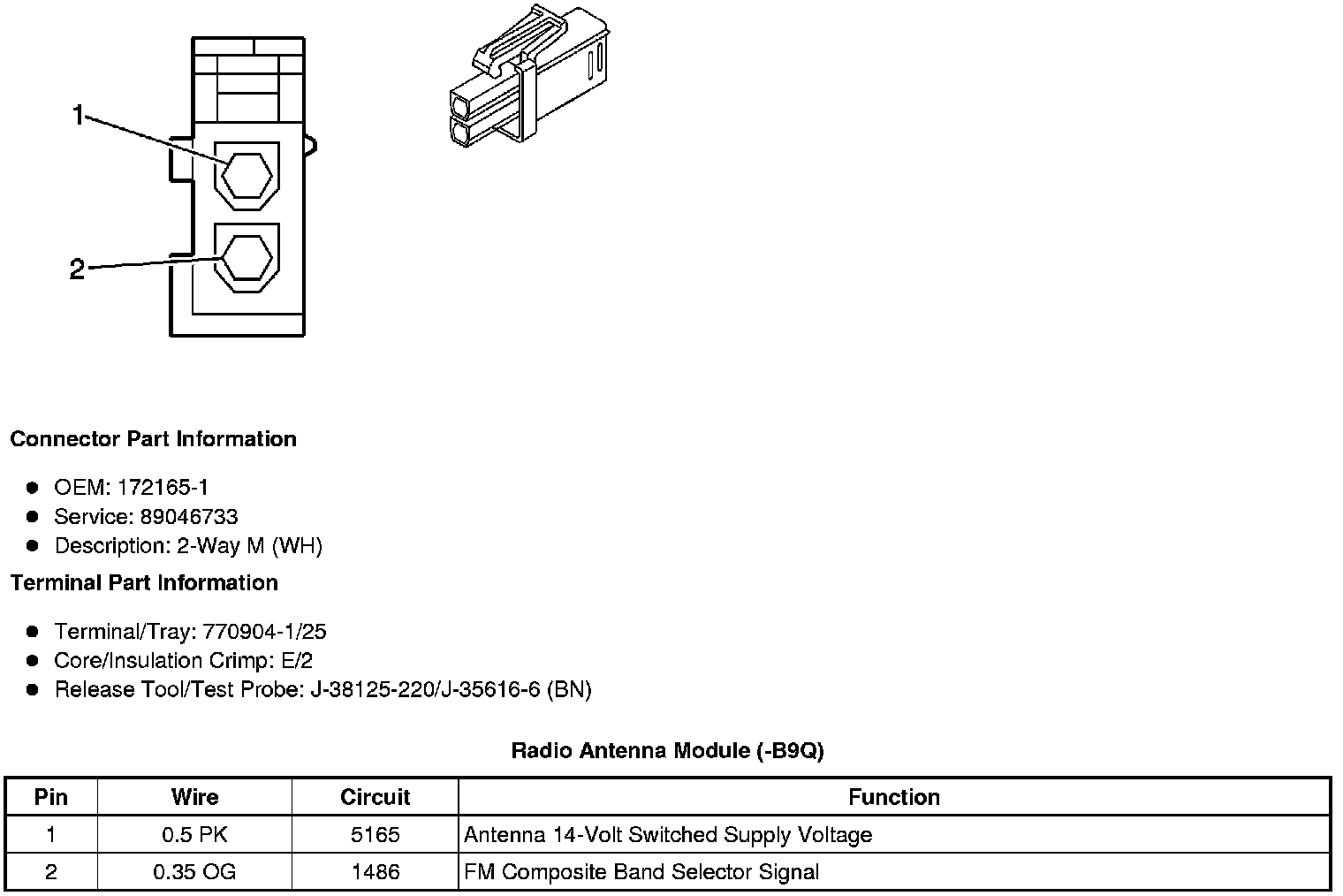

Radio Antenna Module (-B9Q)
