Cylinder Head Assembly: Specifications
CYLINDER HEADLeft:
Right:

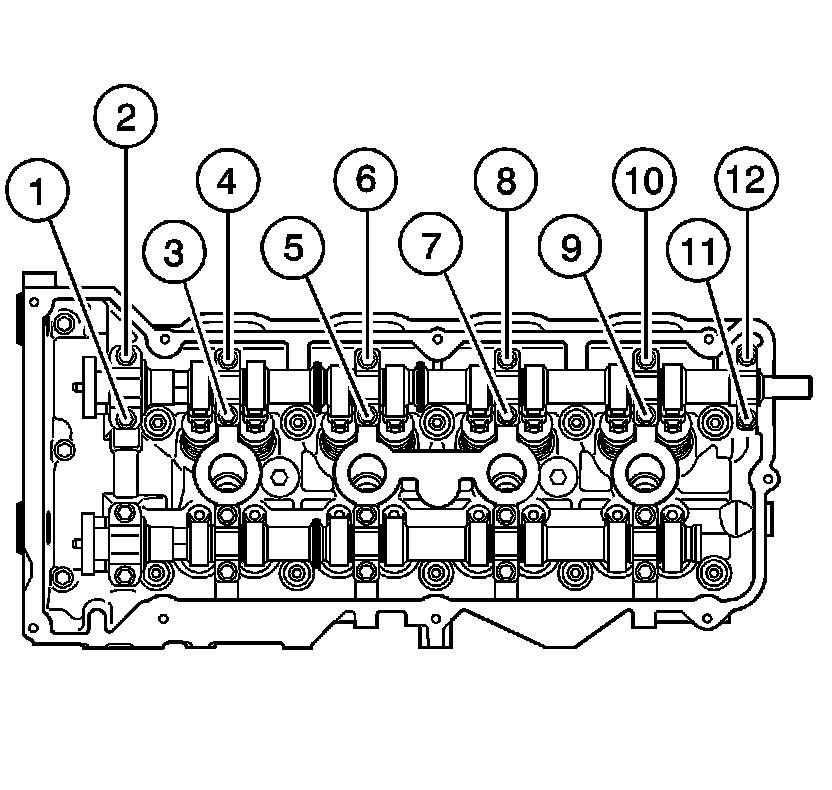

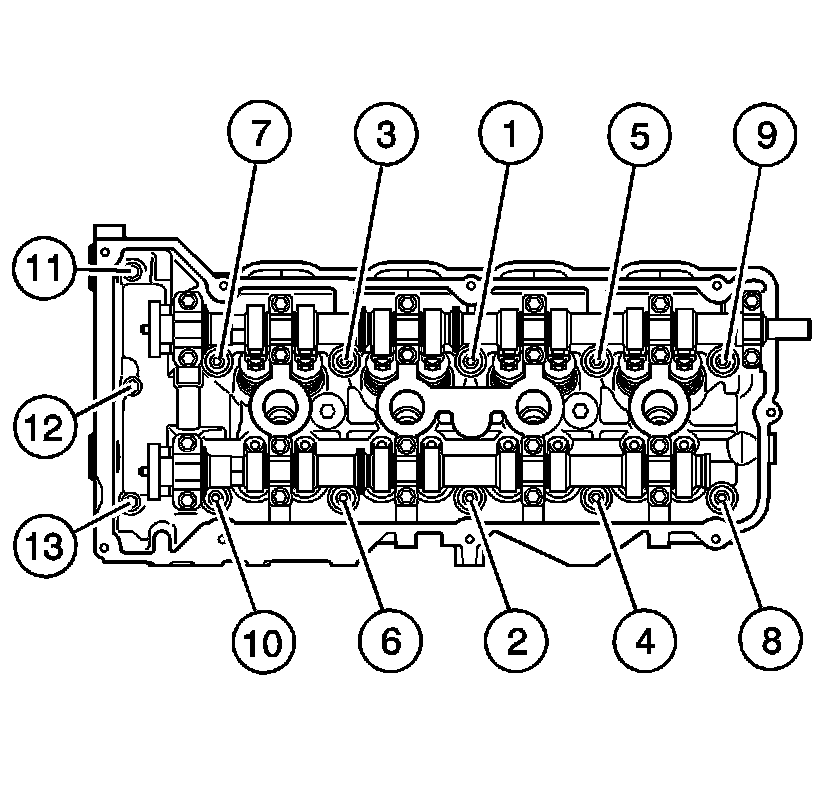

Cylinder Head Bolt (M11)
First Pass 30 Nm (22 lb ft)
Second Pass +60 degrees
Third Pass +60 degrees
Final Pass +60 degrees/180 degrees Total
Cylinder Head Bolt (M6) 12 Nm (106 lb in)
Note: DO NOT reuse the old M11 cylinder head bolts.
SURFACE VARIATION
Cylinder Head Deck Surface Flatness 0.100 mm (0.0039 in)
Surface Flatness - Block Deck 0.050 mm (0.0020 in)
Surface Flatness - Exhaust Manifold Deck 0.220 mm (0.0087 in)
Surface Flatness - Intake Manifold Deck 0.220 mm (0.0087 in)
Intake Manifold
Surface Flatness 0.500 mm (0.0200 in)

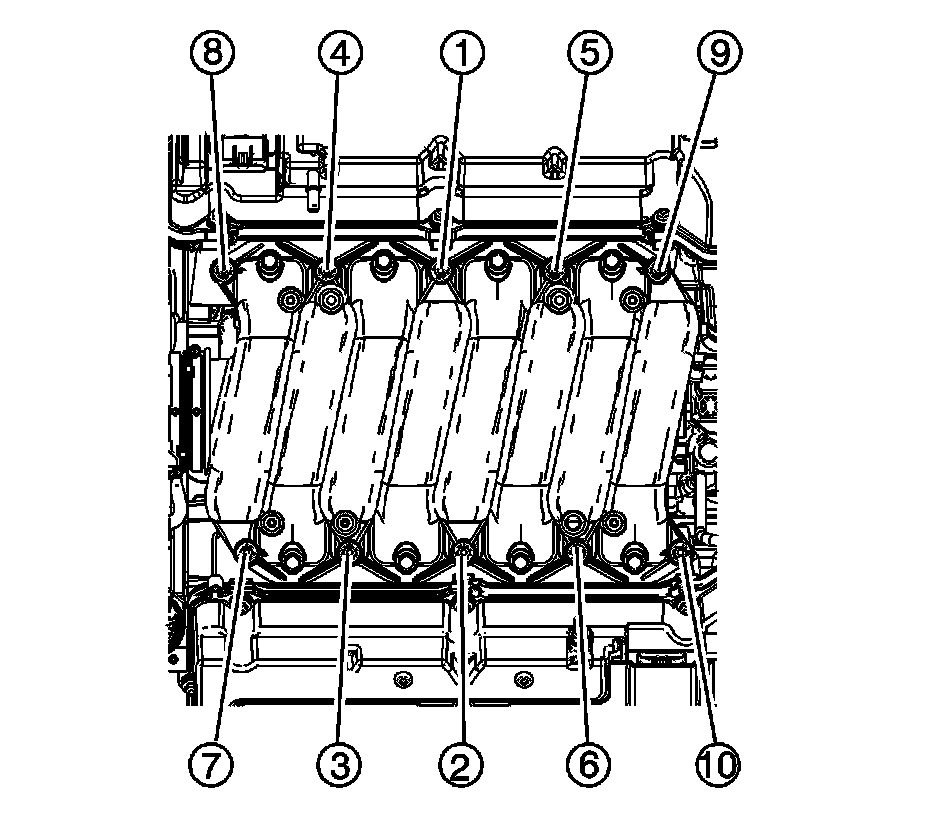

INTAKE MANIFOLD
Intake Manifold Bolt 10 Nm (89 lb in)

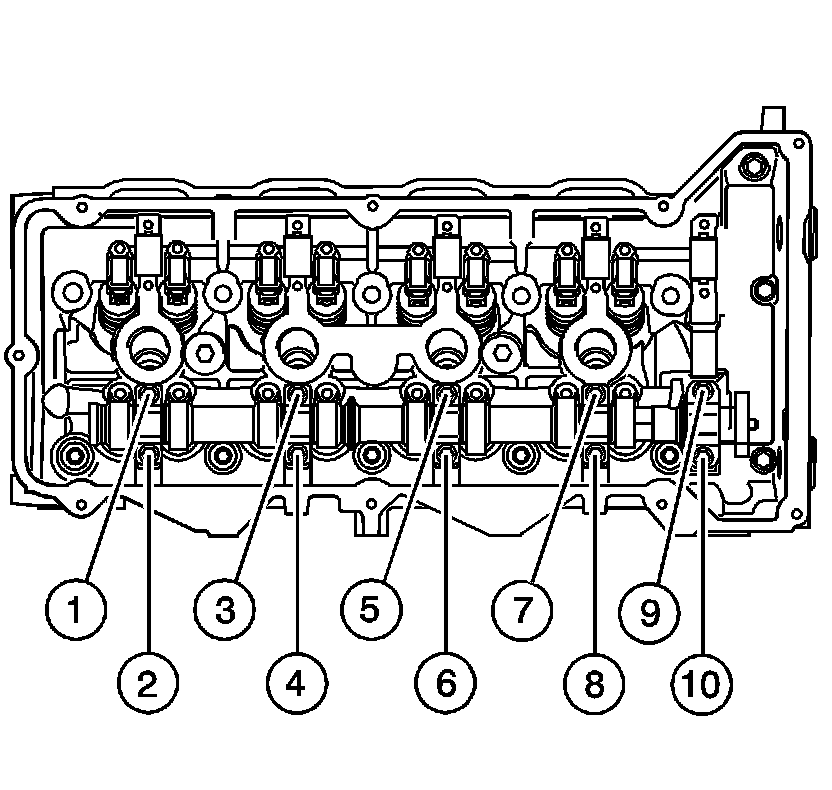

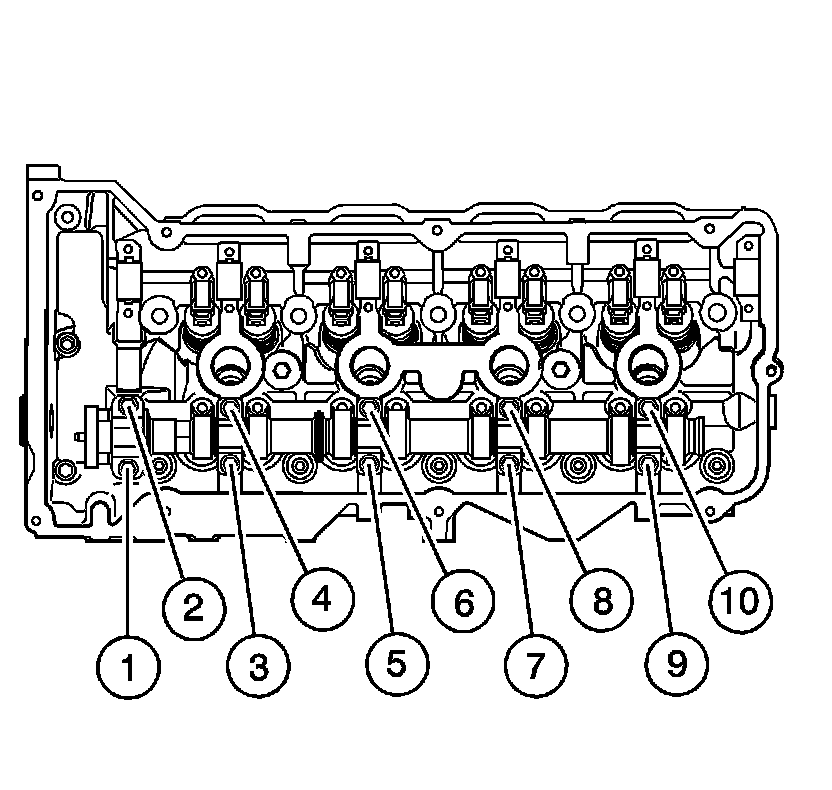

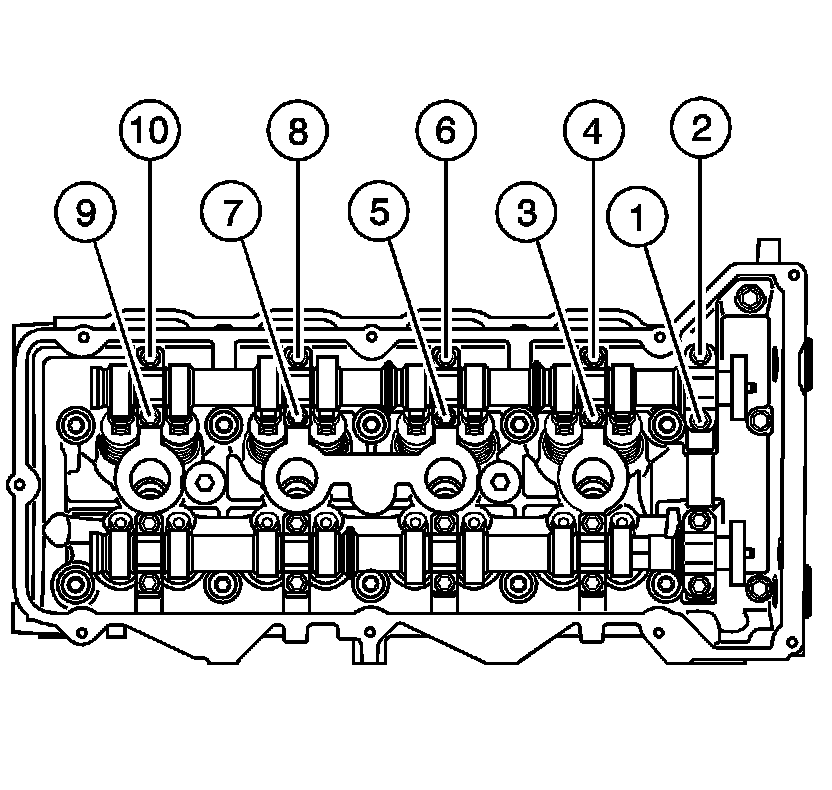

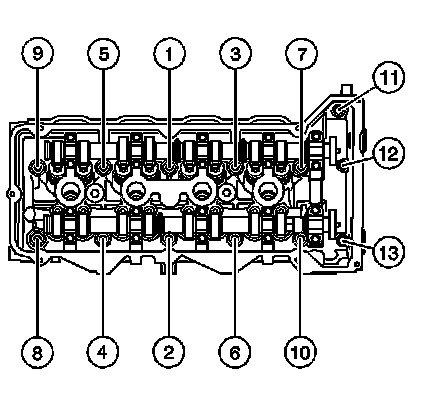

CAMSHAFT BEARING
Left Intake:
Left Exhaust:
Right Exhaust:
Right Intake:
Camshaft Bearing Cap Bolt
First Pass 5 Nm (44 lb in)
Final Pass +30 degrees
EXHAUST MANIFOLD
Bolt 25 Nm (18 lb ft)
