Daytime Running Lamps Malfunction
Daytime Running Lamps Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis (Initial Inspection and Diagnostic Overview) for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions (Initial Inspection and Diagnostic Overview) provides an overview of each diagnostic category.

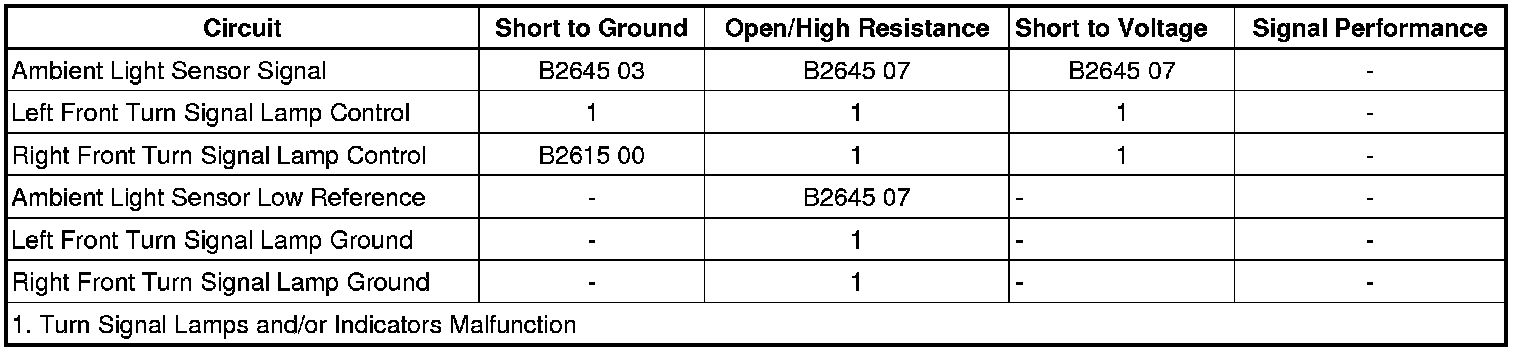

Diagnostic Fault Information
Circuit/System Description
The ambient light sensor is a light sensitive transistor that varies the voltage signal to the body control module (BCM) based on outside lighting conditions. When the ambient light sensor indicates daytime conditions with engine running, the BCM, will then apply battery voltage through the front turn signal lamp supply voltage circuits illuminating the left and right front turn lamps. Any function or condition that turns the headlamps ON will cancel DRL operation.
Reference Information
Schematic Reference
Headlights/Daytime Running Lights (DRL) Schematics (Headlights/Daytime Running Lights (DRL) Schematics)
Connector End View Reference
Component Connector End Views (Connector Views)
Description and Operation
Exterior Lighting Systems Description and Operation (Exterior Lighting Systems Description and Operation)
Electrical Information Reference
* Circuit Testing (Component Tests and General Diagnostics)
* Connector Repairs (Component Tests and General Diagnostics)
* Testing for Intermittent Conditions and Poor Connections (Component Tests and General Diagnostics)
* Wiring Repairs (Component Tests and General Diagnostics)
Scan Tool Reference
Control Module References (Programming and Relearning) for scan tool information
Circuit/System Verification
Ignition ON, verify the left and right front turn signals operate.
If the turns signals do not operate, refer to Turn Signal Lamps and/or Indicators Malfunction (Turn Signal Lamps and/or Indicators Malfunction).
Circuit/System Testing
1. Carefully supplying sufficient light to simulate daylight conditions to the ambient light sensor for more than 30 seconds.
2. Ignition ON, observe the scan tool Ambient Light Status parameter. The reading should be Day.
• If not the specified value, replace the ambient light sensor.
• If the specified value, replace the BCM.
Repair Instructions
Perform the Diagnostic Repair Verification (Verification Tests) after completing the diagnostic procedure.
* Ambient Light Sensor Replacement (Service and Repair)
* Control Module References (Programming and Relearning) for BCM replacement, setup, and programming
