Connector Views




Component Connector End Views

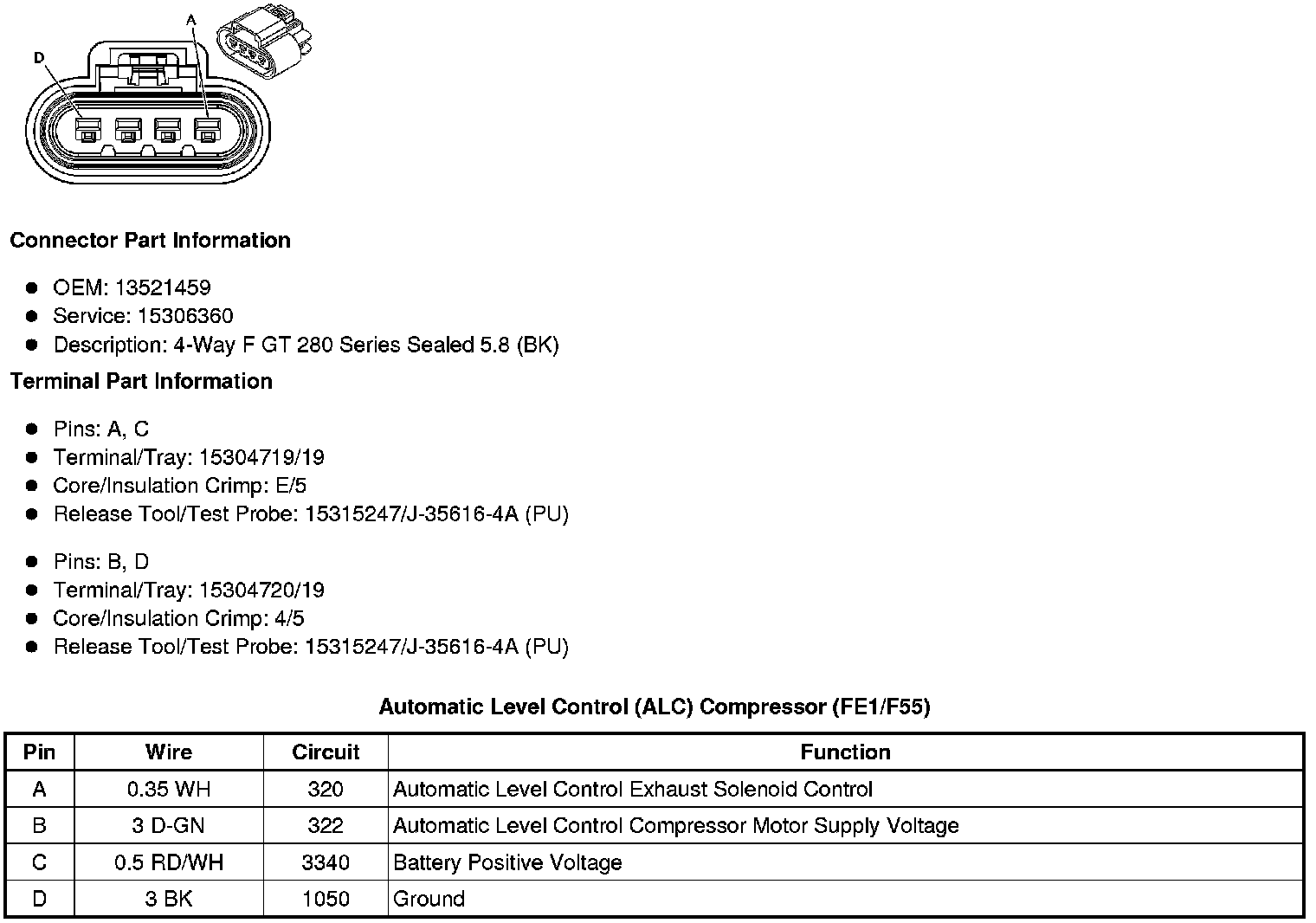

Automatic Level Control (ALC) Compressor (FE1/F55)

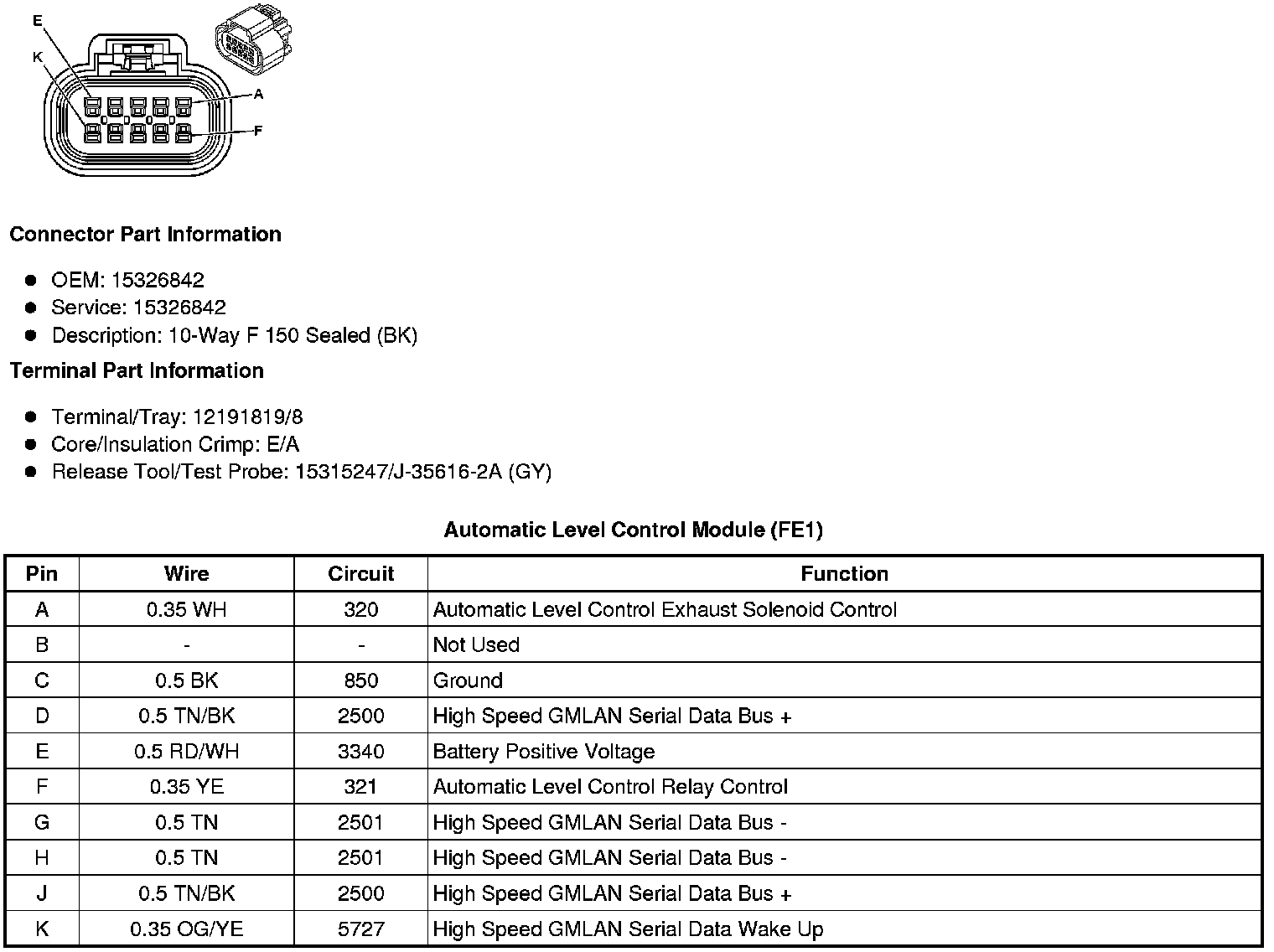

Automatic Level Control Module (FE1)
