Forward and Coast Clutch Installation

Forward and Coast Clutch Installation

Special Tools

J 39053 - Forward and Coast Clutch Assembly Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).





Warning

The forward and coast clutch assembly weighs approximately 50 lbs. Personal injury may result if you drop the assembly.

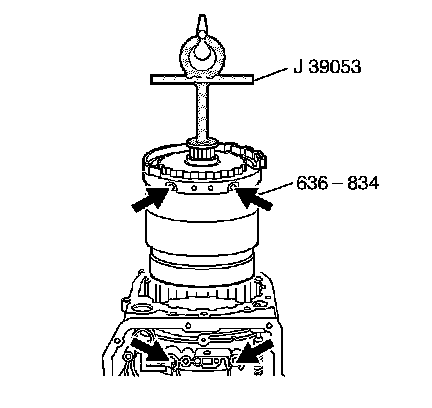

1. Install the J 39053 - clutch assembly installer into the forward and coast clutch and support assembly (636-834).
2. Using a chain hoist or suitable lifting equipment, install the forward and coast clutch and support assembly (636-834) into the barrel of the case. The two bolt holes and feed holes must line up with the holes in the bottom of the case.
