Radio/Navigation System Schematics
Radio/Navigation System Schematics

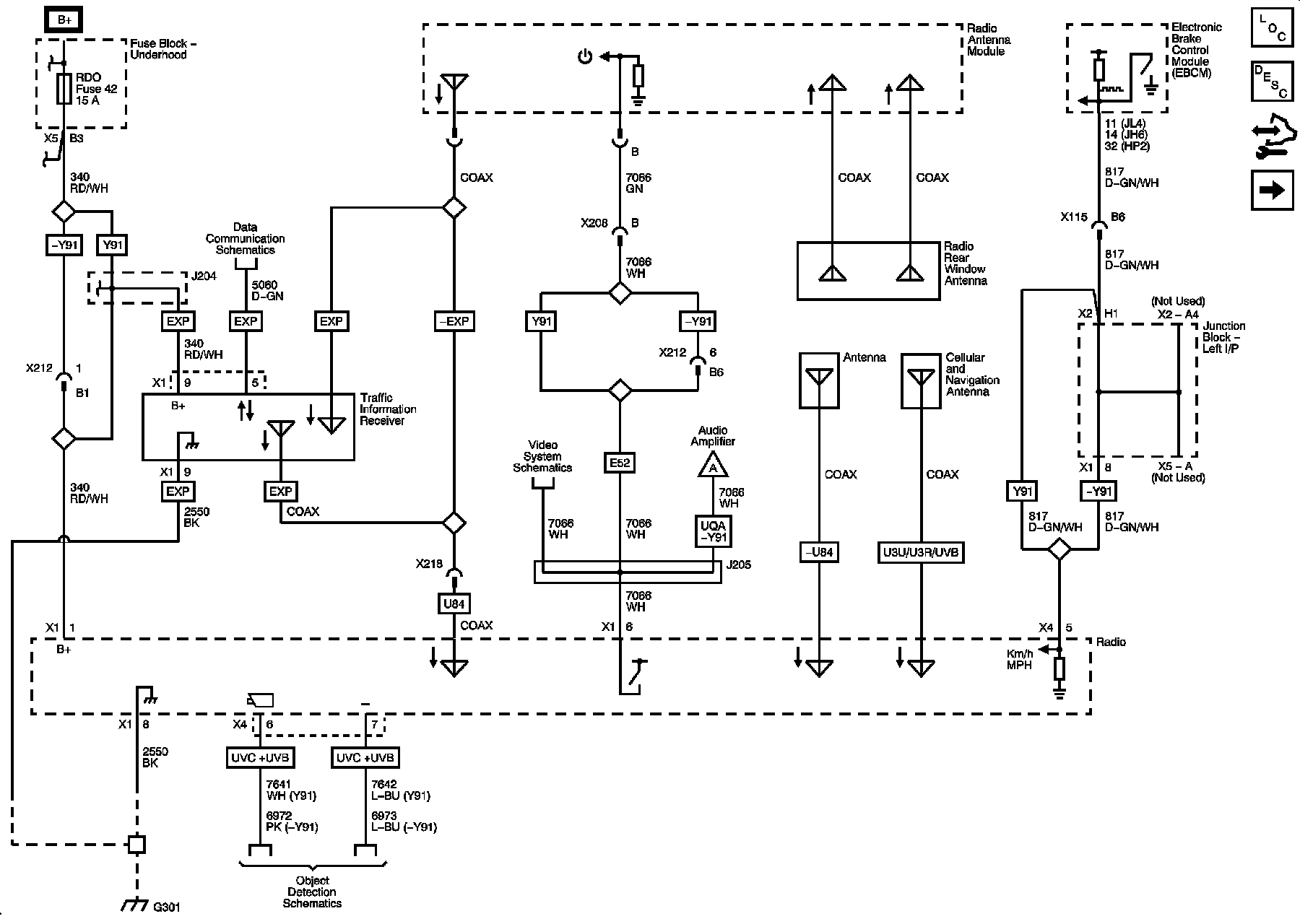

Radio Power, Ground, Serial Data, and Antenna Signals

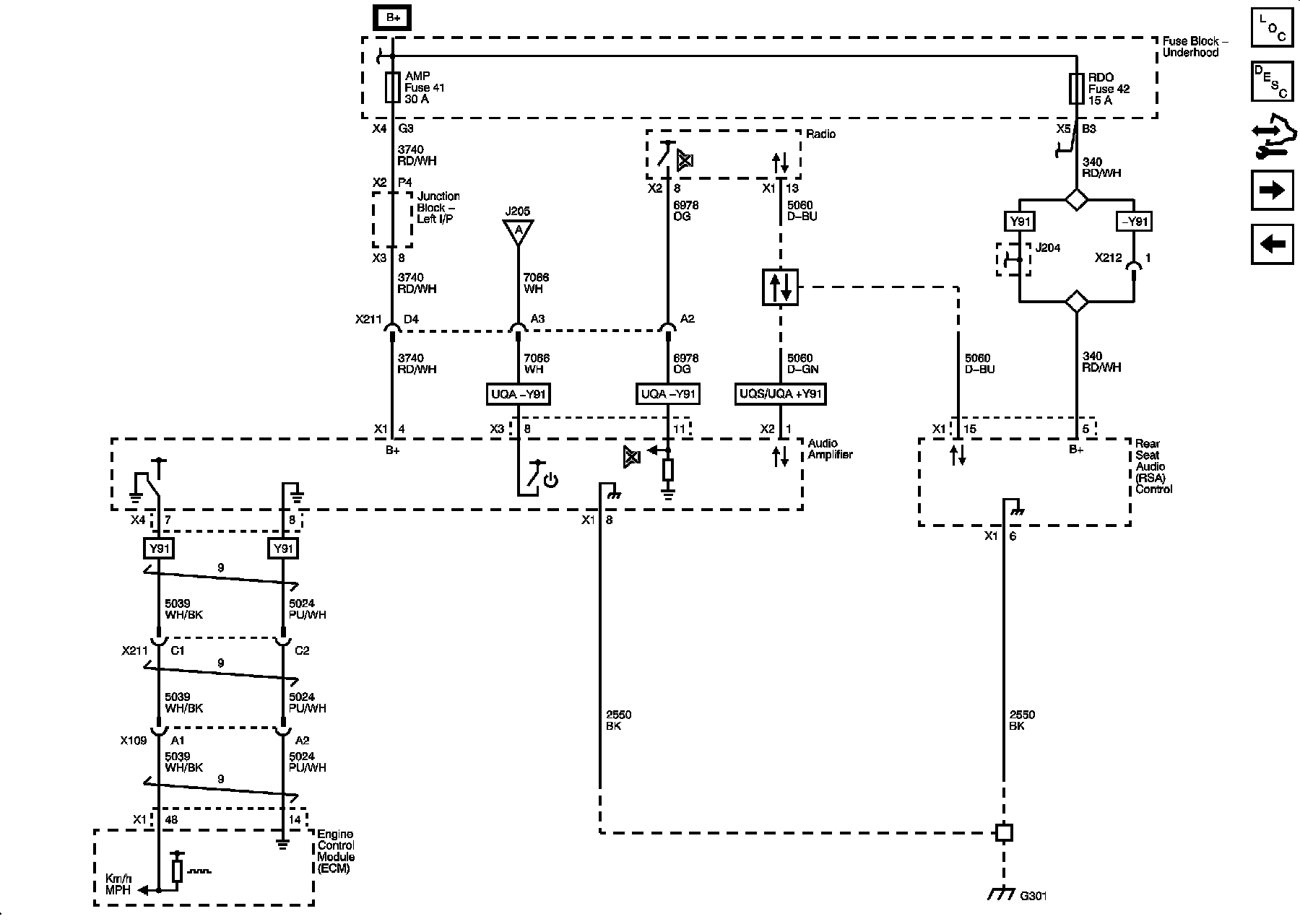

Amplifier (UQA or UQS) and Rear Seat Audio (UK6) Power, Ground, and Serial Data
Amplifier Inputs - UQA/UQS
Front Speakers - UQ3

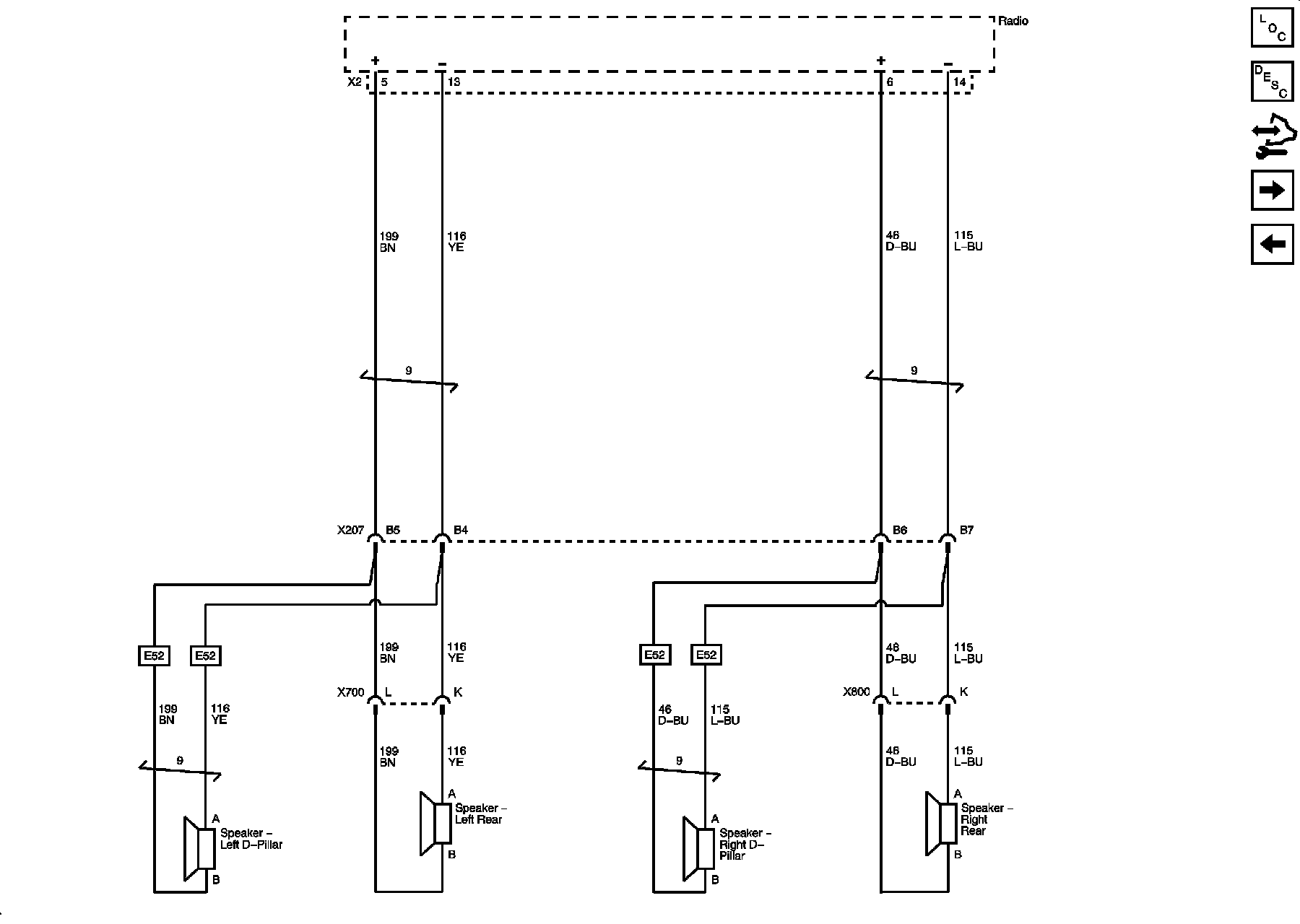

Rear Speakers UQ3 Except UK6

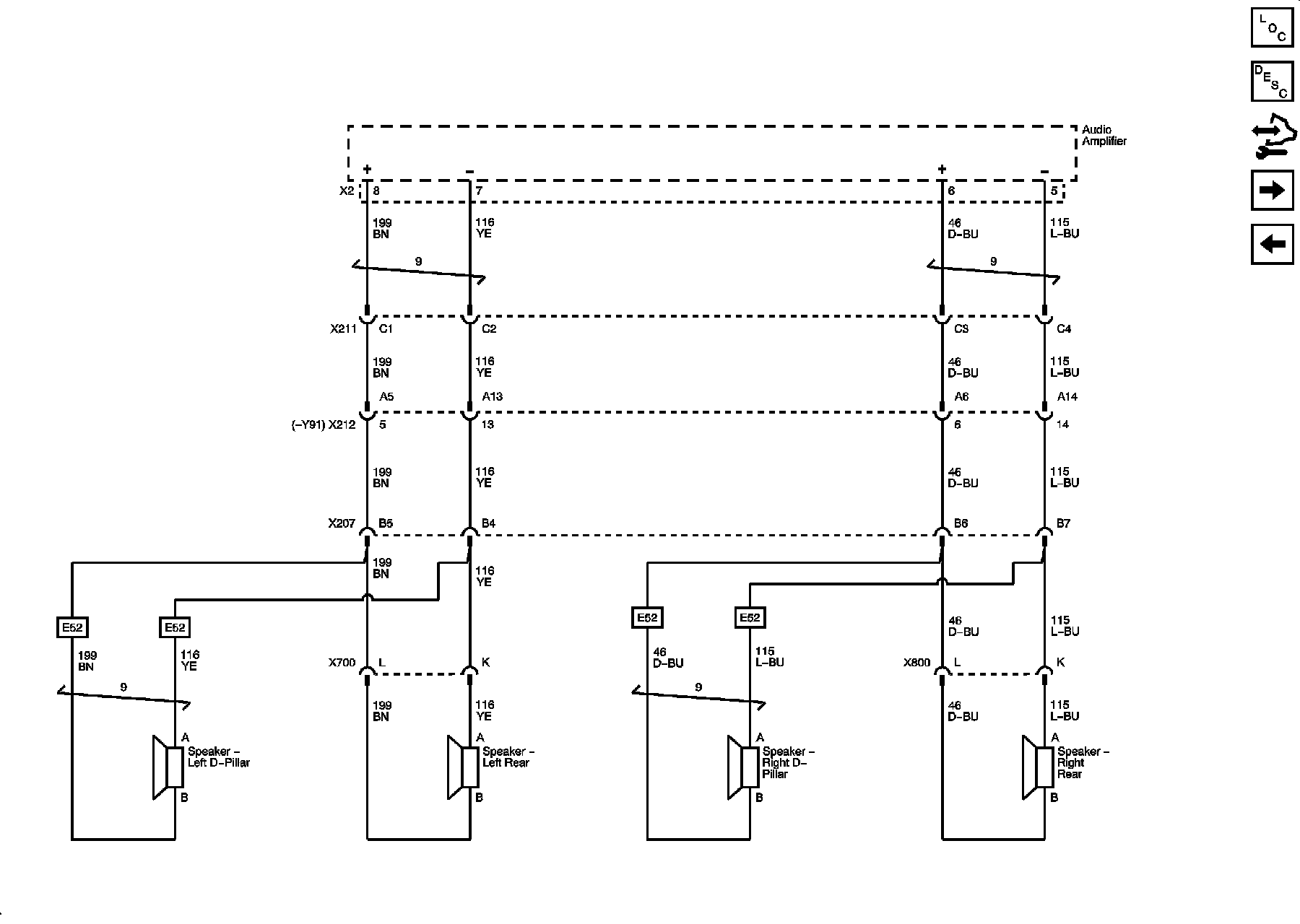

Rear Speakers - UQ3 with UK6

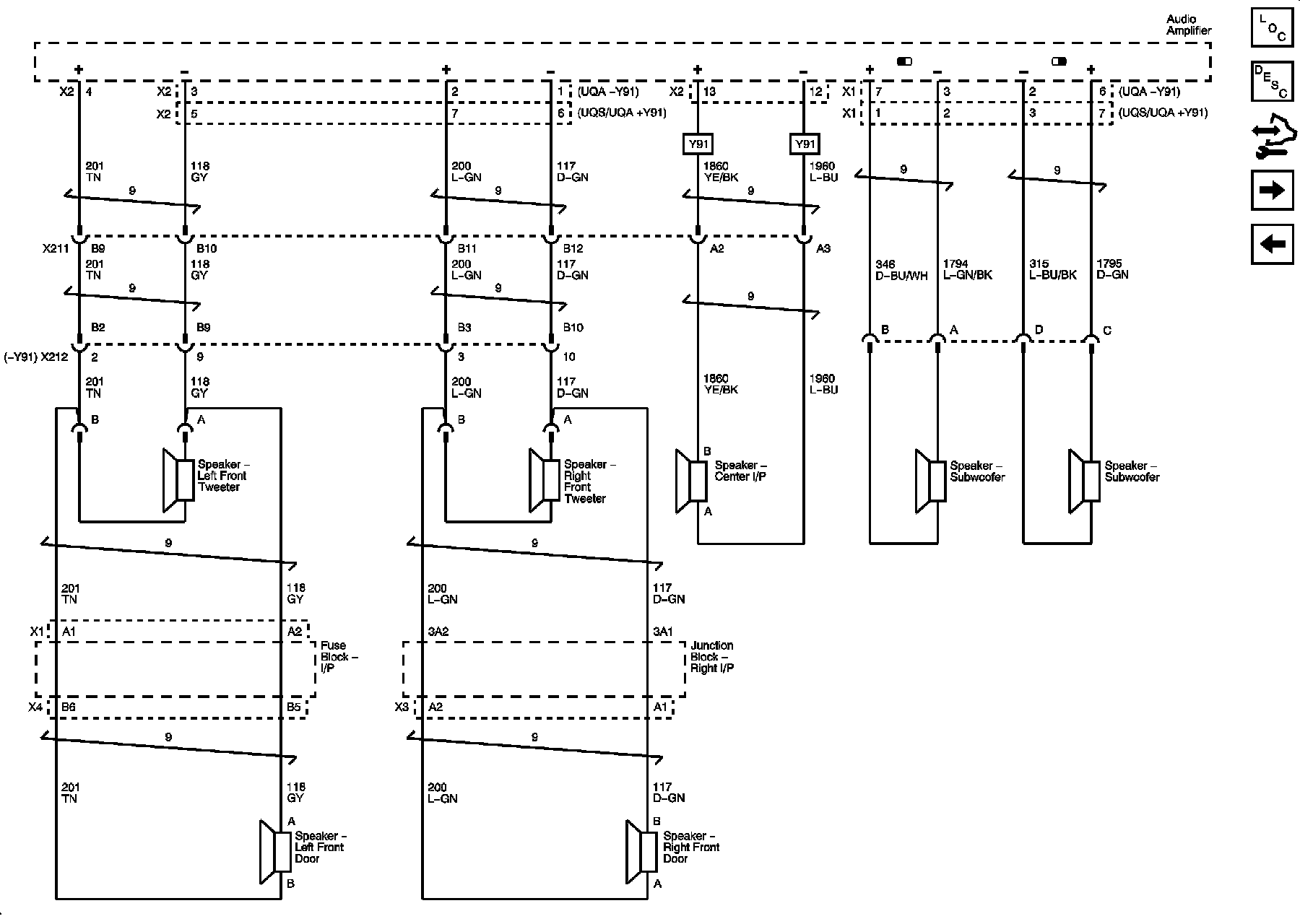

Front Speakers - UQA/UQS

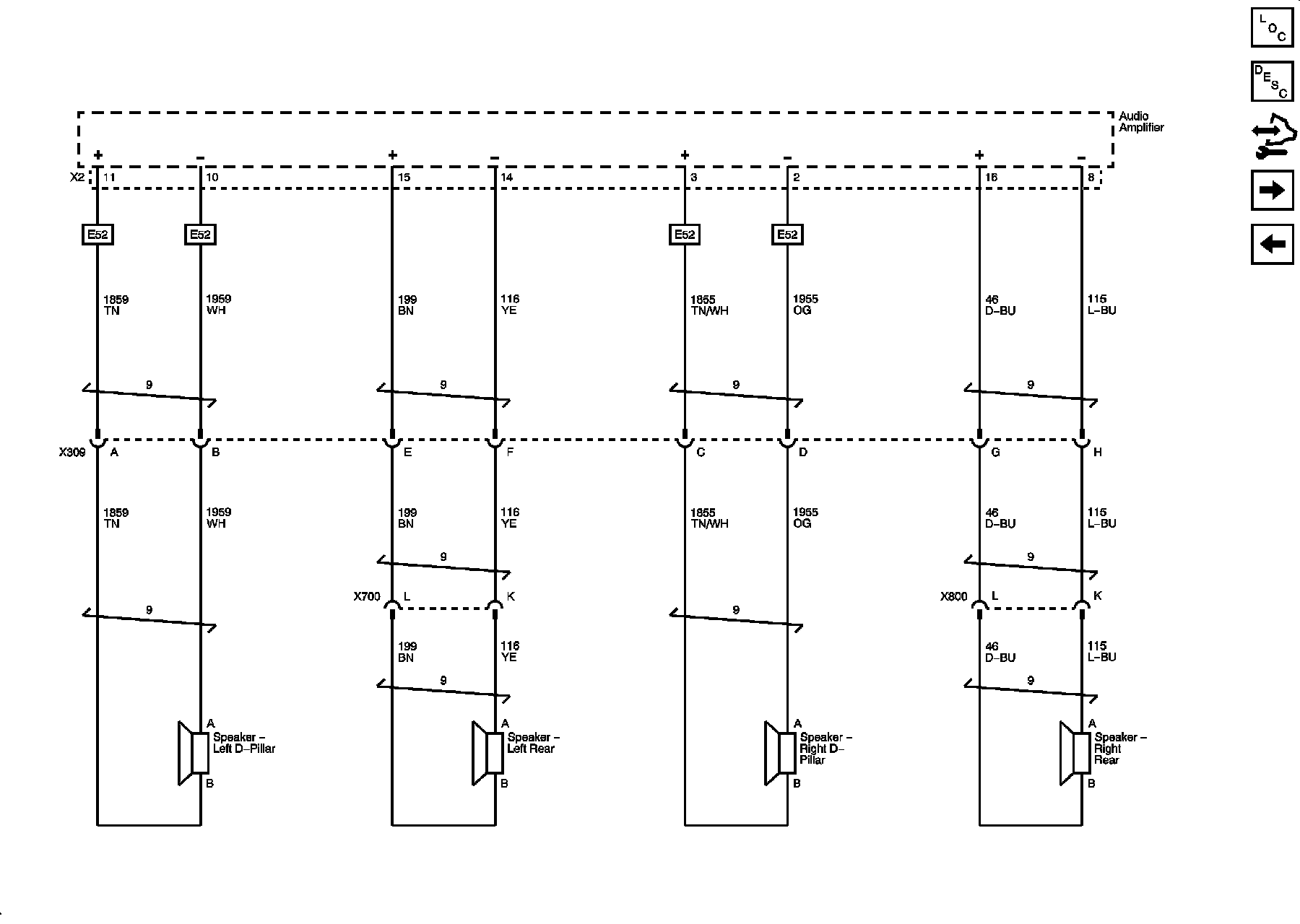

Rear Speakers - UQA
Rear Speakers - UQS

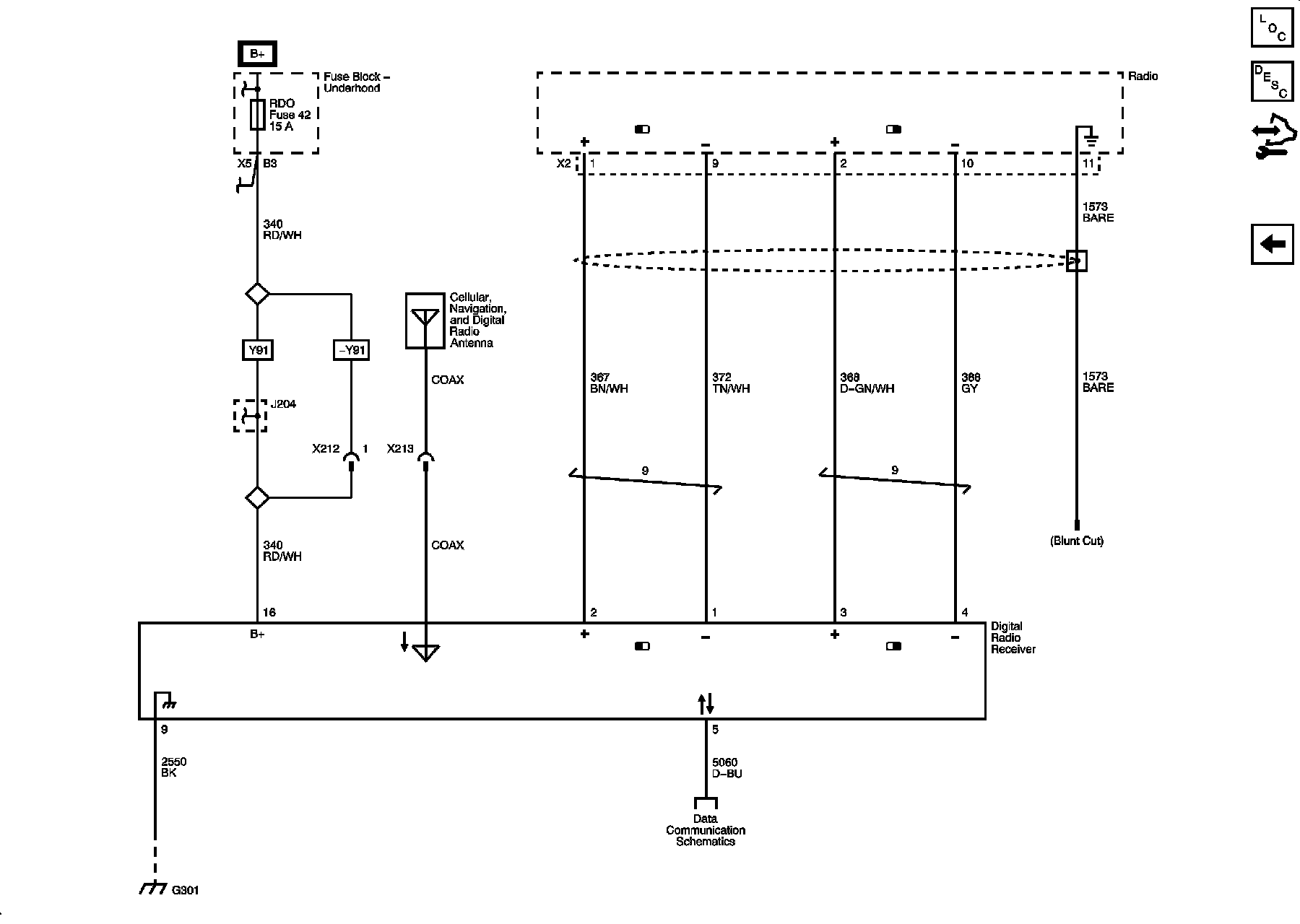

Digital Radio Receiver - U2K
