HVAC

Instrument Panel/Center Console Component Views

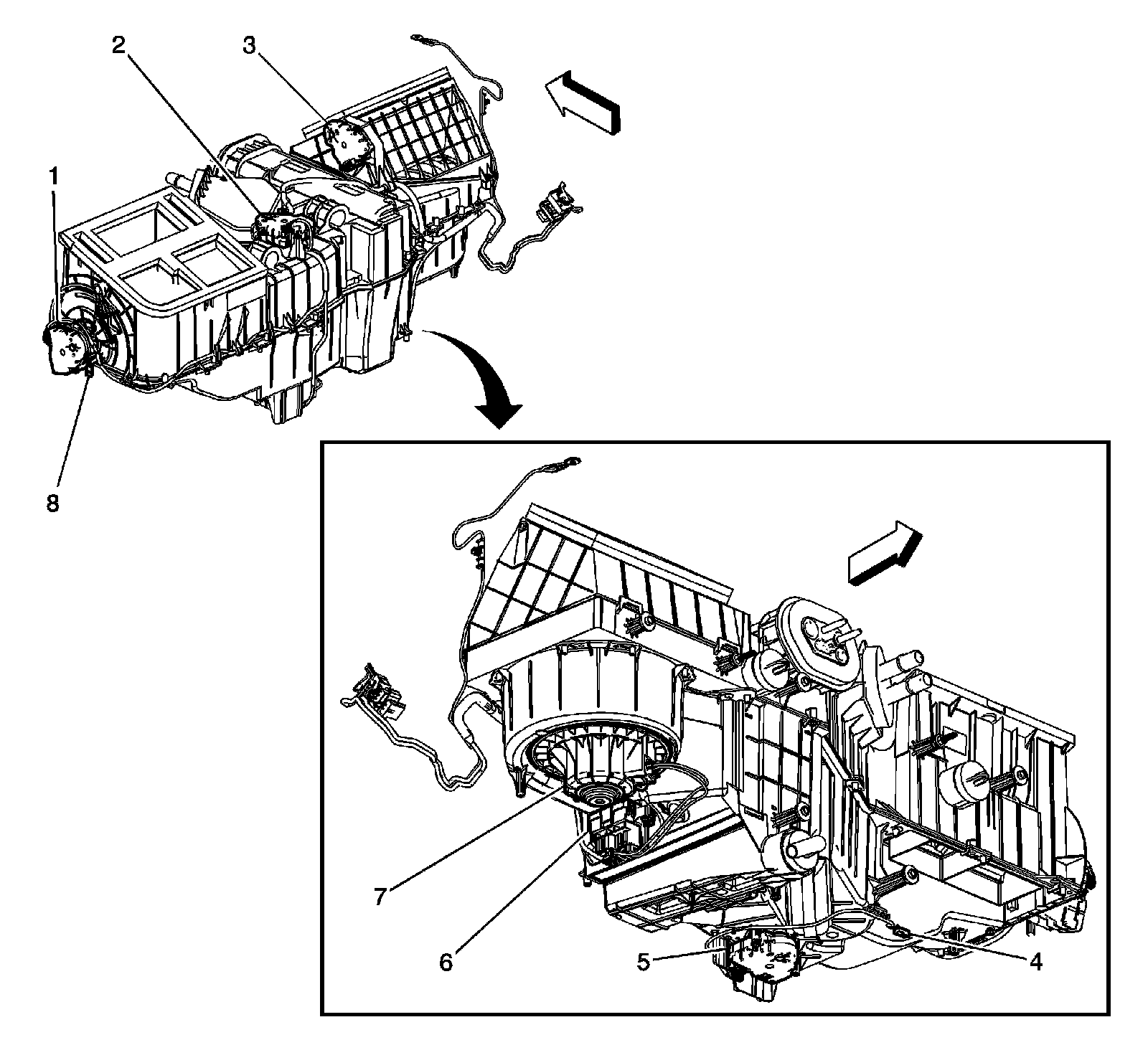

HVAC Module Components




1 - Mode Actuator
2 - Air Temperature Actuator - Right
3 - Recirculation Actuator
4 - Air Temperature Sensor - Lower Right (CJ2)
5 - Air Temperature Actuator - Left
6 - Blower Motor Control Module
7 - Blower Motor
8 - Air Temperature Sensor - Lower Left (CJ2)




Front of Vehicle/Engine Compartment Component Views

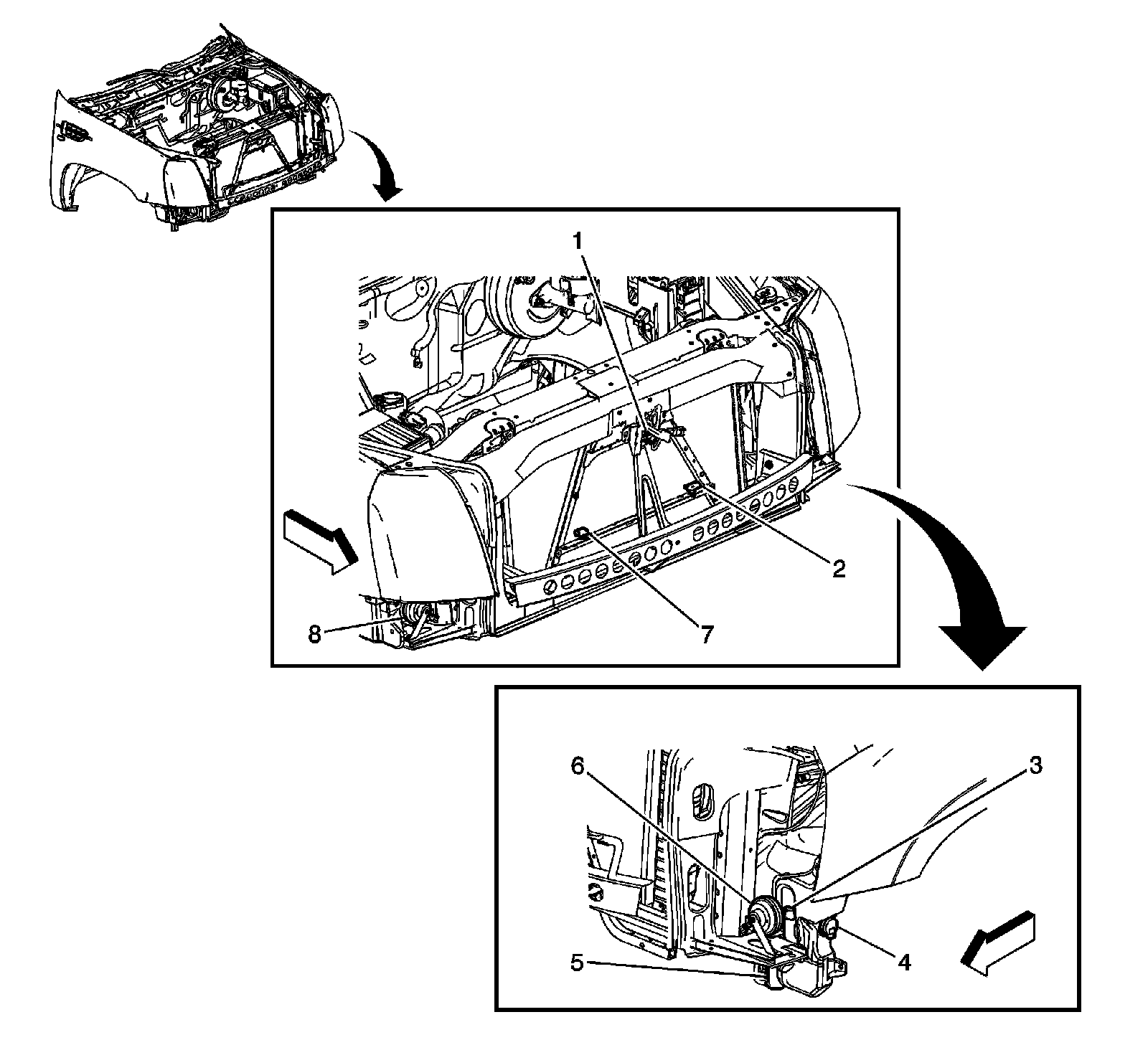

Behind the Front Grille Components




1 - Hood Ajar Switch (AP3 or AP8)
2 - Ambient Air Temperature Sensor -HVAC (CJ2)
3 - Rear Window Washer Fluid Pump (E52)
4 - Windshield Washer Fluid Level Switch
5 - Windshield Washer Fluid Pump
6 - Horn -Left
7 - Ambient Air Temperature Sensor -HVAC (CJ2)
8 - Horn -Right
