Air Cleaner Housing: Service and Repair




Air Cleaner Assembly Replacement

Removal Procedure

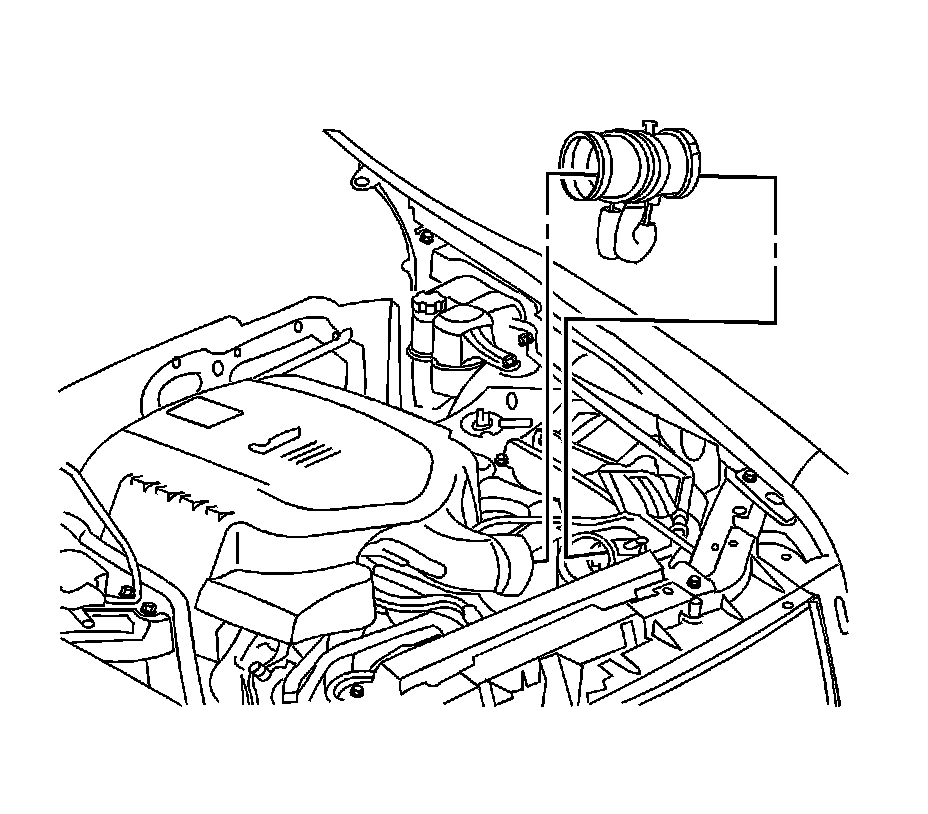

1. Remove the air cleaner outlet duct from the vehicle. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
2. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.
3. Remove the MAF/IAT sensor if necessary. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (Service and Repair).
4. Remove the coolant hose from the retaining feature on the top of the air cleaner assembly. Position the hose aside.

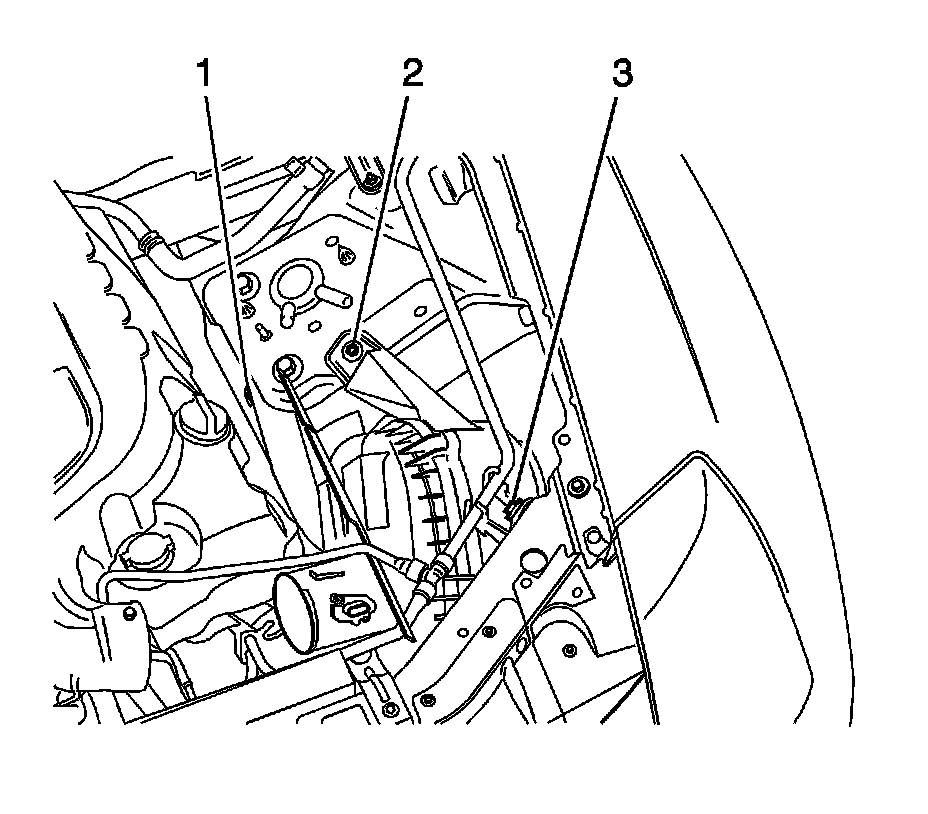

5. Disengage the air cleaner housing splash shield clip (1).
6. Remove the bolts securing the air cleaner housing to the vehicle (2,3).




7. Remove the air cleaner housing from the vehicle. If necessary, remove the air cleaner housing splash shield.

Installation Procedure

Note: An improperly installed air cleaner or a distorted or missing intake air duct may cause a diagnostic trouble code (DTC) to set. Ensure that the air cleaner assembly and intake air duct is installed correctly and that there are no kinks or folds in the intake air duct. Debris in the air cleaner assembly or MAF sensor inlet screen, that may distort air flow can set a DTC.




1. Install the air cleaner housing splash shield to the vehicle if previously removed.
2. Install the air cleaner assembly into the vehicle.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the air cleaner assembly bolts (1,2) and tighten to 10 Nm (89 lb in).
4. Install the air cleaner housing splash shield clip (1).
5. Install the coolant hose to the retaining feature on the top of the air cleaner assembly.
6. Install the MAF/IAT sensor if previously removed. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (Service and Repair).
7. Connect the MAF/IAT sensor electrical connector.




8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
