Component Connector End Views

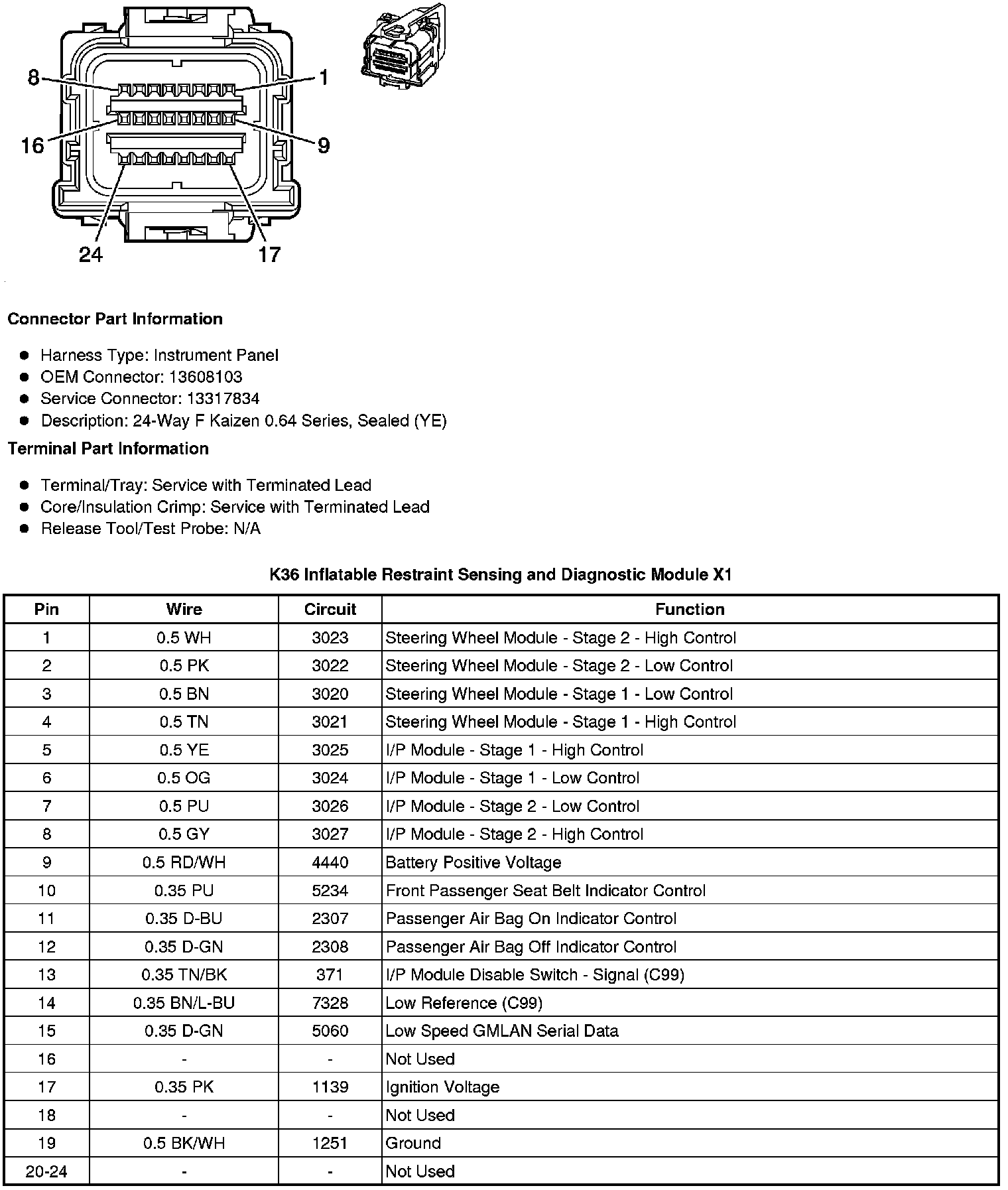

K36 Inflatable Restraint Sensing and Diagnostic Module X1

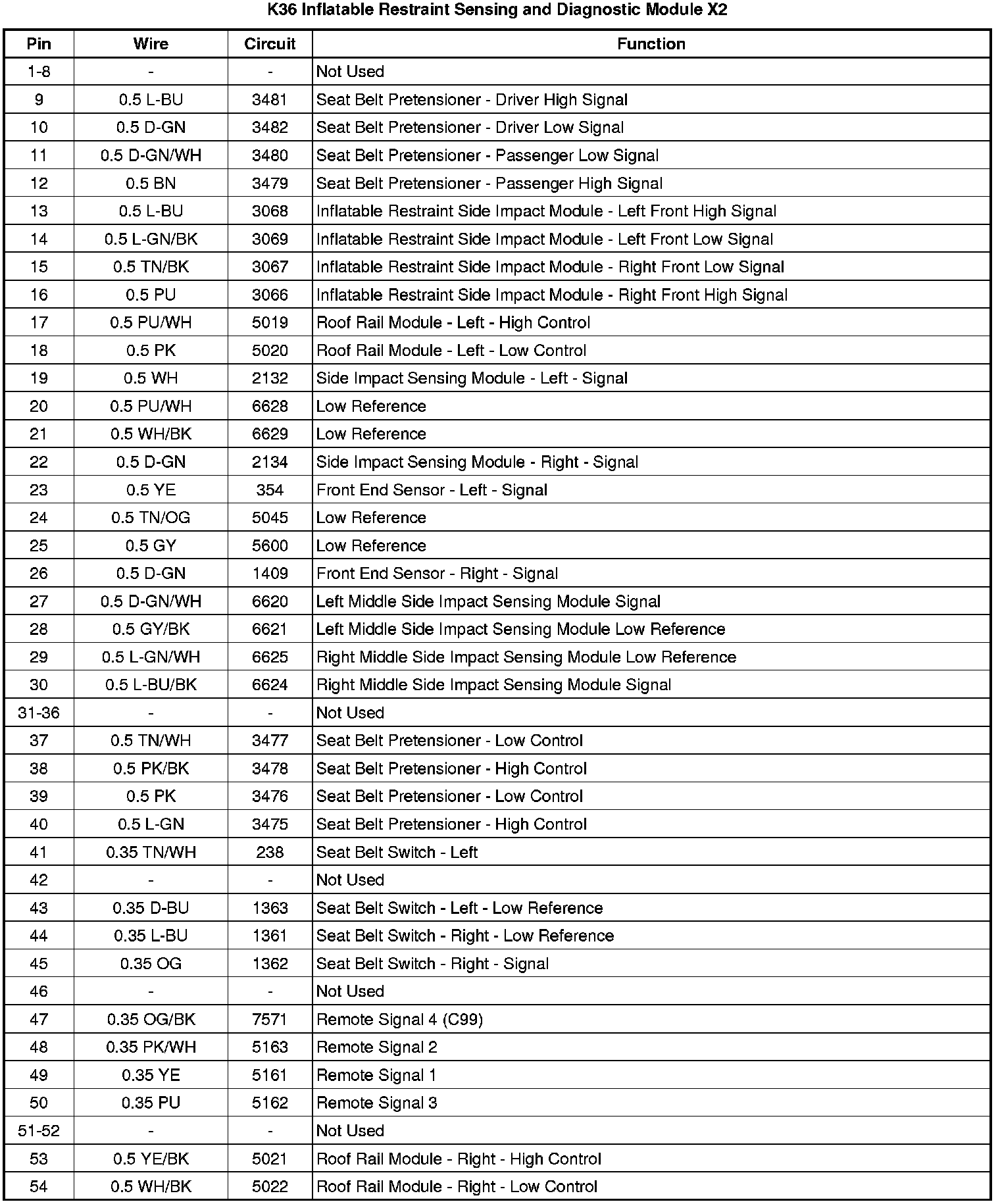

K36 Inflatable Restraint Sensing and Diagnostic Module X2

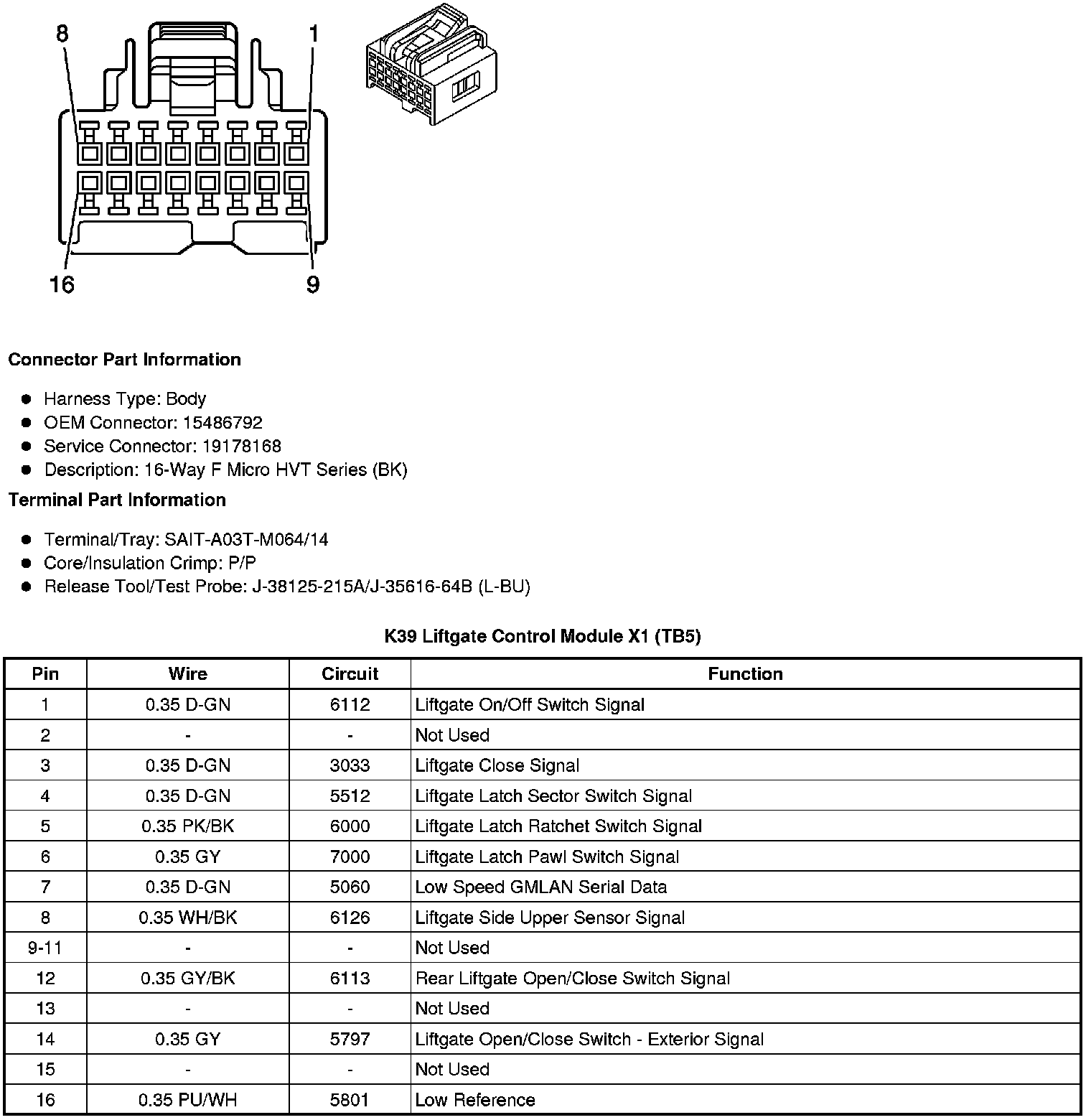

K39 Liftgate Control Module X1 (TB5)

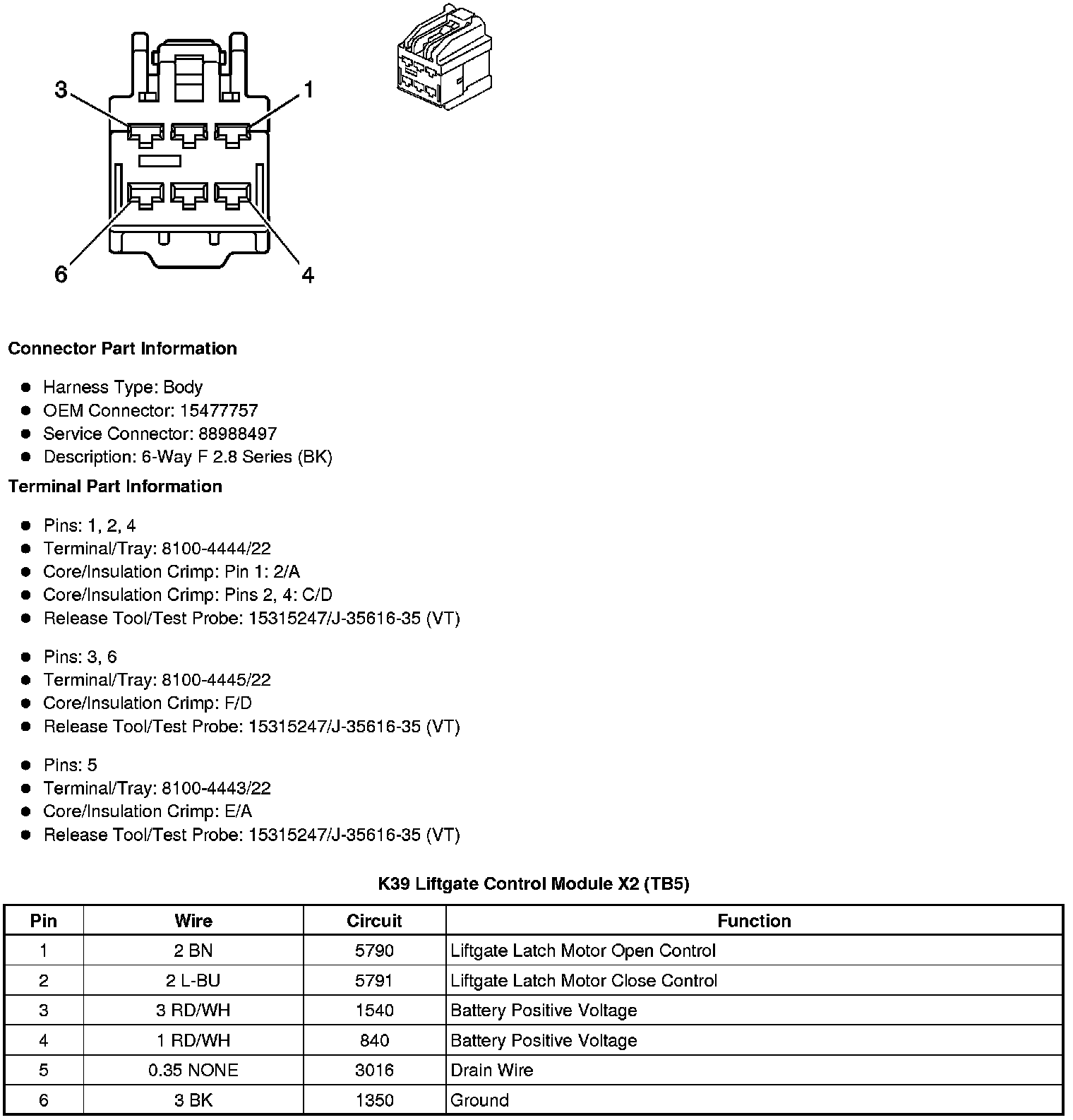

K39 Liftgate Control Module X2 (TB5)

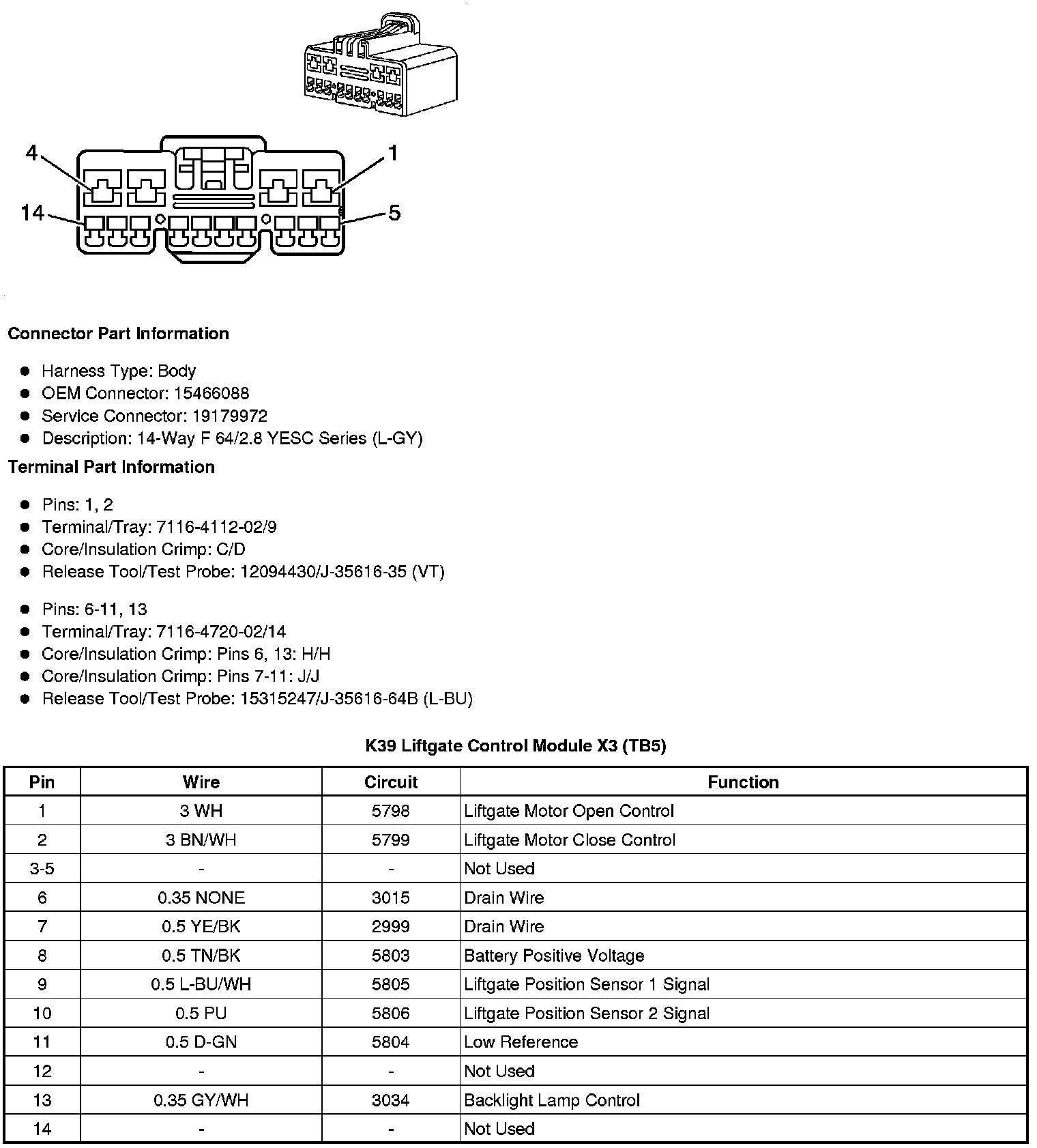

K39 Liftgate Control Module X3 (TB5)

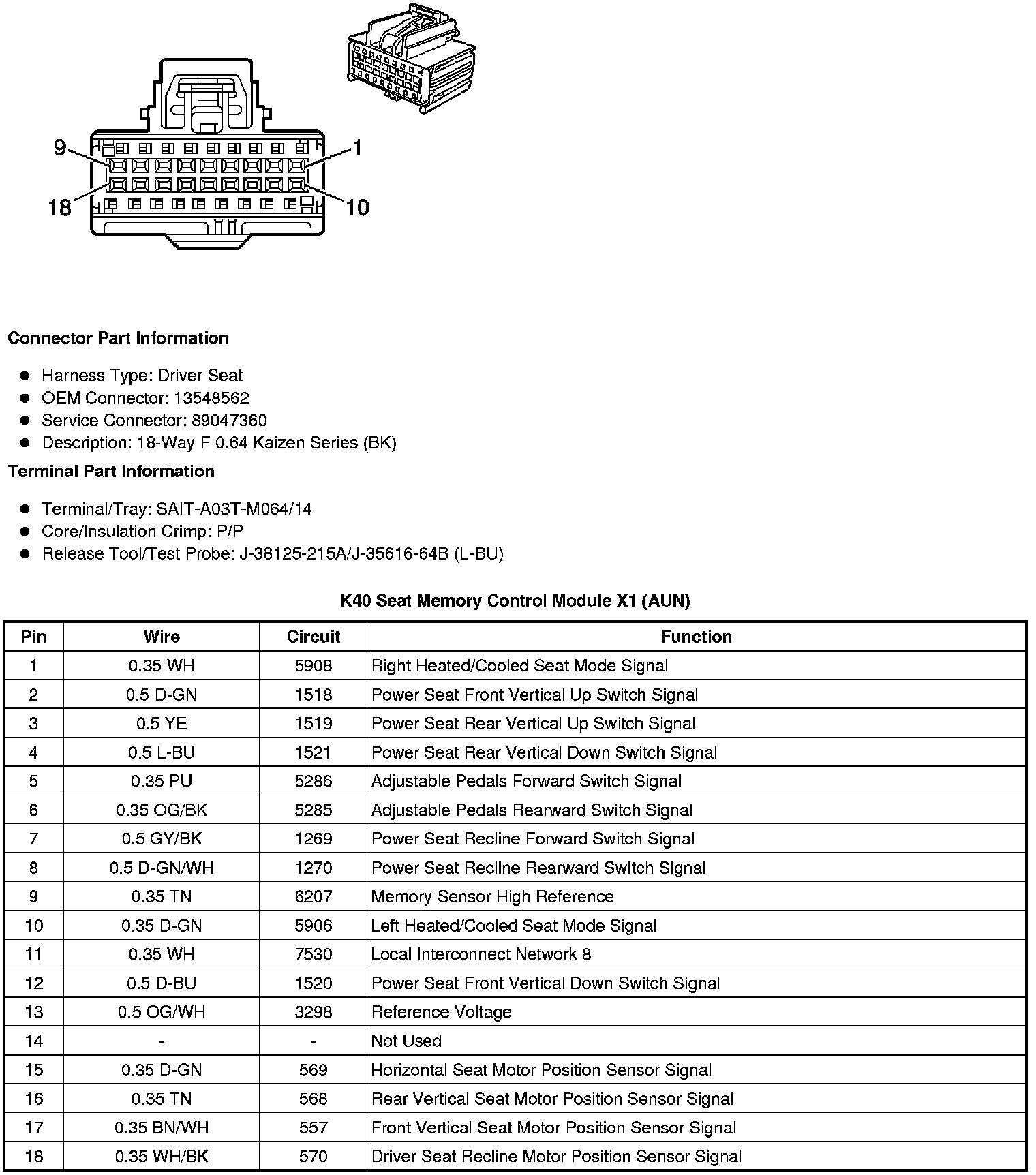

K40 Seat Memory Control Module X1 (AUN)

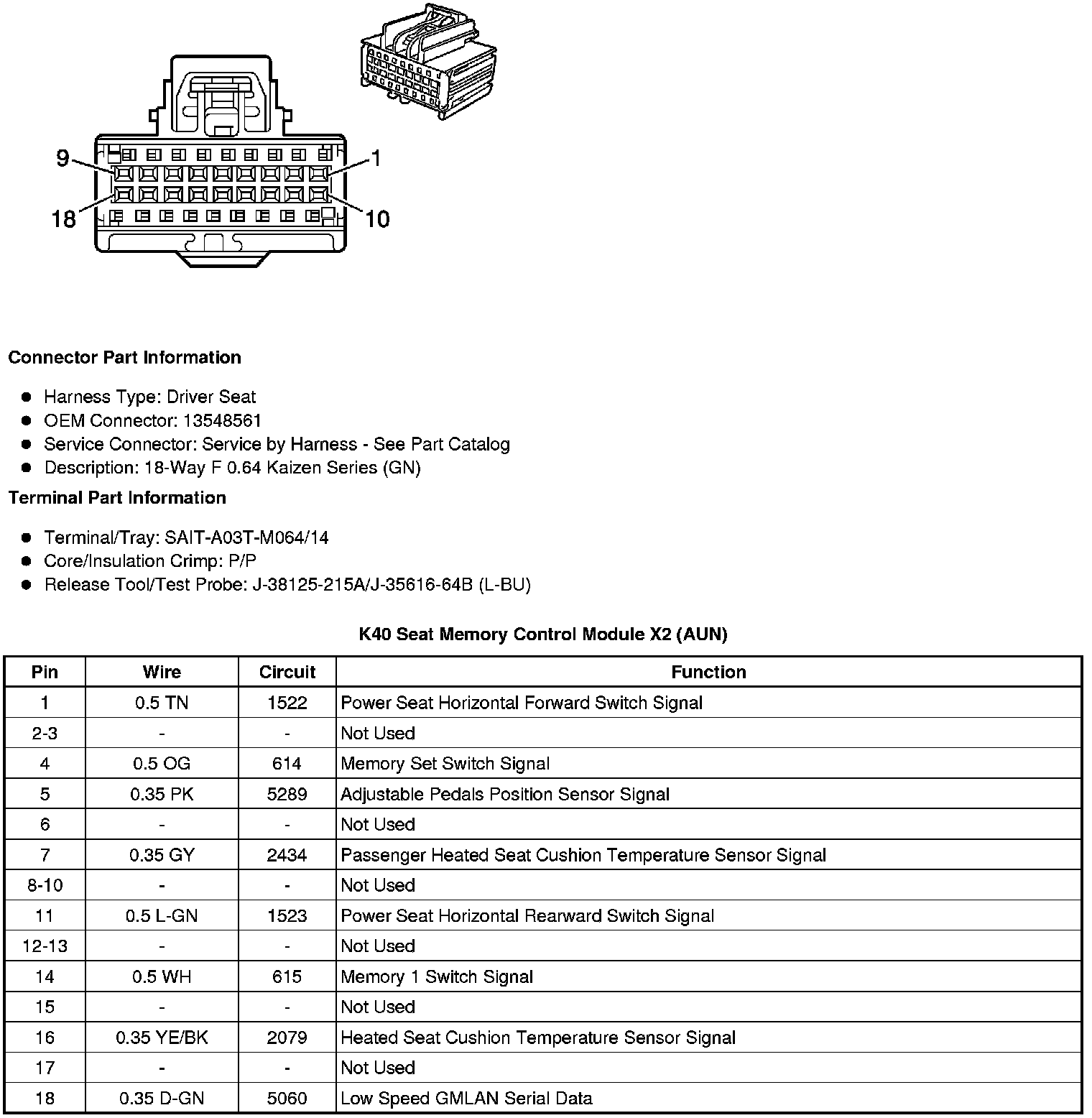

K40 Seat Memory Control Module X2 (AUN)

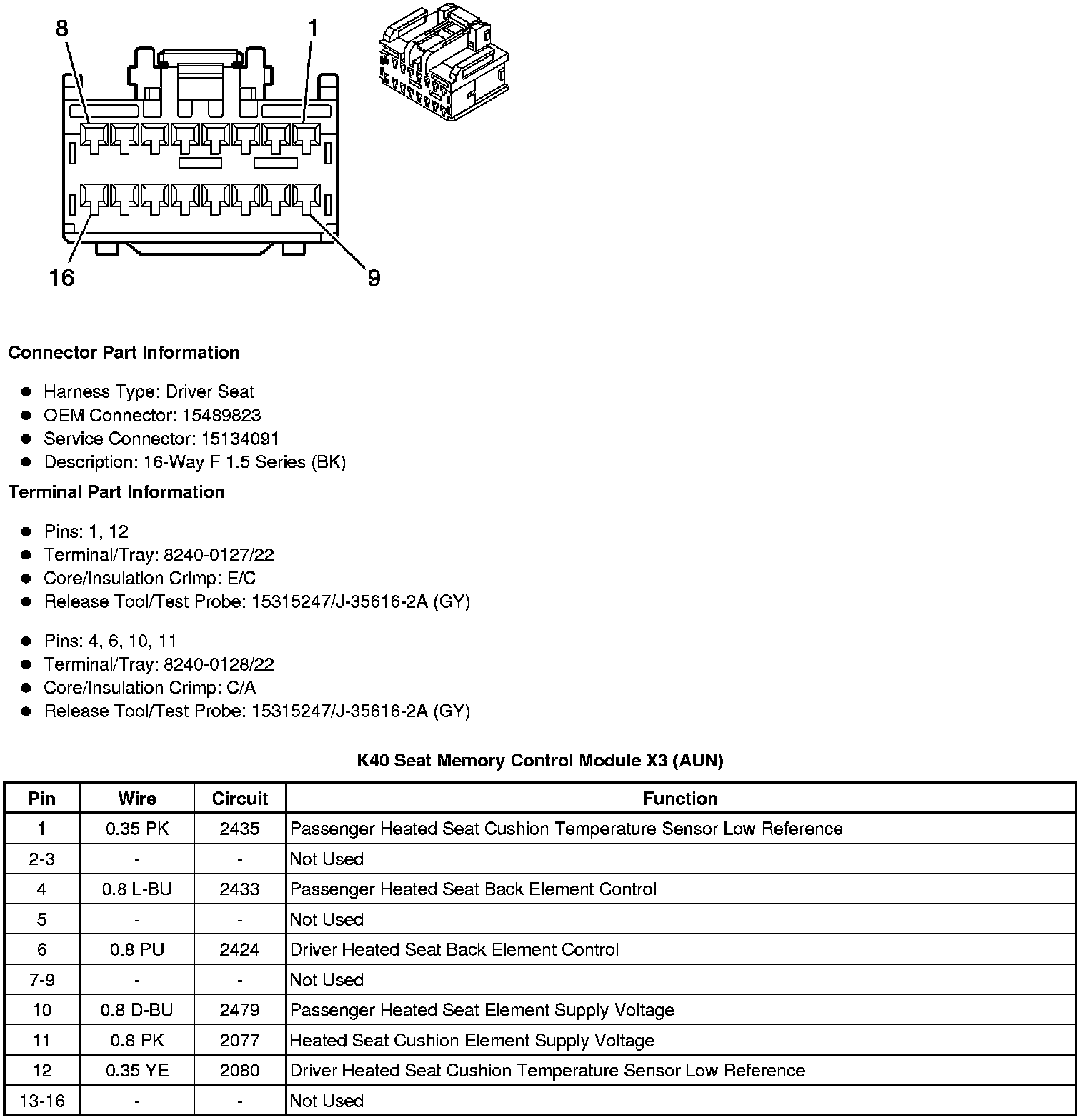

K40 Seat Memory Control Module X3 (AUN)

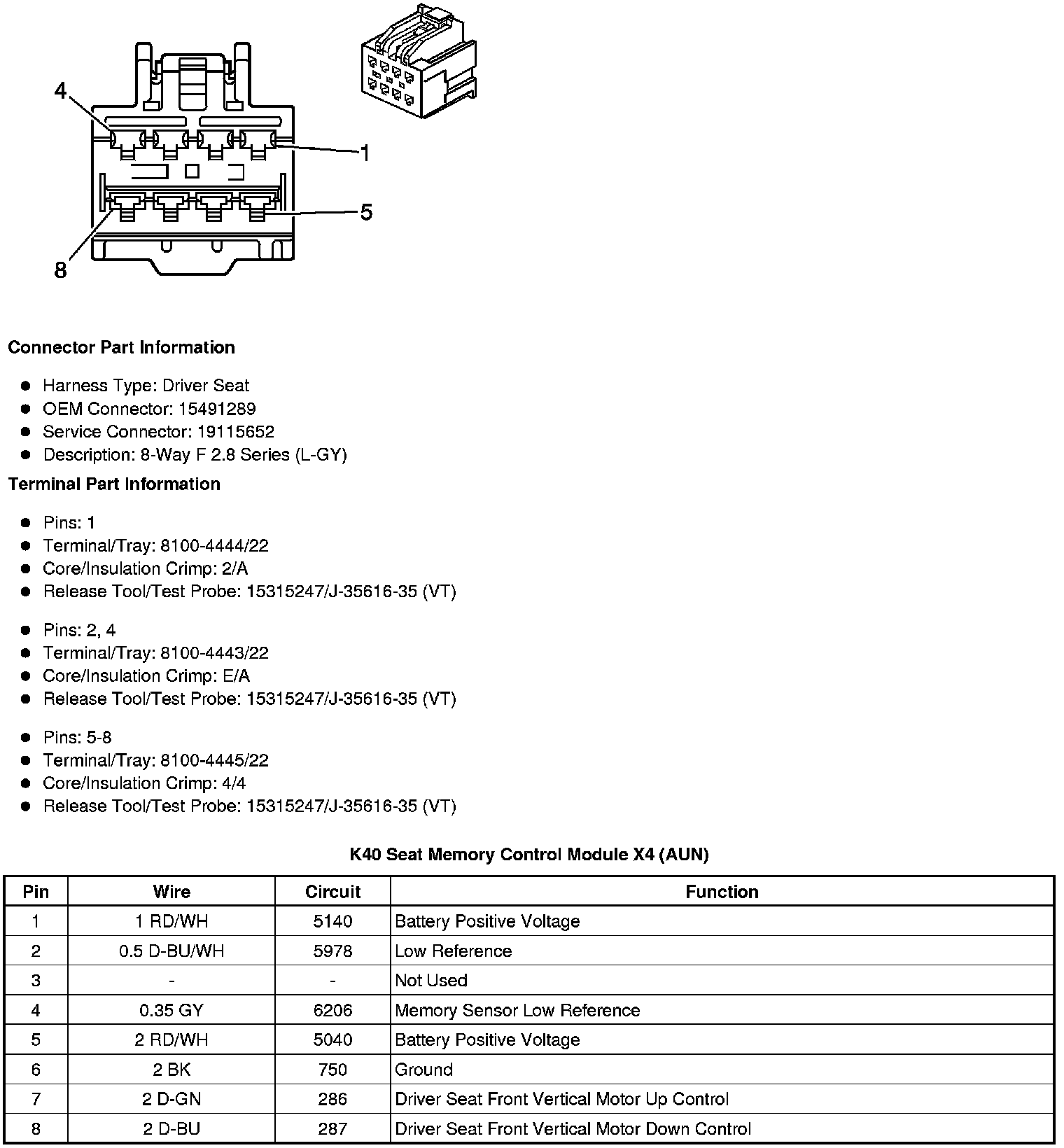

K40 Seat Memory Control Module X4 (AUN)

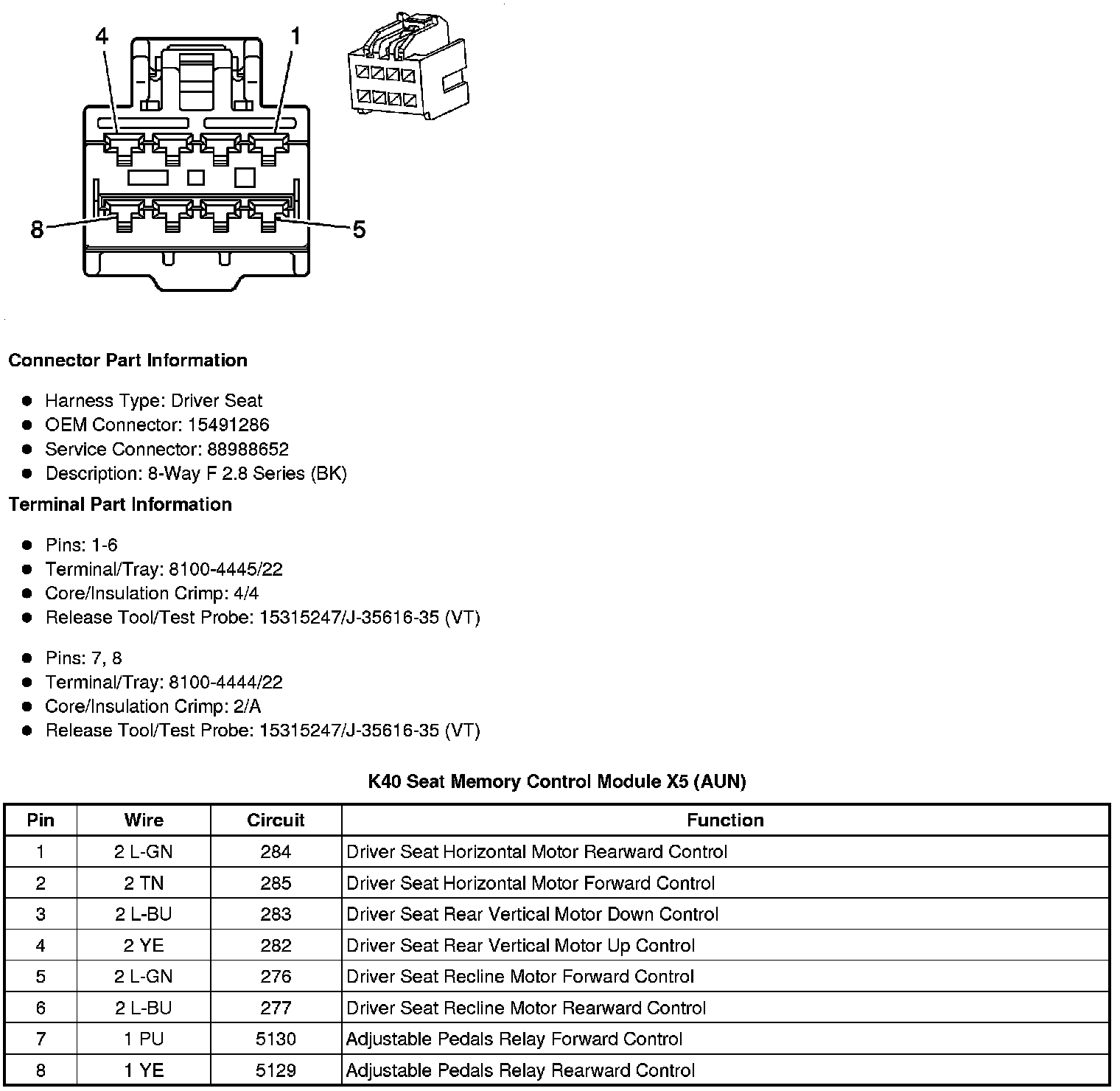

K40 Seat Memory Control Module X5 (AUN)

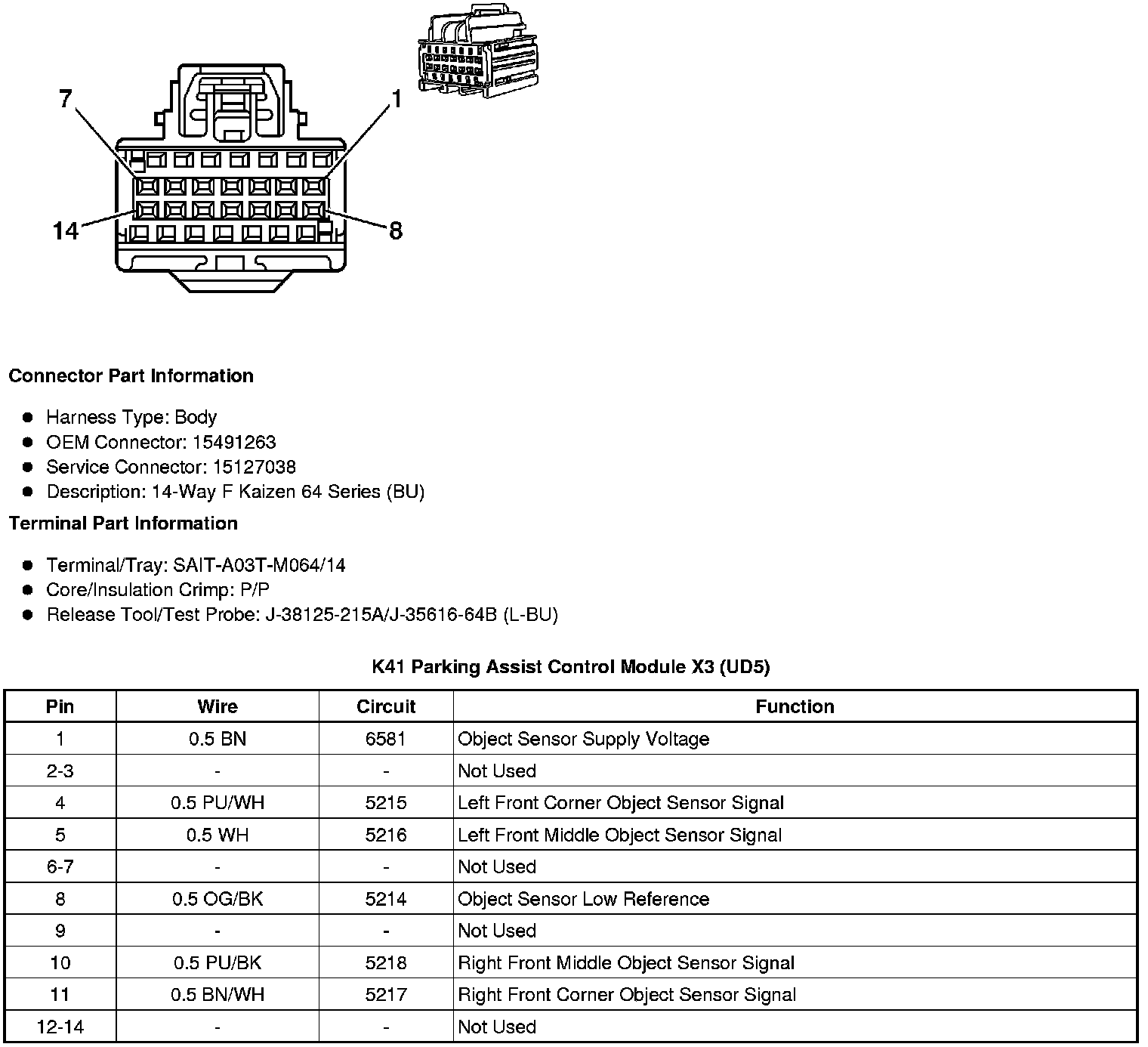

K41 Parking Assist Control Module X1 (UD5)

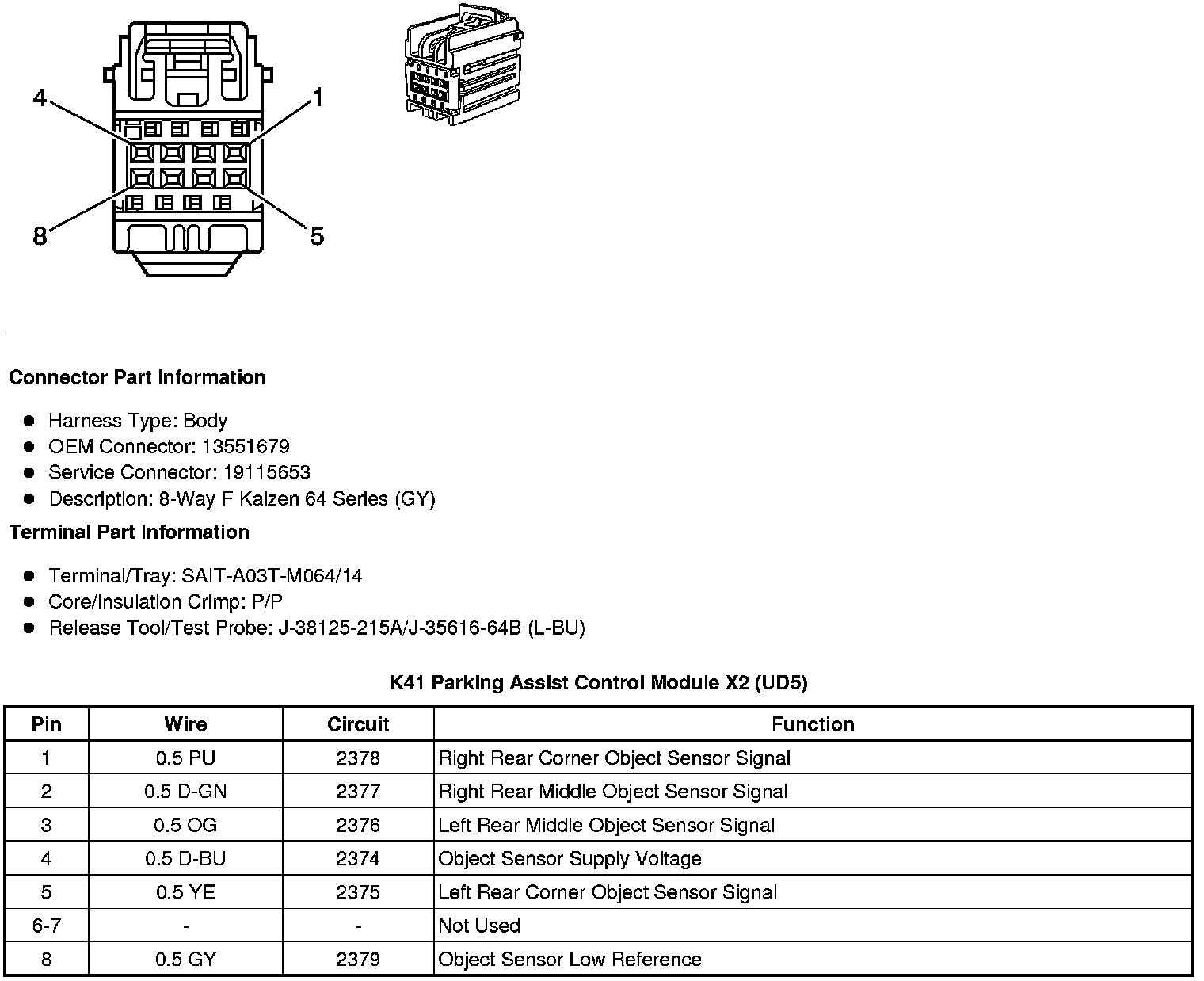

K41 Parking Assist Control Module X2 (UD5)





K41 Parking Assist Control Module X3 (UD5)





K47 Rear Differential Clutch Control Module X1 (MX7)

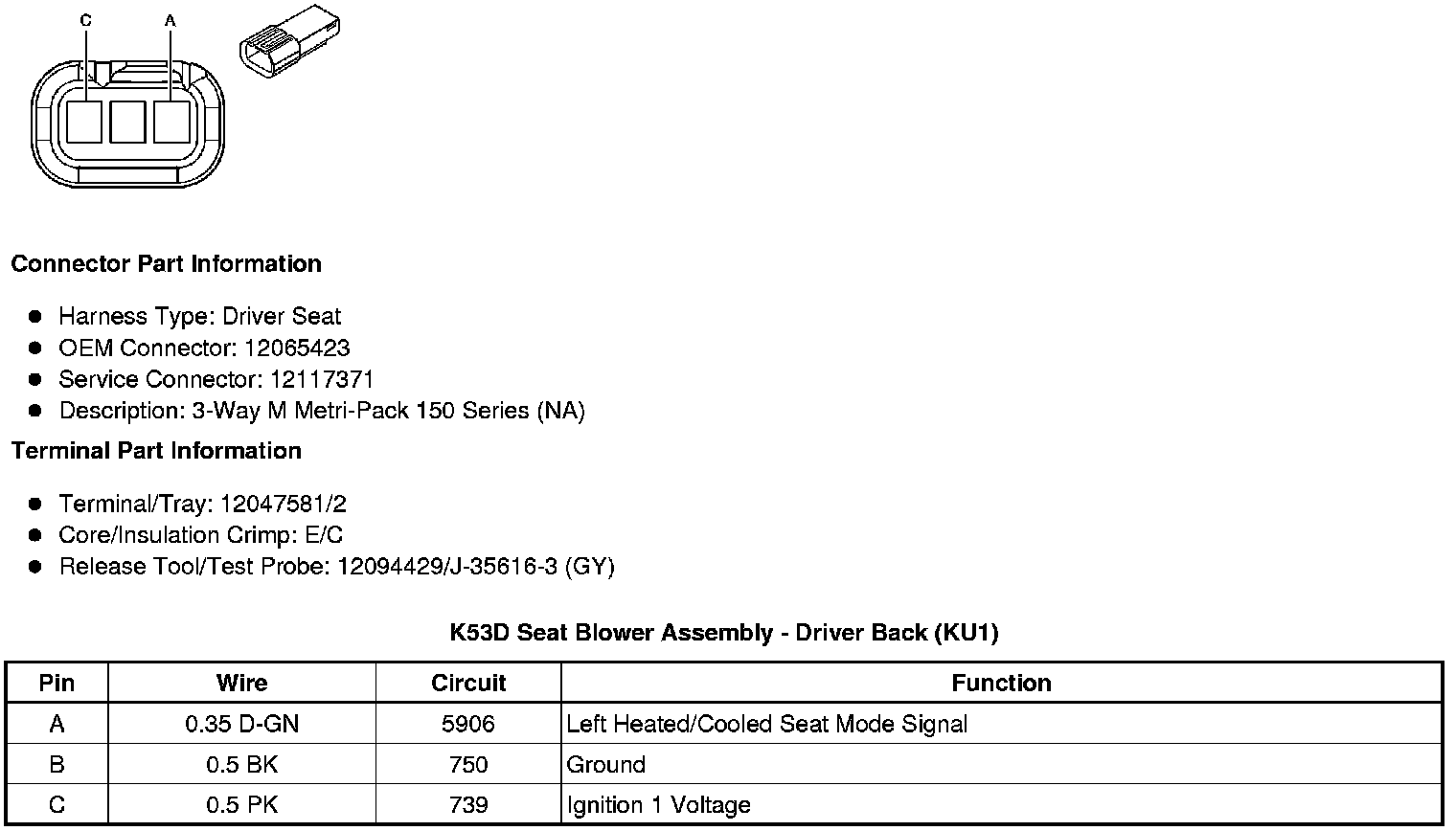

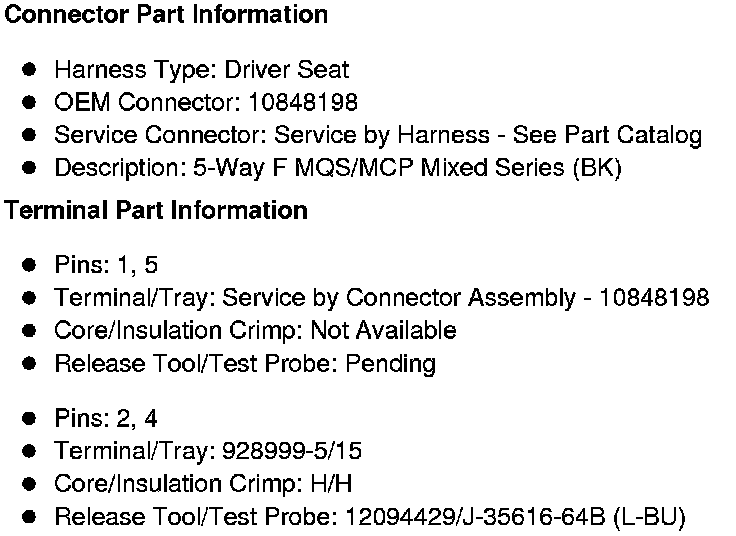

K53D Seat Blower Assembly - Driver Back (KU1)

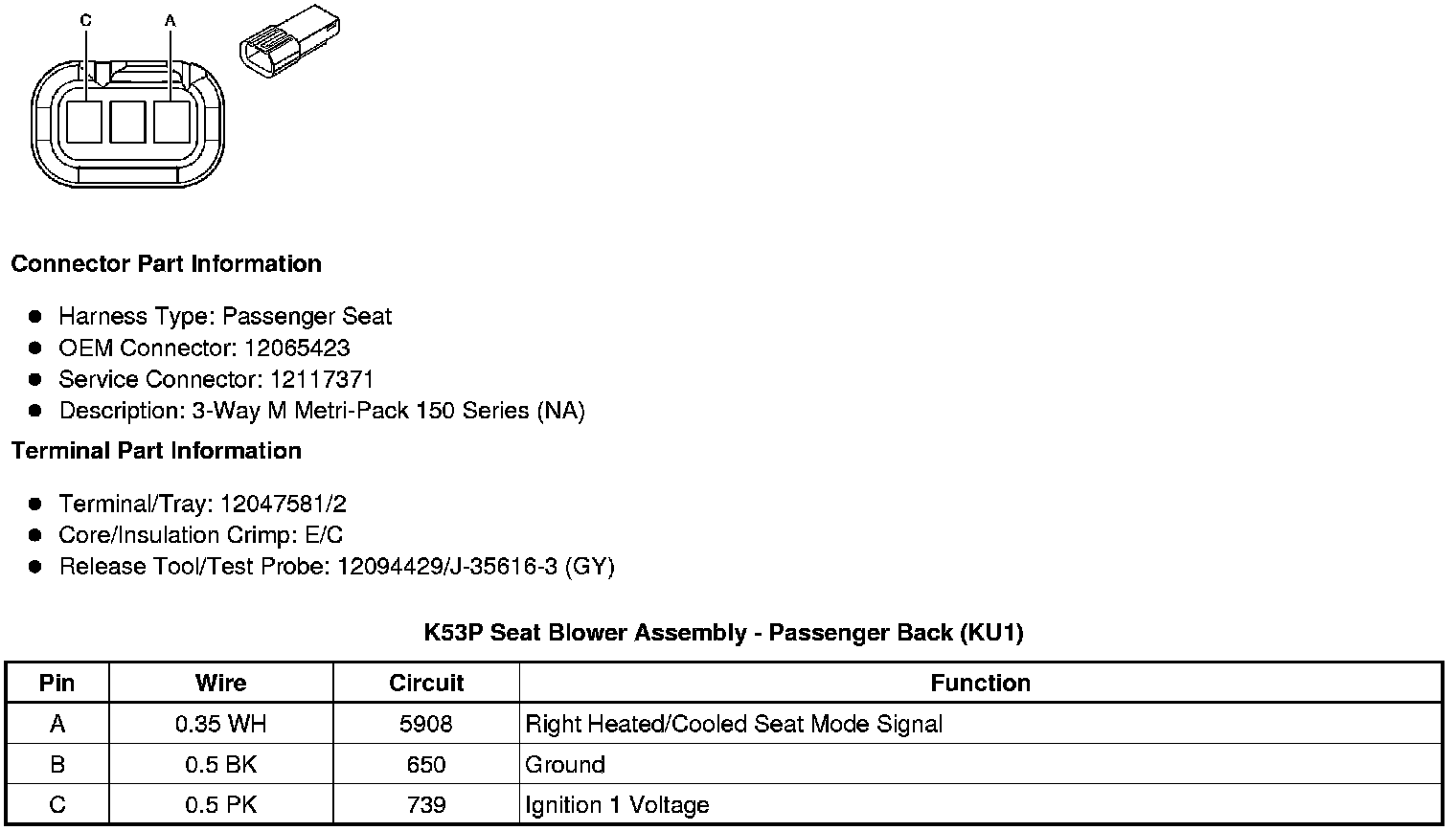

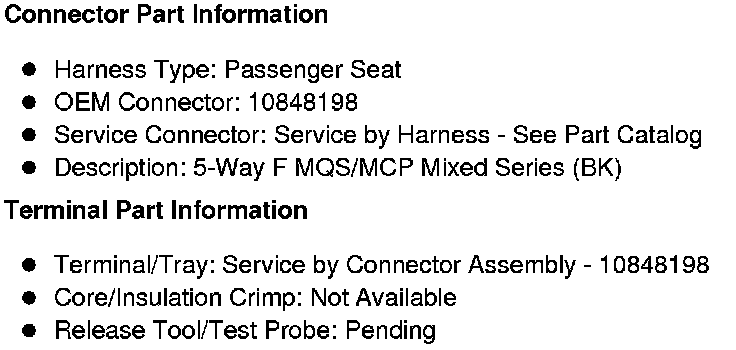

K53P Seat Blower Assembly - Passenger Back (KU1)





K55D Seat Blower Assembly - Driver Cushion (KU1)

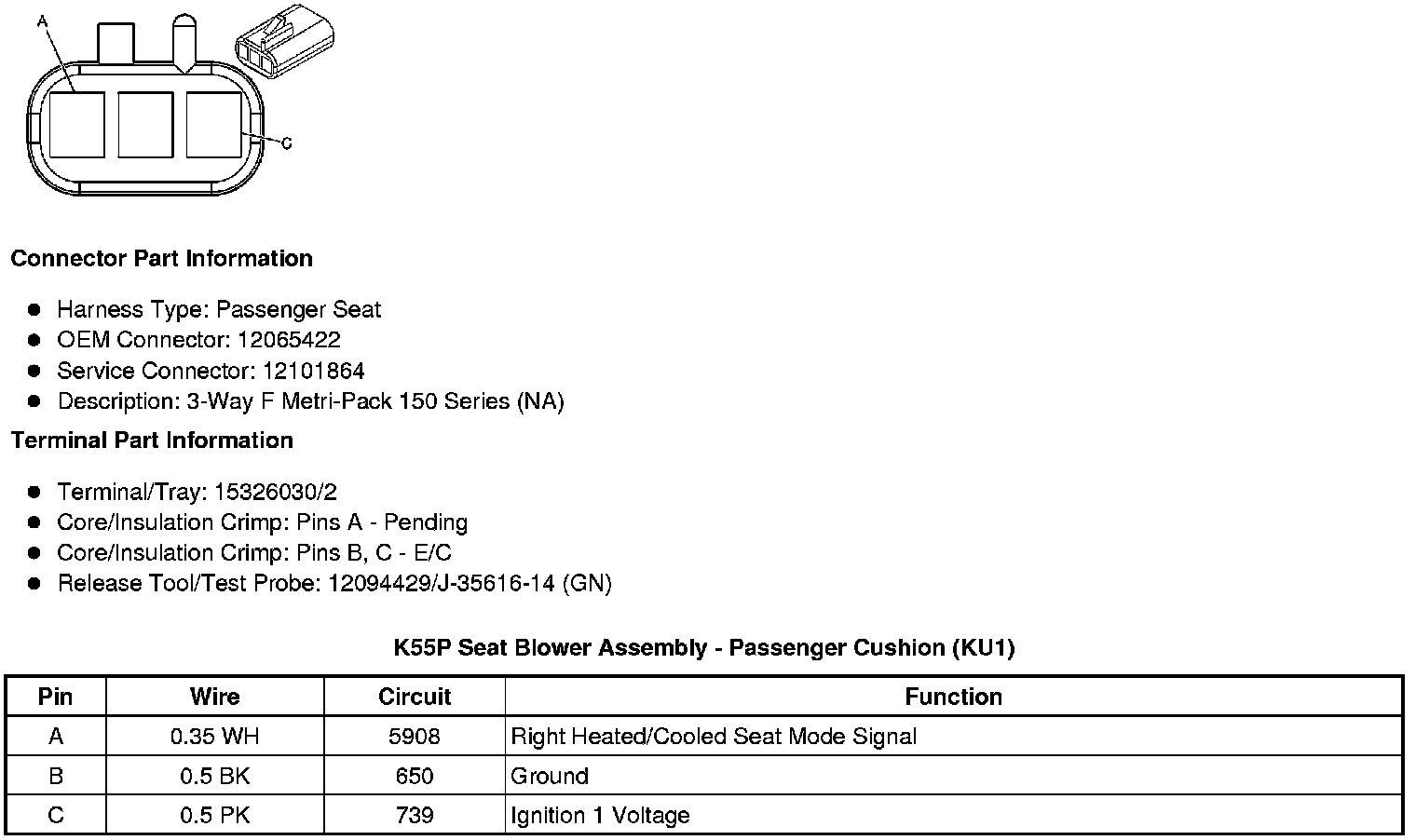

K55P Seat Blower Assembly - Passenger Cushion (KU1)

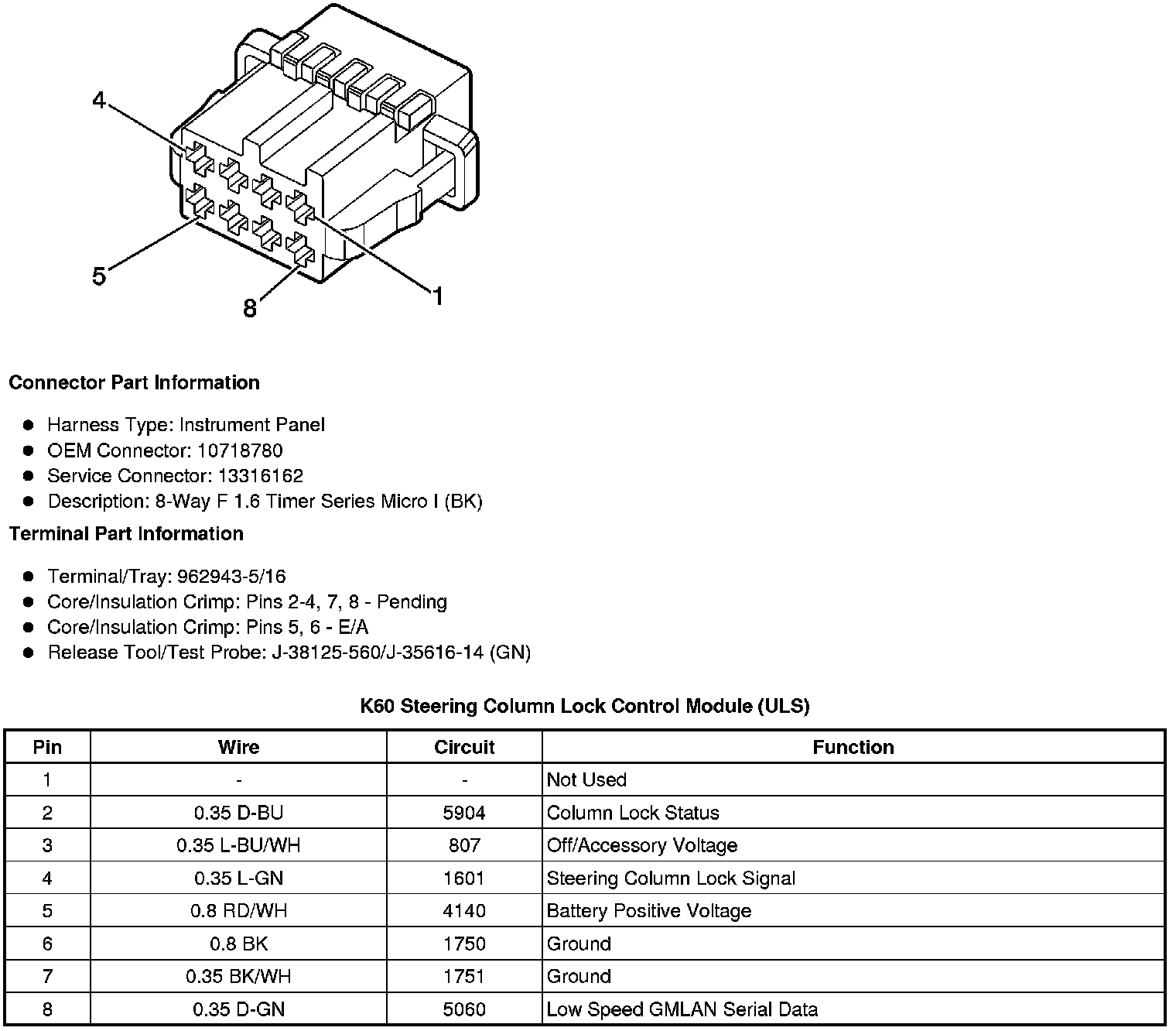

K60 Steering Column Lock Control Module (ULS)

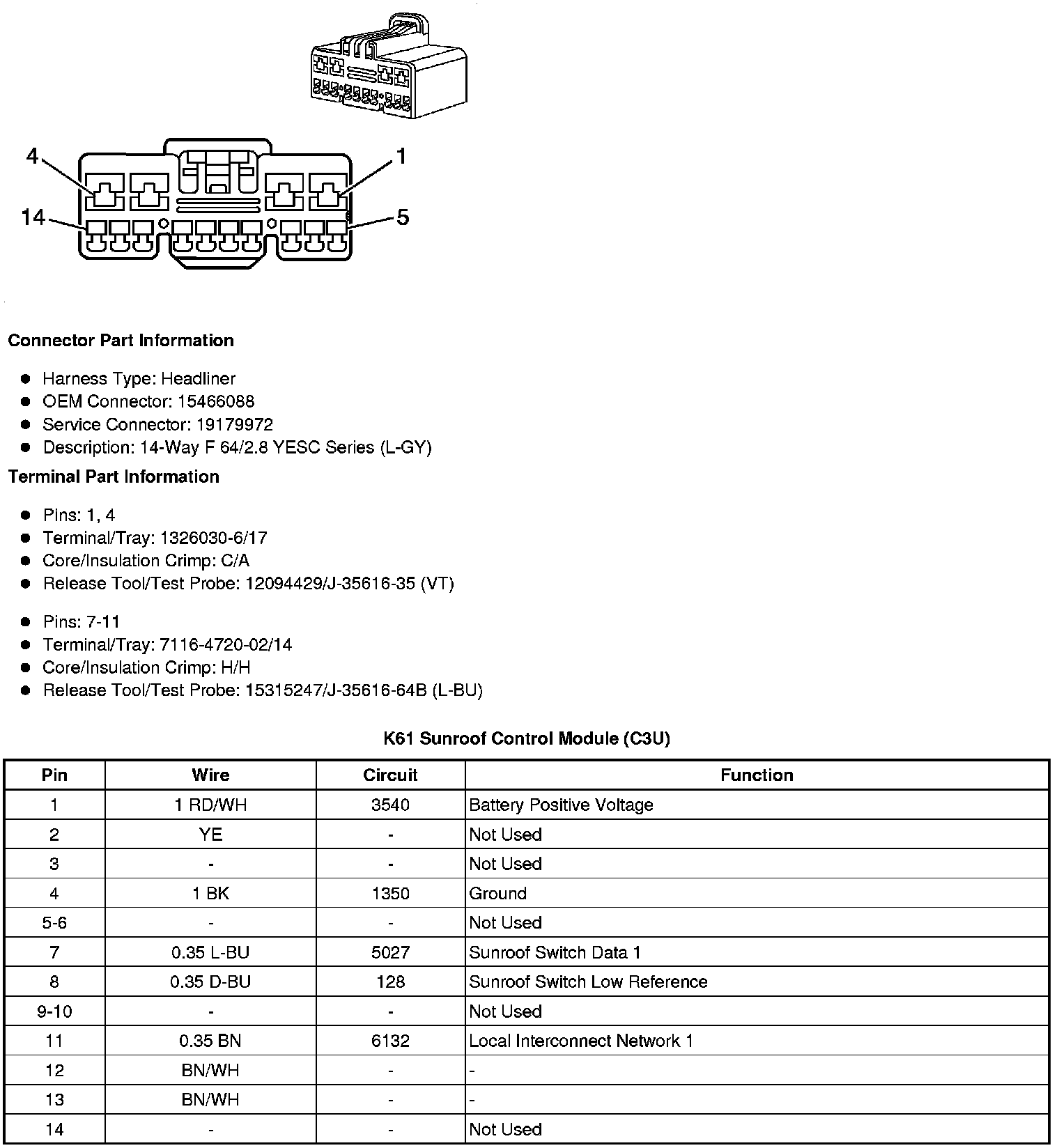

K61 Sunroof Control Module (C3U)

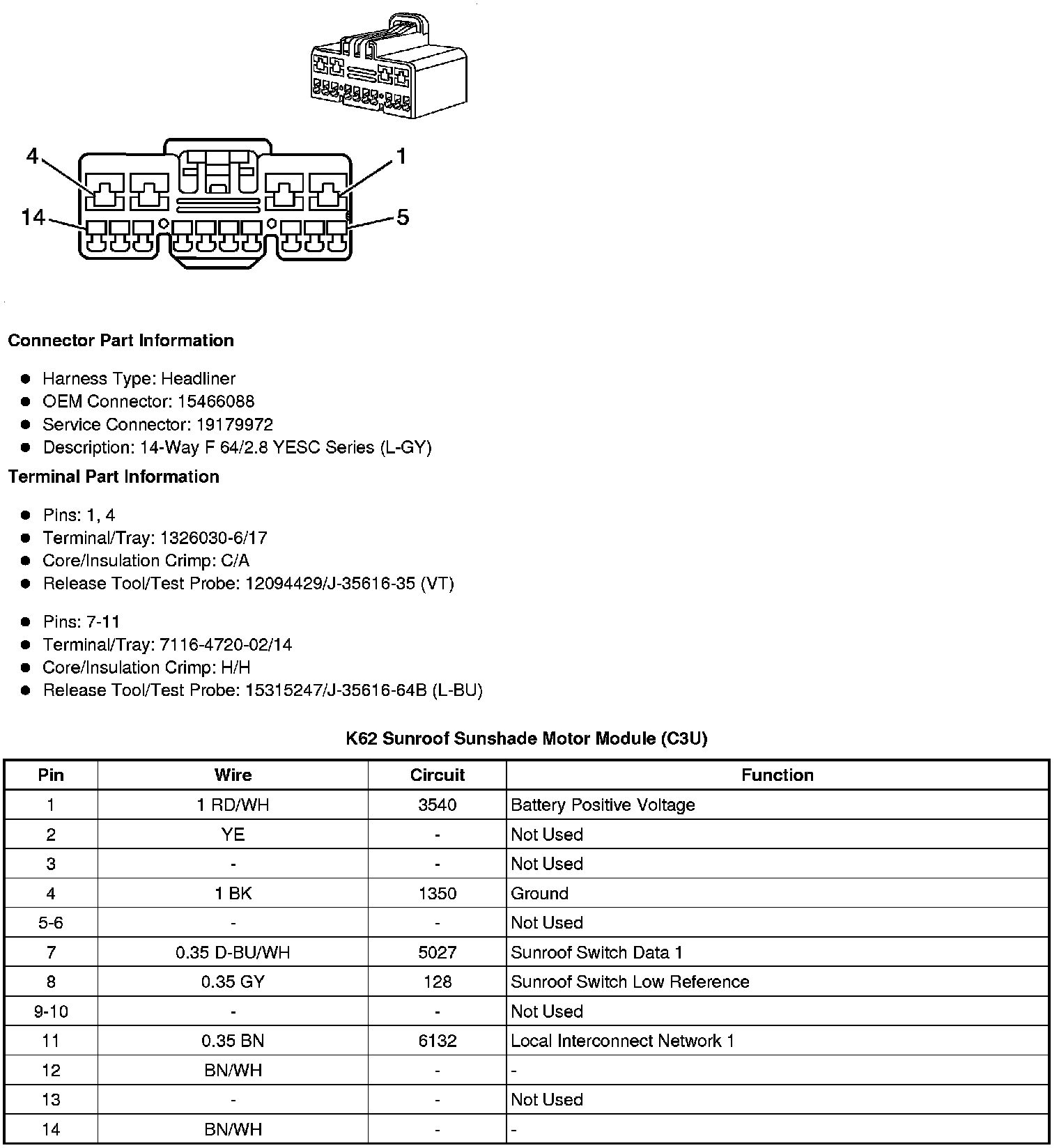

K62 Sunroof Sunshade Motor Module (C3U)

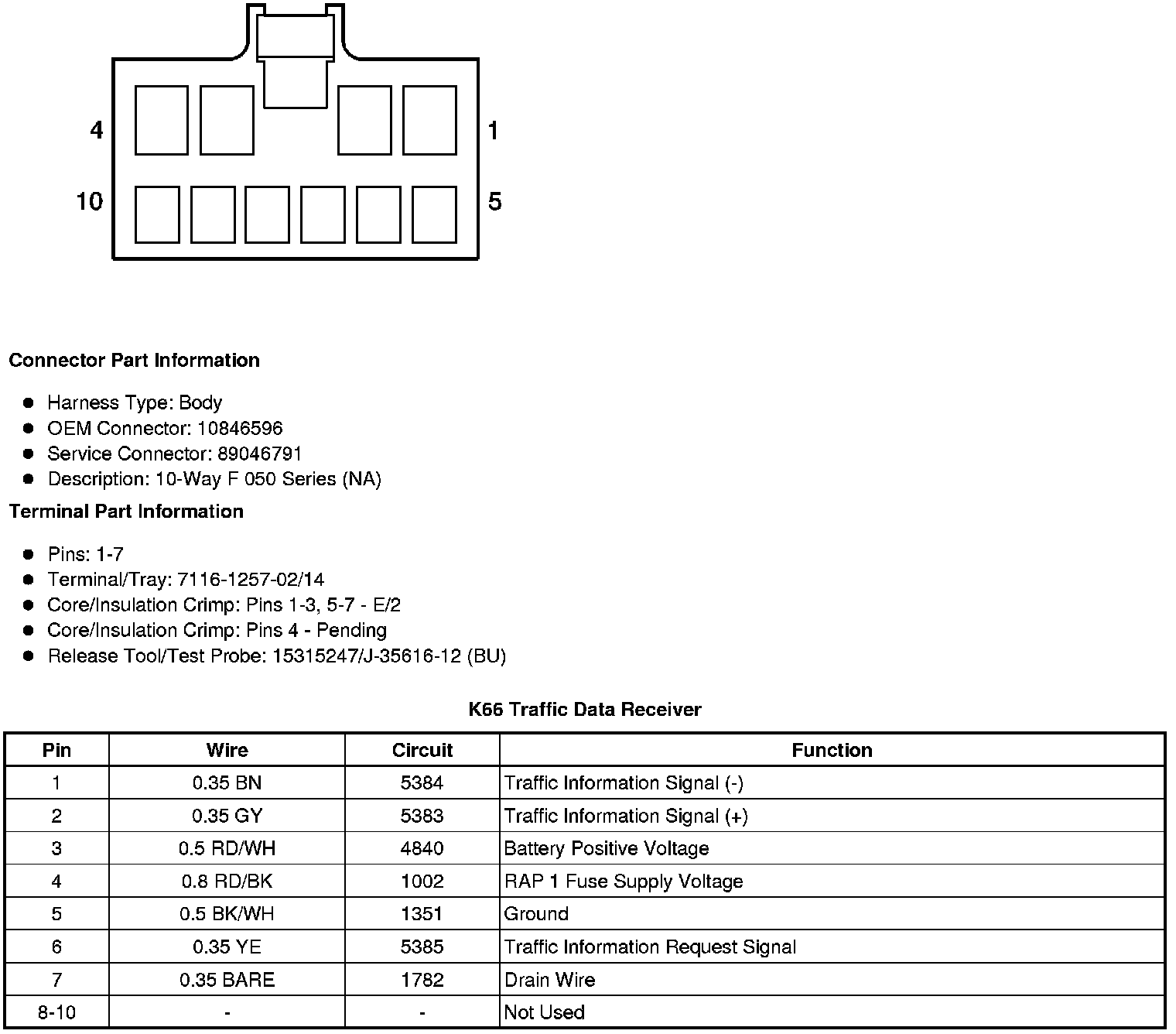

K66 Traffic Data Receiver

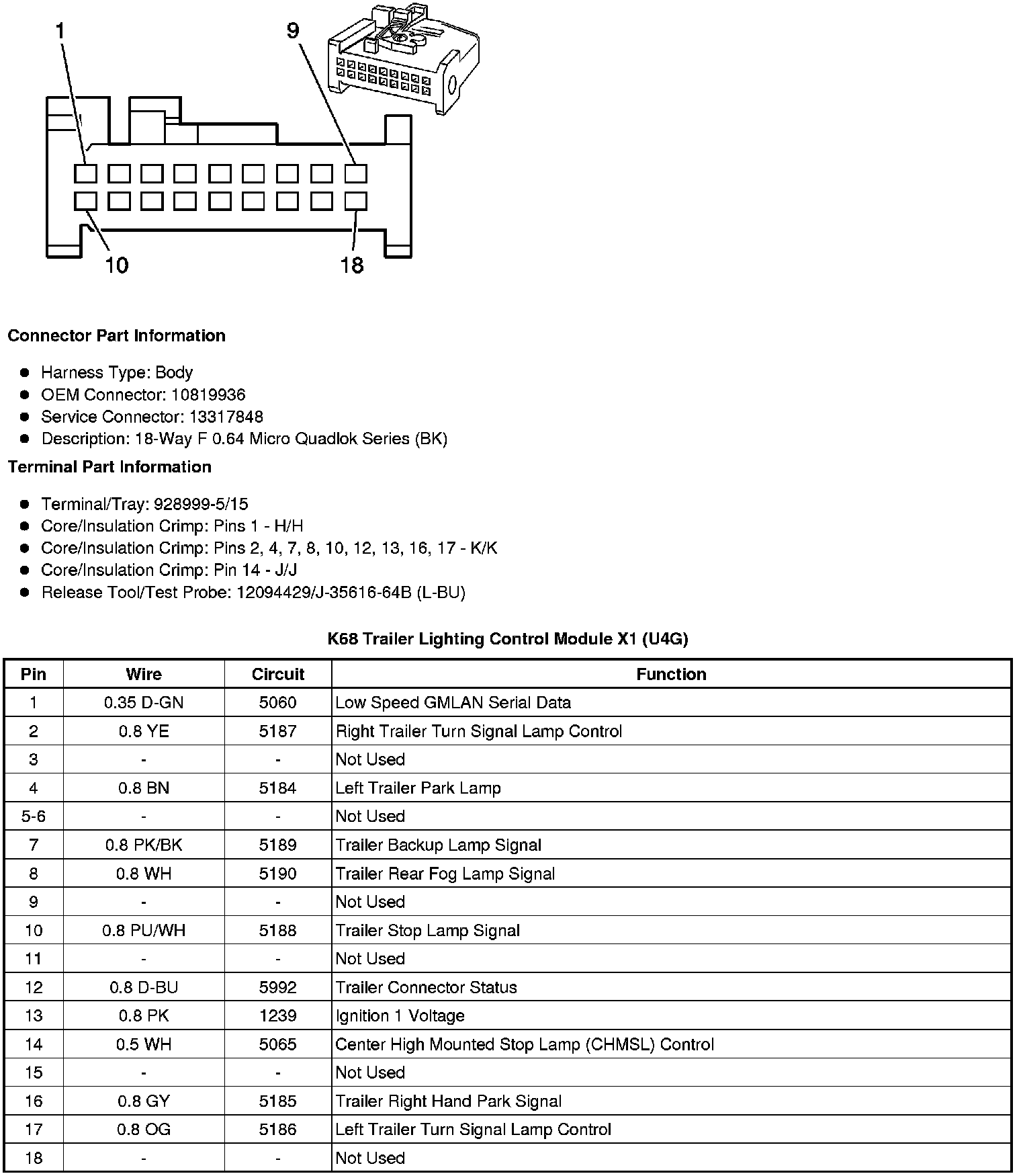

K68 Trailer Lighting Control Module X1 (U4G)

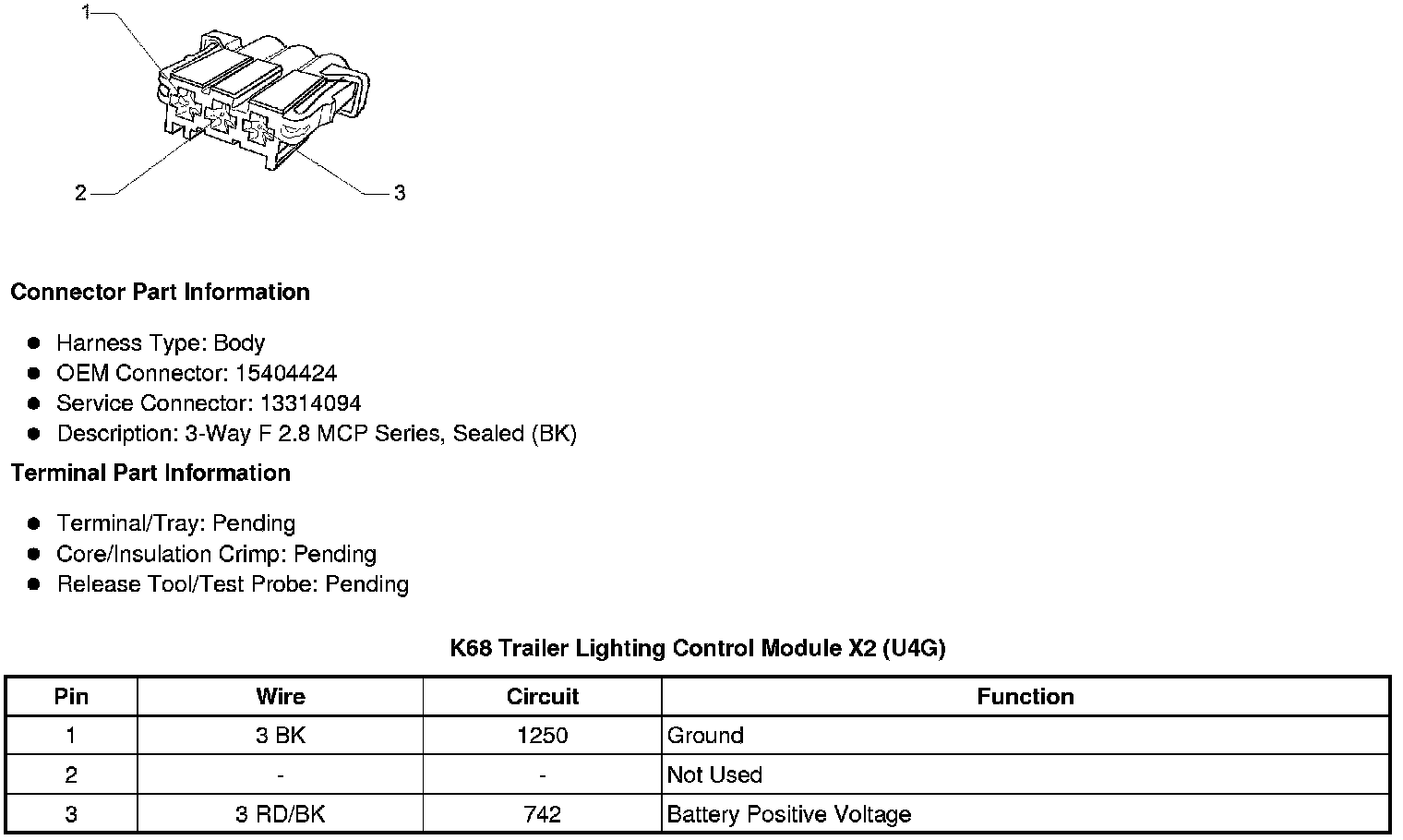

K68 Trailer Lighting Control Module X2 (U4G)

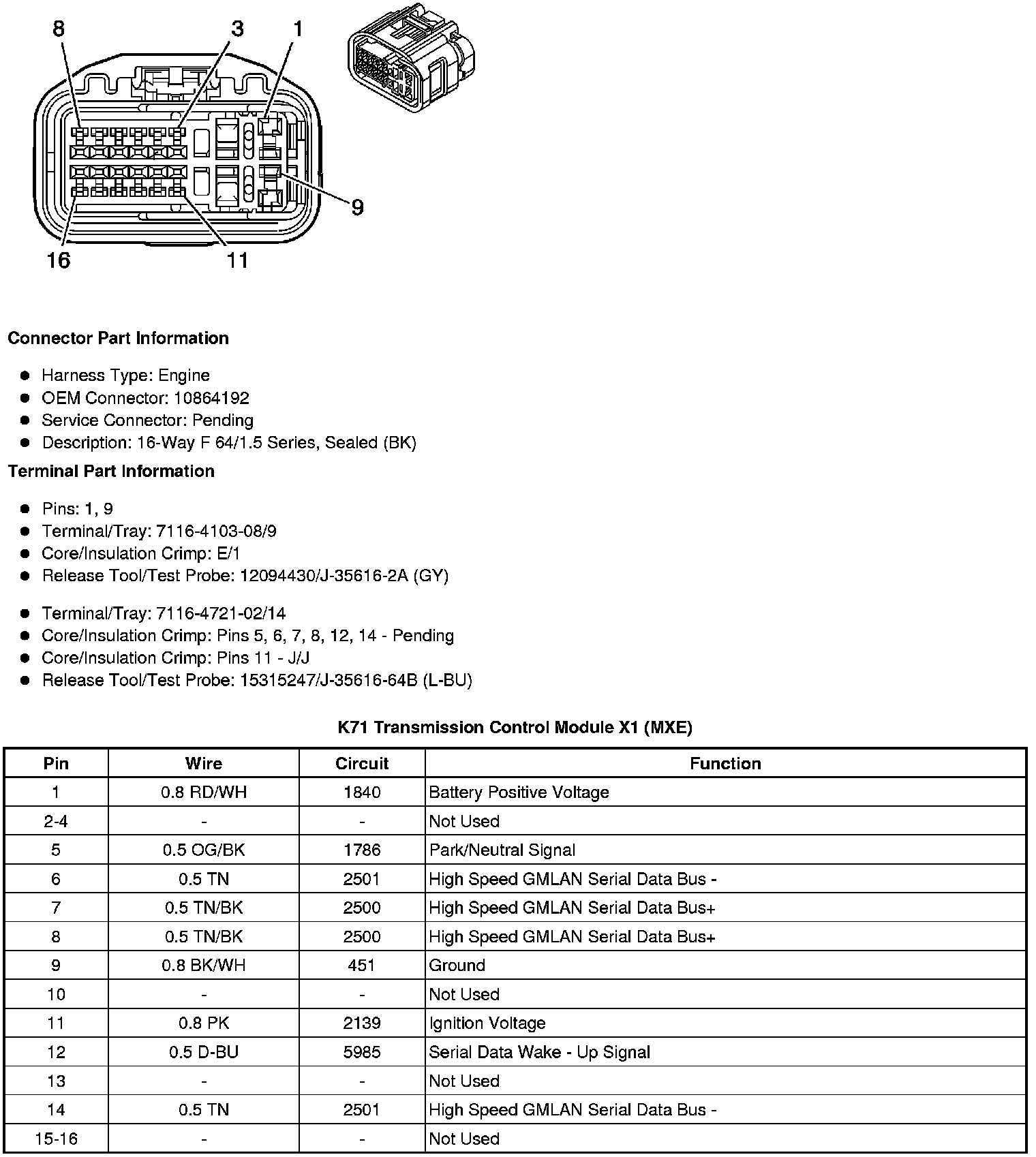

K71 Transmission Control Module X1 (MXE)





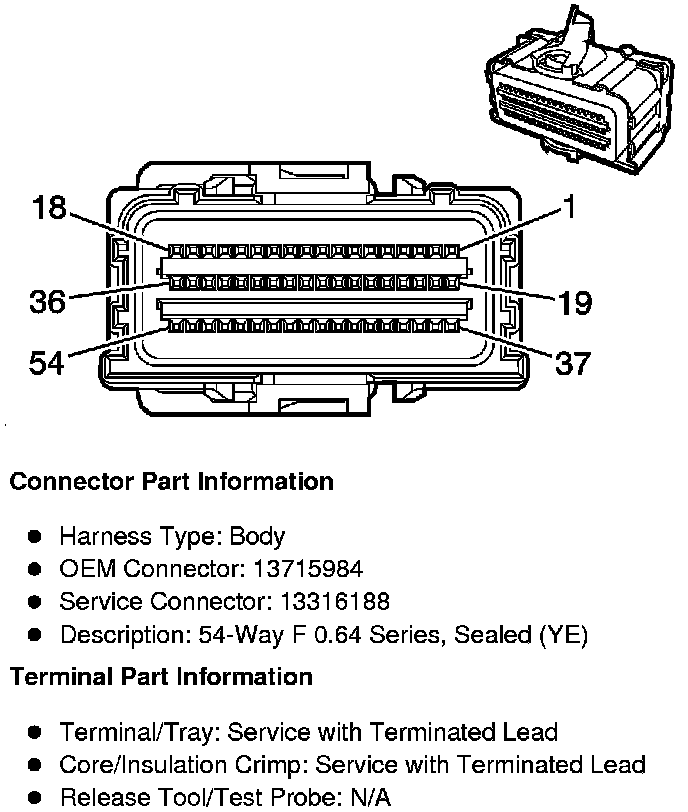

K73 Telematics Communication Interface Control Module X1 (UE1)

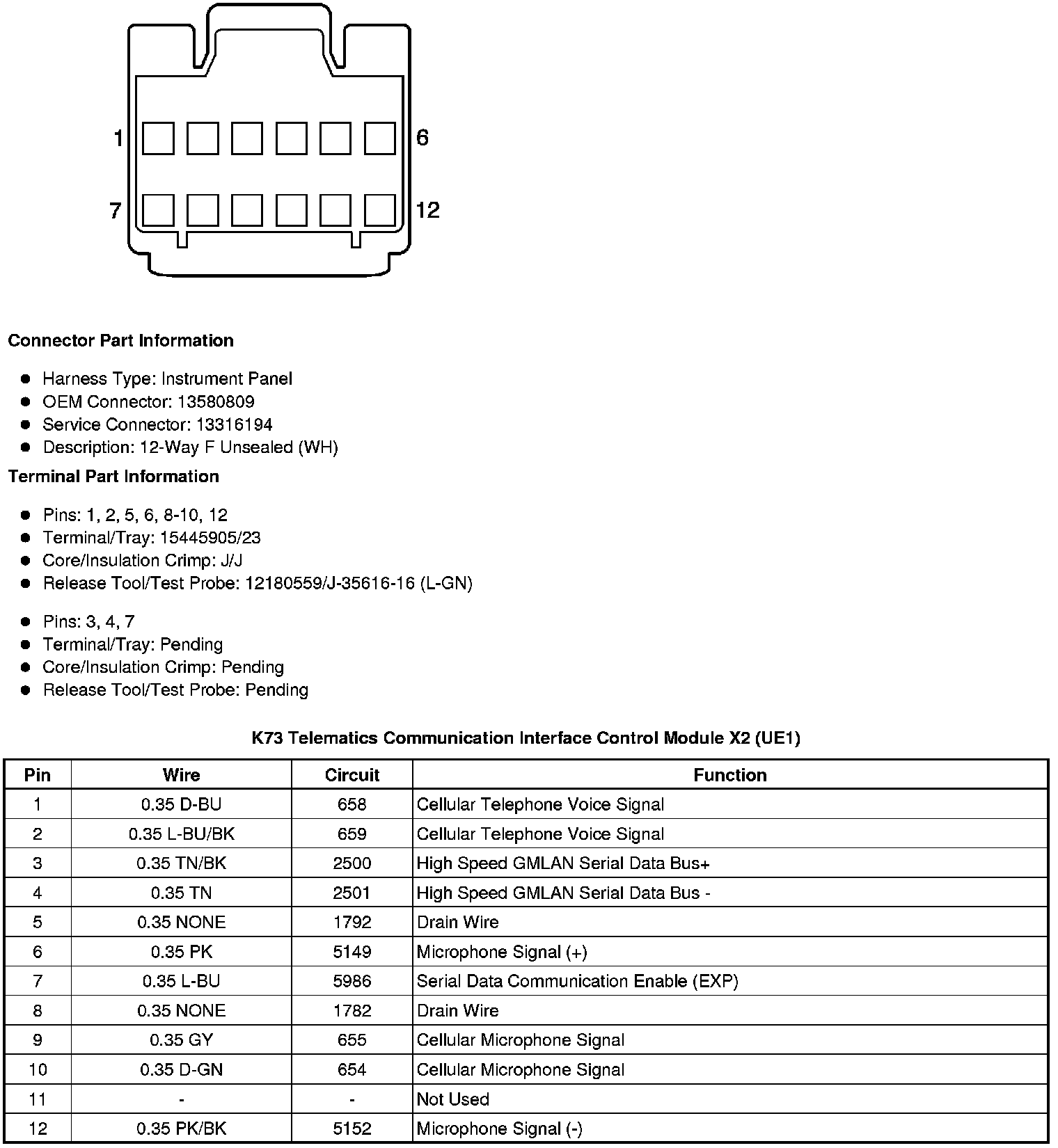

K73 Telematics Communication Interface Control Module X2 (UE1)

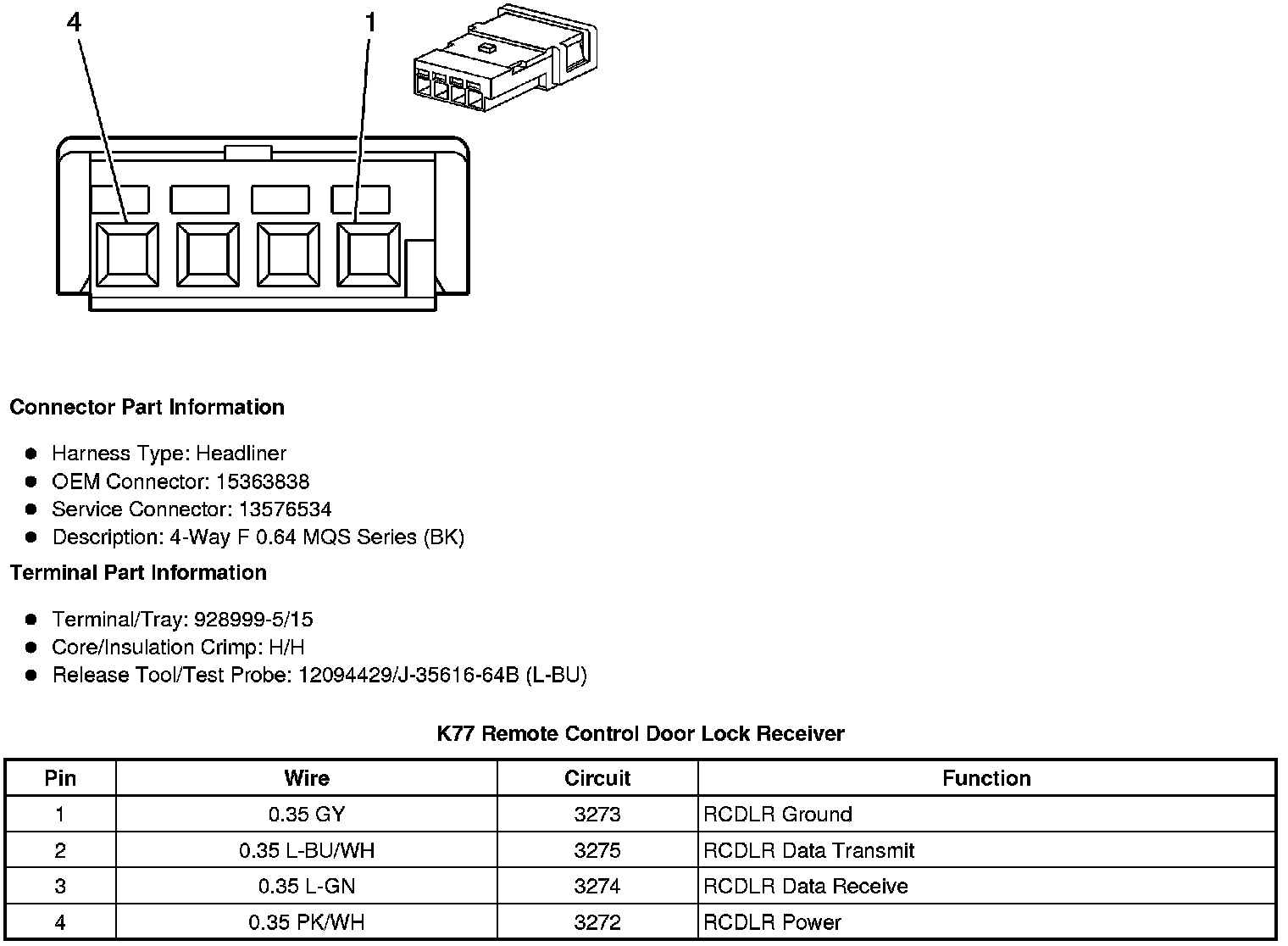

K77 Remote Control Door Lock Receiver





K82 Mobile Telephone Control Module (UHP)

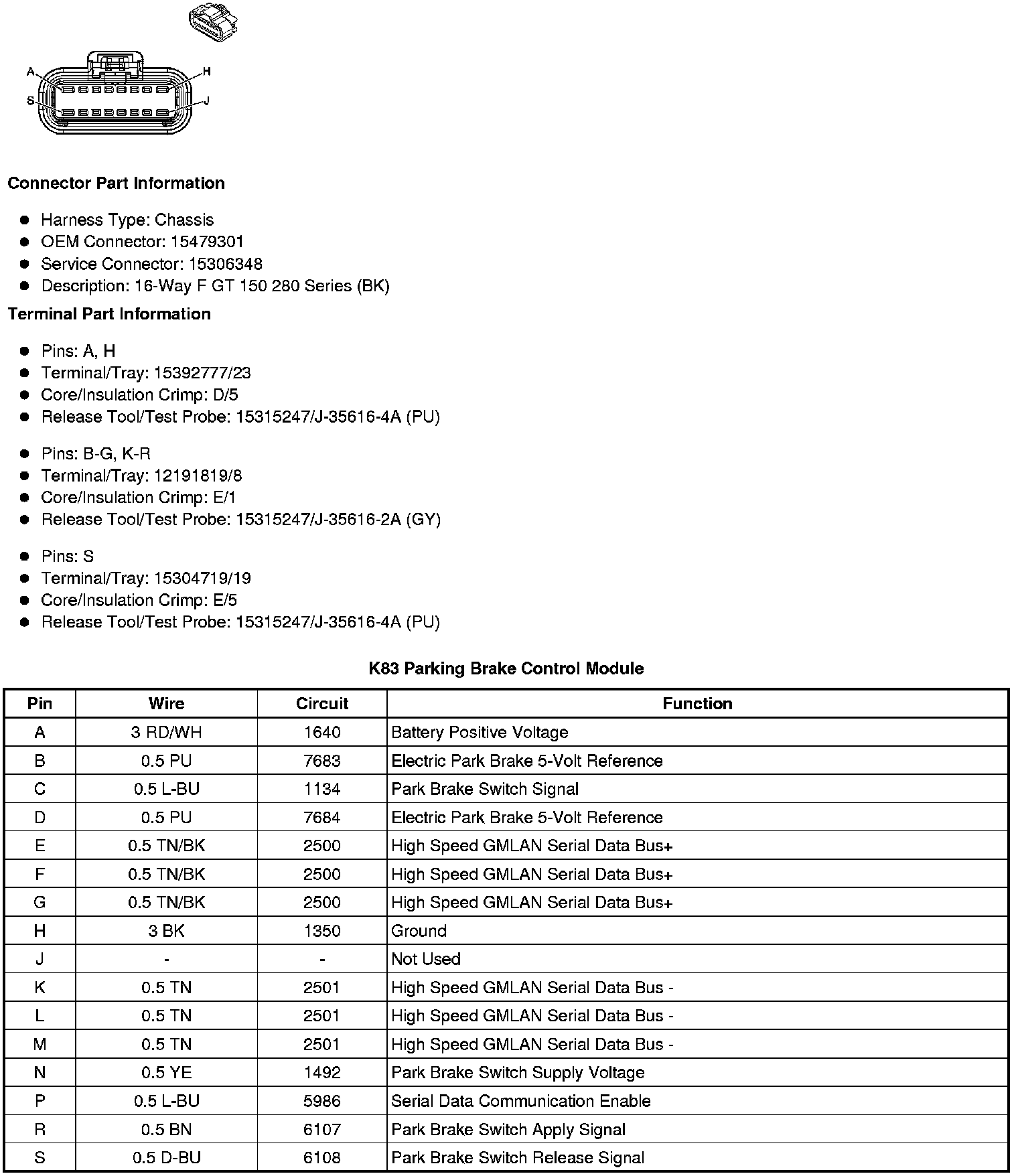

K83 Parking Brake Control Module

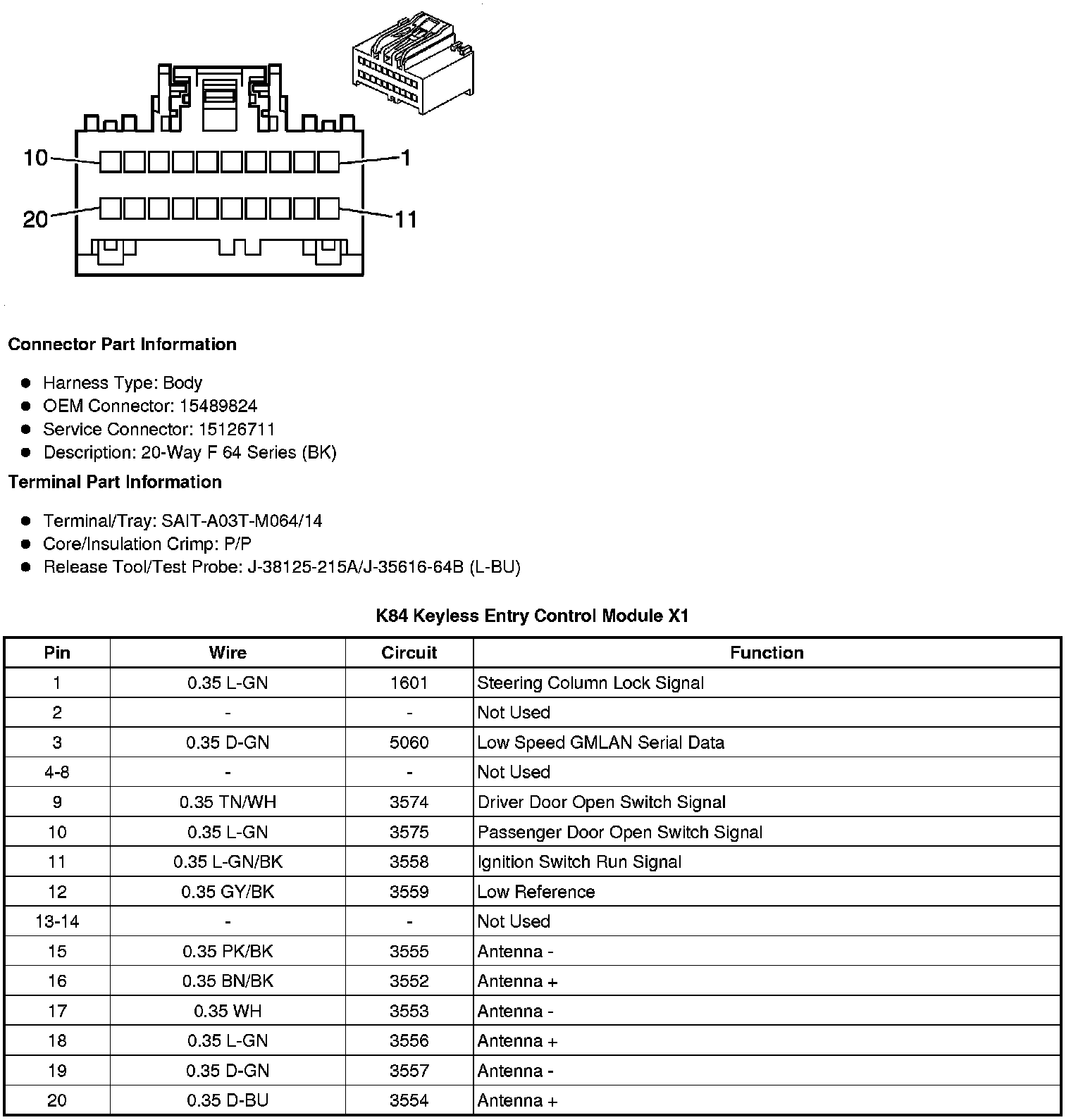

K84 Keyless Entry Control Module X1

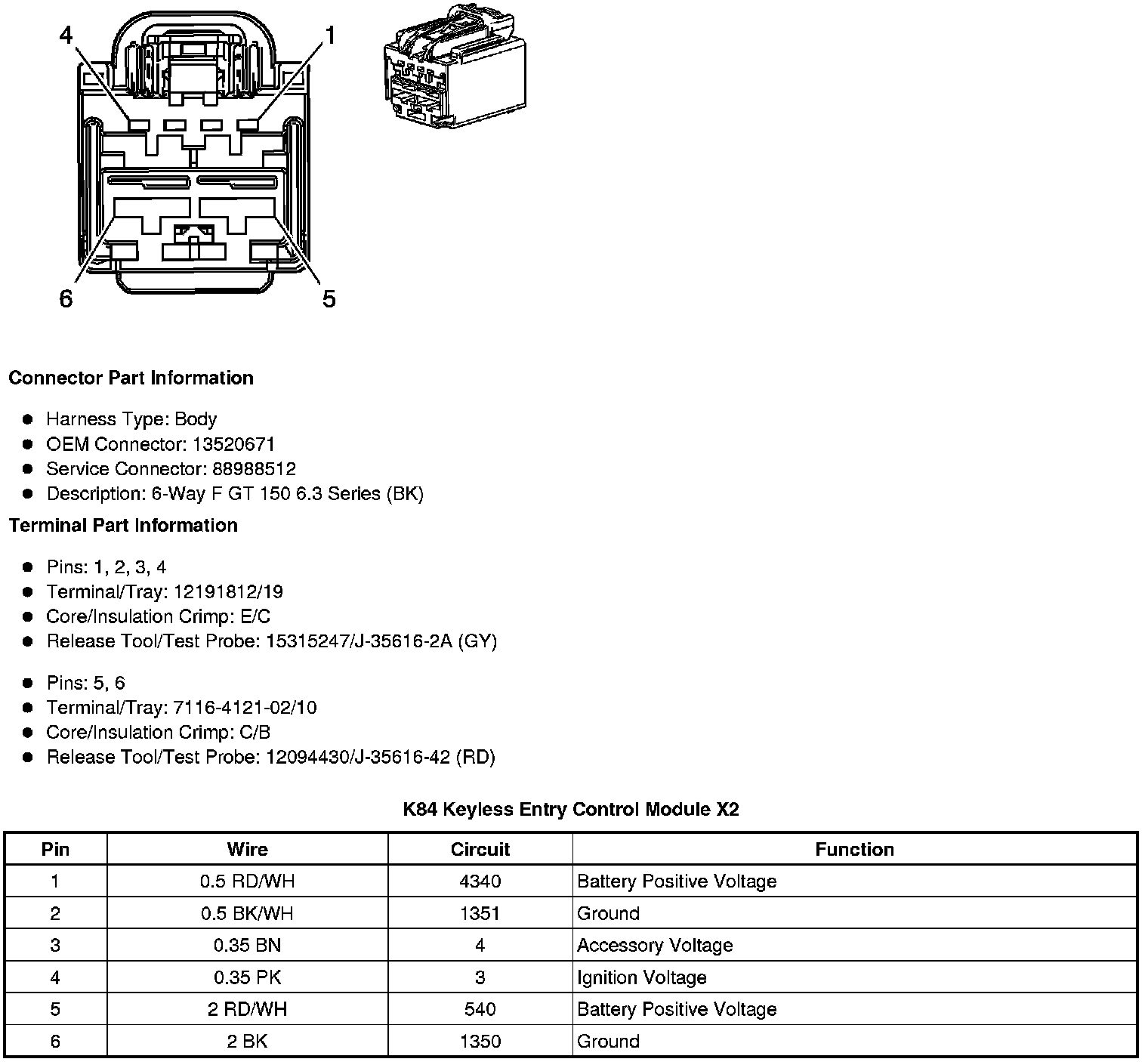

K84 Keyless Entry Control Module X2

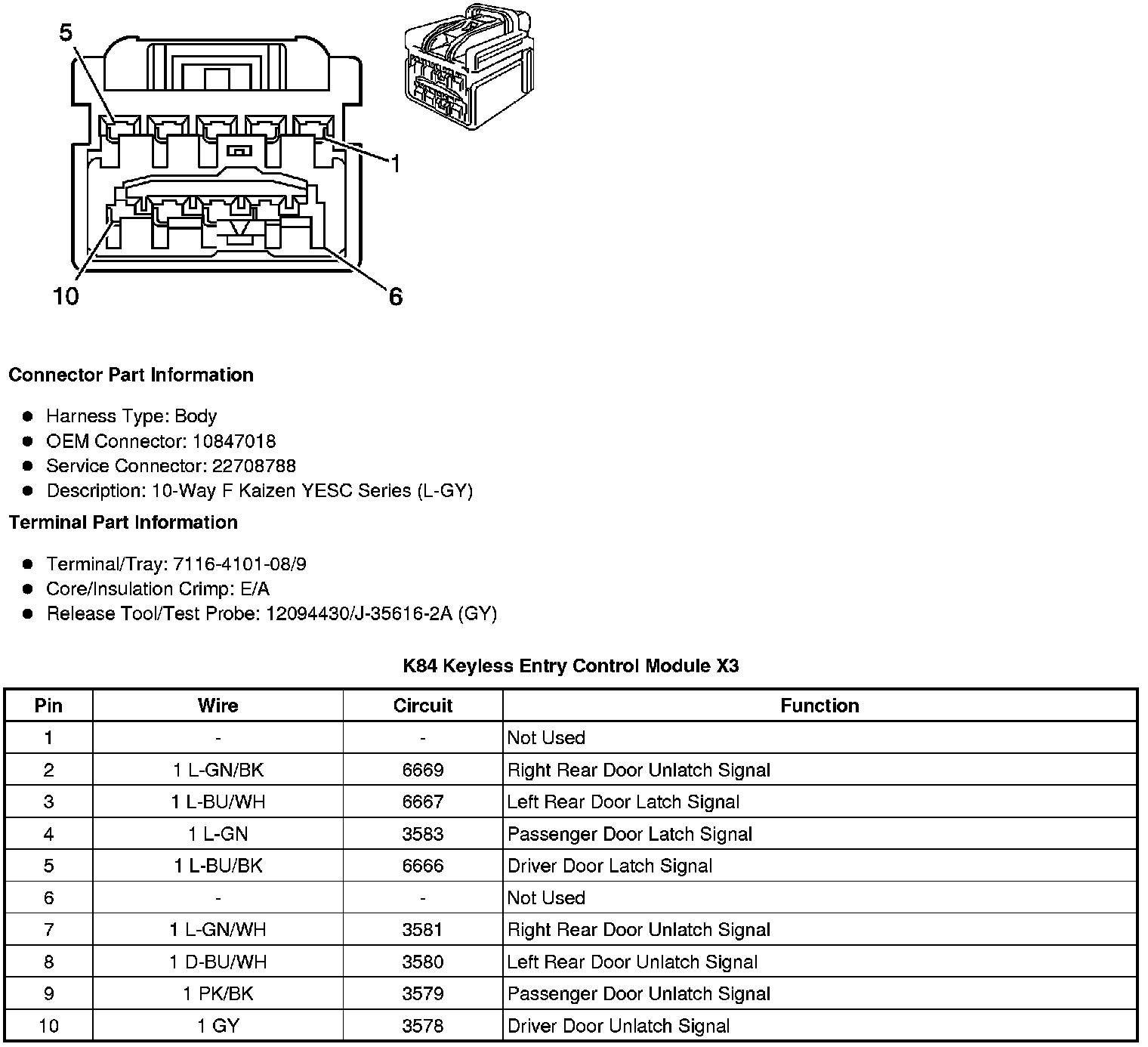

K84 Keyless Entry Control Module X3

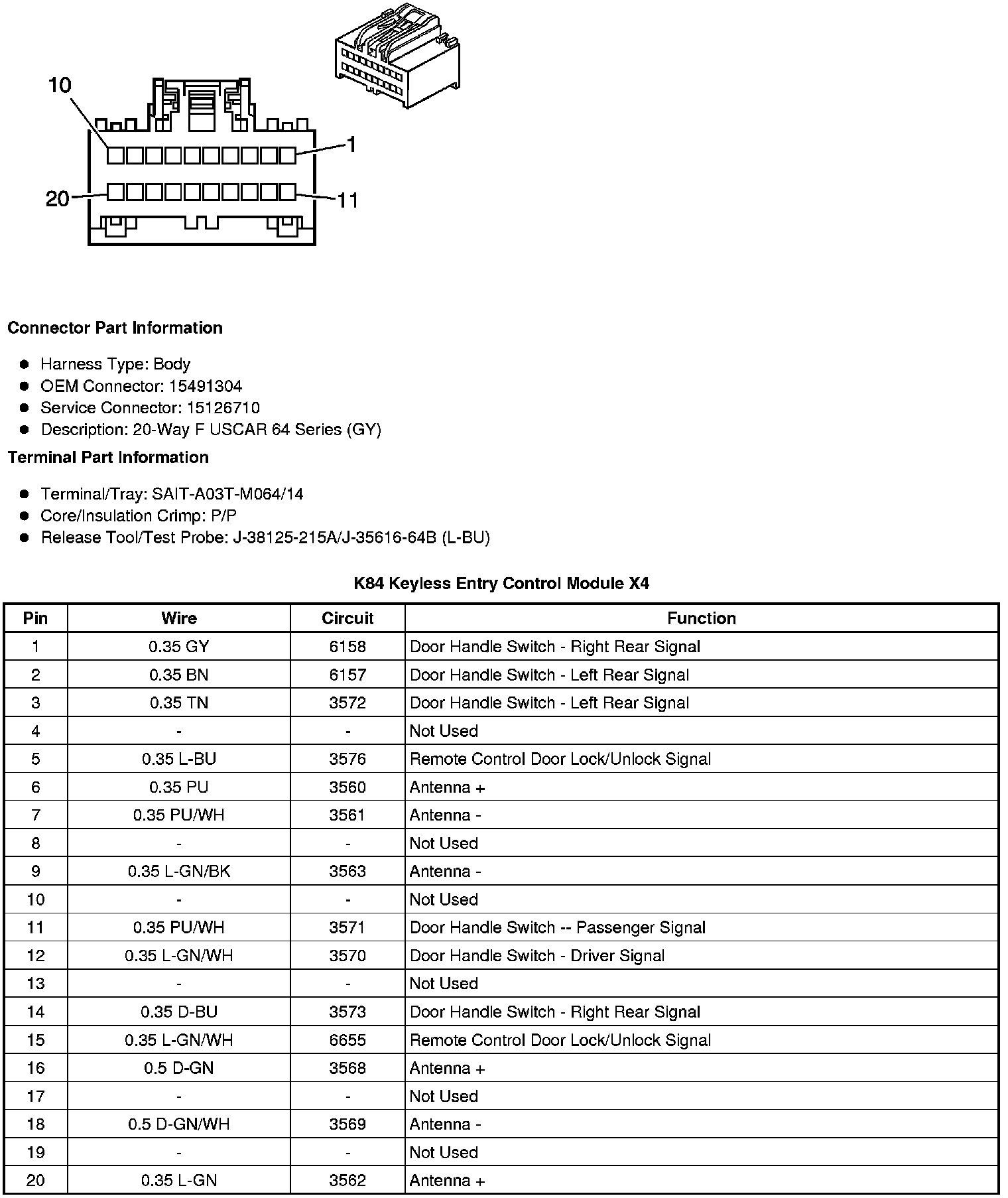

K84 Keyless Entry Control Module X4

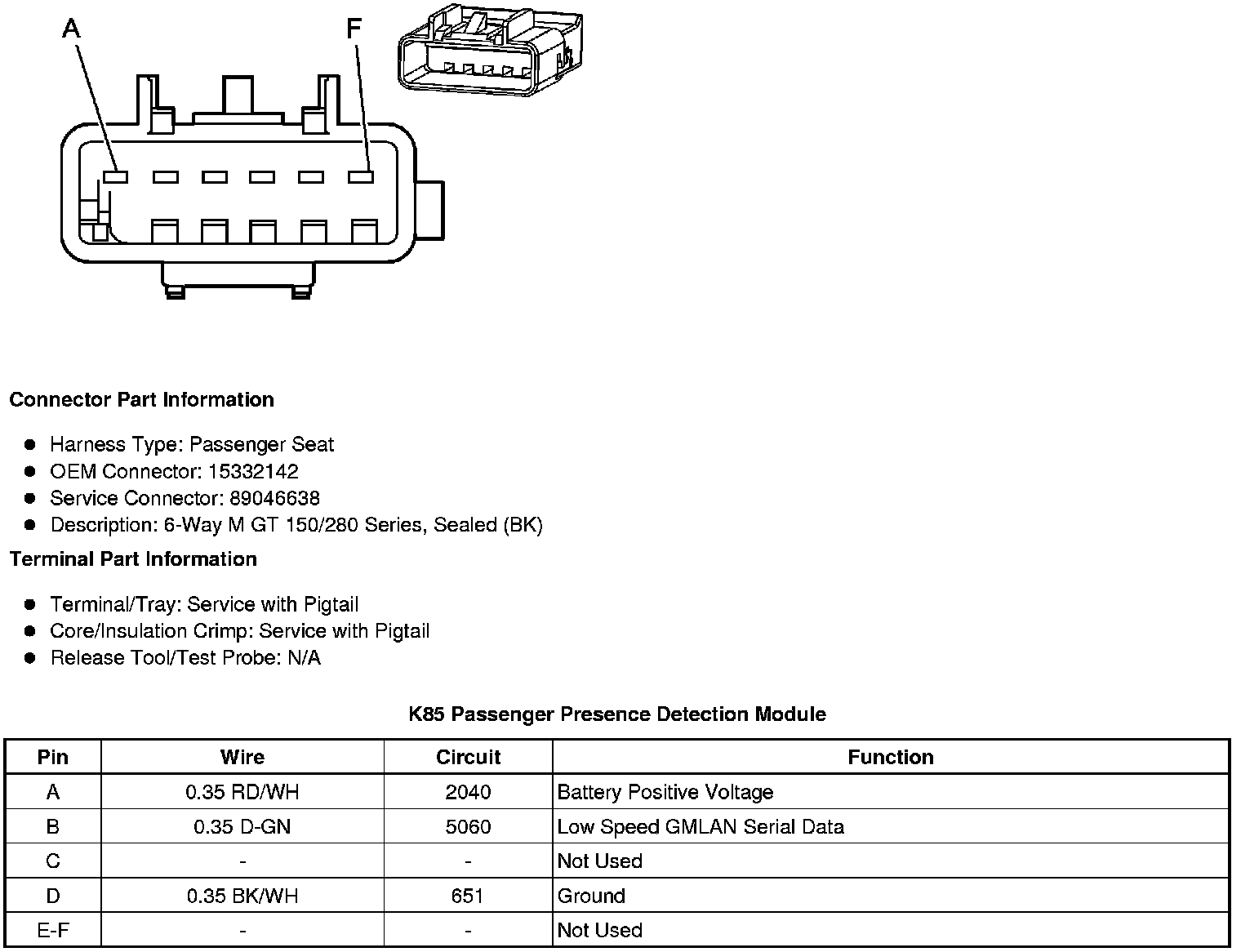

K85 Passenger Presence Detection Module





K89 Immobilizer Control Module





K96L Mirror Control Module - Left (AAB)

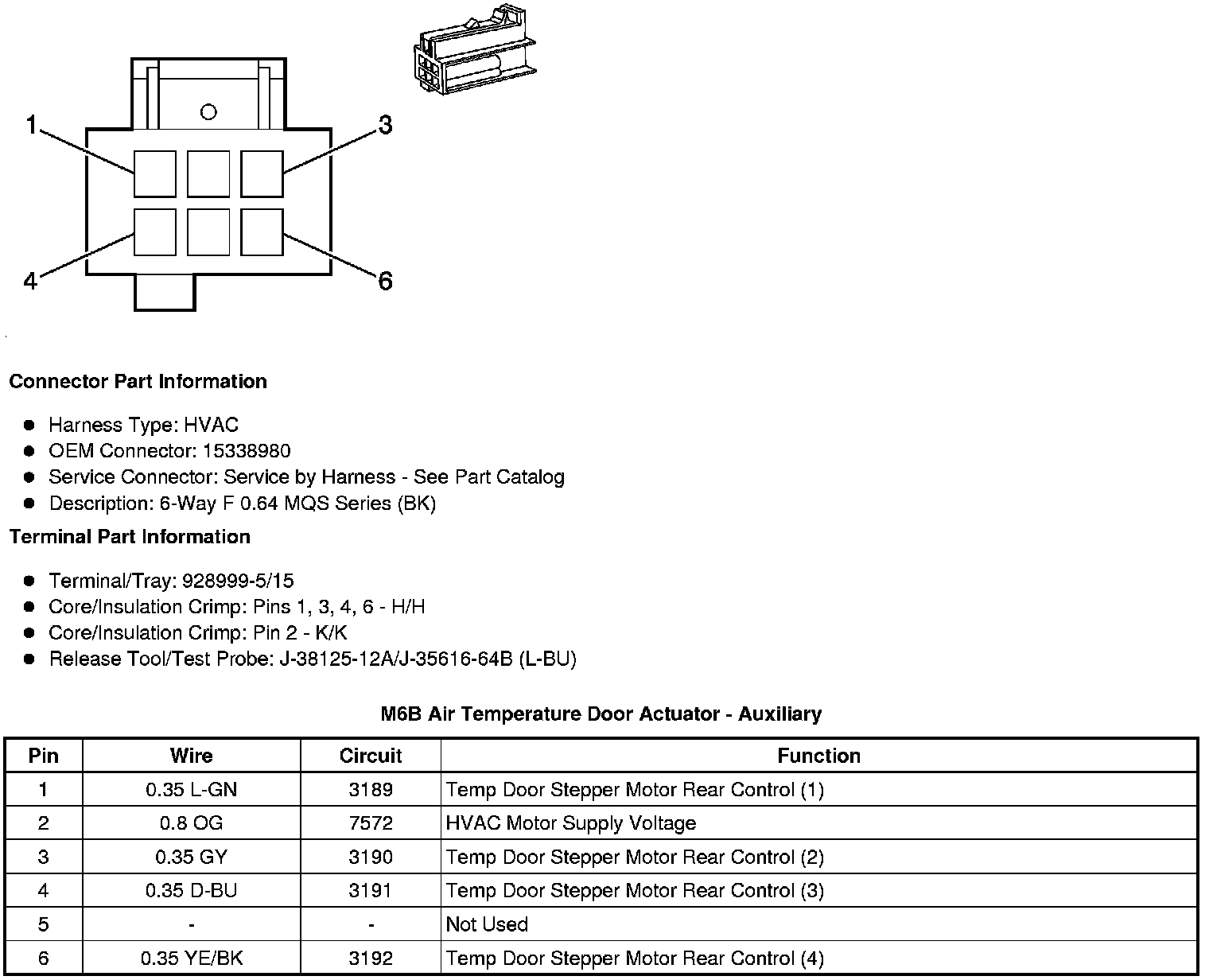

M6B Air Temperature Door Actuator - Auxiliary

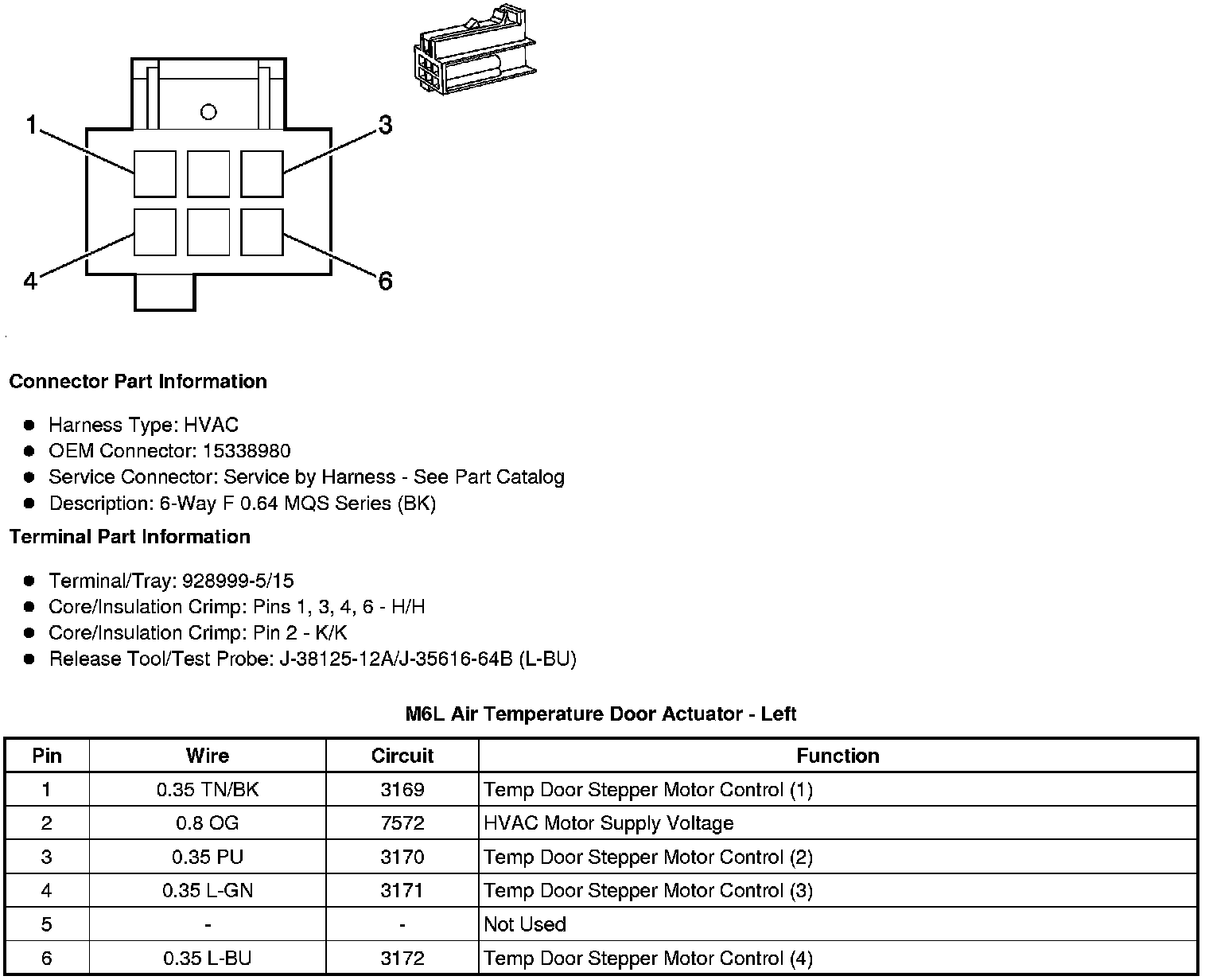

M6L Air Temperature Door Actuator - Left





M6R Air Temperature Door Actuator -Right





M8 Blower Motor

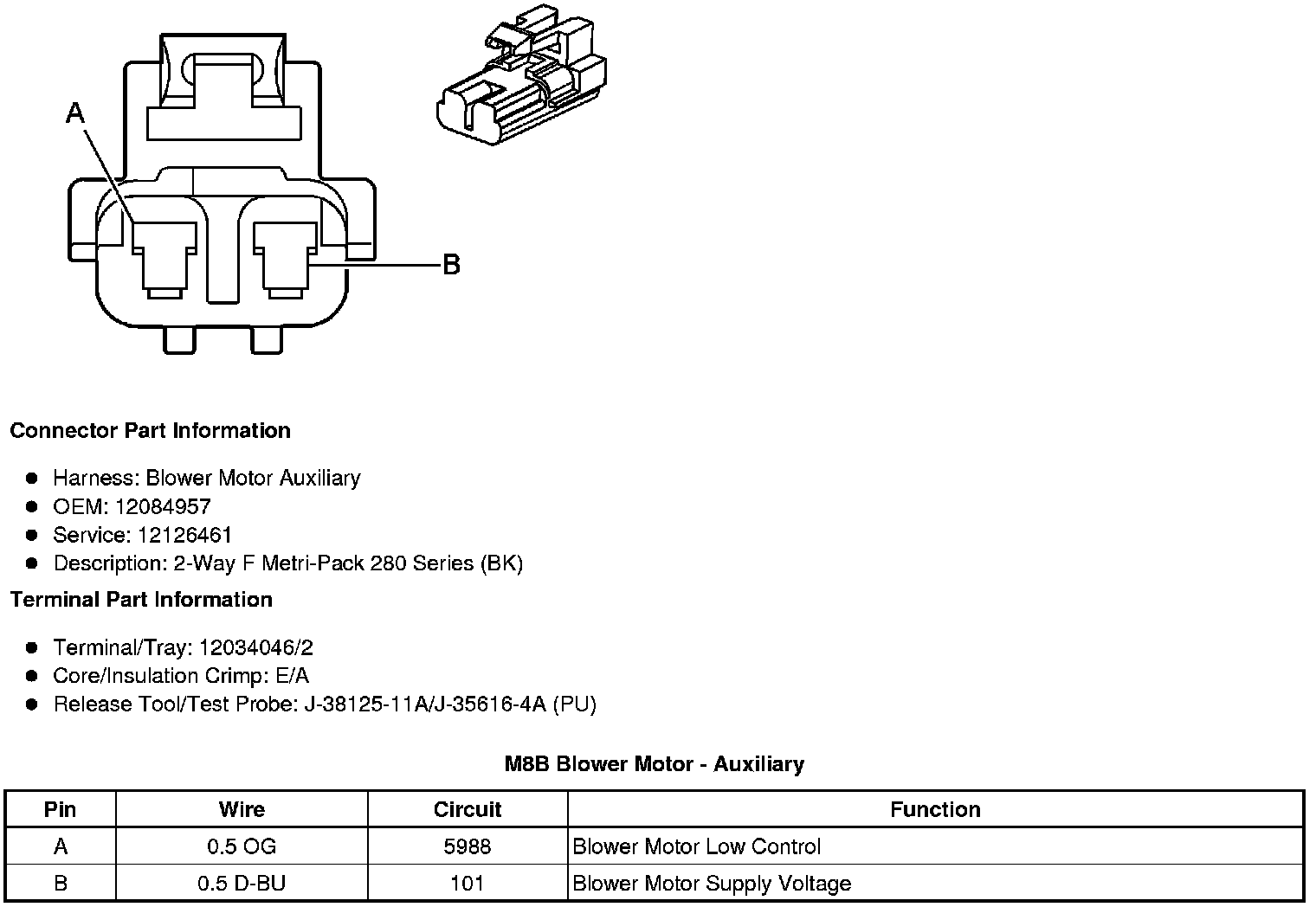

M8B Blower Motor - Auxiliary

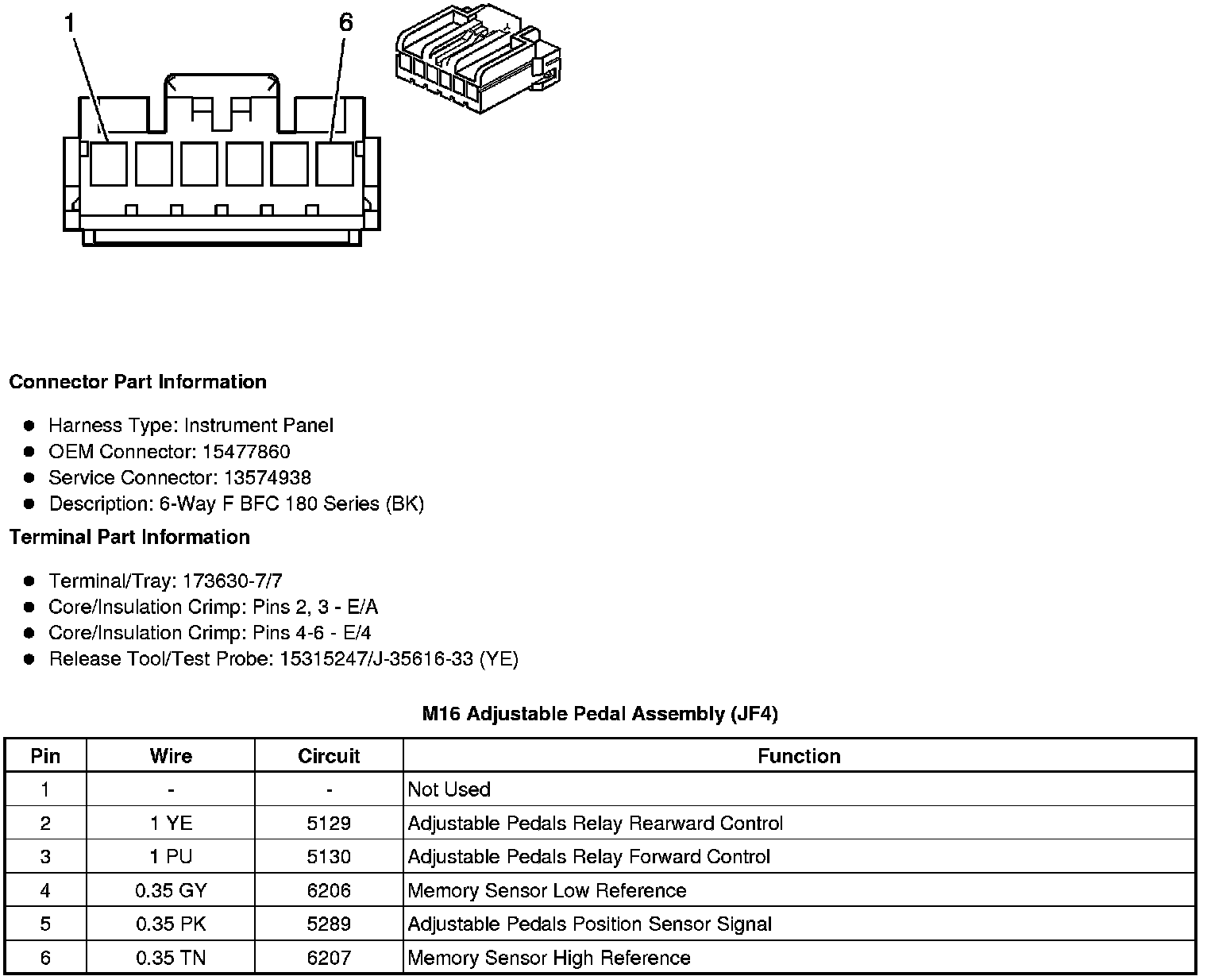

M16 Adjustable Pedal Assembly (JF4)

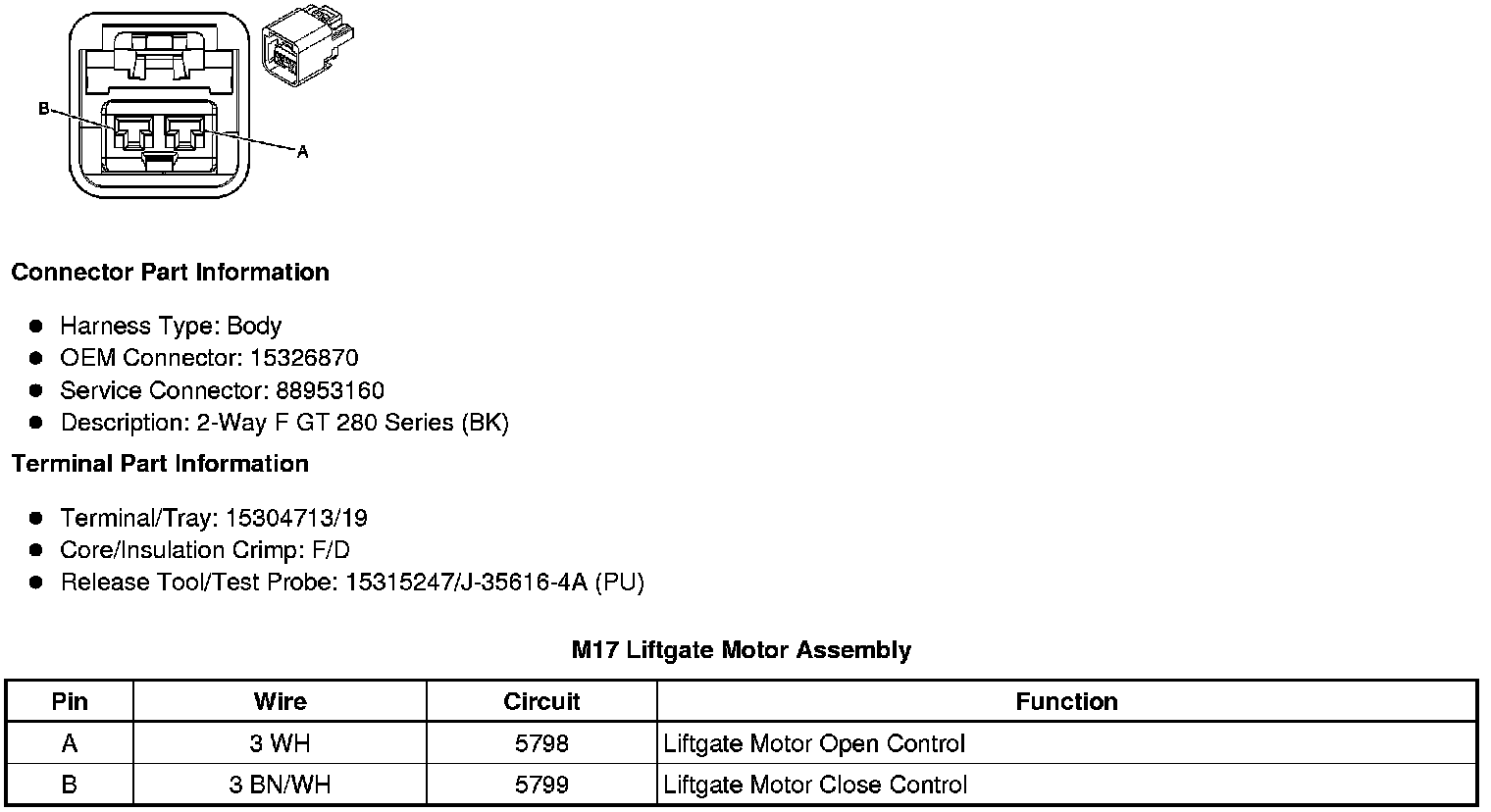

M17 Liftgate Motor Assembly

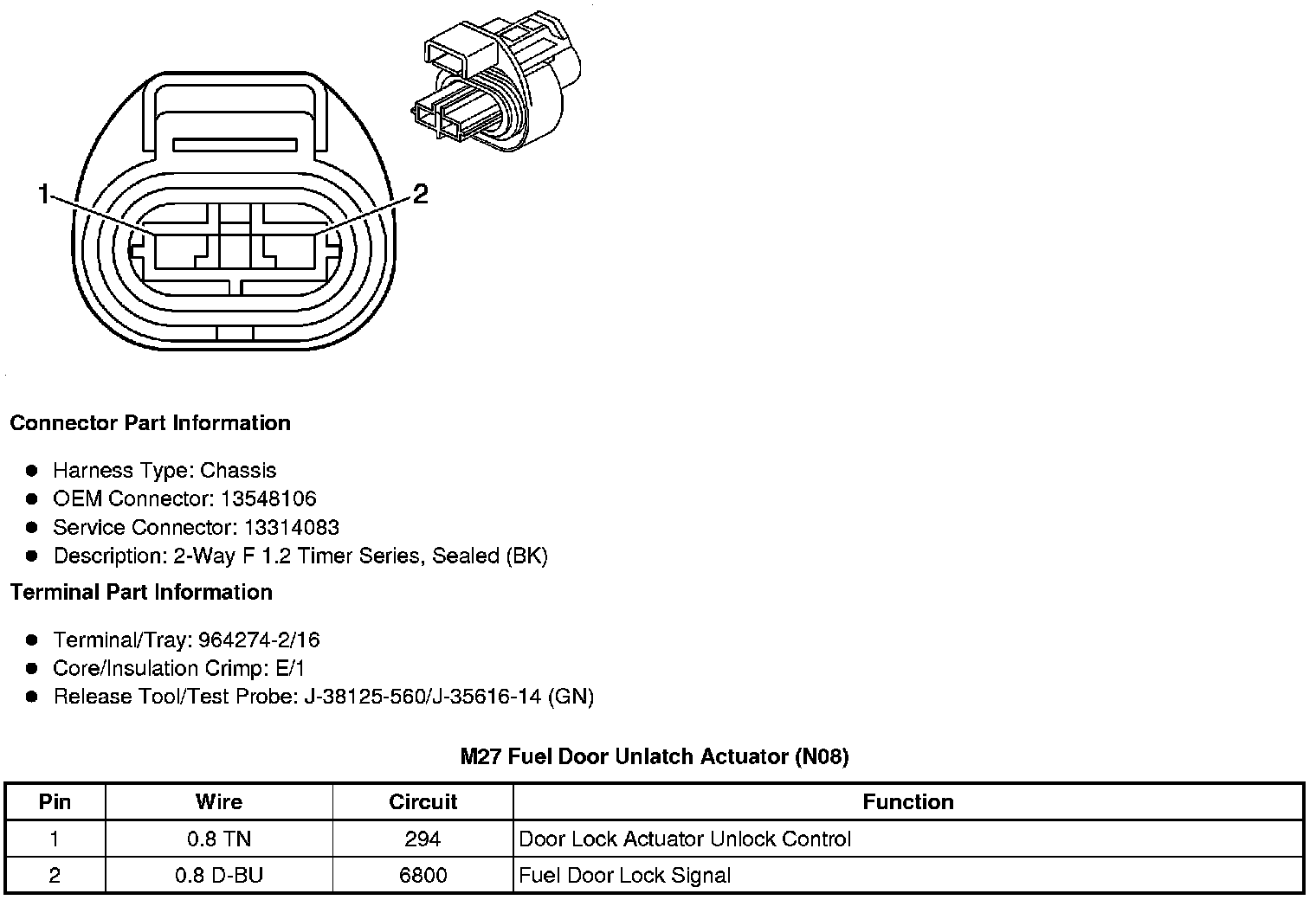

M27 Fuel Door Unlatch Actuator (N08)

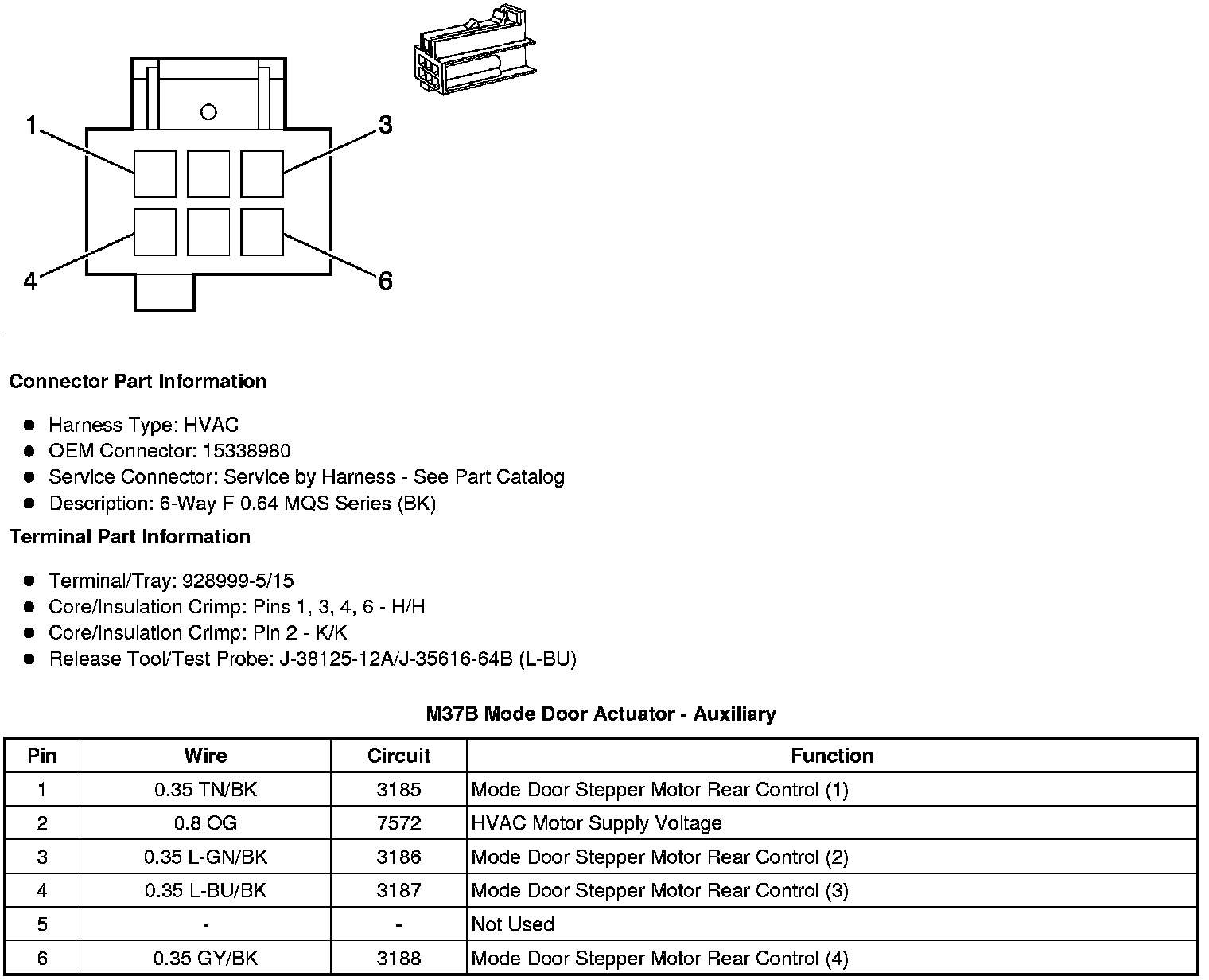

M37B Mode Door Actuator - Auxiliary

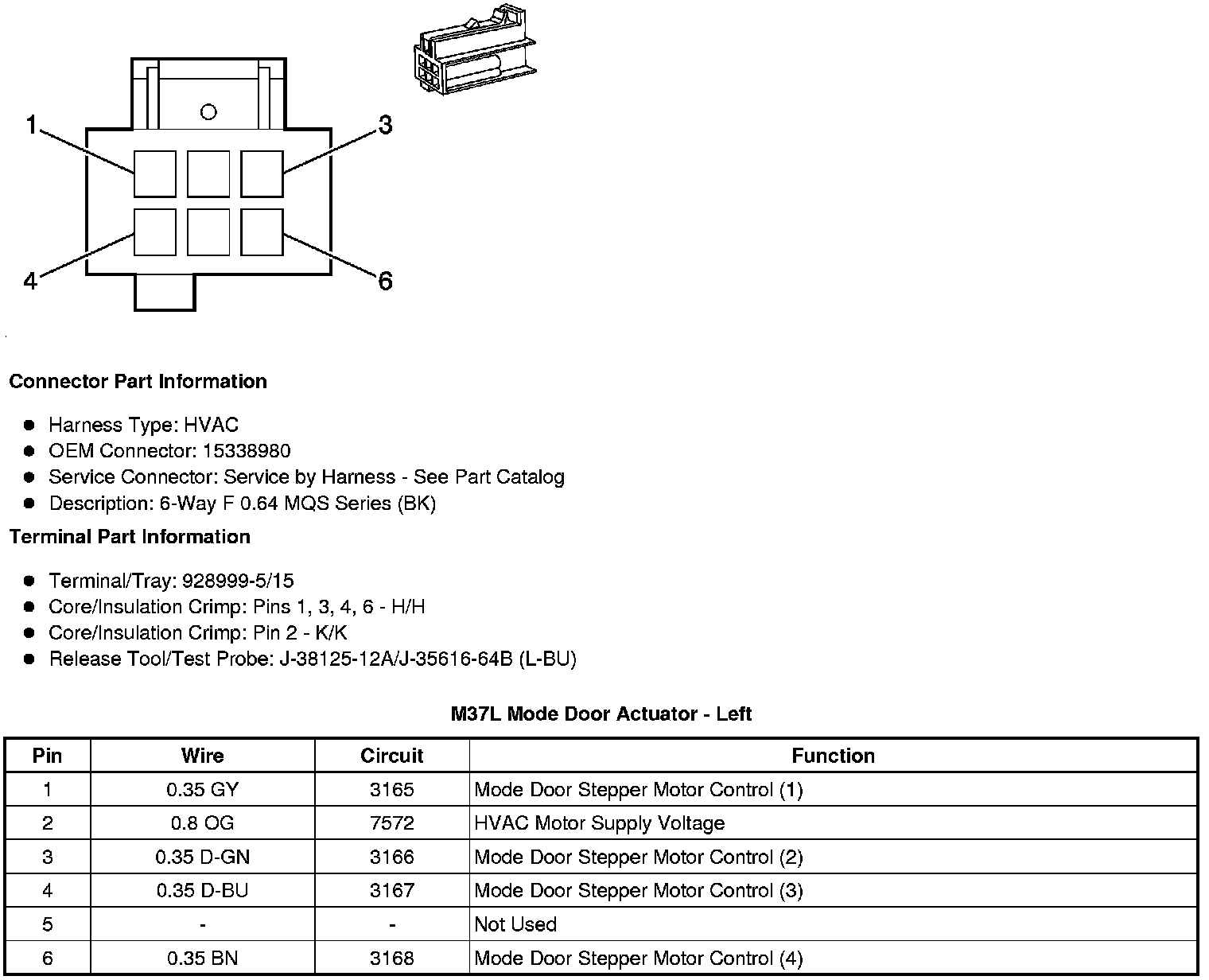

M37L Mode Door Actuator - Left

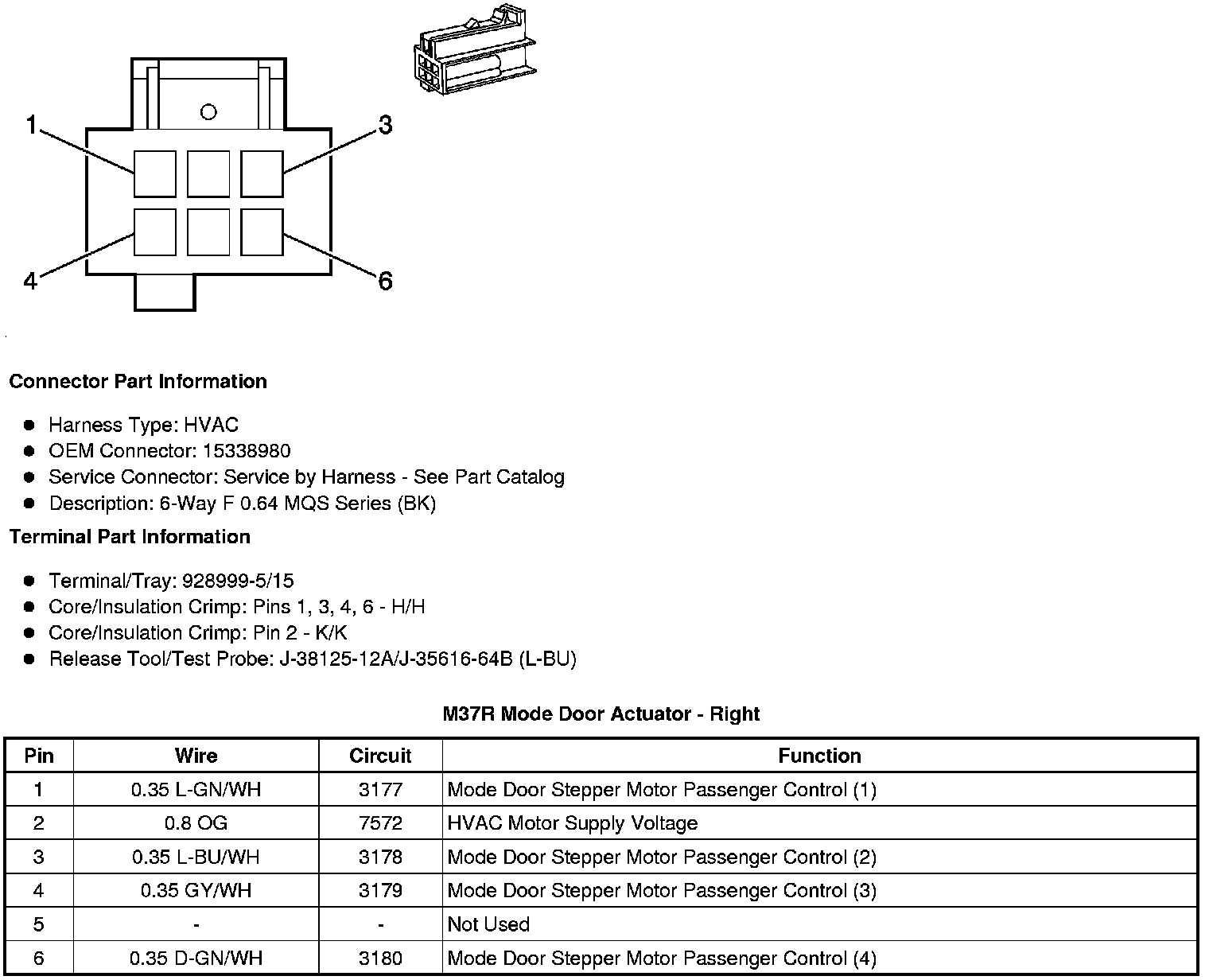

M37R Mode Door Actuator - Right

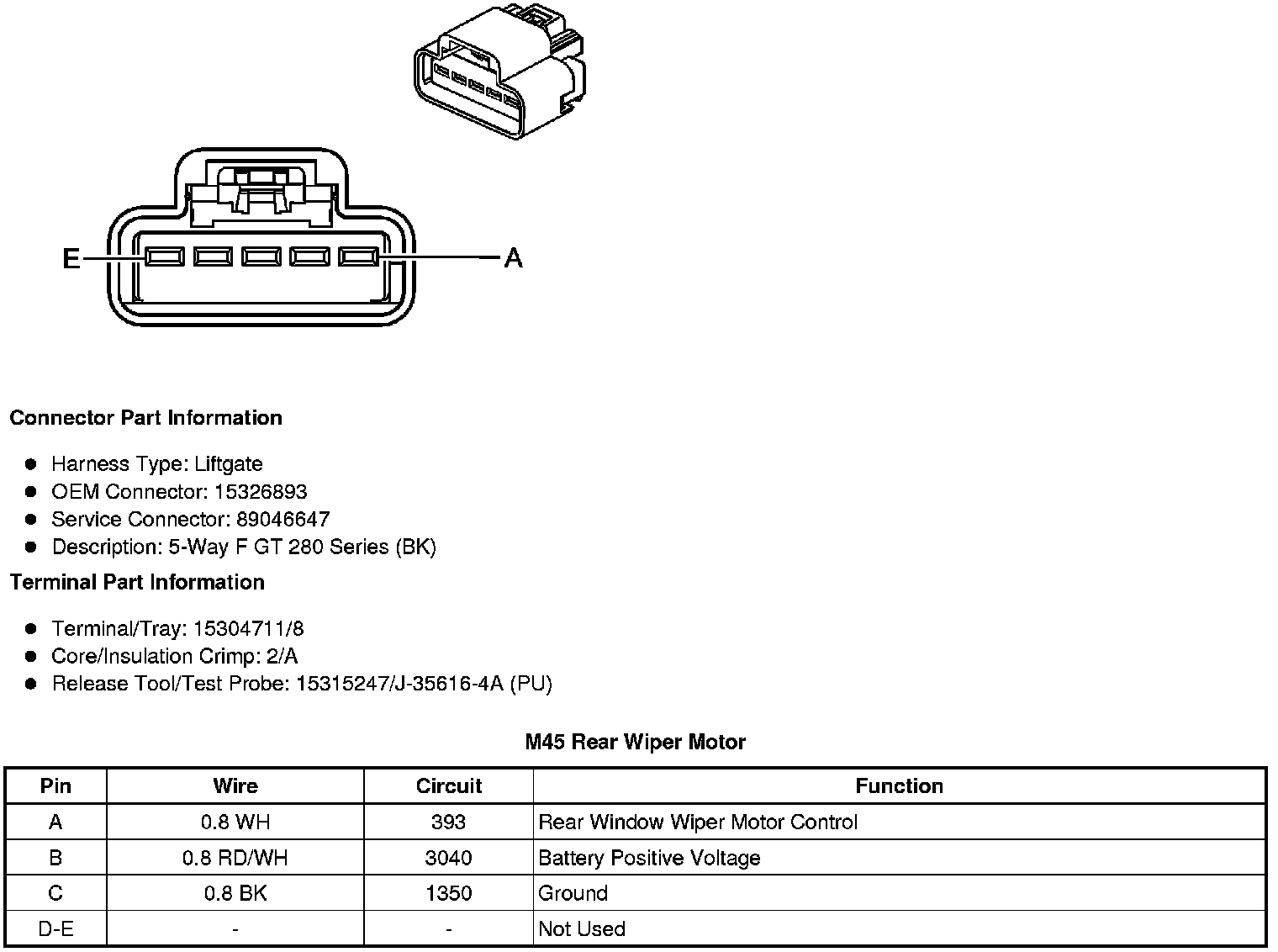

M45 Rear Wiper Motor





M46 Air Recirculation Door Motor

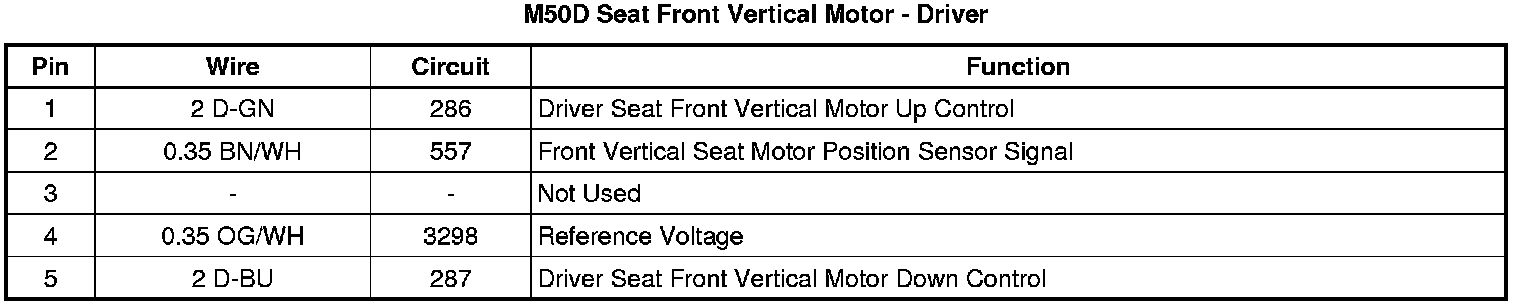

M50D Seat Front Vertical Motor - Driver

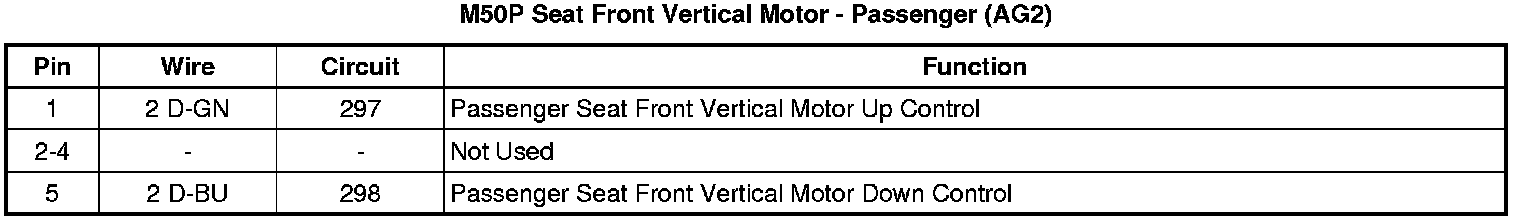

M50P Seat Front Vertical Motor - Passenger (AG2)

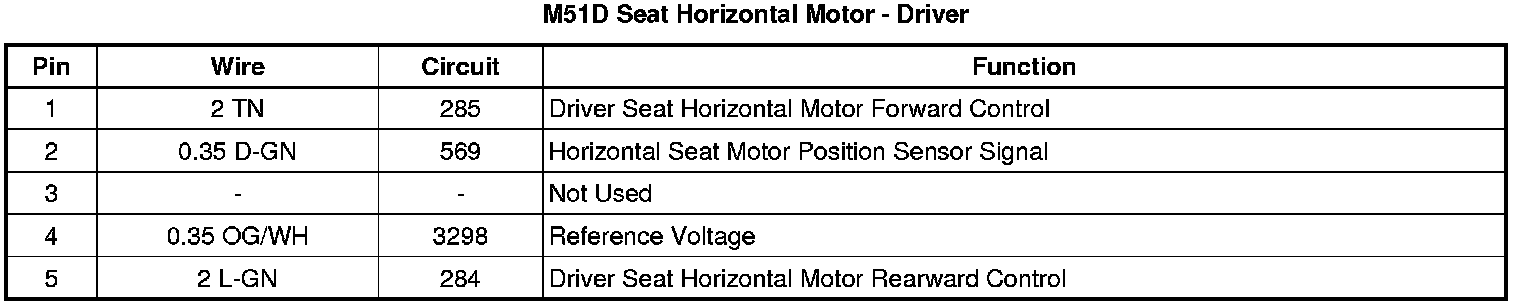

M51D Seat Horizontal Motor - Driver













M51P Seat Horizontal Motor - Passenger (AG2)

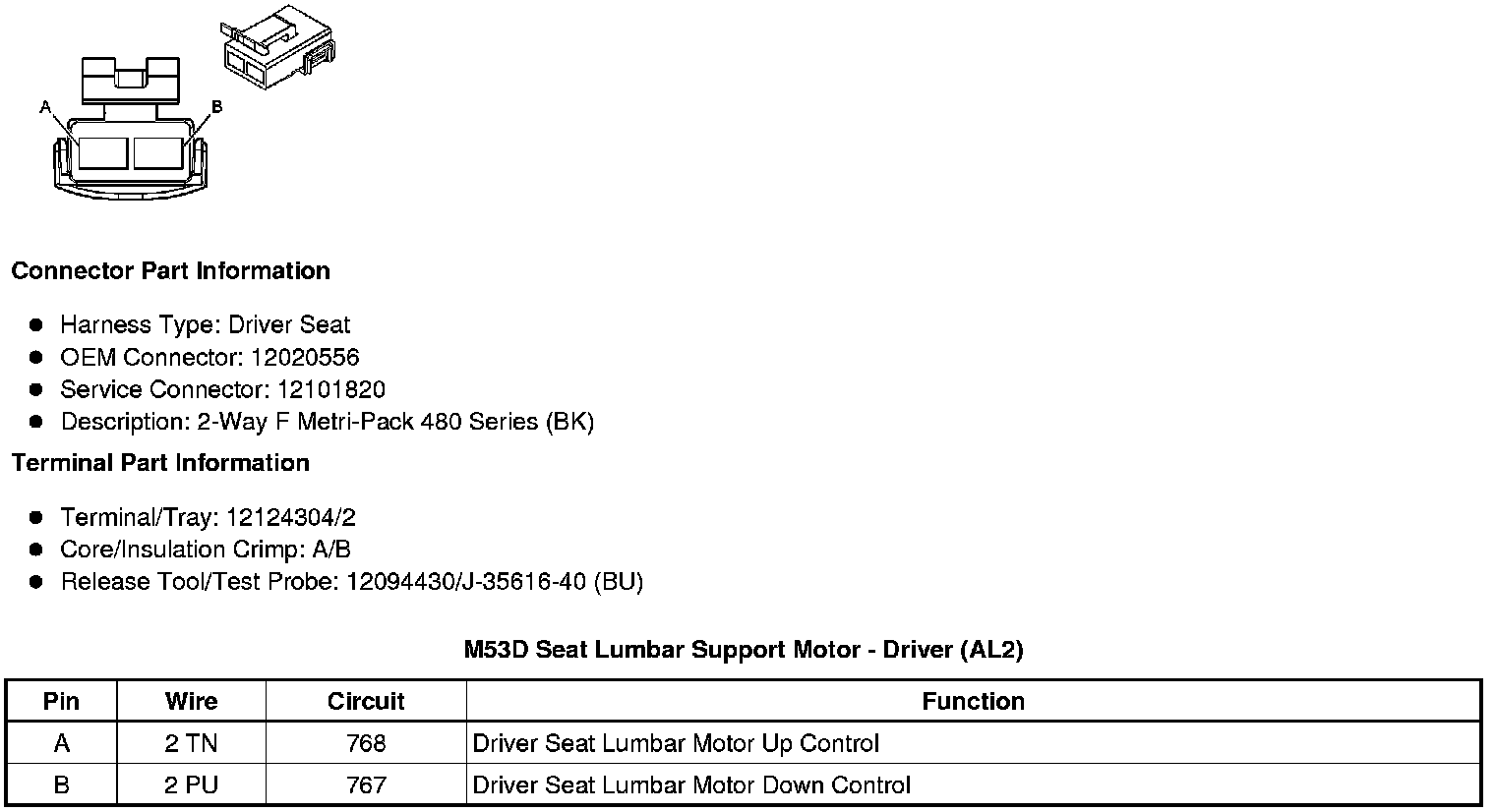

M53D Seat Lumbar Support Motor - Driver (AL2)
