Antenna - Keyless Entry: Diagrams




Component Connector End Views

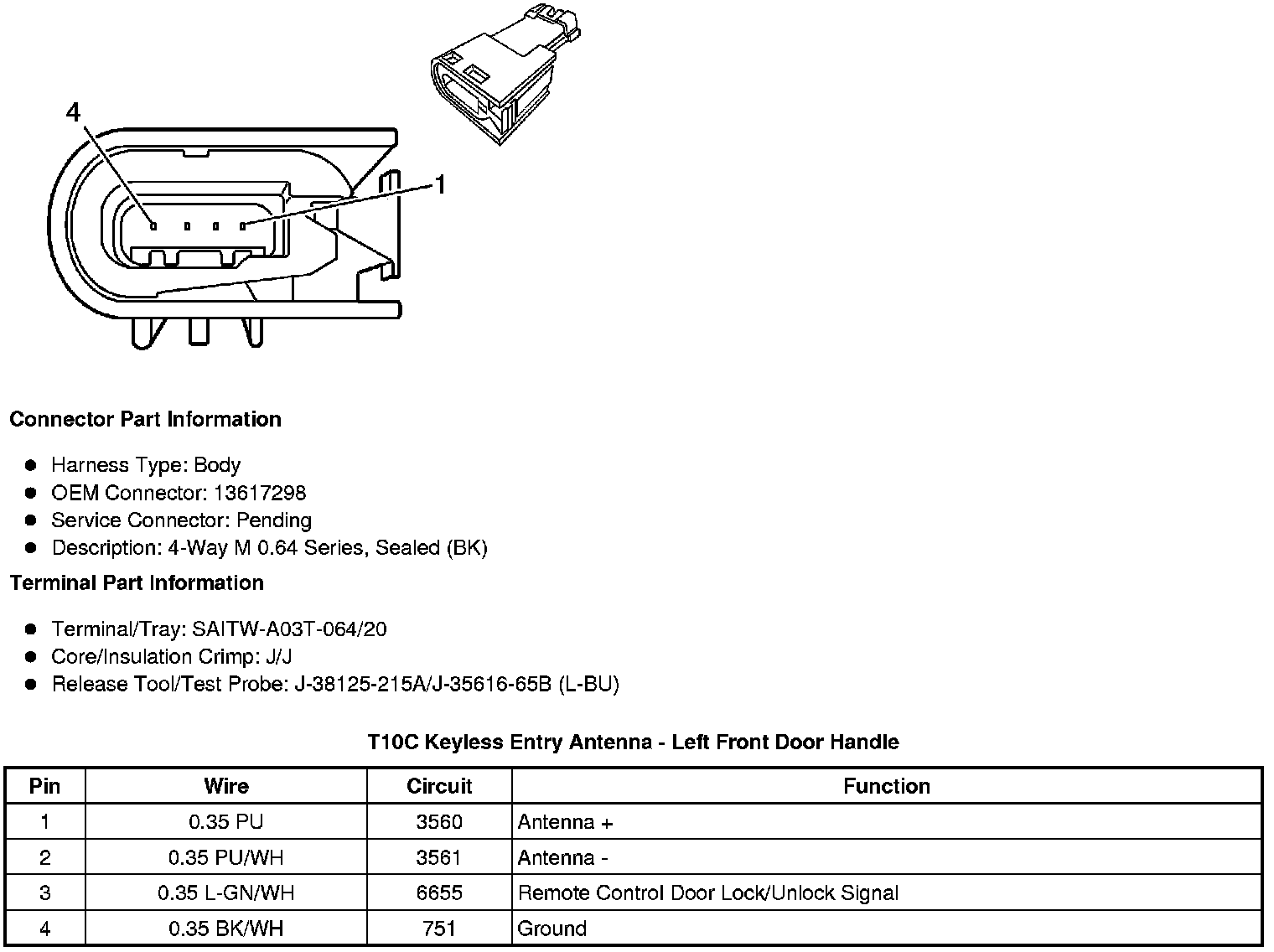

T10C Keyless Entry Antenna - Left Front Door Handle





T10D Keyless Entry Antenna - Right Front Door Handle





T10E Keyless Entry Antenna - Rear Compartment





T10G Keyless Entry Antenna - Rear Fascia





T10J Keyless Entry Antenna - Center Console Front
