Release Systems Schematics
Release Systems Schematics

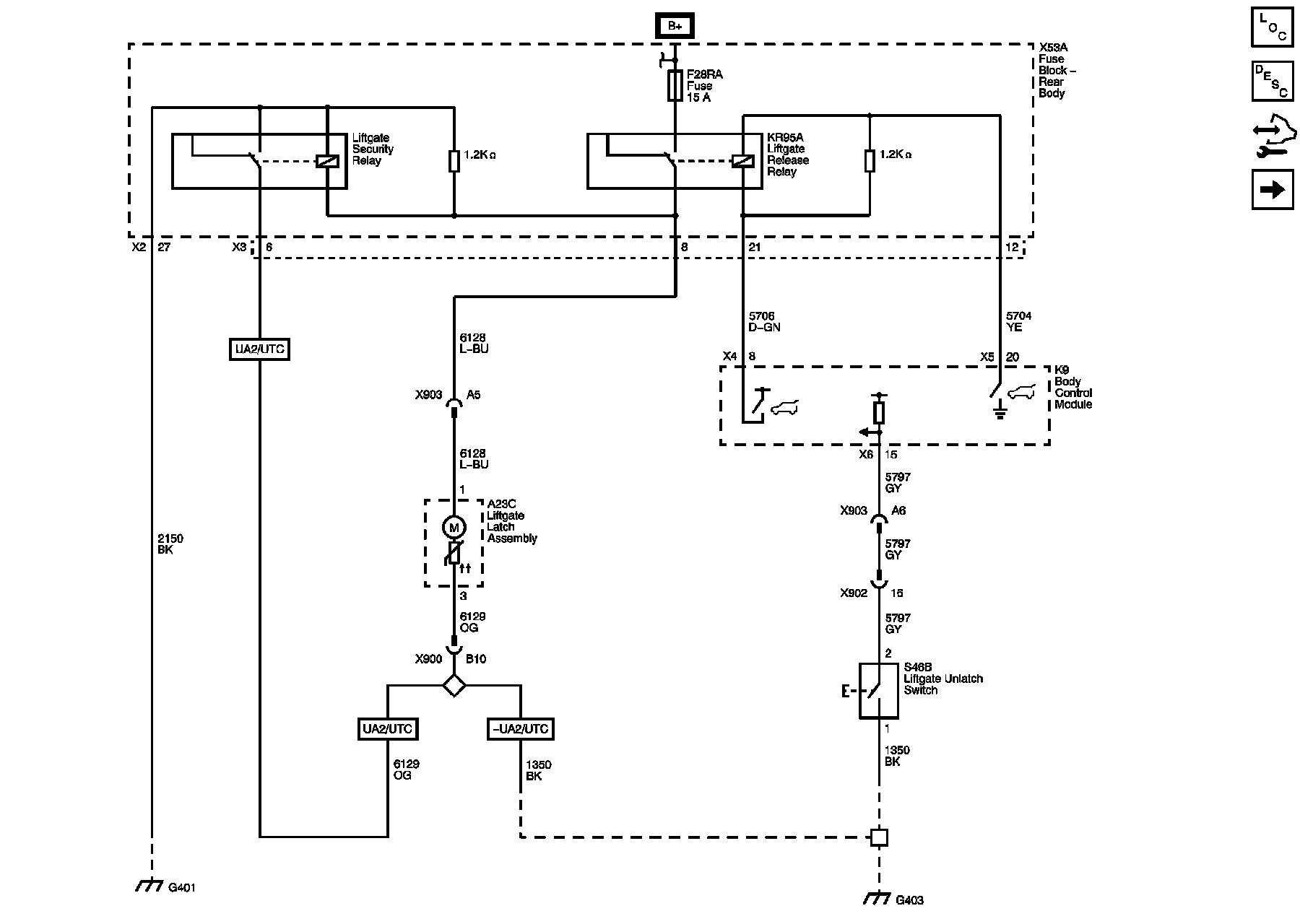

Liftgate Release Controls without TB5

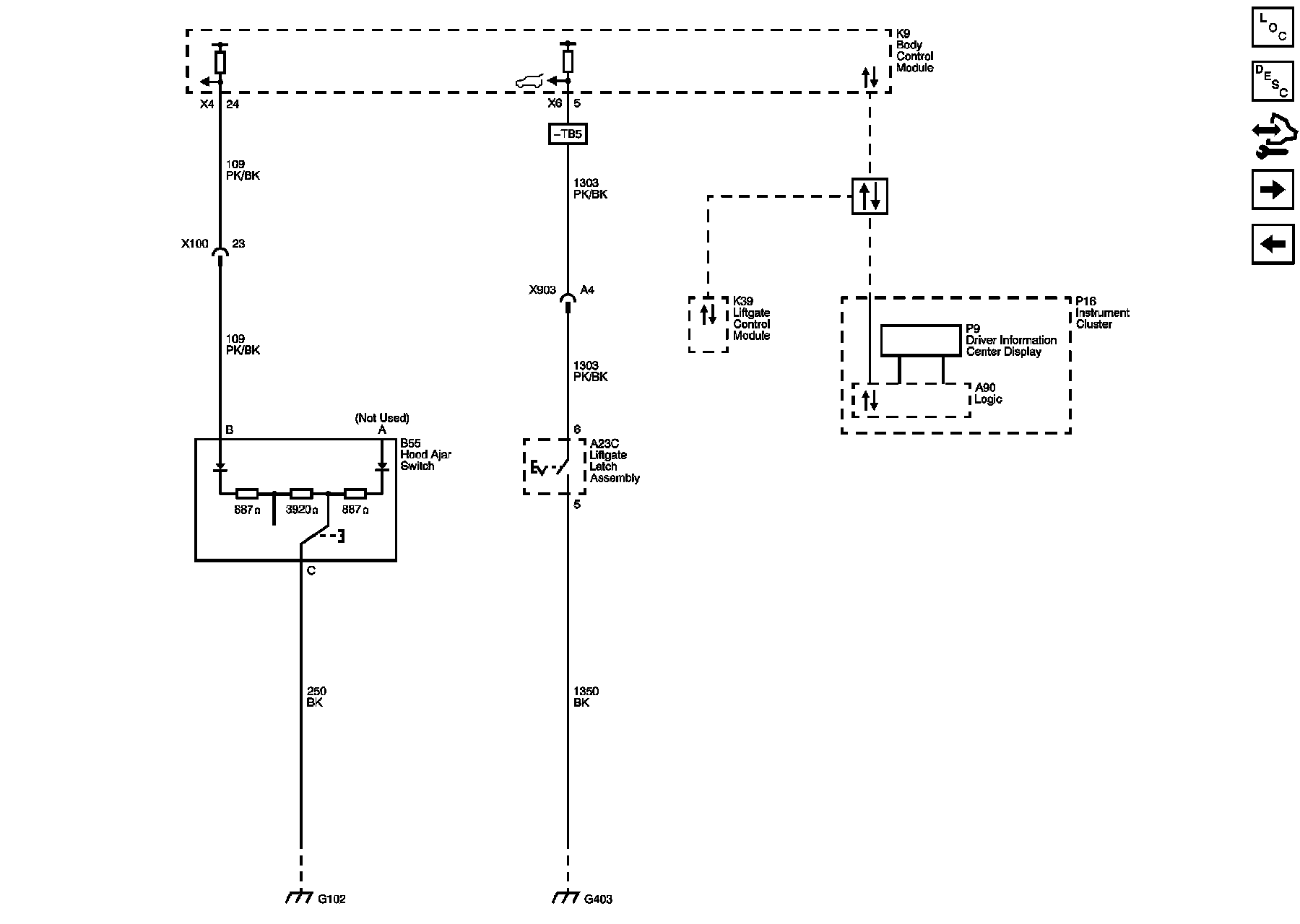

Liftgate Ajar Switch

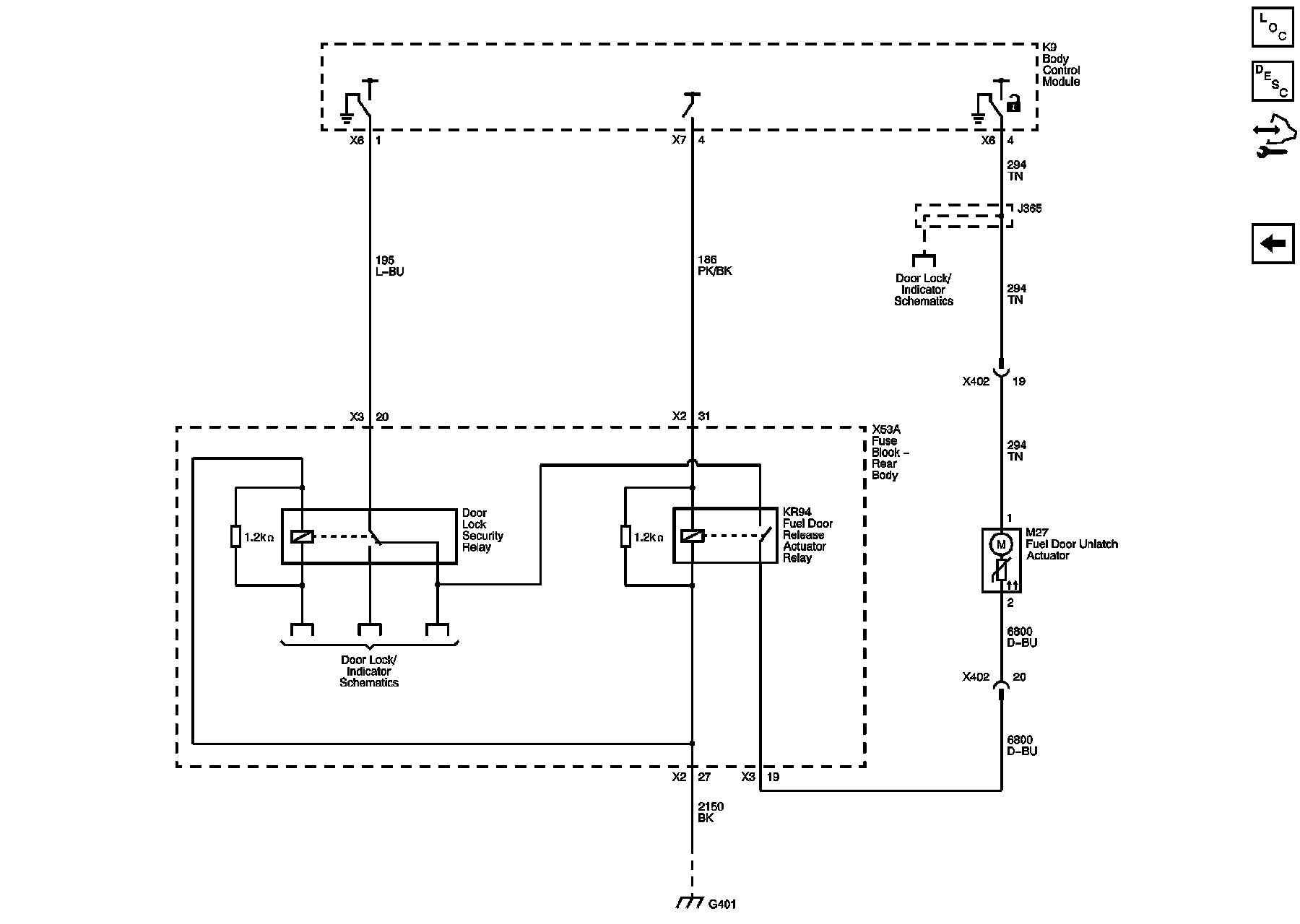

Fuel Door
Release (NO8)
