Air Injection Pressure Sensor/Switch
Air Injection Pressure Sensor/Switch

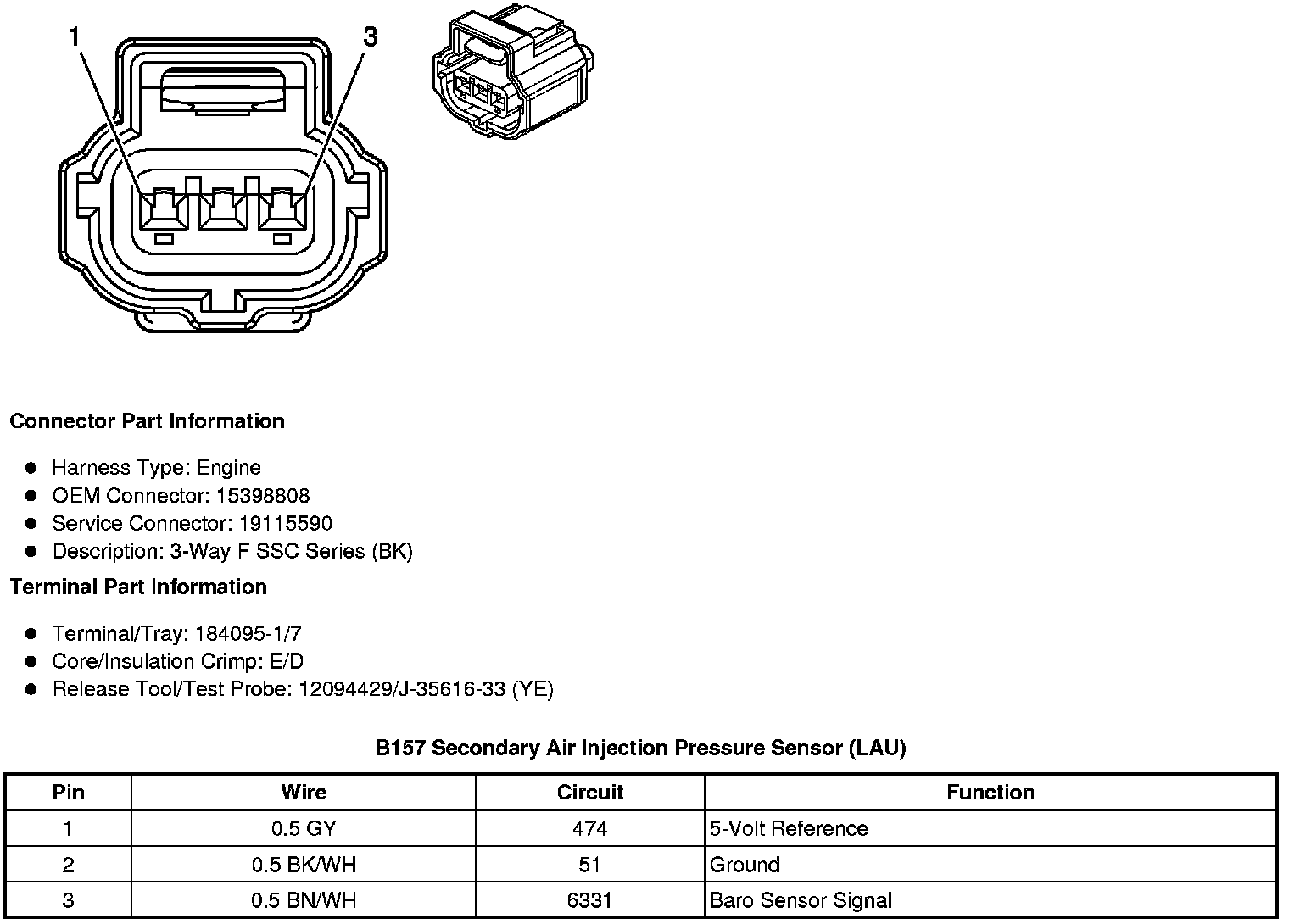

Component Connector End Views
B157 Secondary Air Injection Pressure Sensor (LAU)
