S3 - X8
Component Connector End Views

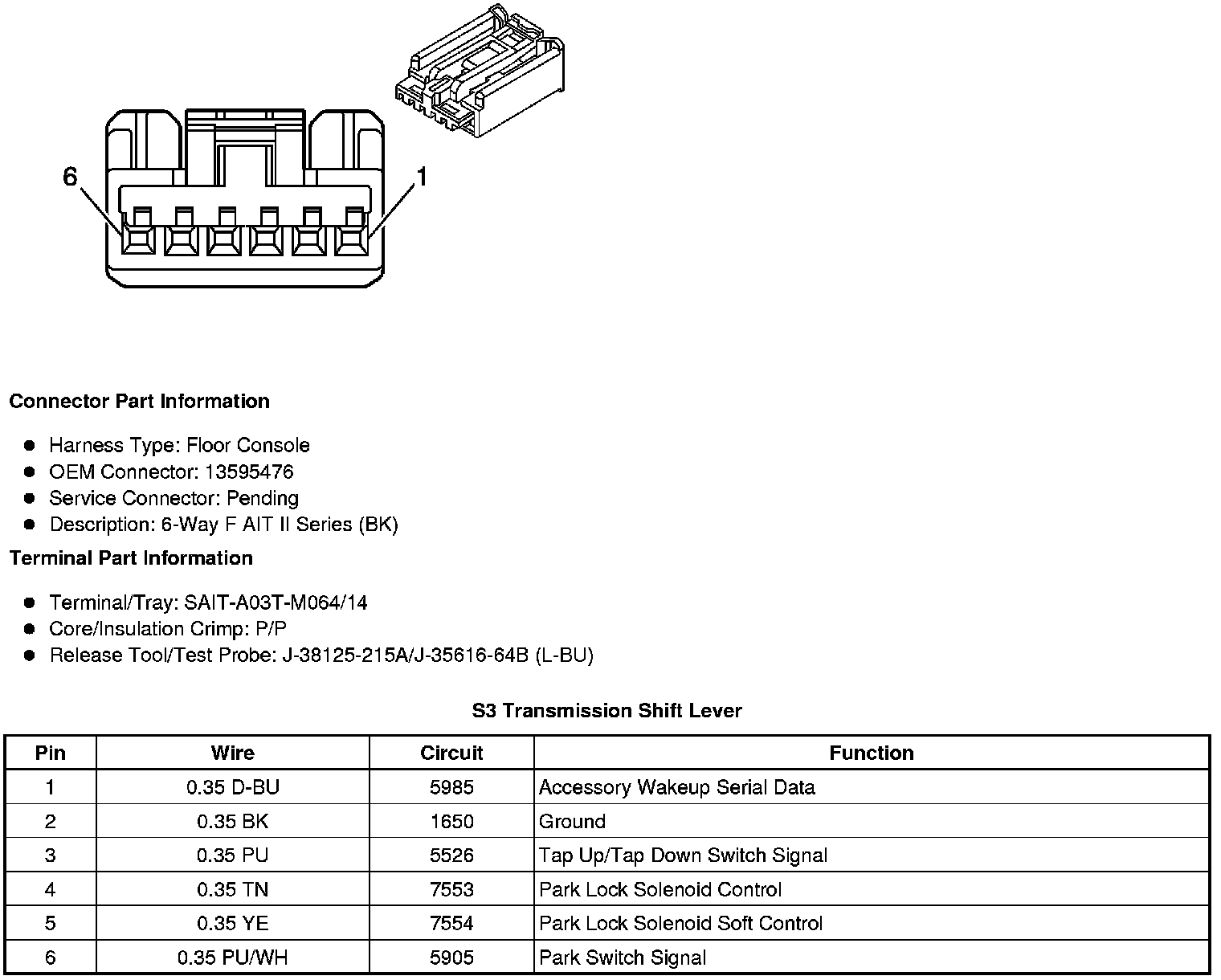

S3 Transmission Shift Lever

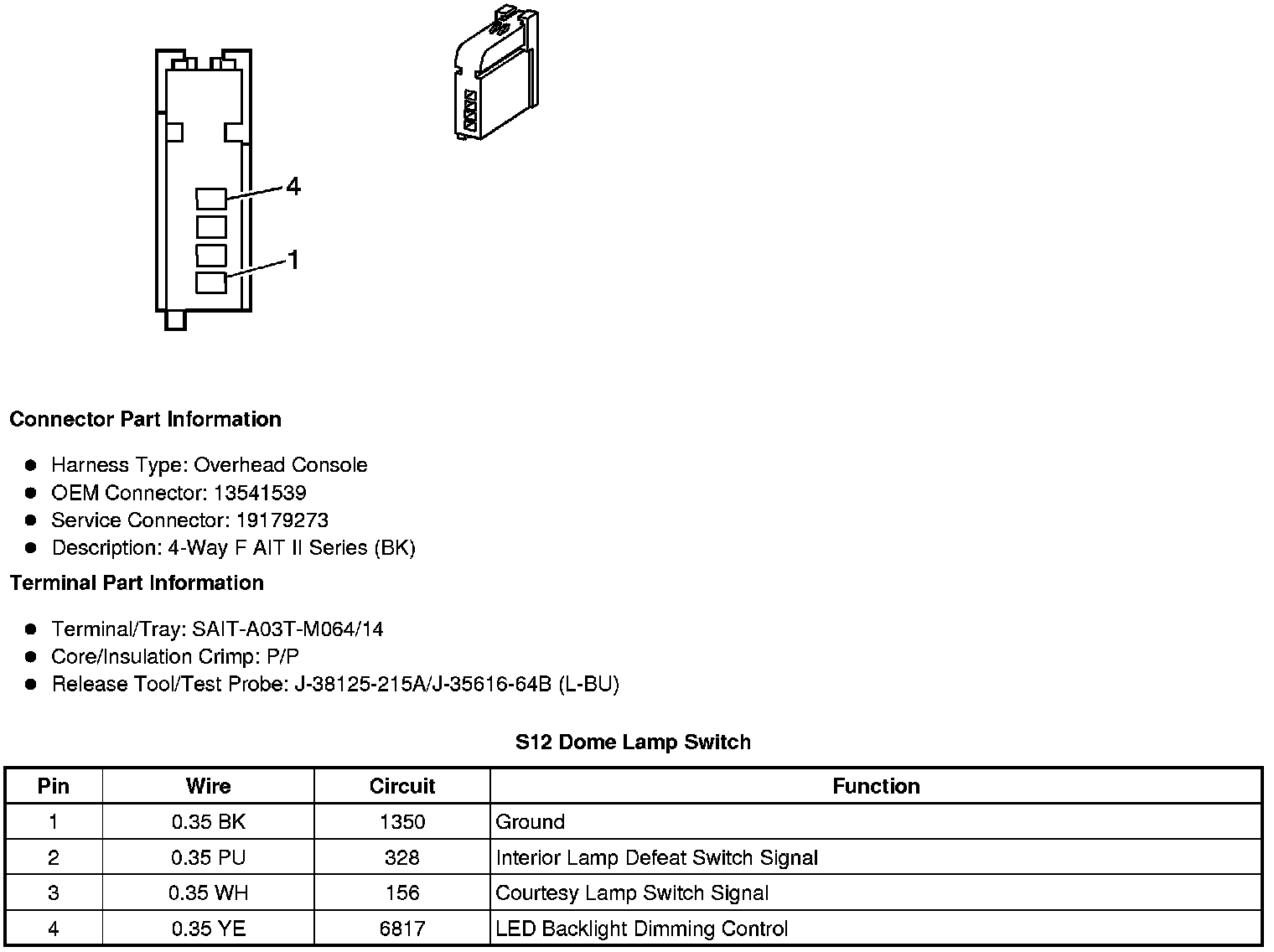

S12 Dome Lamp Switch

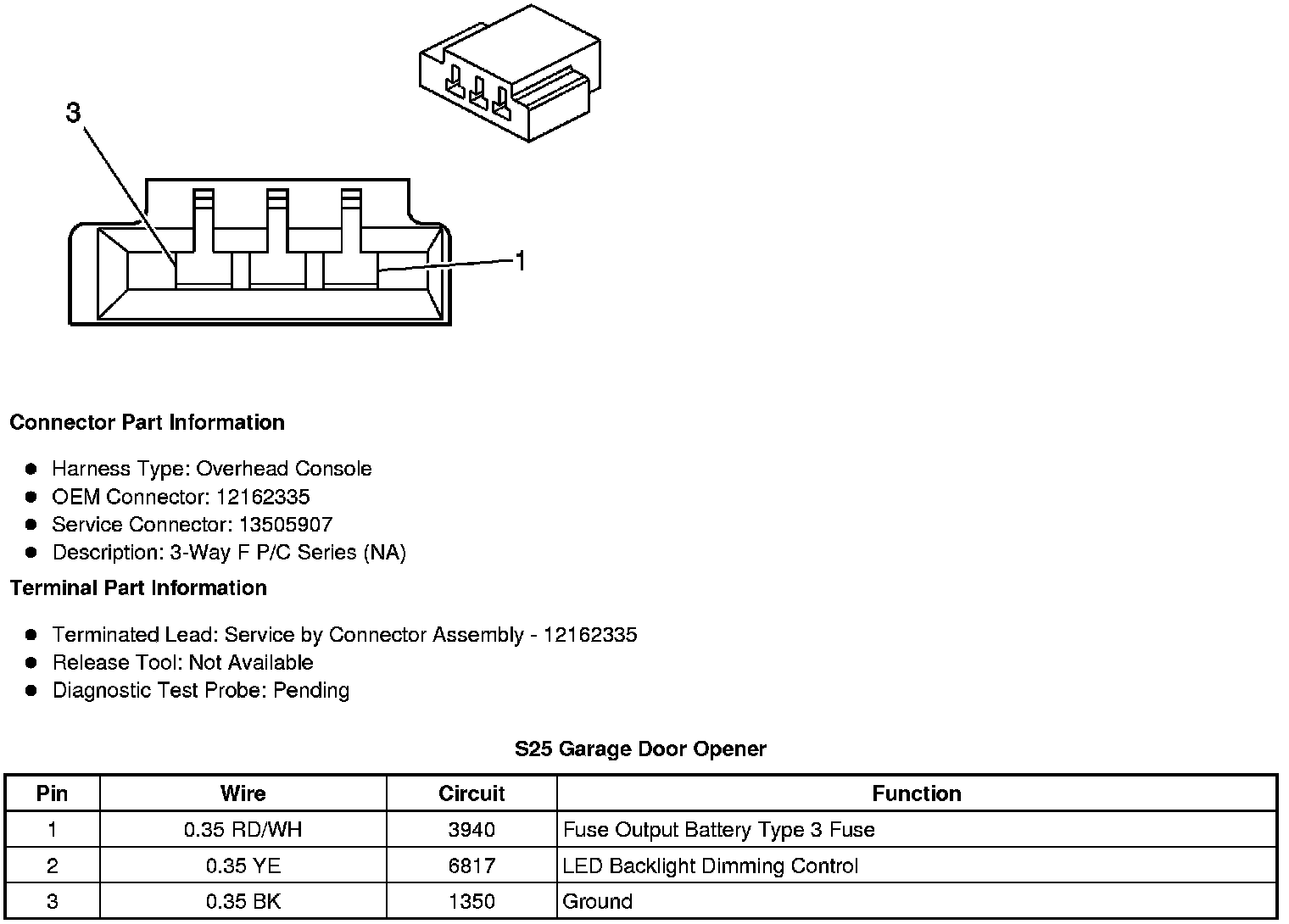

S25 Garage Door Opener

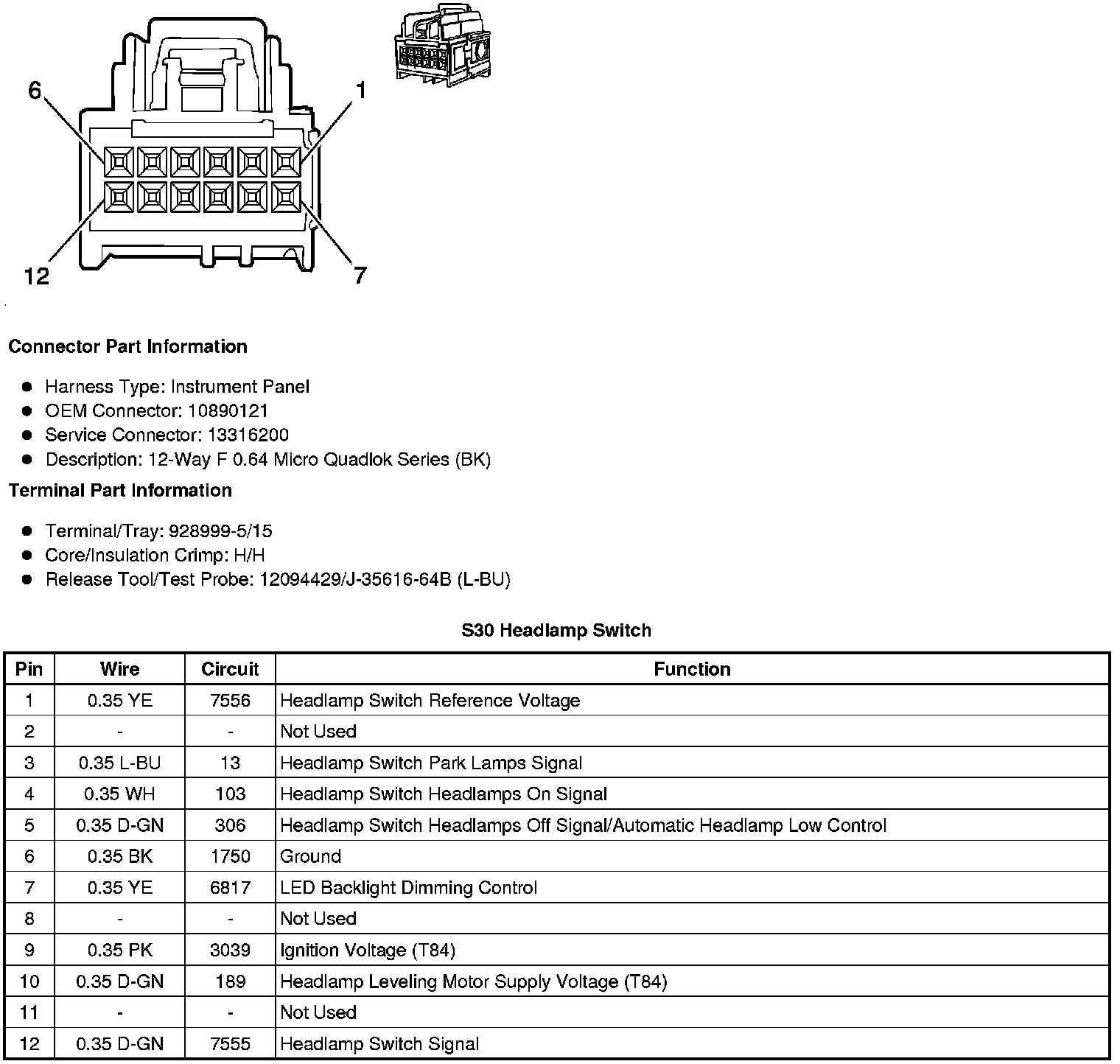

S30 Headlamp Switch

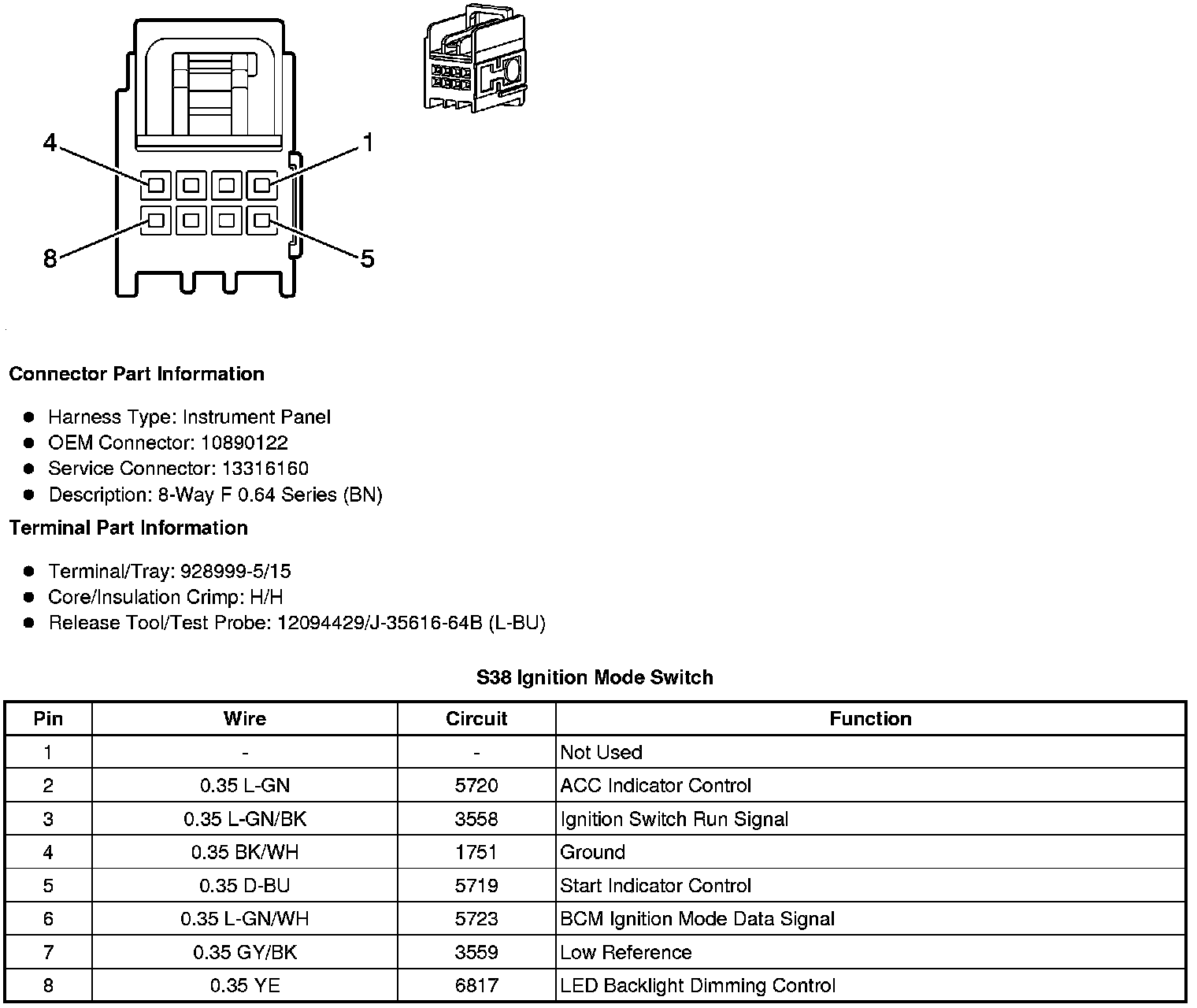

S38 Ignition Mode Switch

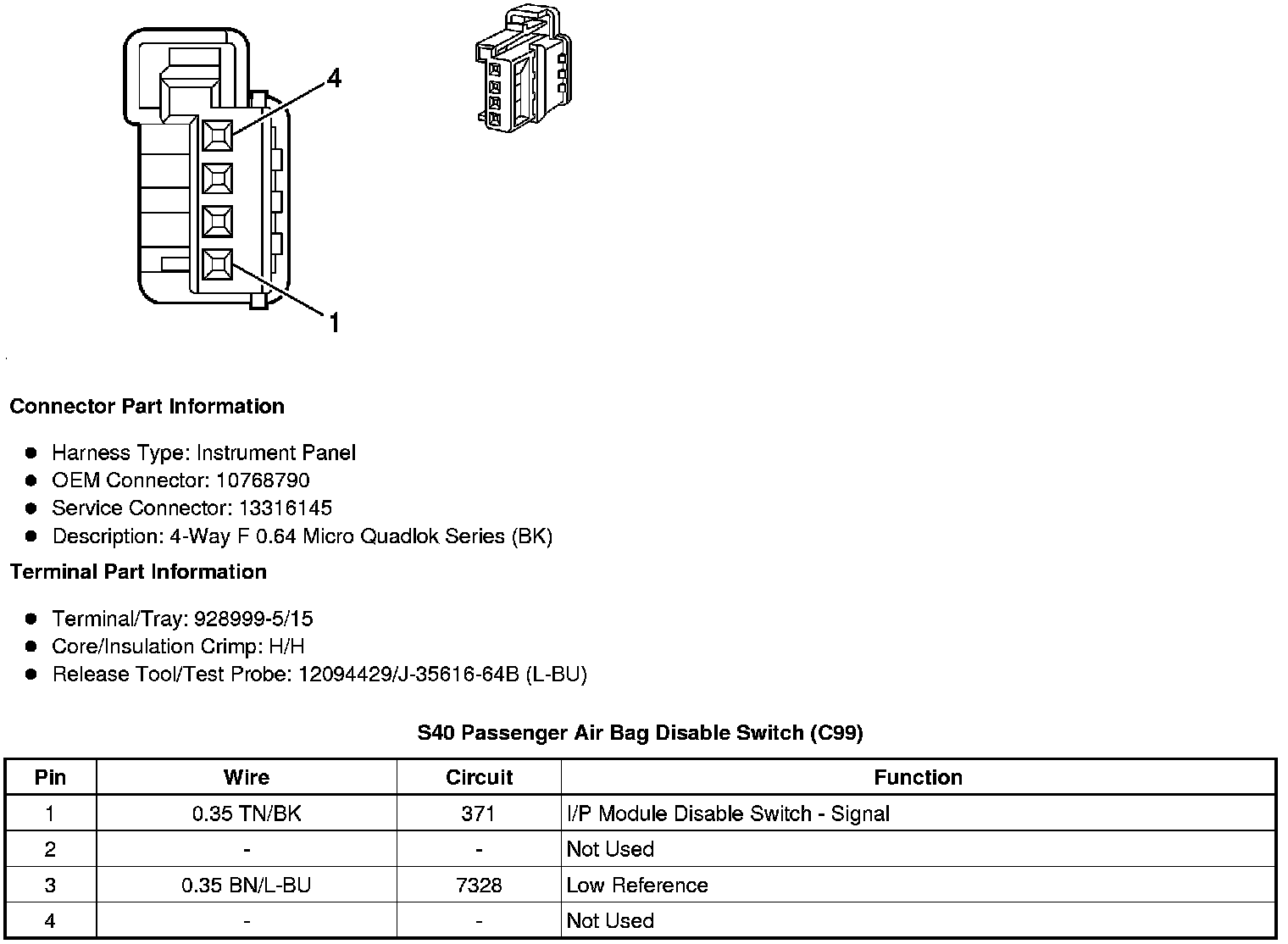

S40 Passenger Air Bag Disable Switch (C99)

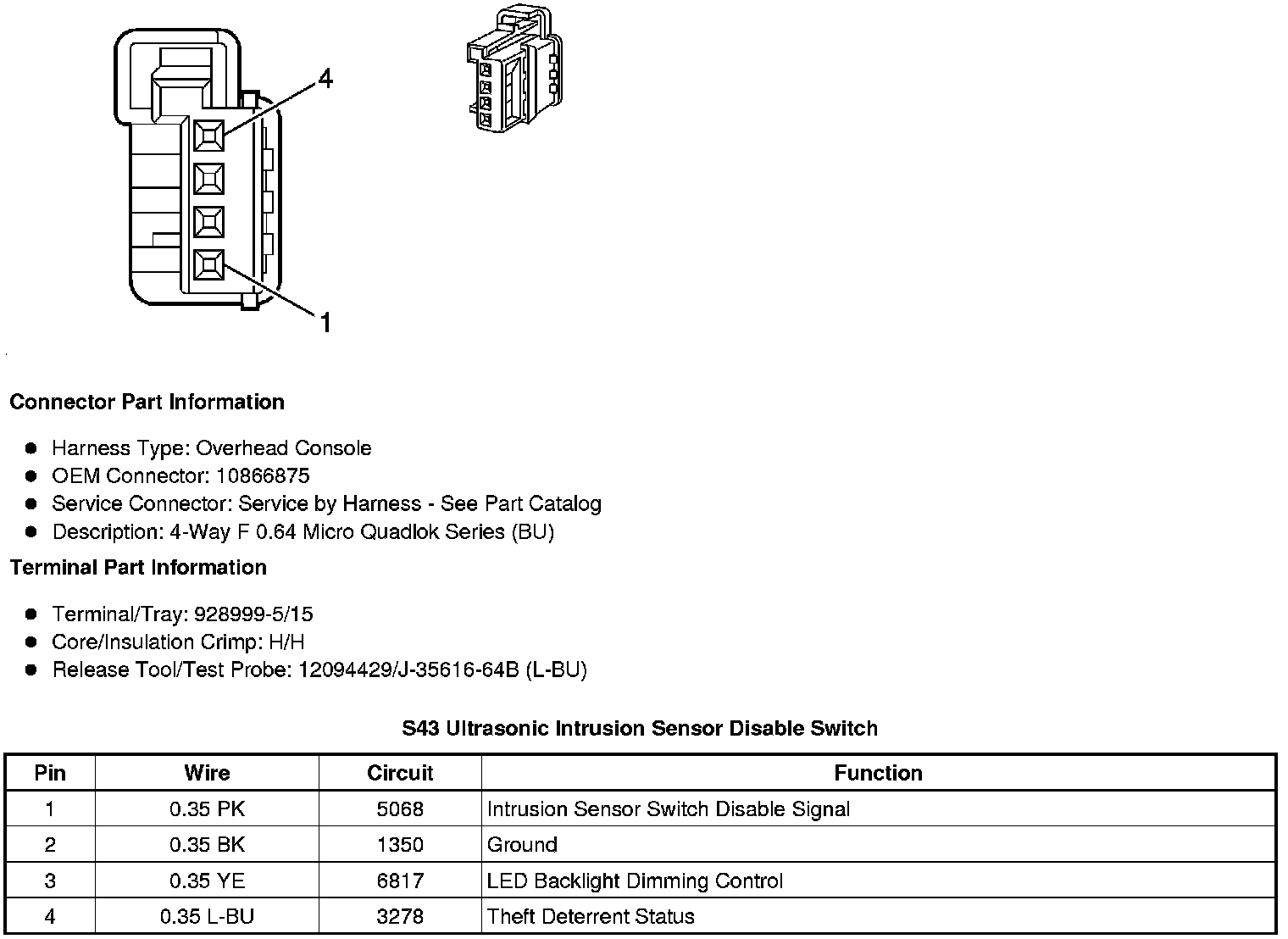

S43 Ultrasonic Intrusion Sensor Disable Switch

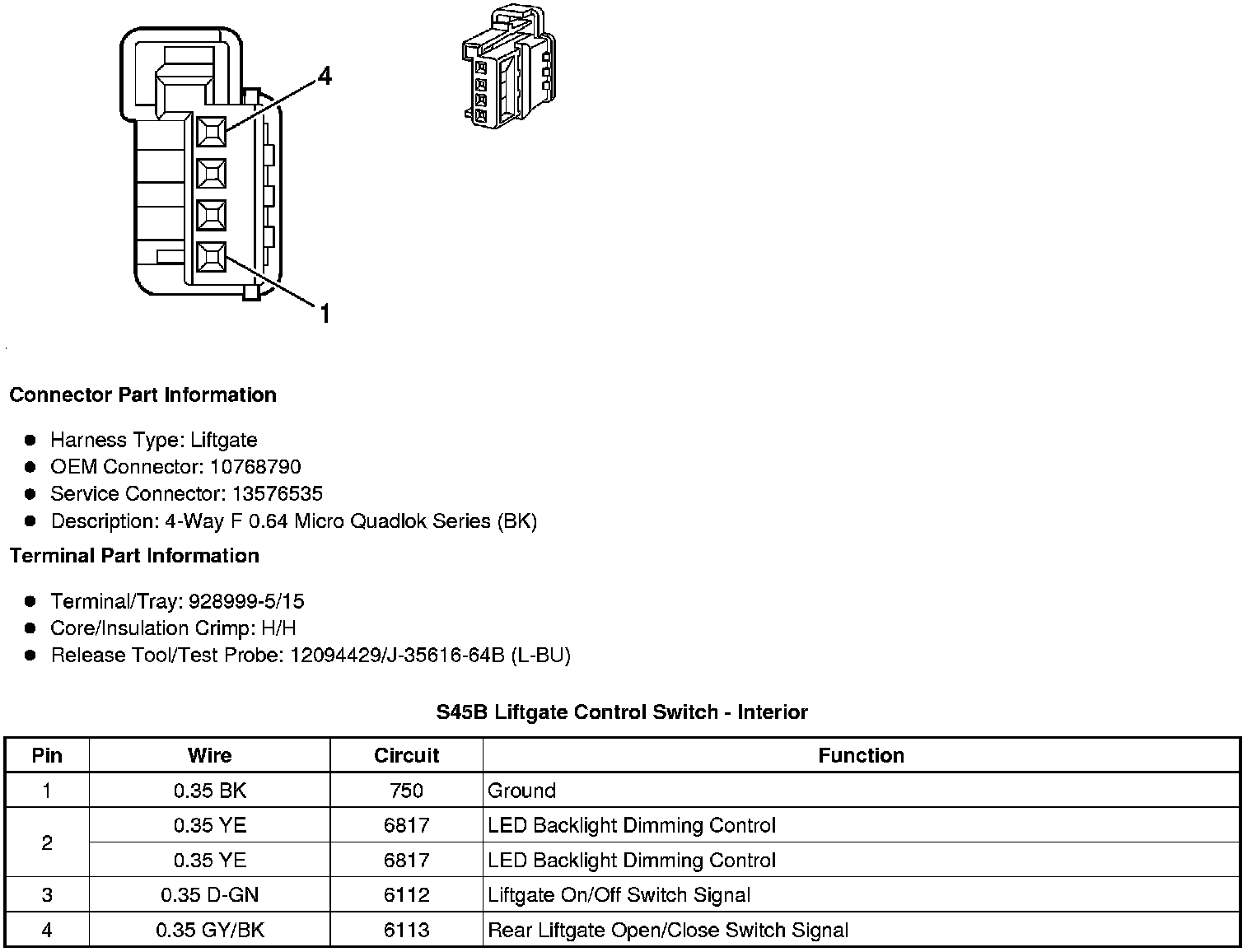

S45B Liftgate Control Switch - Interior

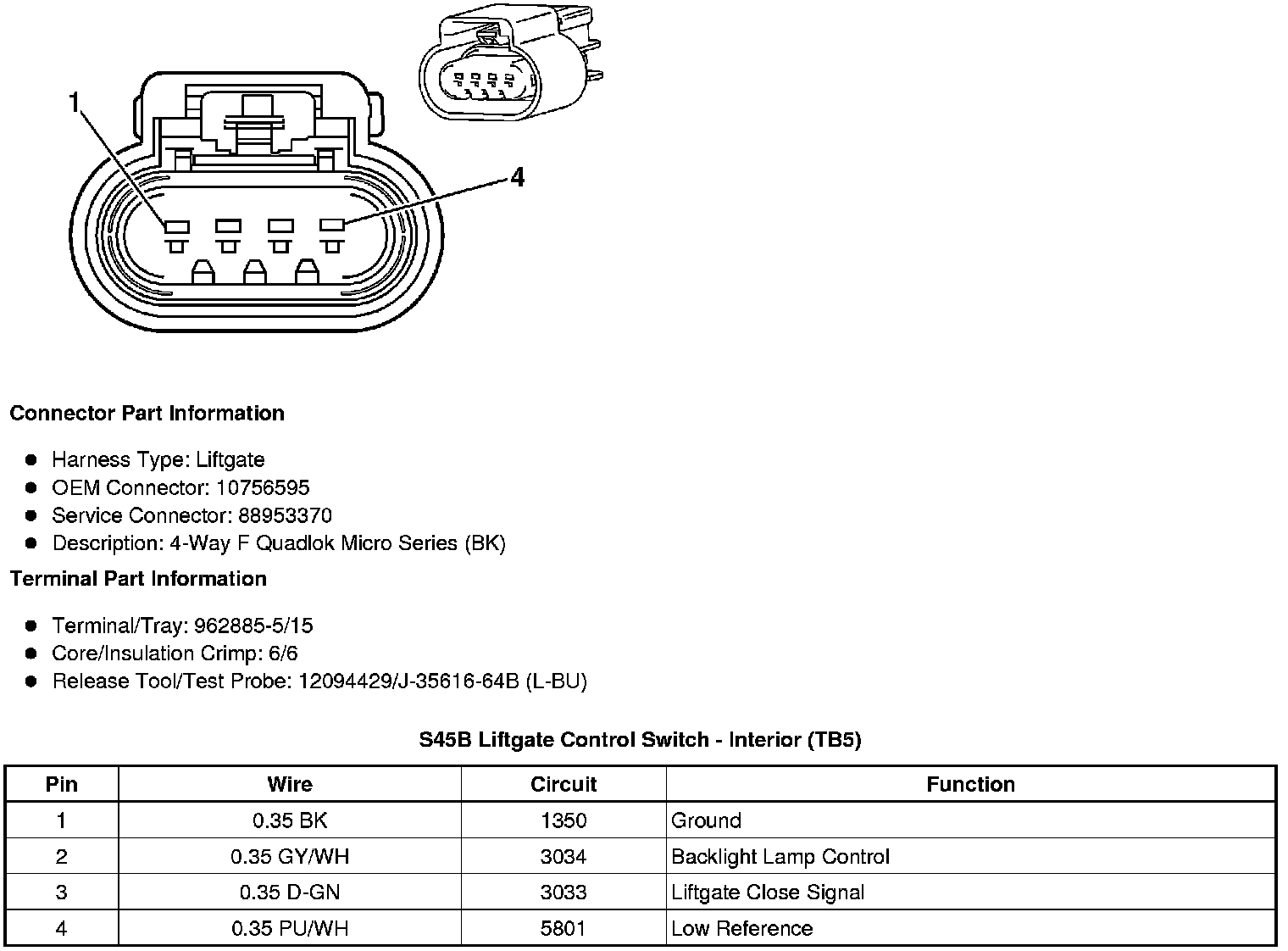

S45B Liftgate Control Switch - Interior (TB5)

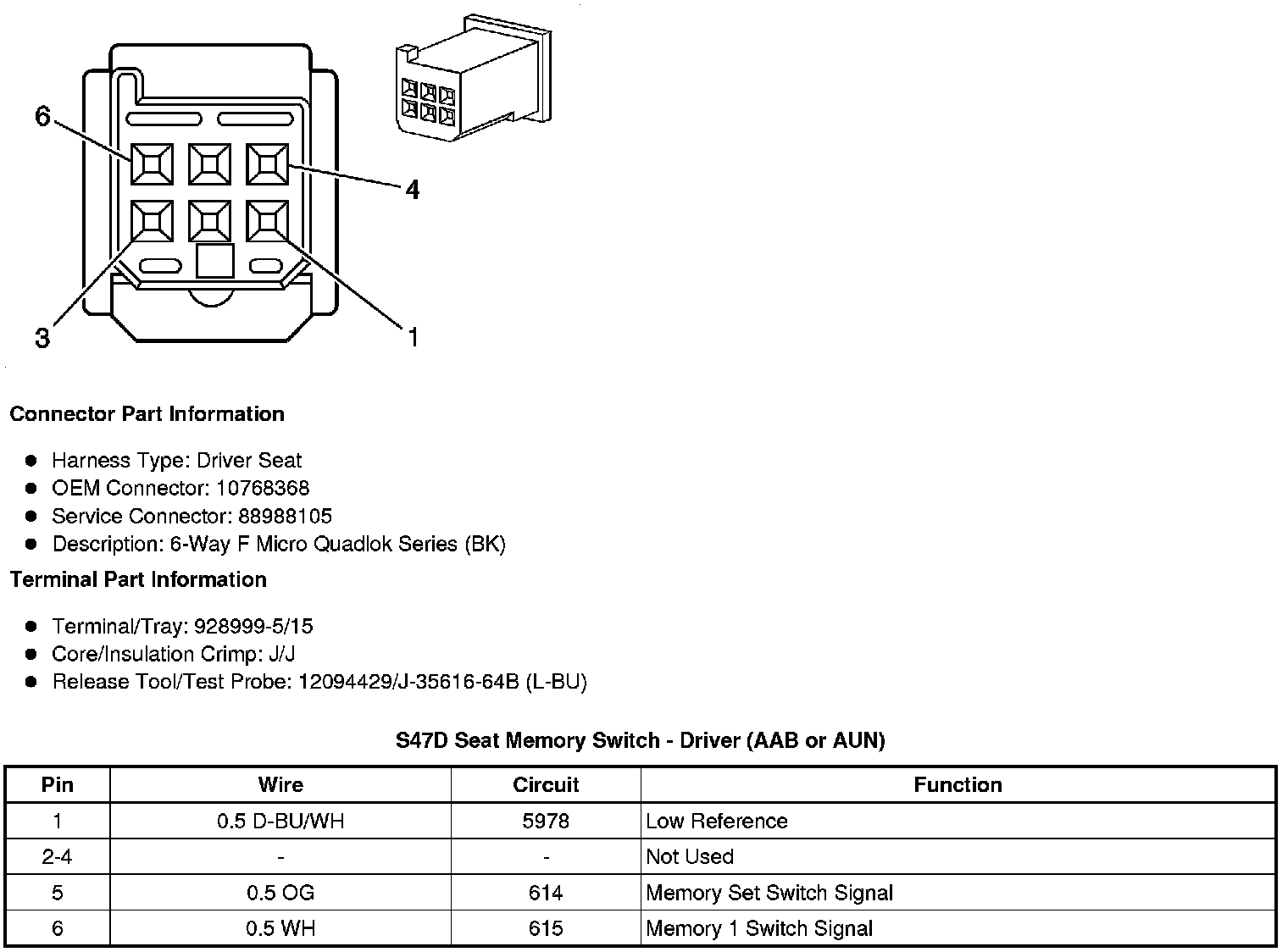

S47D Seat Memory Switch - Driver (AAB or AUN)

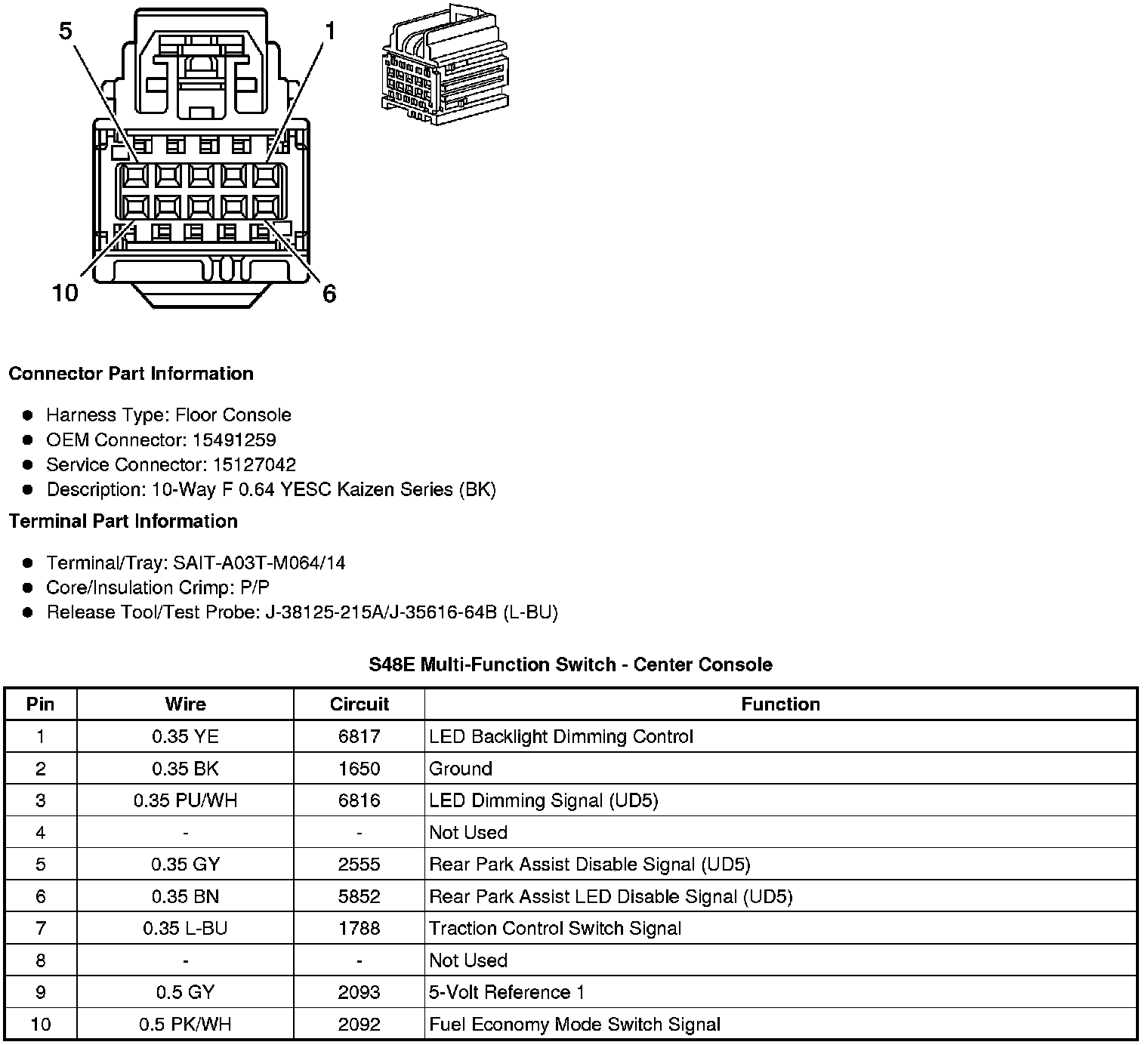

S48E Multi-Function Switch - Center Console

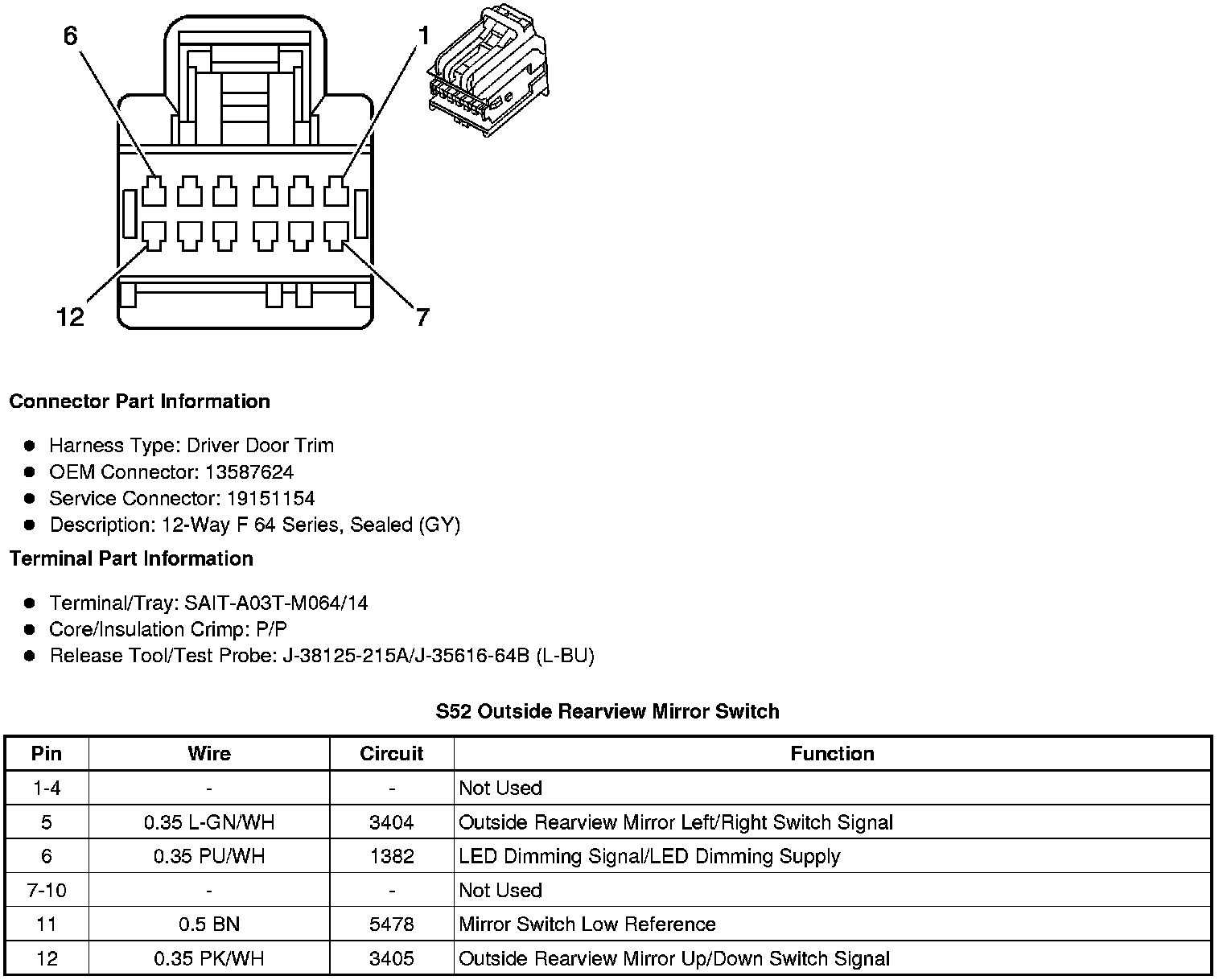

S52 Outside Rearview Mirror Switch

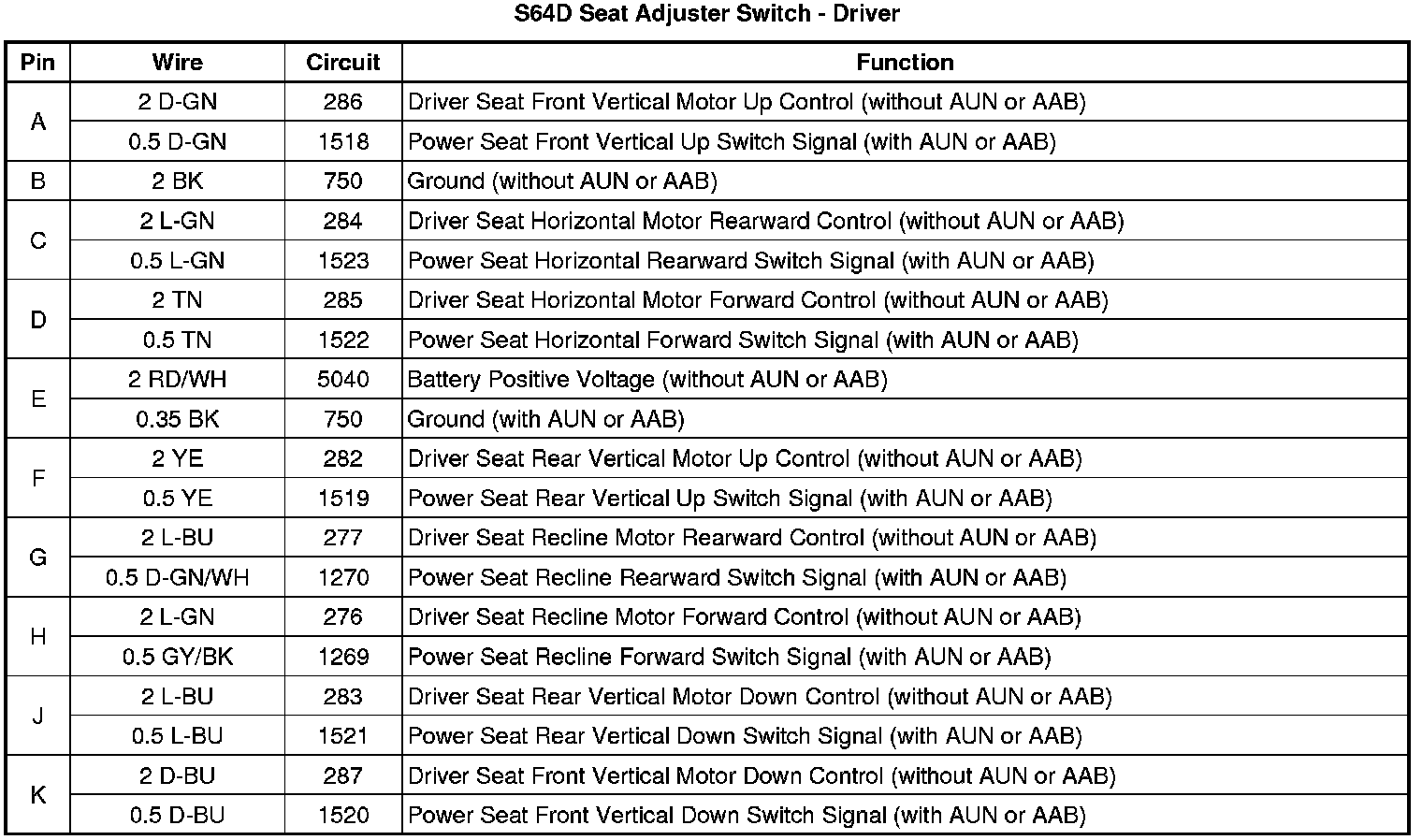

S64D Seat Adjuster Switch - Driver
S65D Seat Lumbar Support Switch - Driver (AL2)

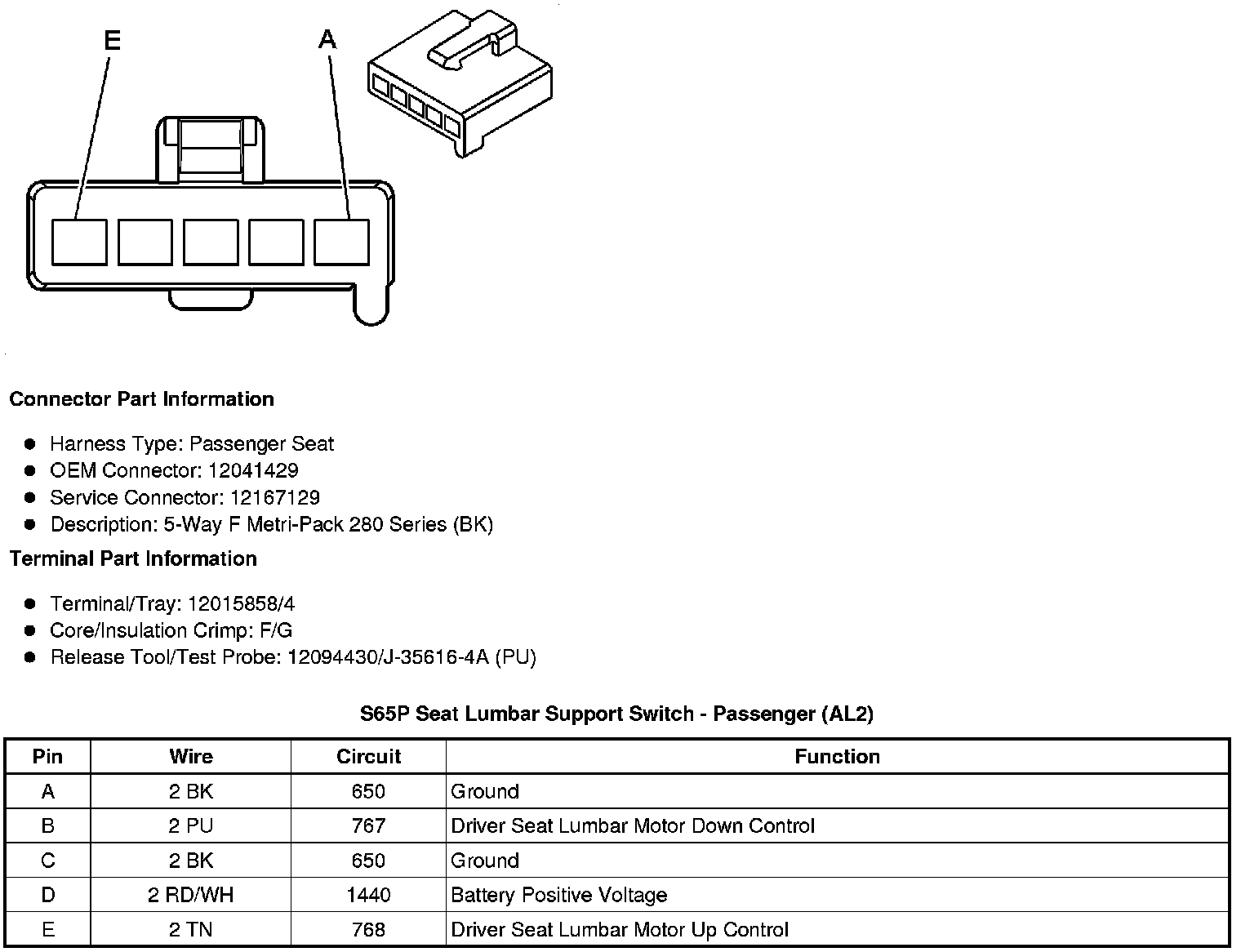

S65P Seat Lumbar Support Switch - Passenger (AL2)

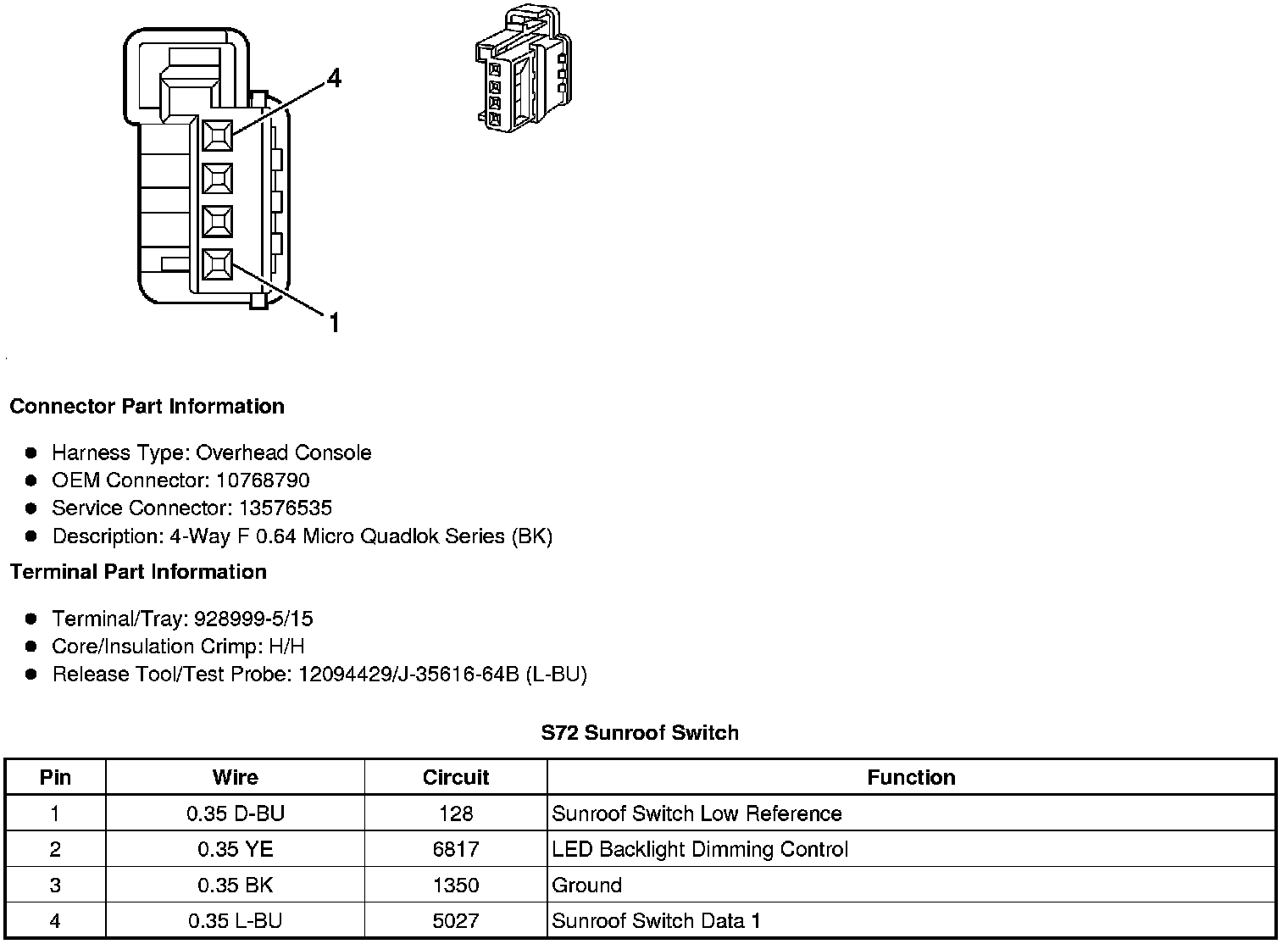

S72 Sunroof Switch

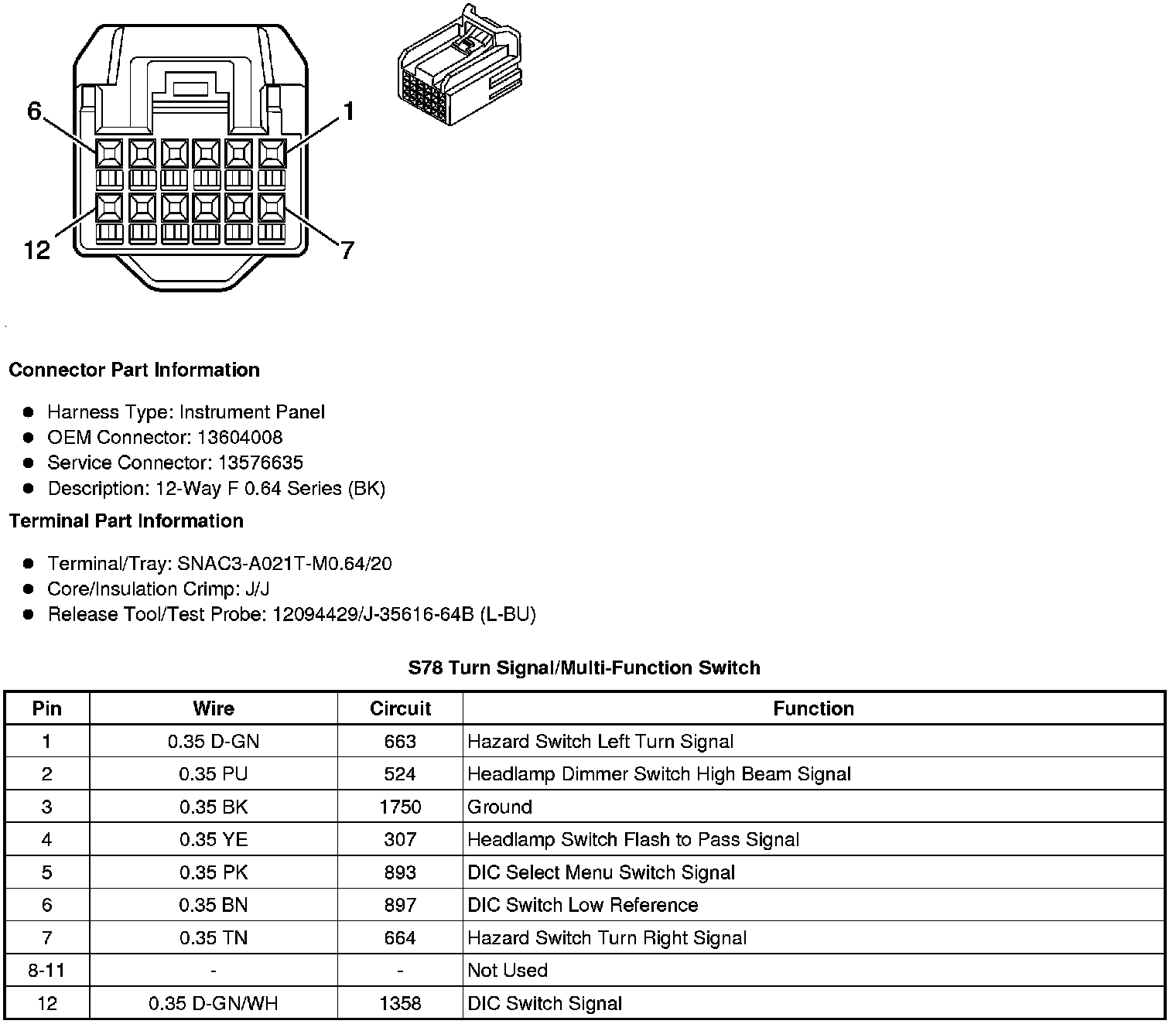

S78 Turn Signal/Multi-Function Switch

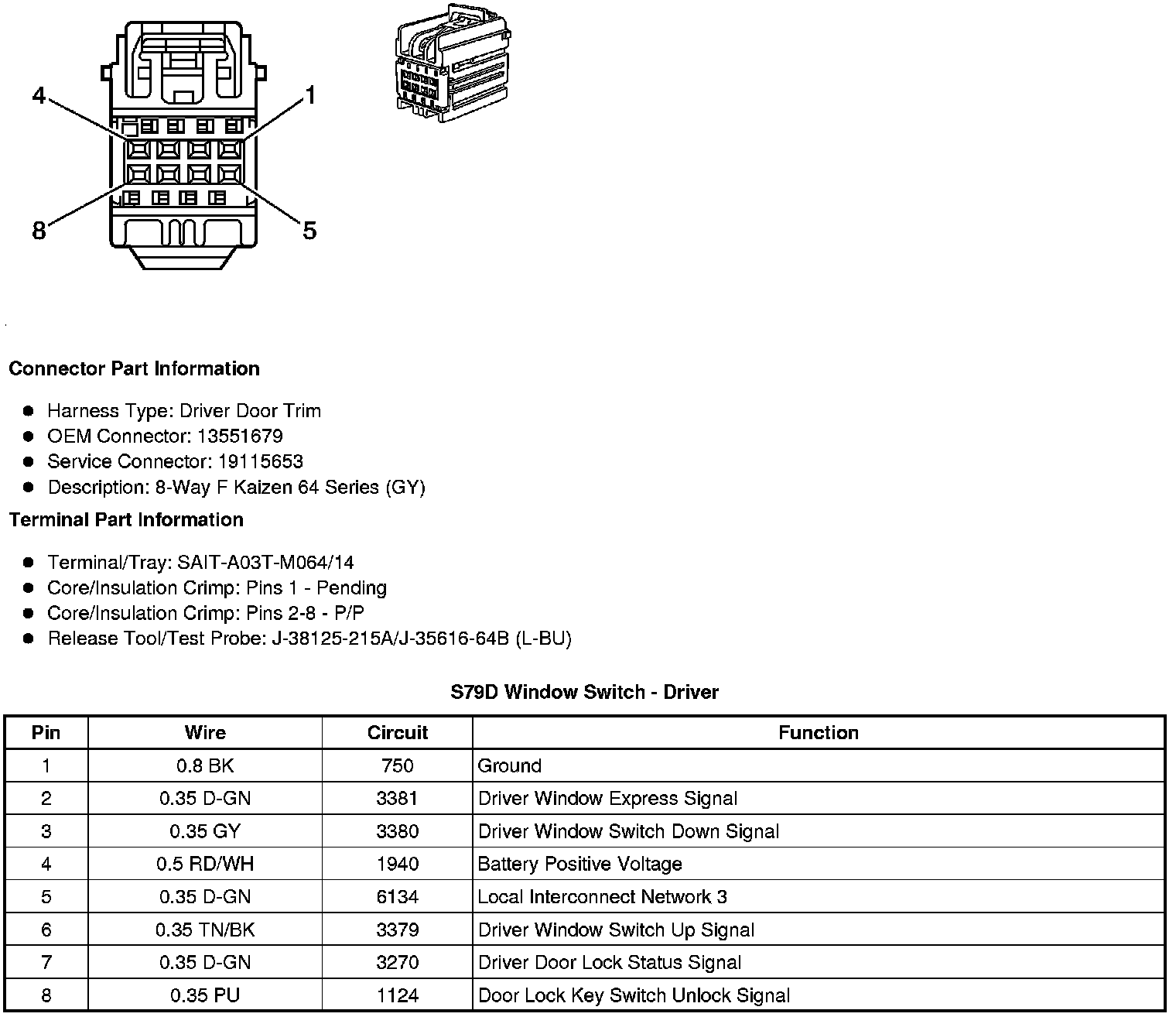

S79D Window Switch - Driver
S79LR Window Switch - Left Rear

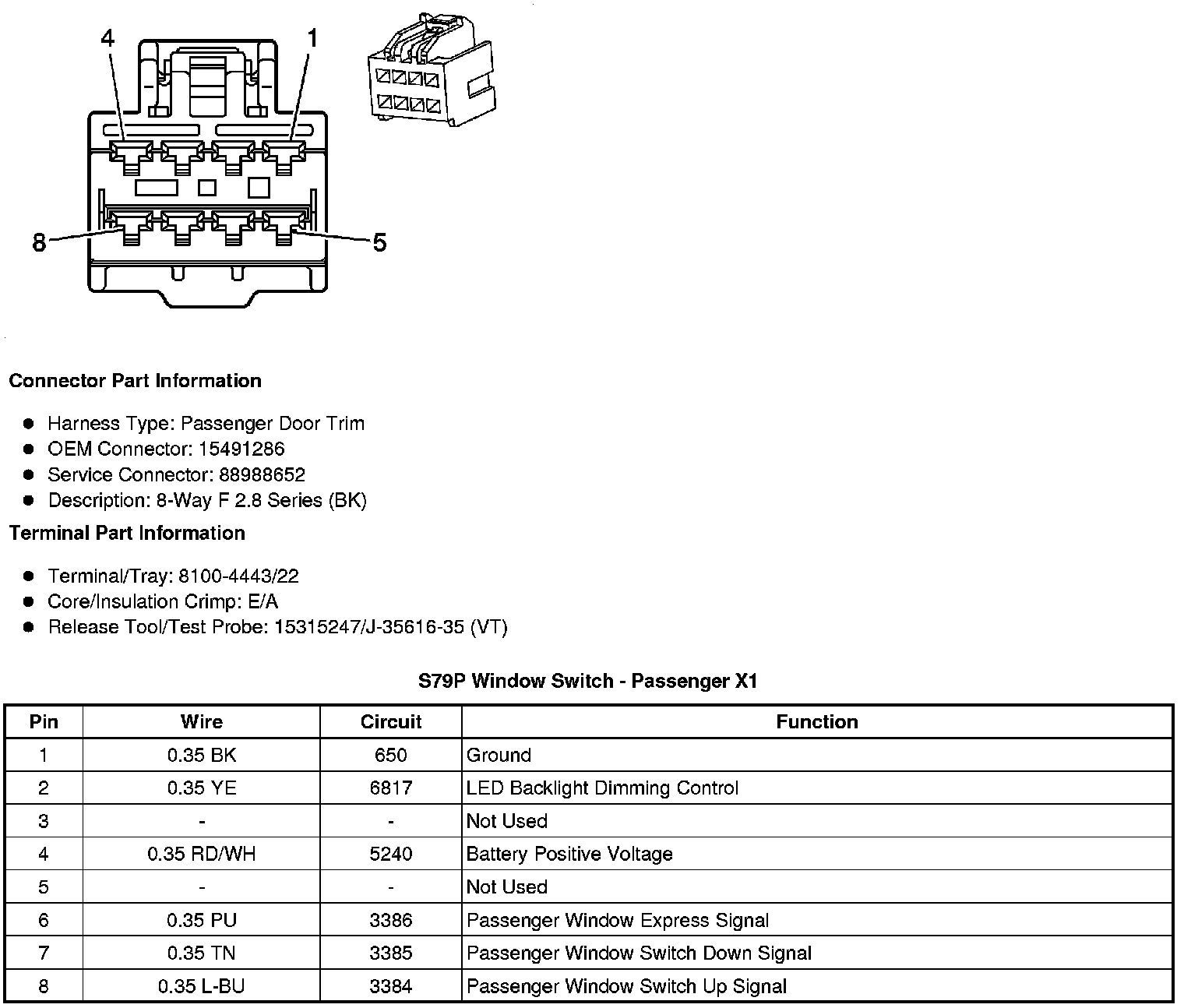

S79P Window Switch - Passenger X1

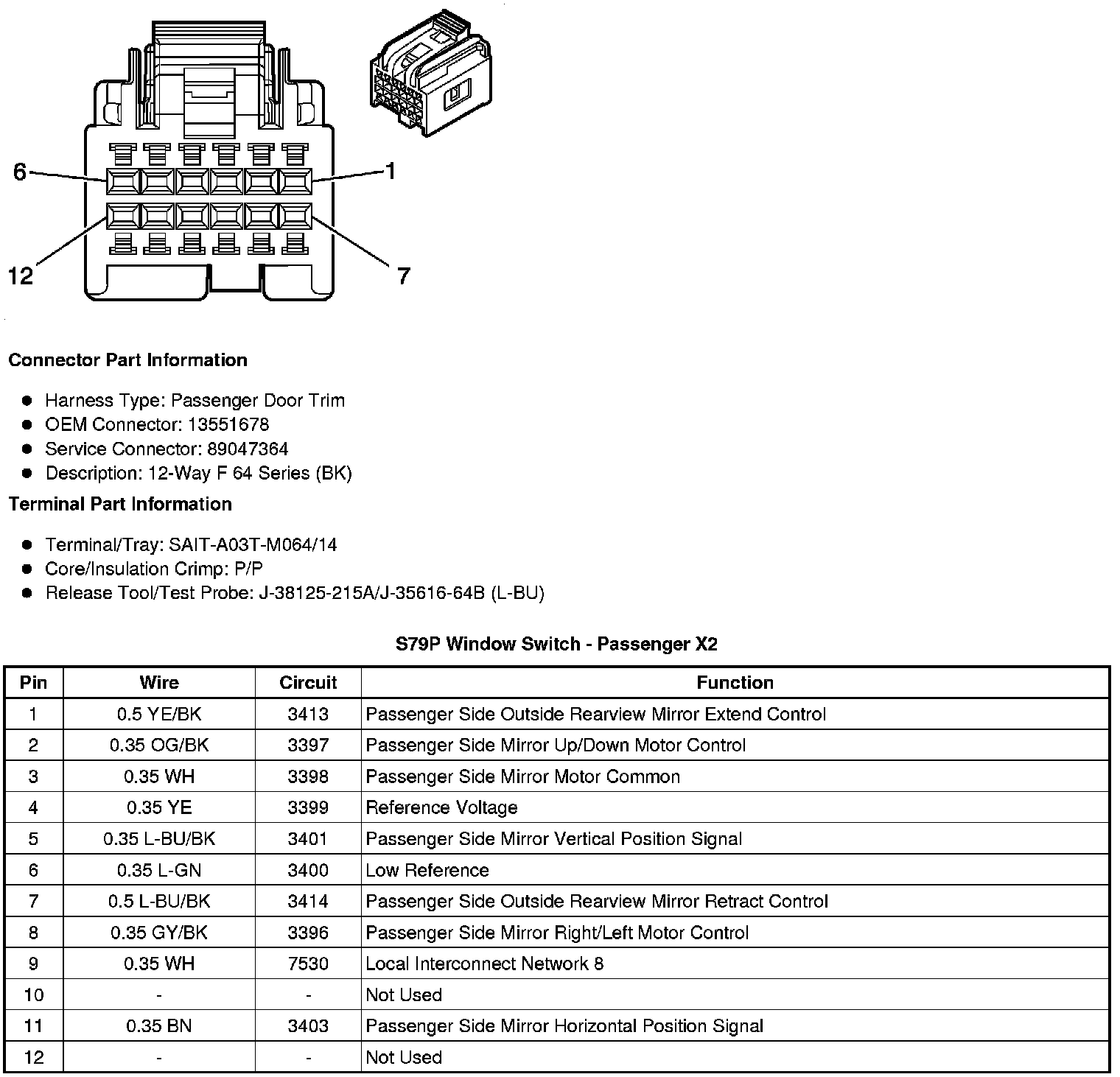

S79P Window Switch - Passenger X2

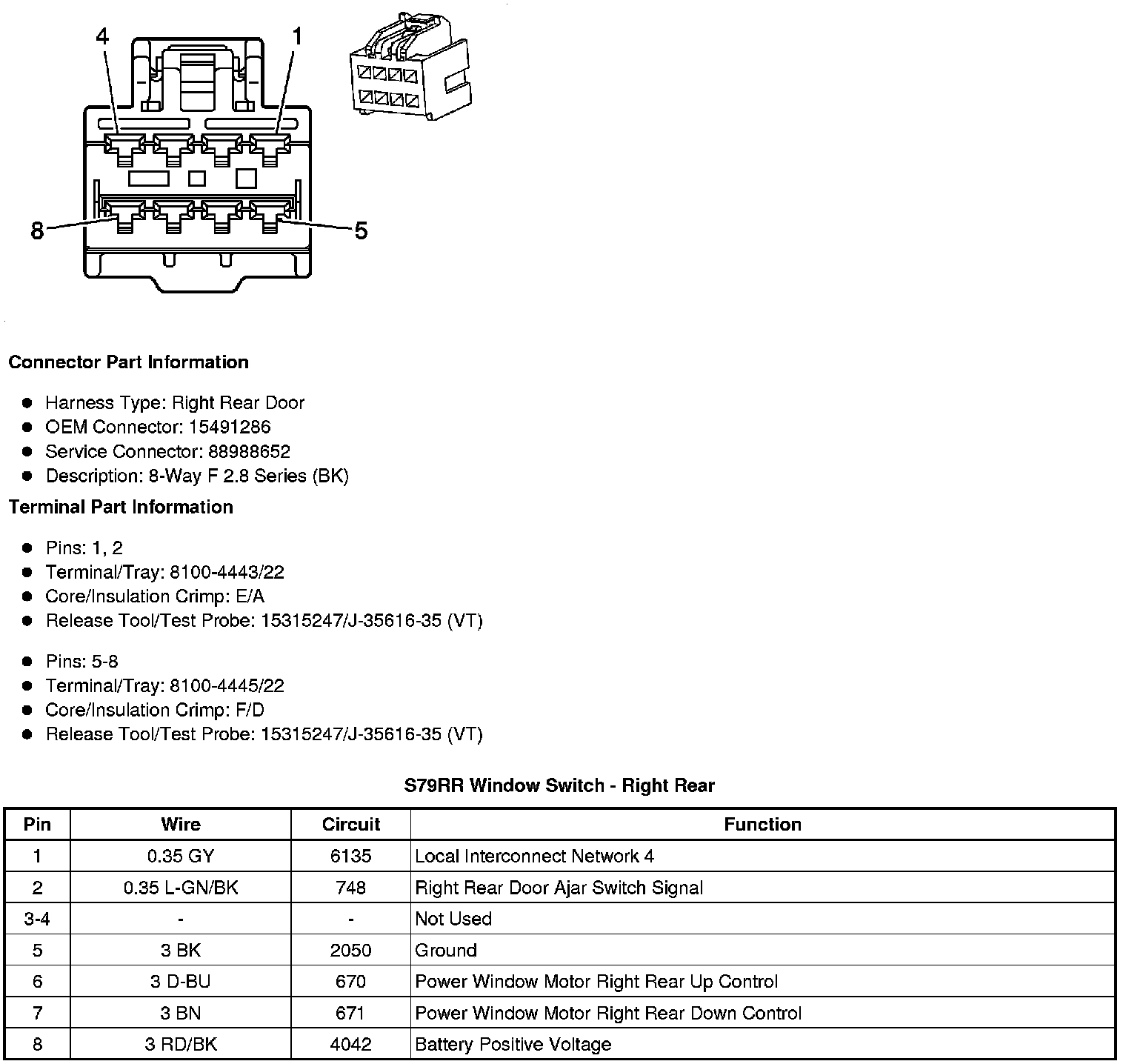

S79RR Window Switch - Right Rear

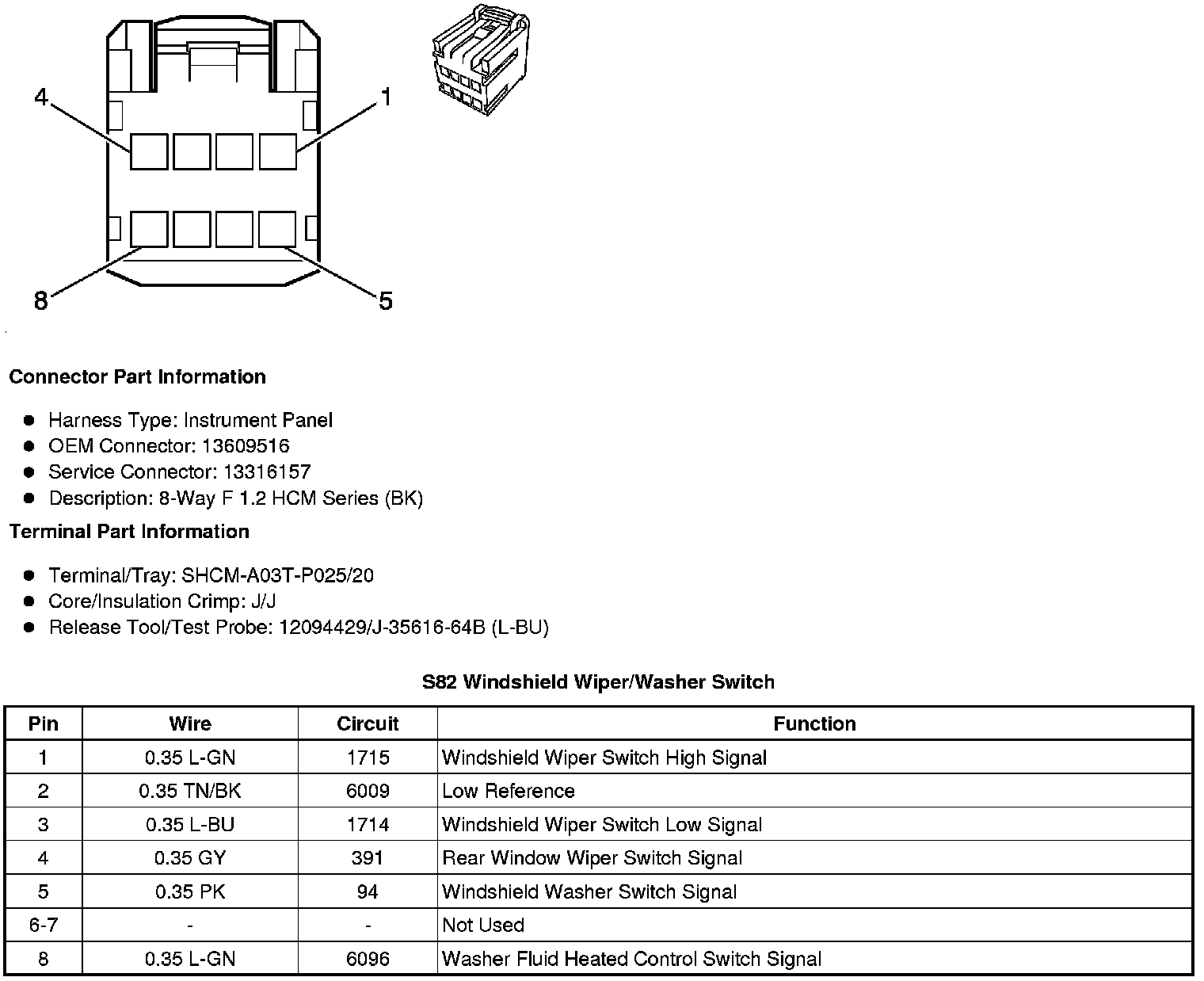

S82 Windshield Wiper/Washer Switch

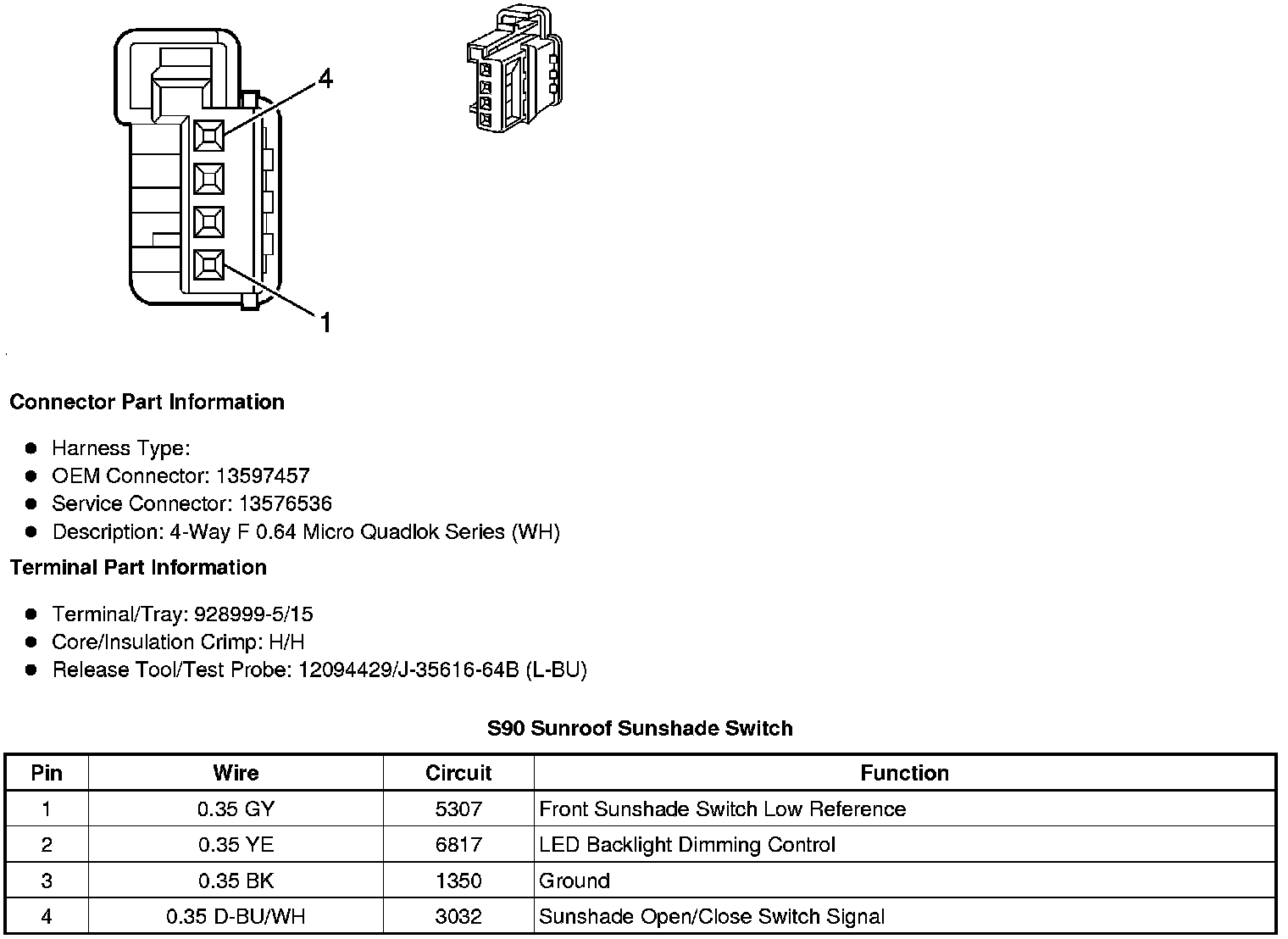

S90 Sunroof Sunshade Switch

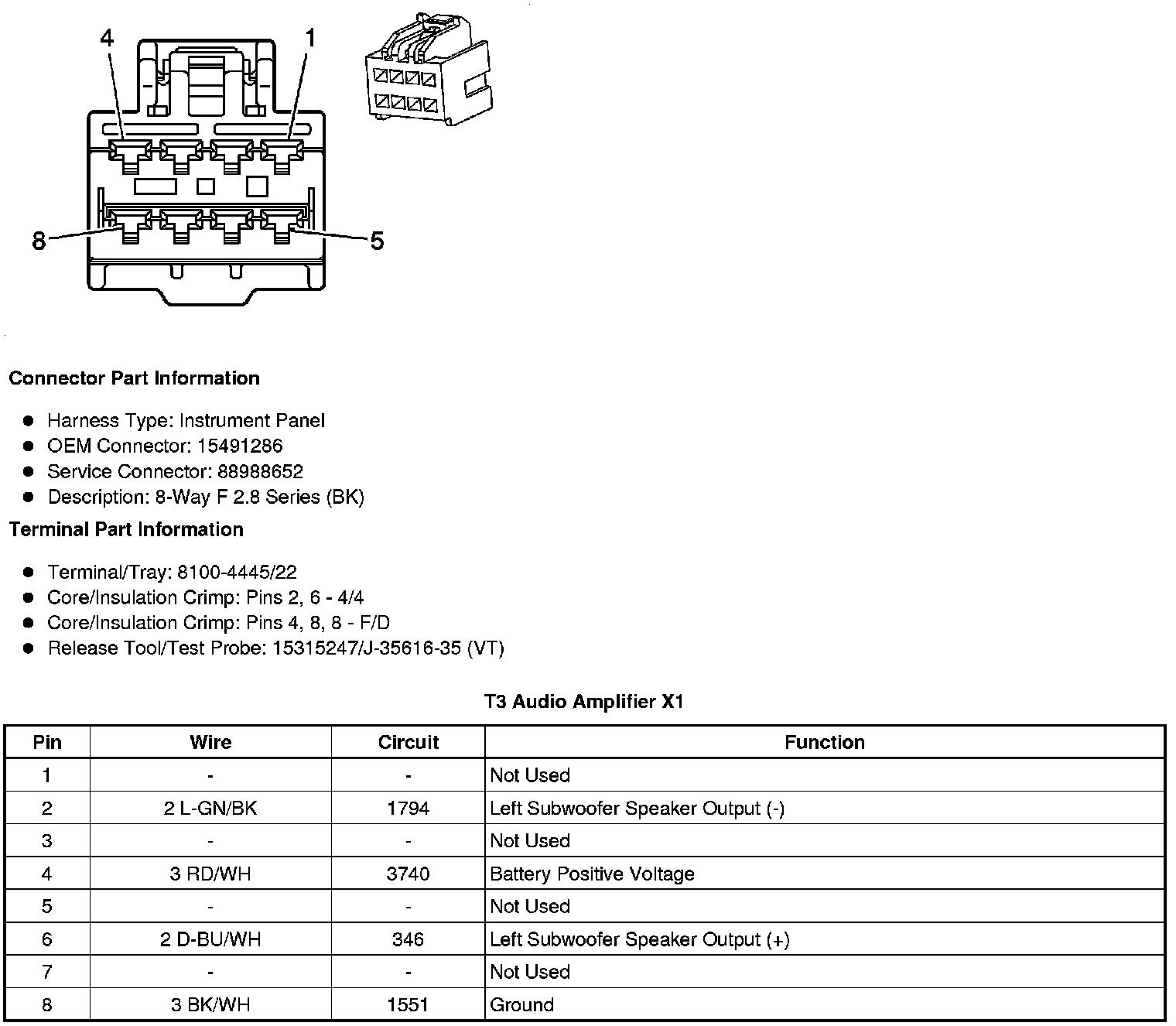

T3 Audio Amplifier X1

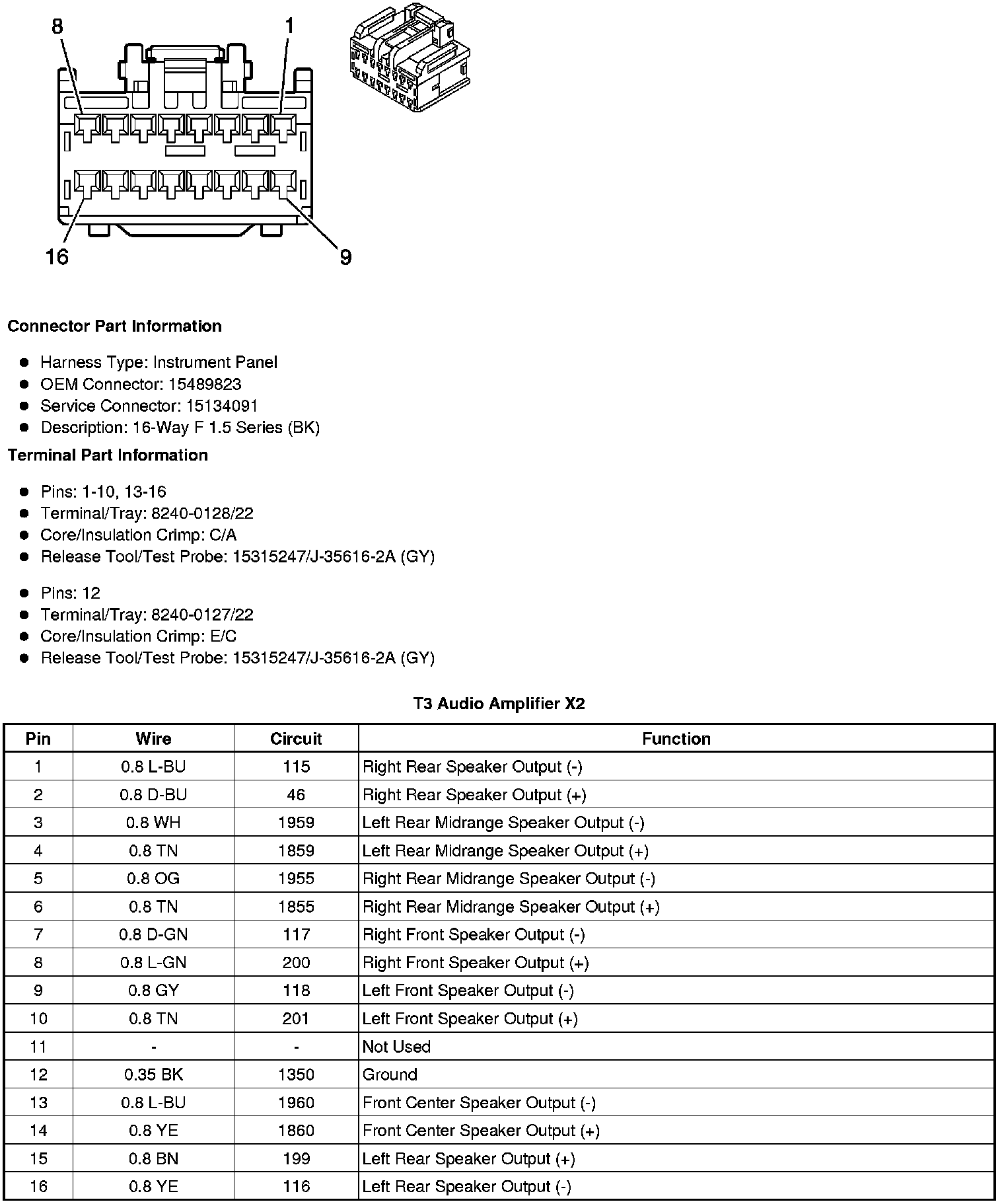

T3 Audio Amplifier X2

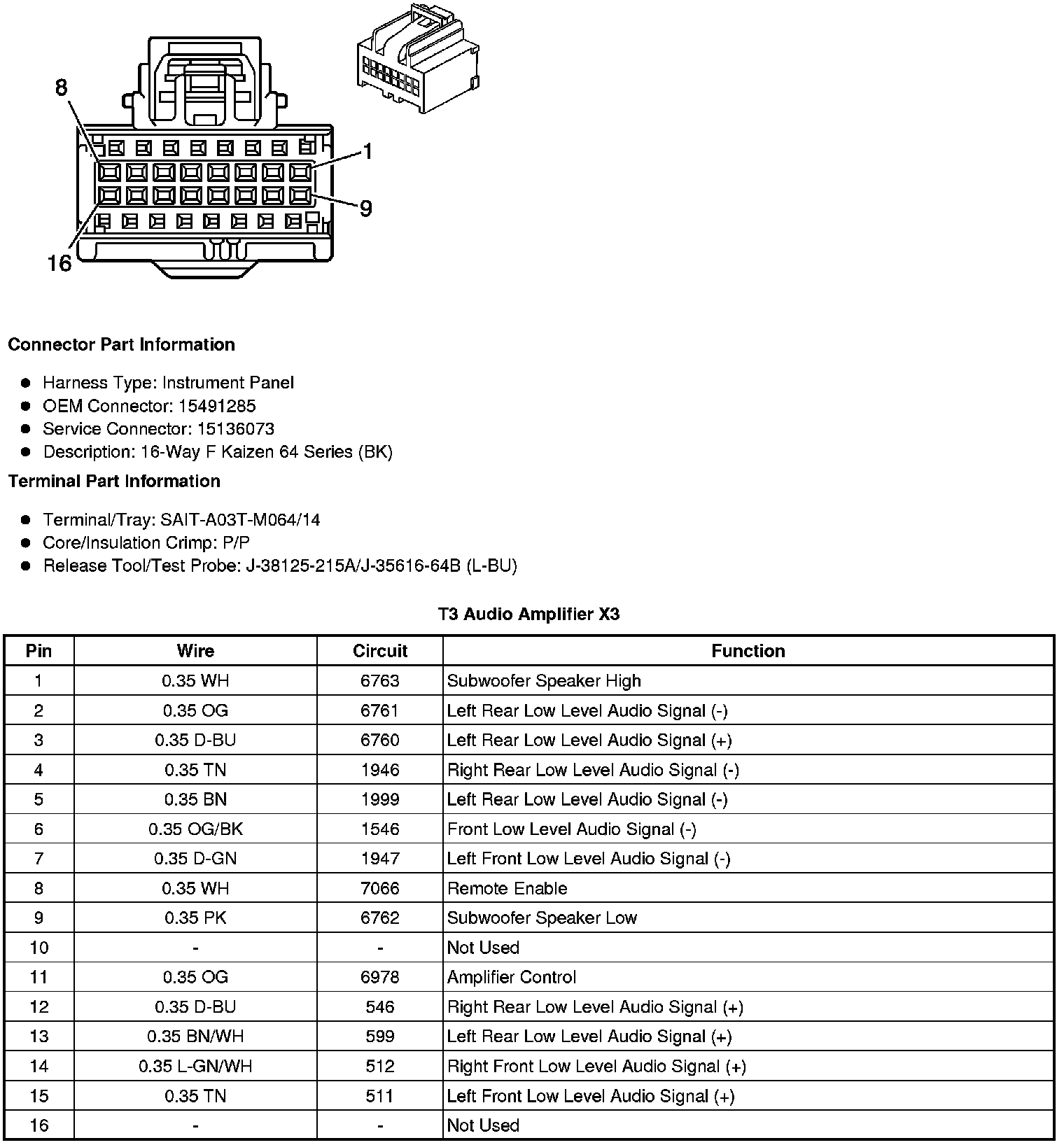

T3 Audio Amplifier X3
T8A Ignition Coil 1
T8B Ignition Coil 2

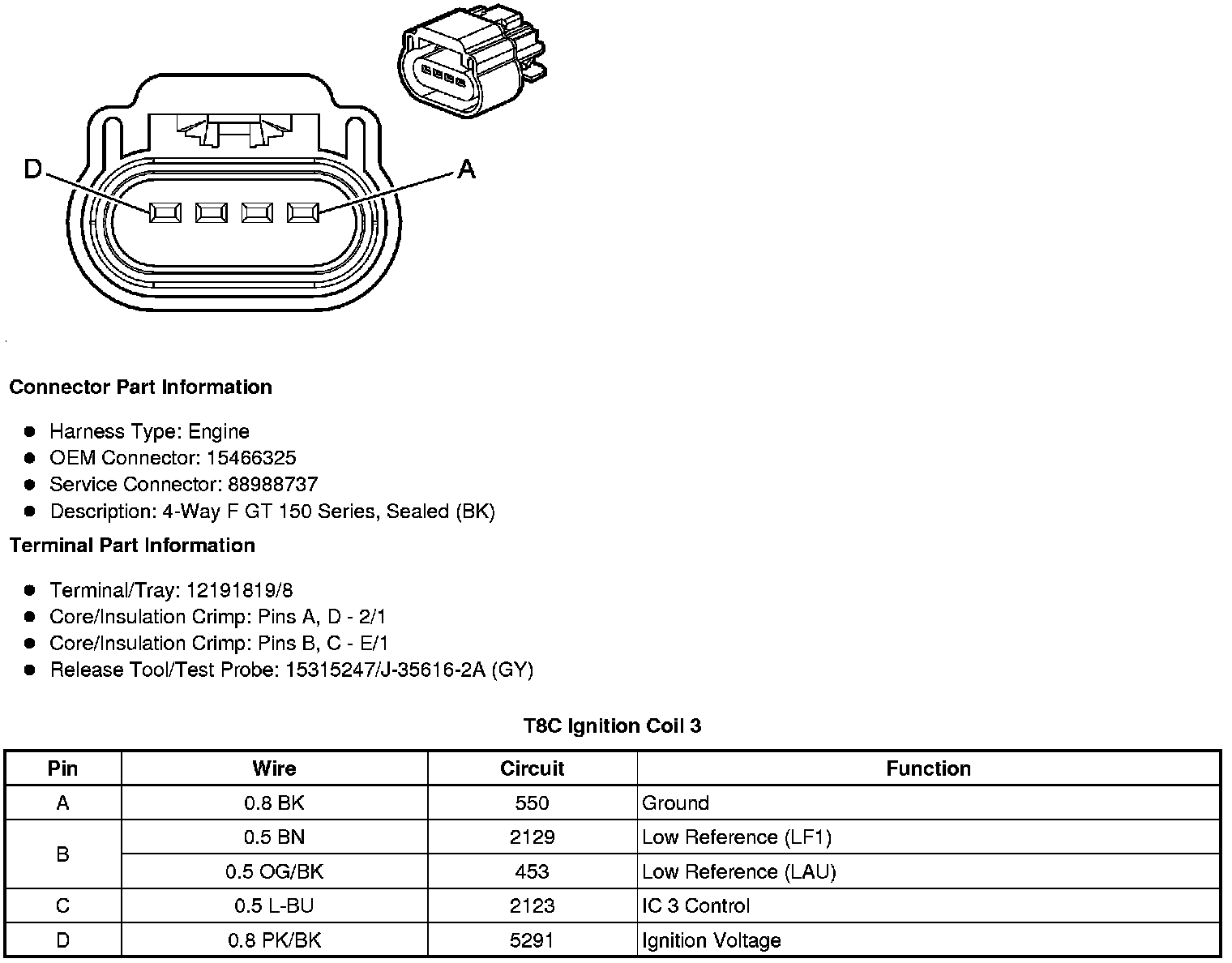

T8C Ignition Coil 3

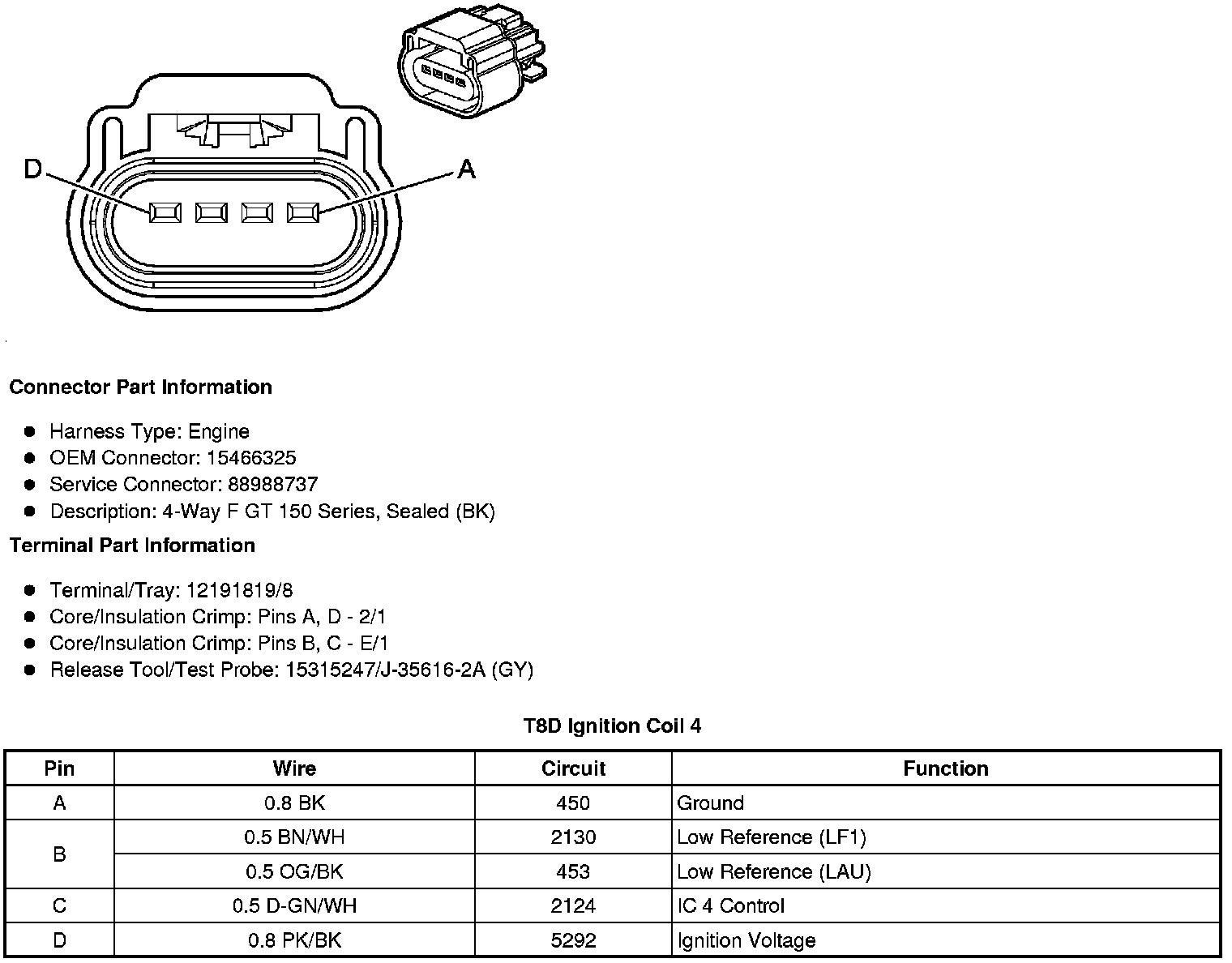

T8D Ignition Coil 4
T8E Ignition Coil 5
T8F Ignition Coil 6
T10C Keyless Entry Antenna - Left Front Door Handle

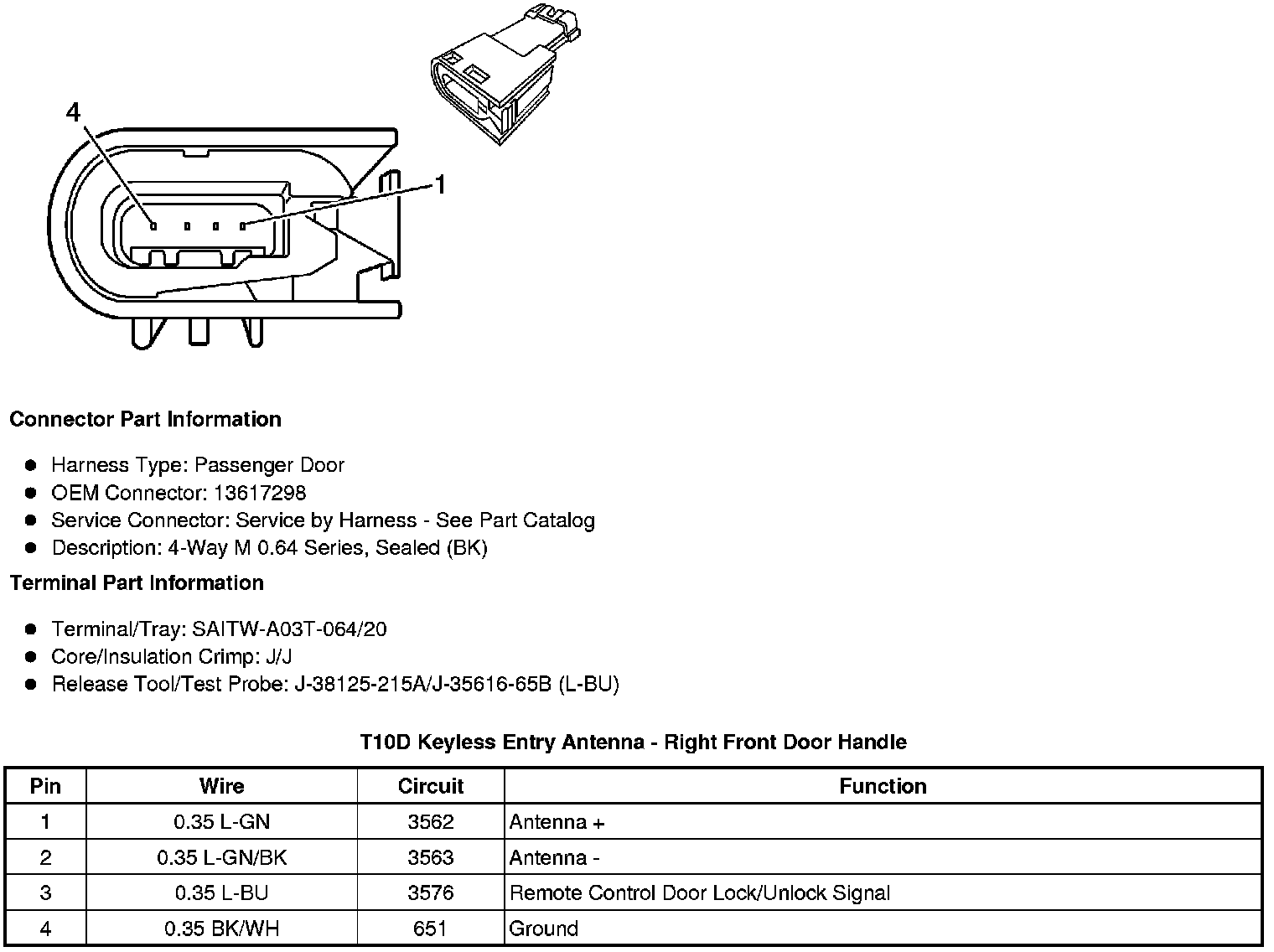

T10D Keyless Entry Antenna - Right Front Door Handle

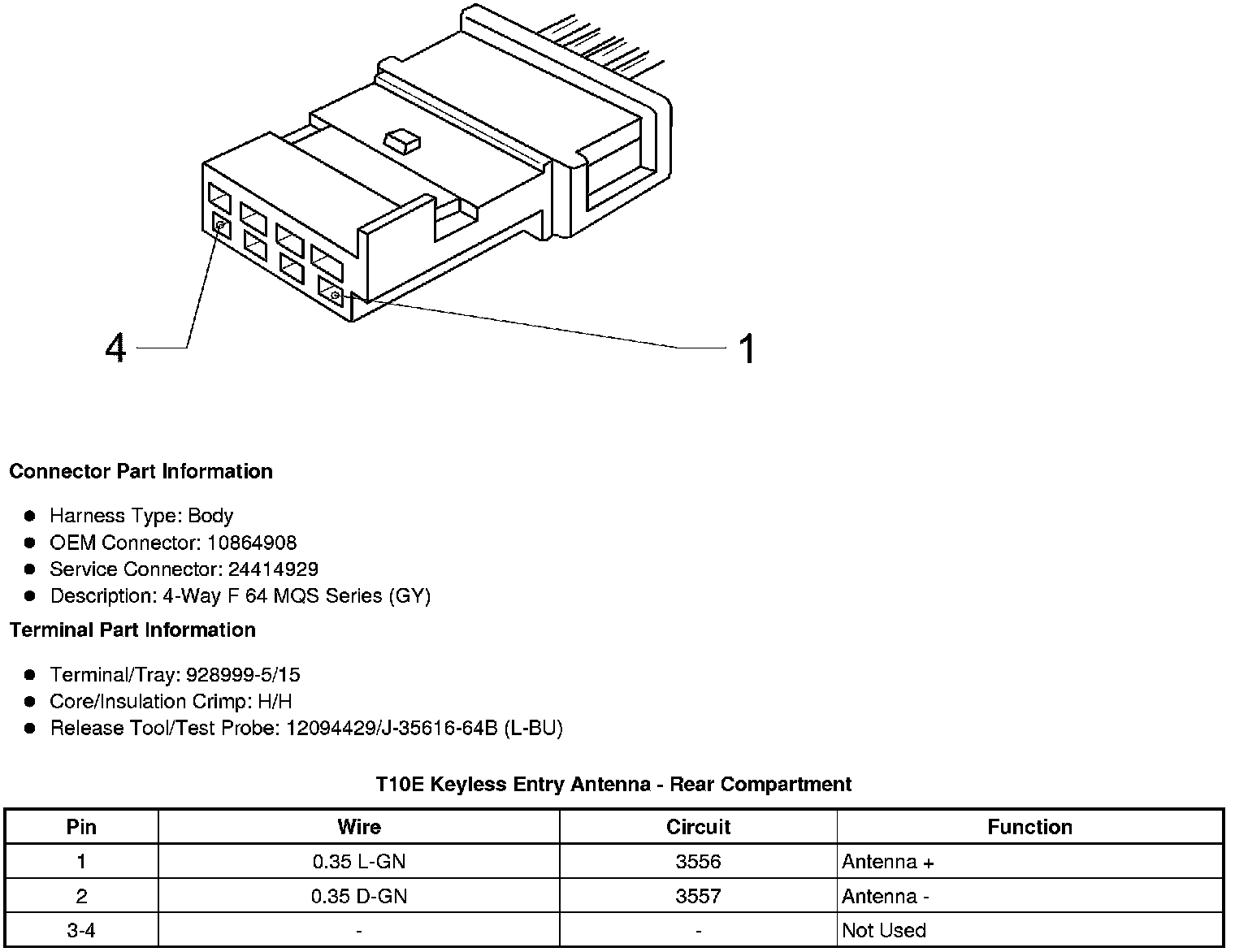

T10E Keyless Entry Antenna - Rear Compartment

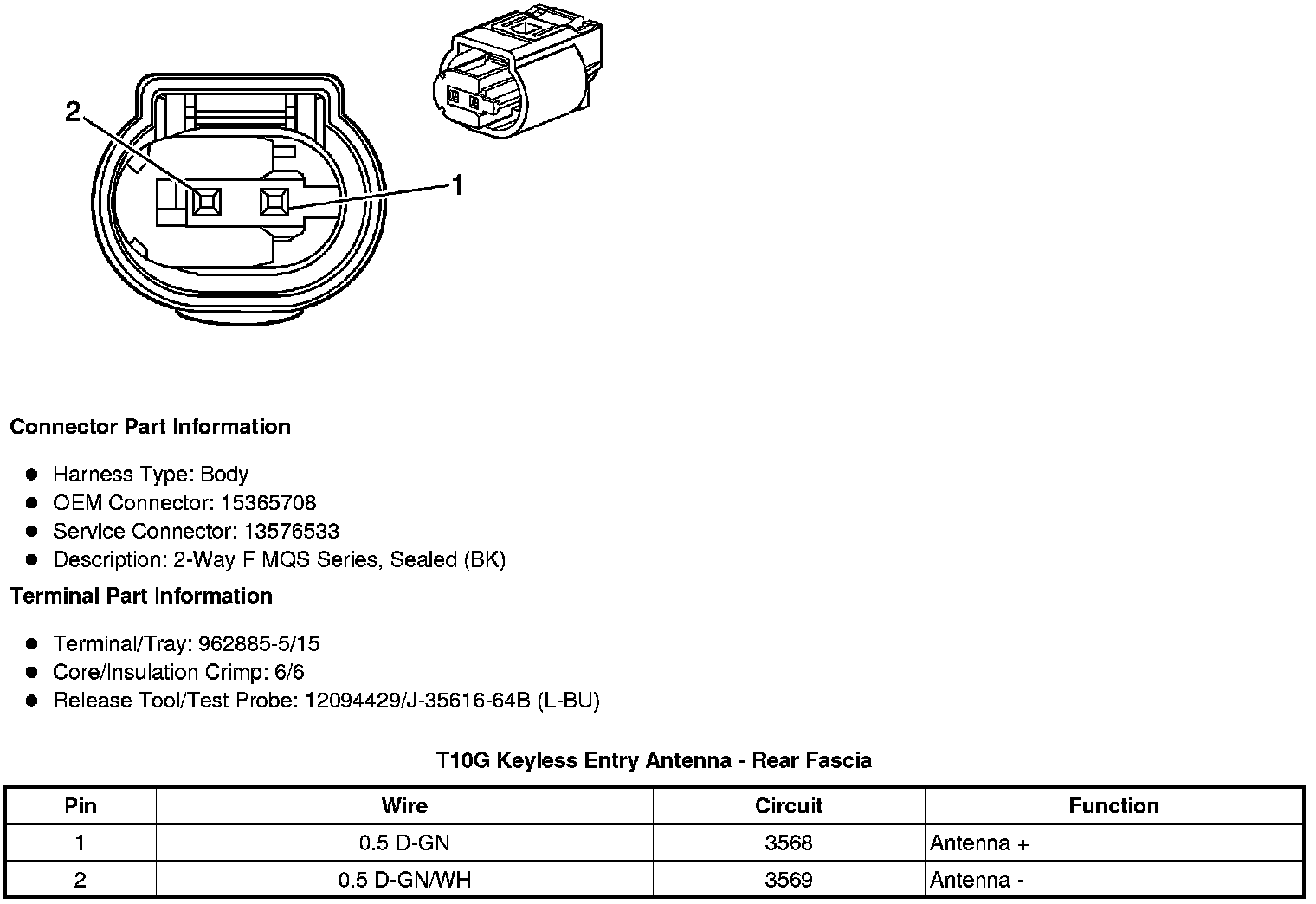

T10G Keyless Entry Antenna - Rear Fascia

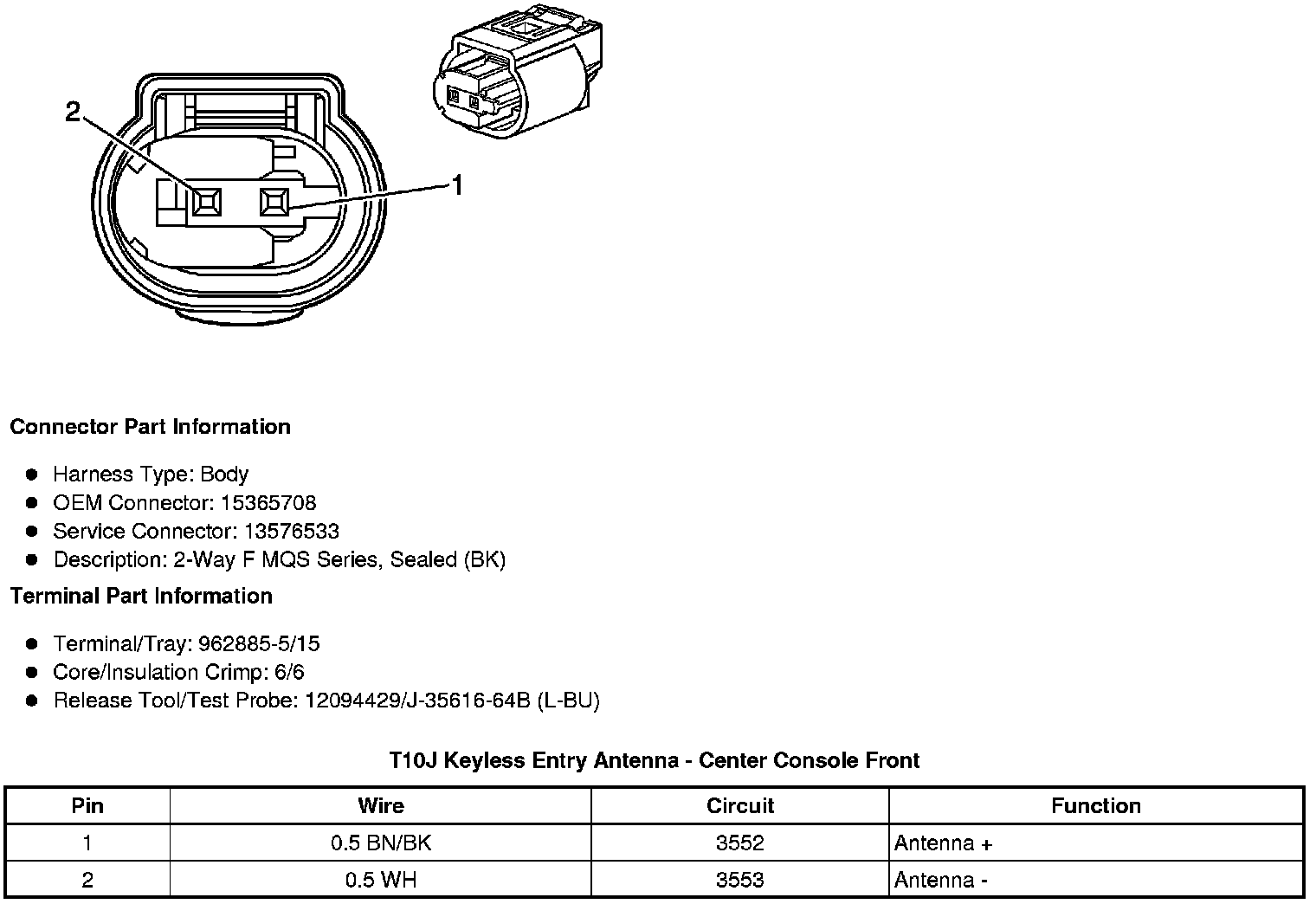

T10J Keyless Entry Antenna - Center Console Front

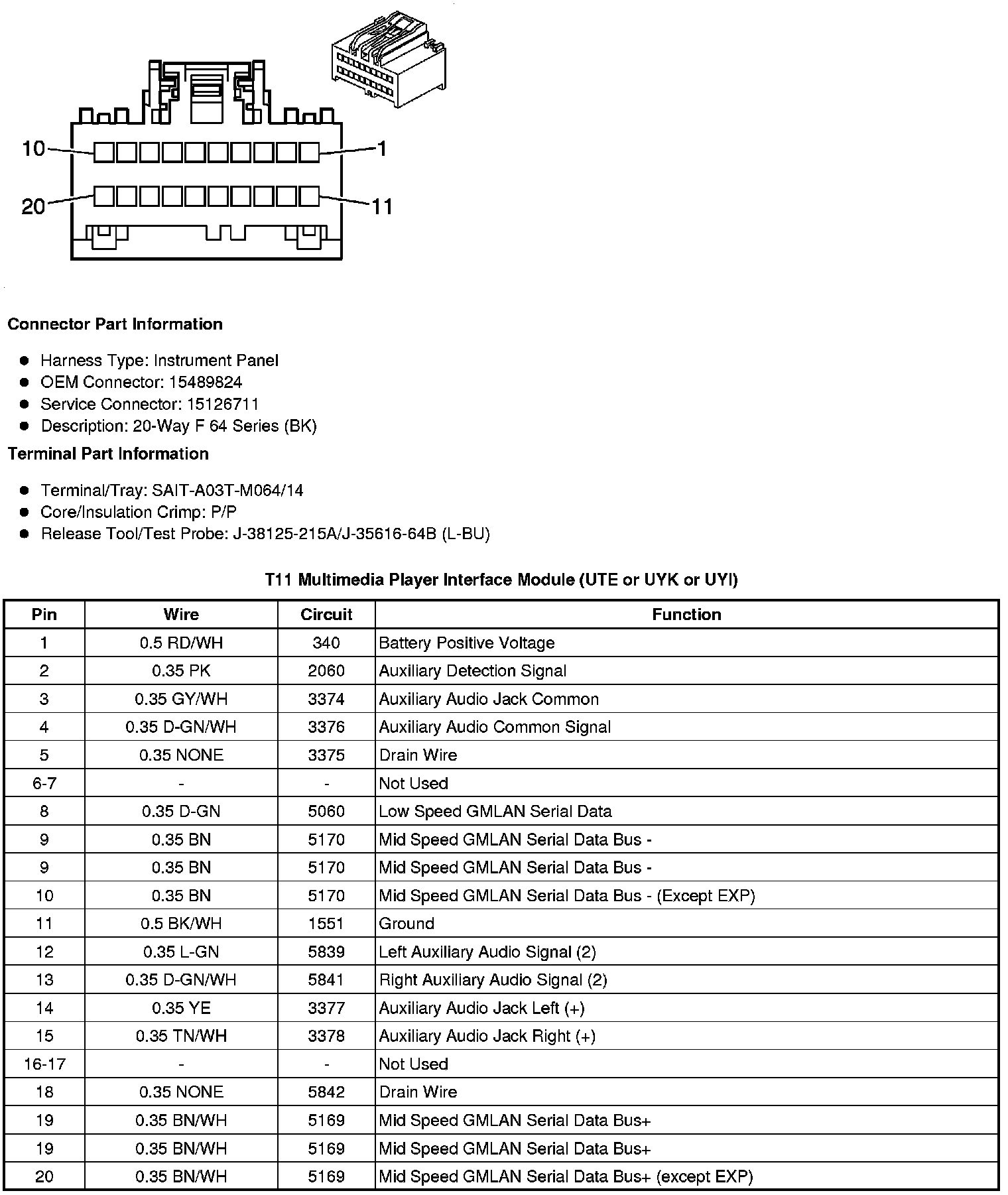

T11 Multimedia Player Interface Module (UTE or UYK or UYI)

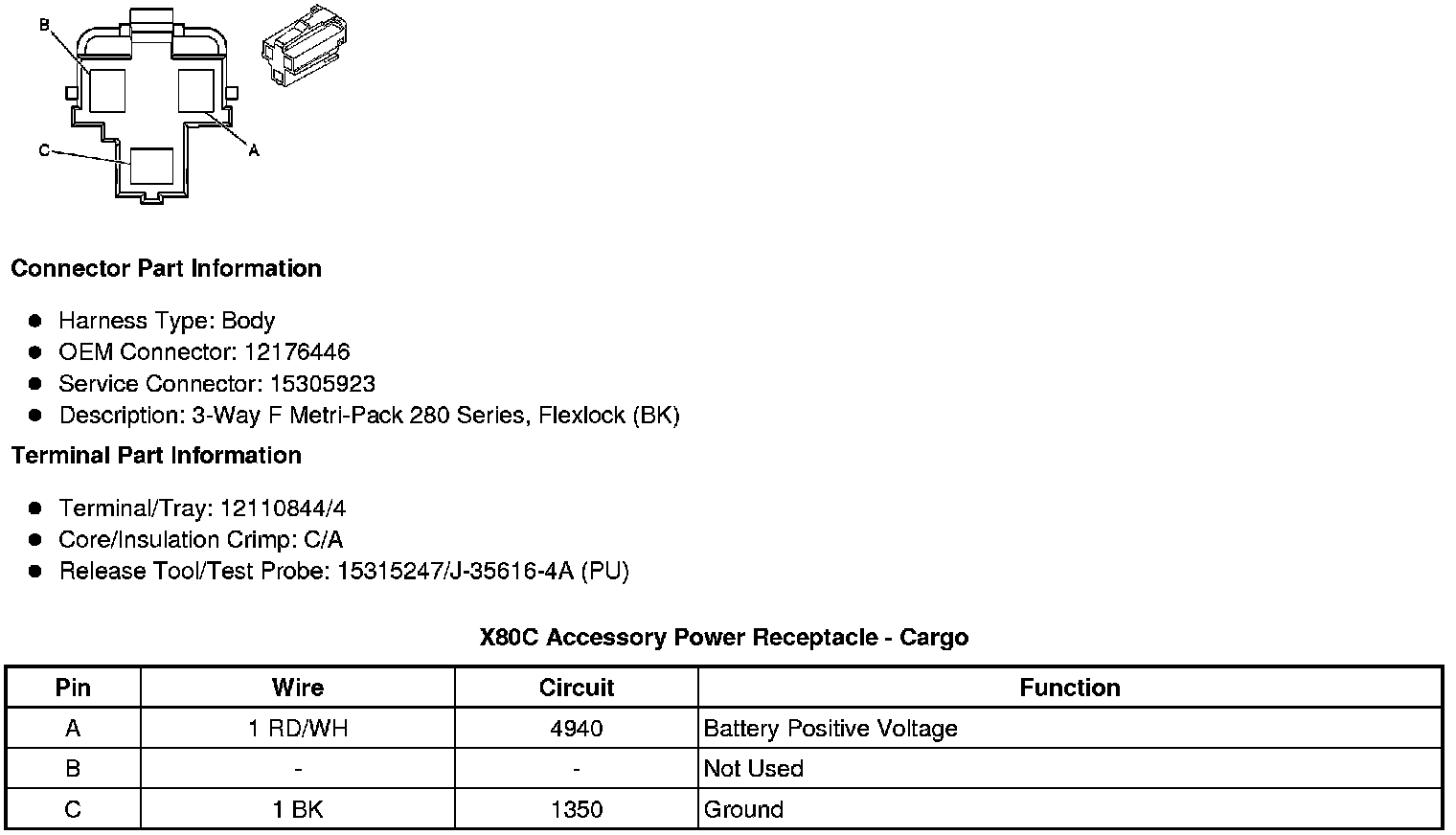

X80C Accessory Power Receptacle - Cargo

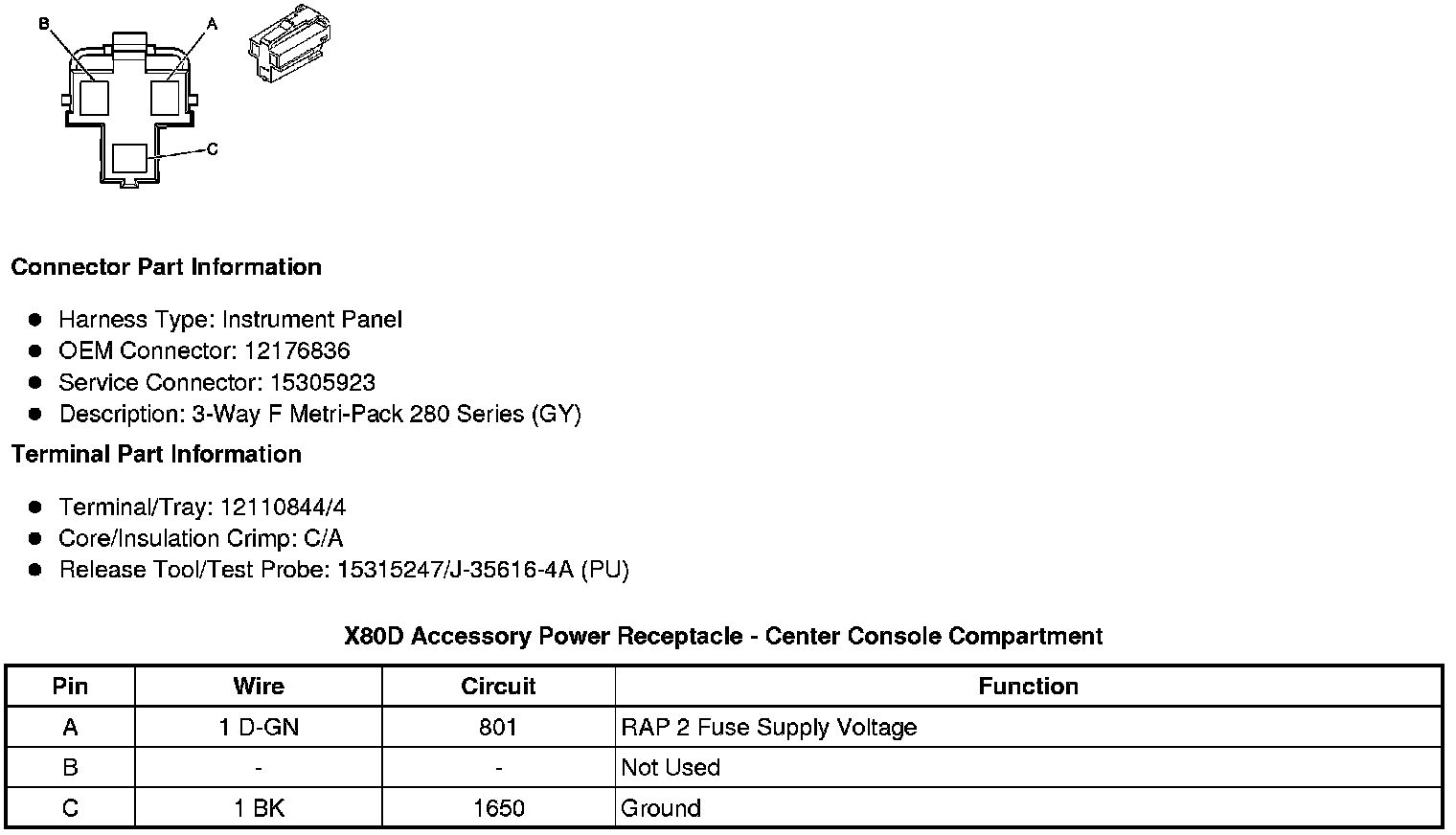

X80D Accessory Power Receptacle - Center Console Compartment

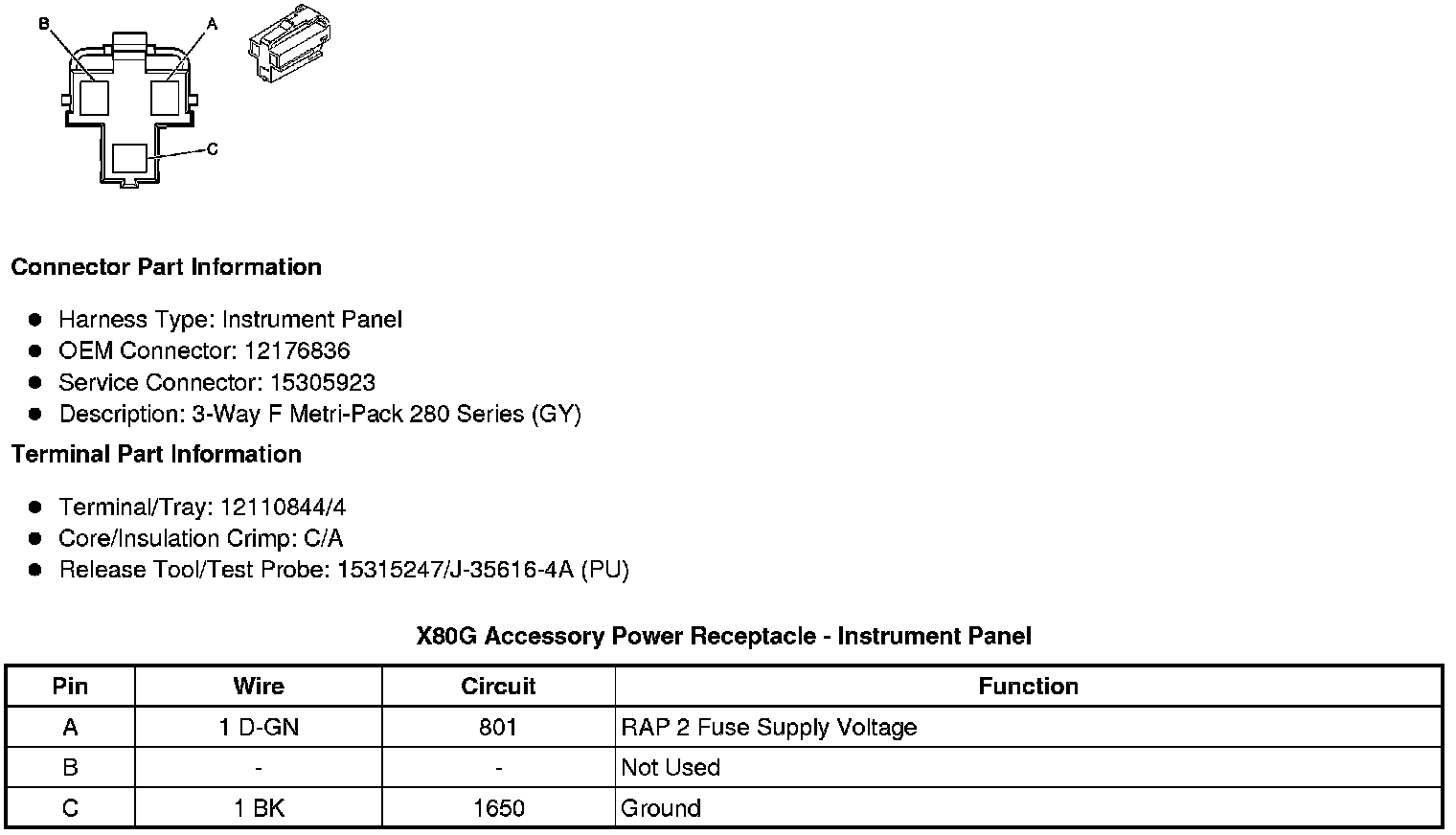

X80G Accessory Power Receptacle - Instrument Panel

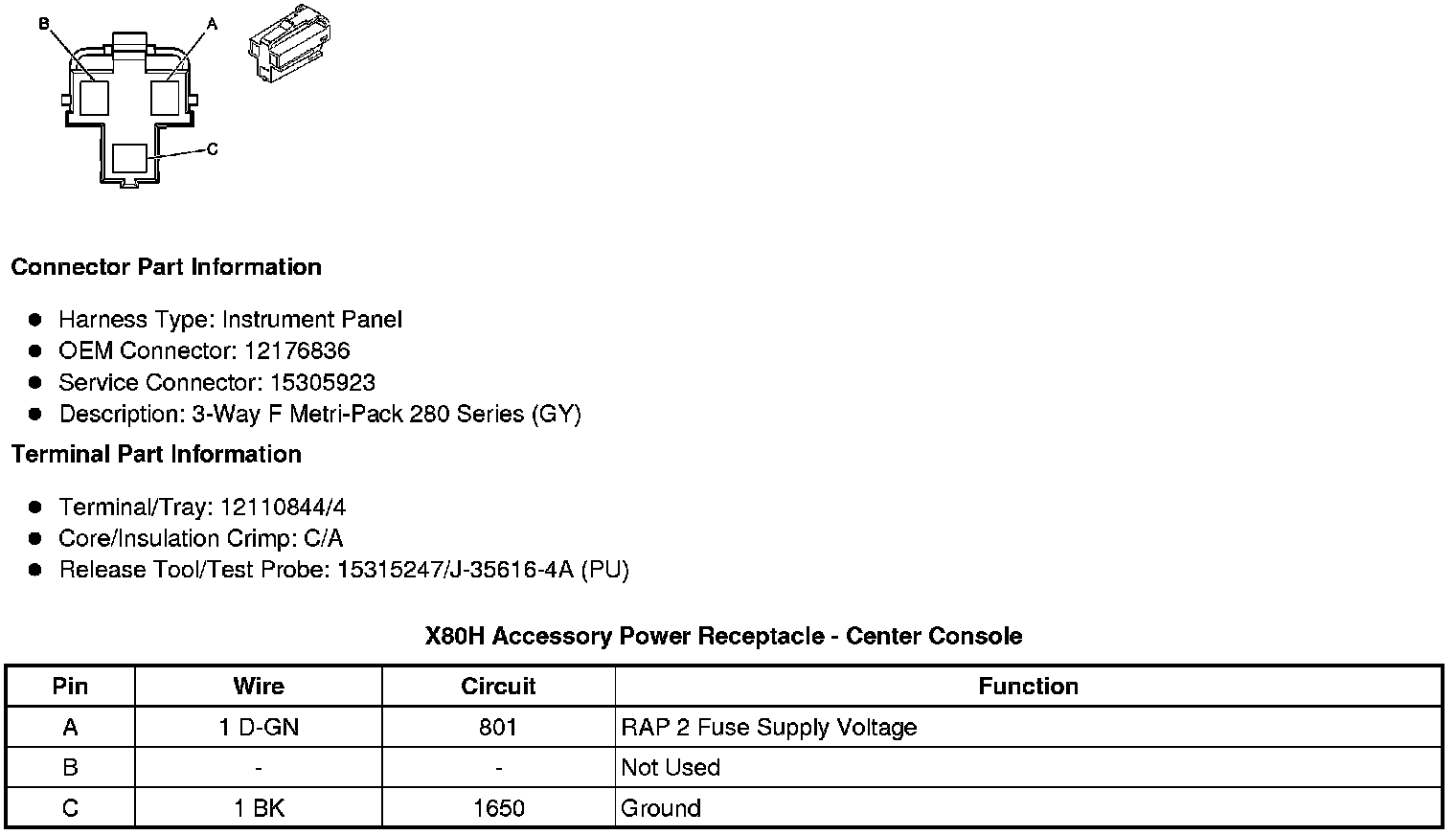

X80H Accessory Power Receptacle - Center Console

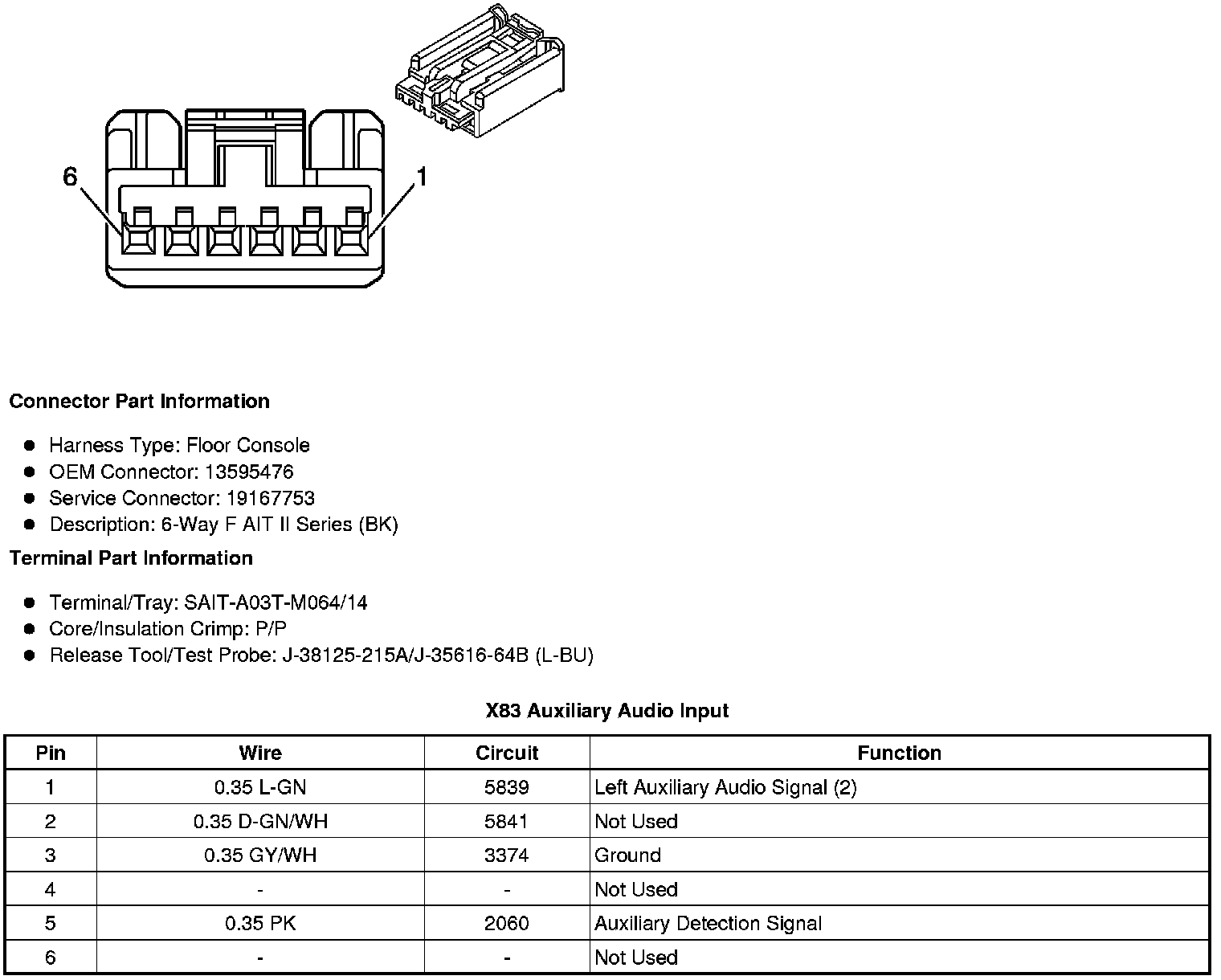

X83 Auxiliary Audio Input

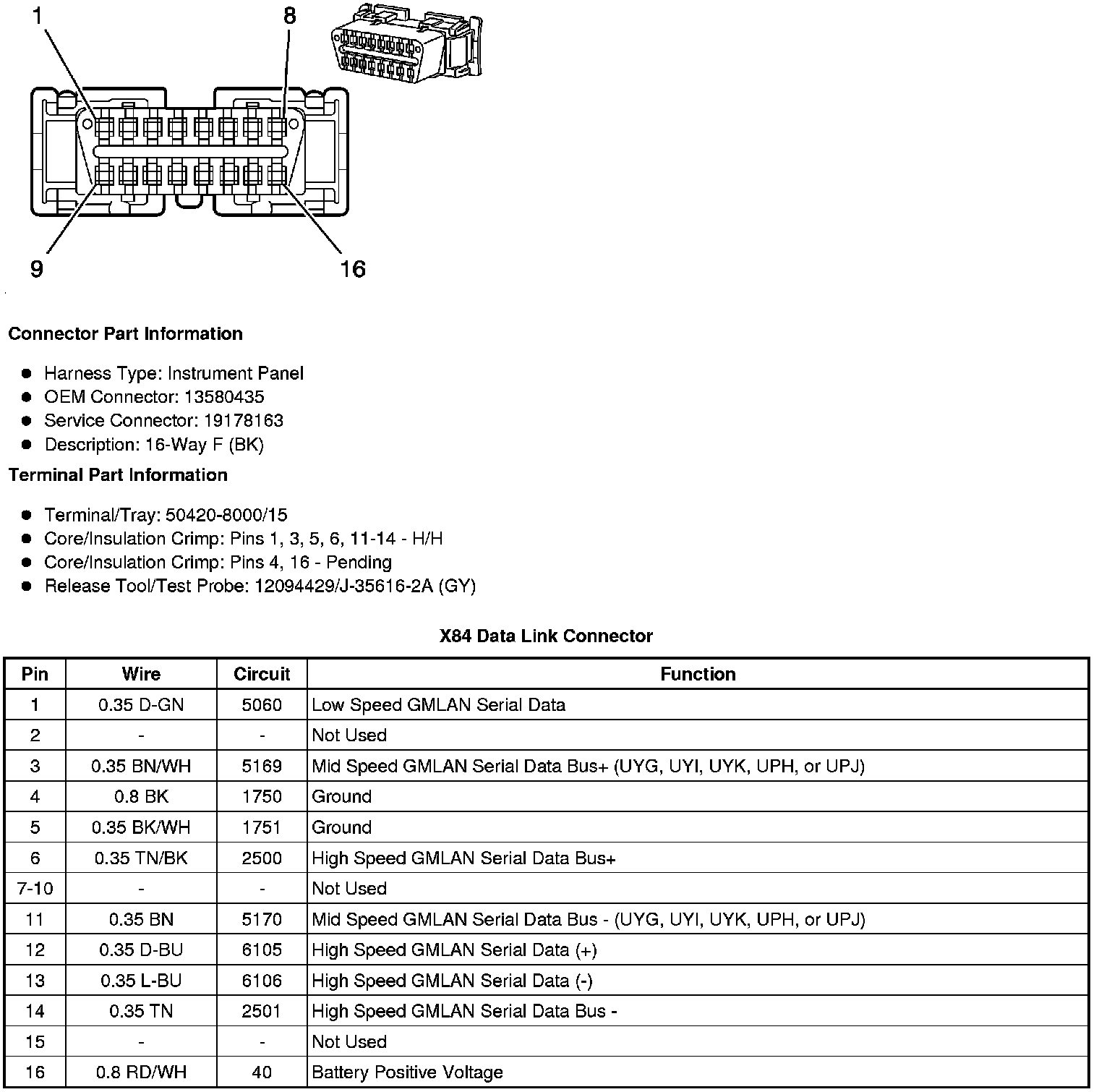

X84 Data Link Connector
X85 Steering Wheel Air Bag Coil X1

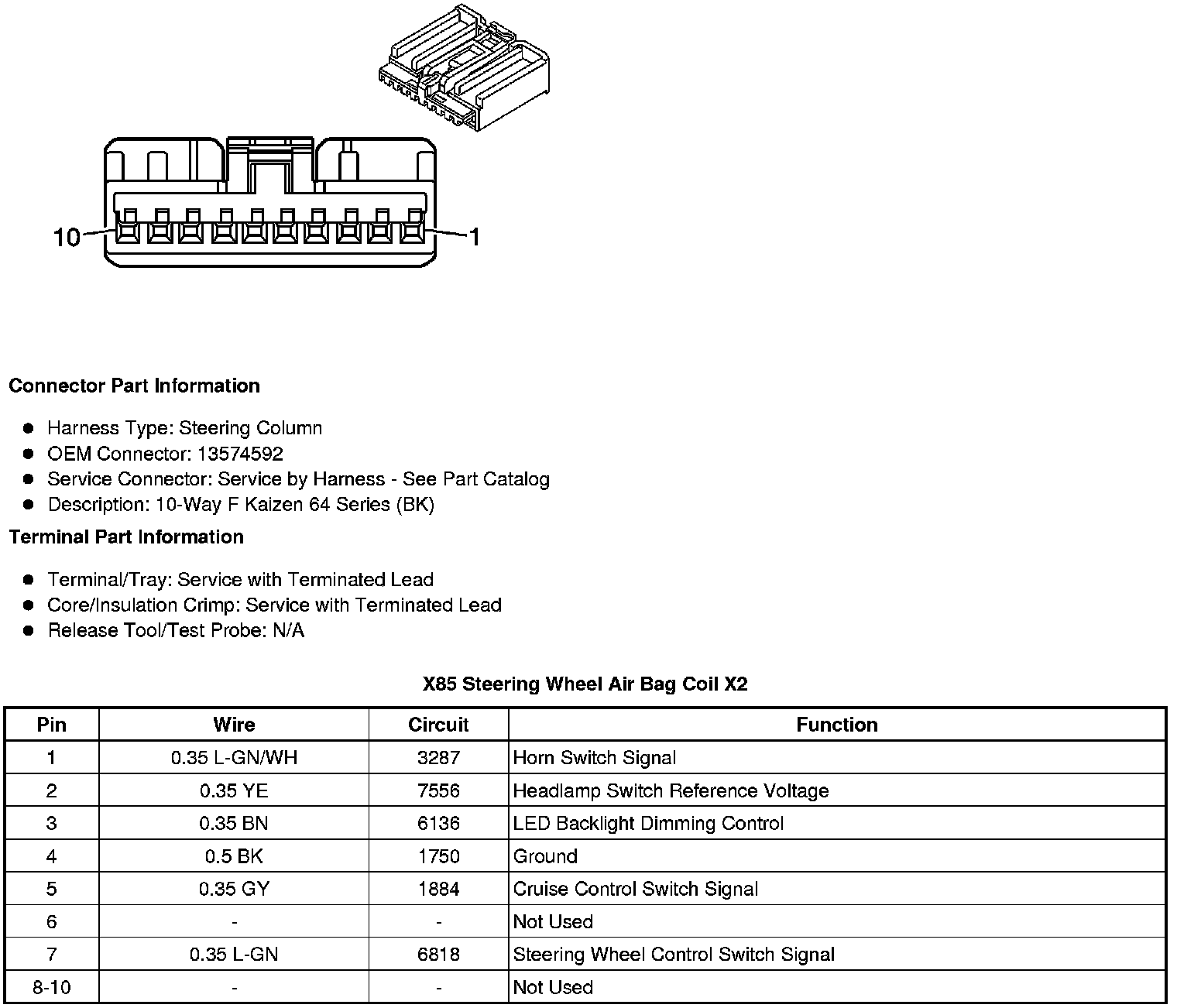

X85 Steering Wheel Air Bag Coil X2

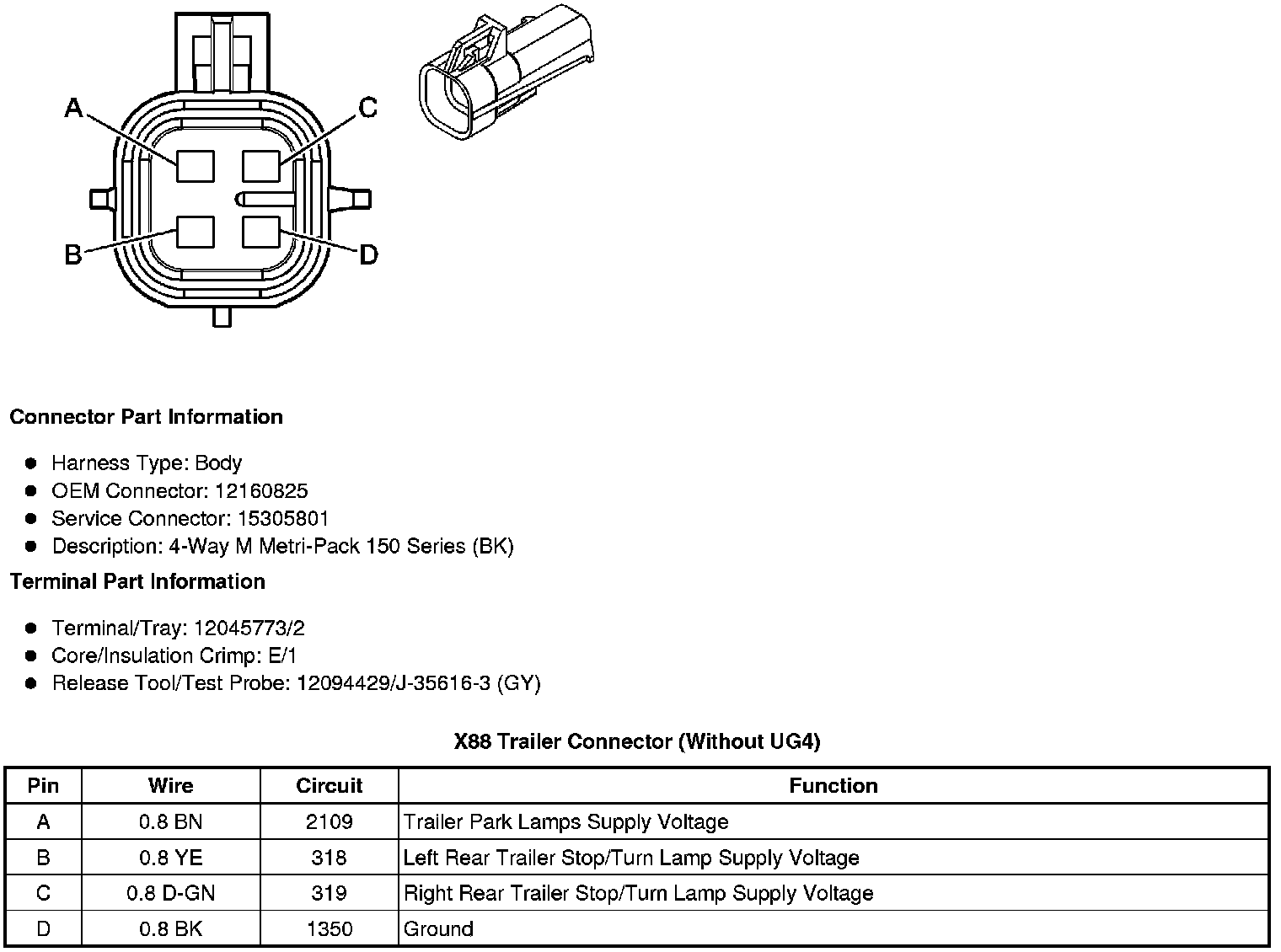

X88 Trailer Connector (Without UG4)
